Skid Loader - Illegal Smile Green

Commuting – 1 Child Passenger – E-Assist Midtail

$4,599.00 USD

~~$0.00 USD~~ $4,599.00 USD

Sale

Size Small Medium Large

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Just as Easy, Not as Big

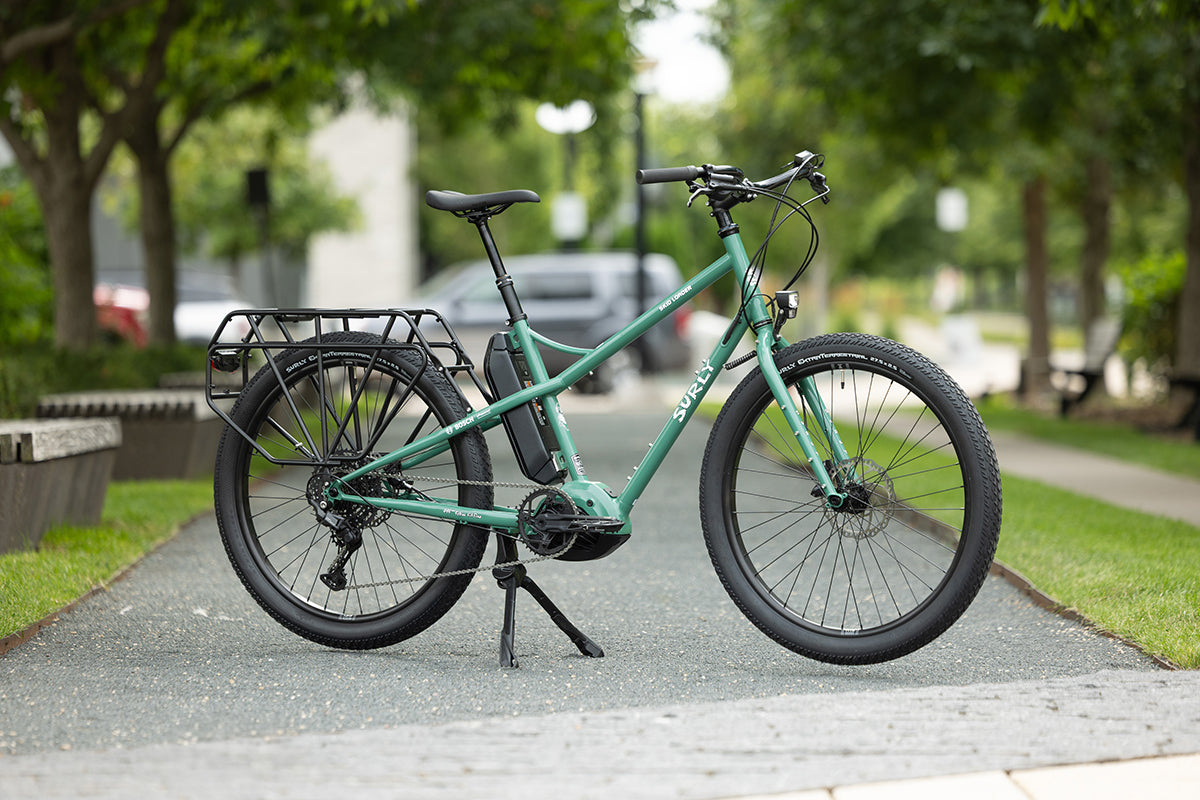

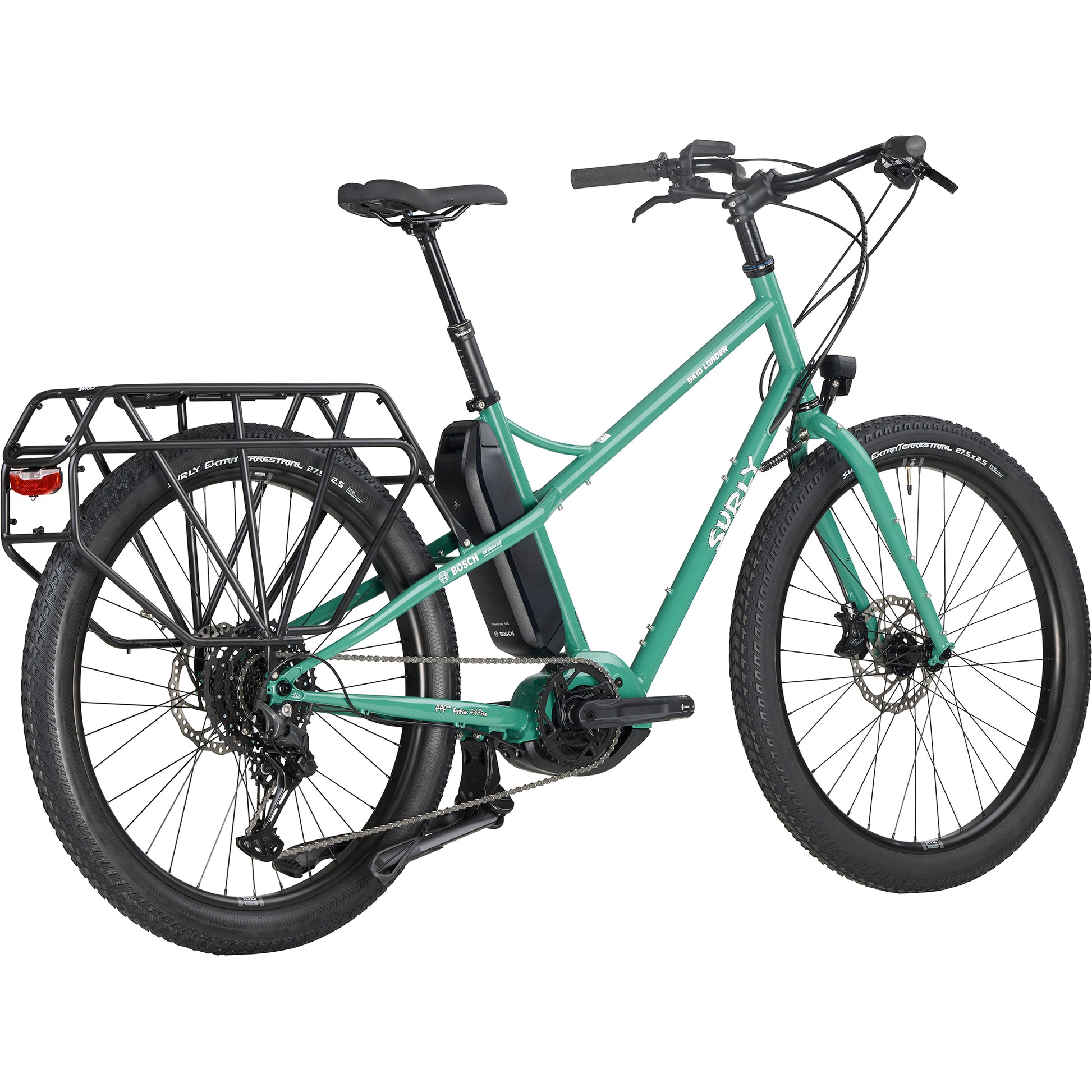

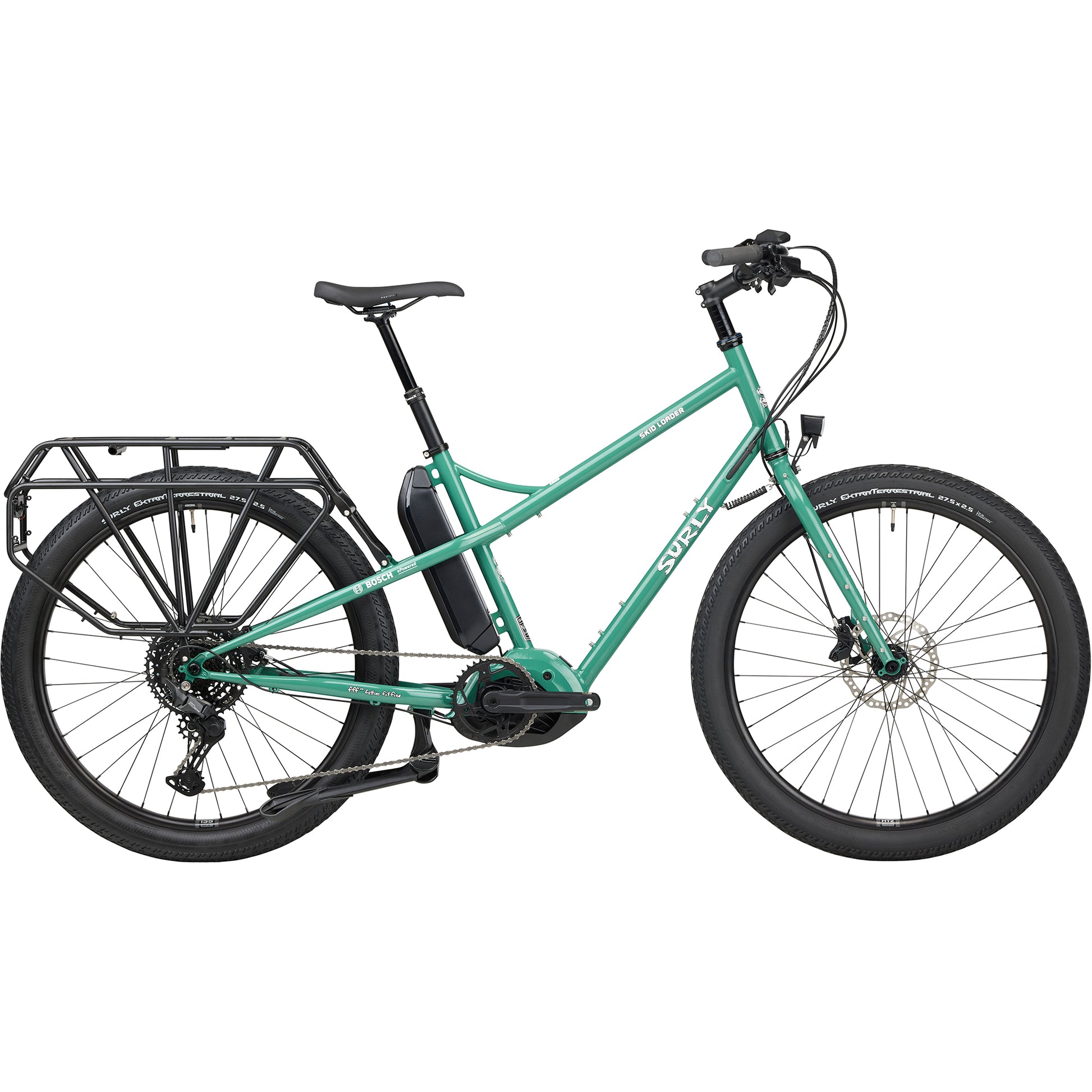

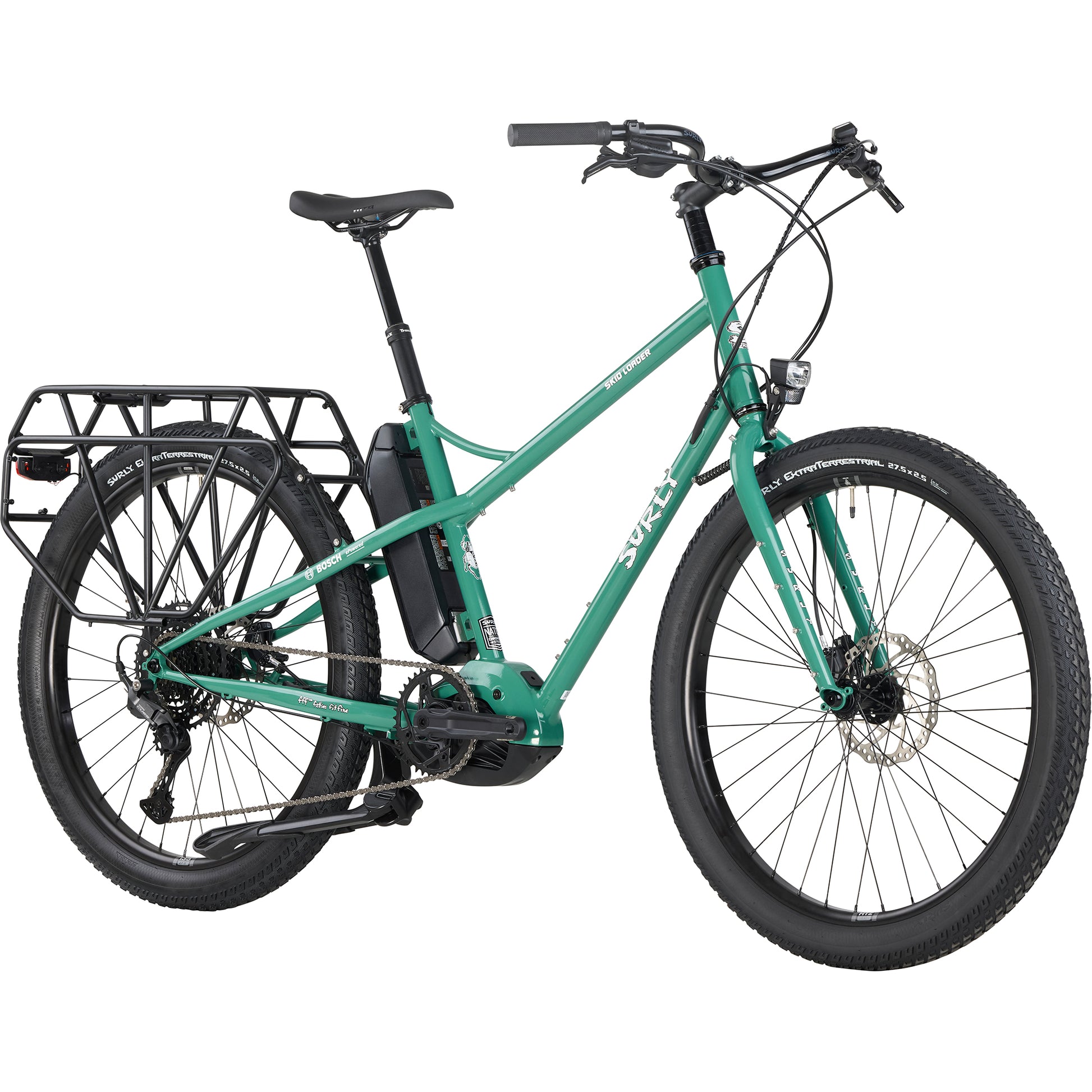

Cutting back on car trips is a worthy undertaking, especially in these times of planetary peril. With its electric-assist motor and extreme hauling capabilities, our compact electric cargo bike Skid Loader invites those inclined to throw a leg over and wave their middle digits at downtown gridlock. Built for finding more ways to drive less and ferrying various materials to work, play, or wherever, we gave Skid Loader the utility of a long-tail and a manageable footprint that fits wherever a normal bike does.

Comfortable and compliant under load, Skid Loader also enjoys cutting loose without cargo. Engineered to ride and feel like a regular bike, its 27.5” wheel platform provides abundant tire options you don’t get from cargo bikes rolling on smaller wheels. And because it’s a Surly, we gave it ample tire clearance and built it for commutes that go from bus stop to bandit trail. We also gave all three frame sizes adequate standover and a dropper post to fit riders of assorted shapes and sizes. Furnished with useful accessory barnacles and internal routing for just about everything, Skid Loader’s scaled-down and feature-packed cargo frame removes the roadblocks between you and riding whenever the hell you want.

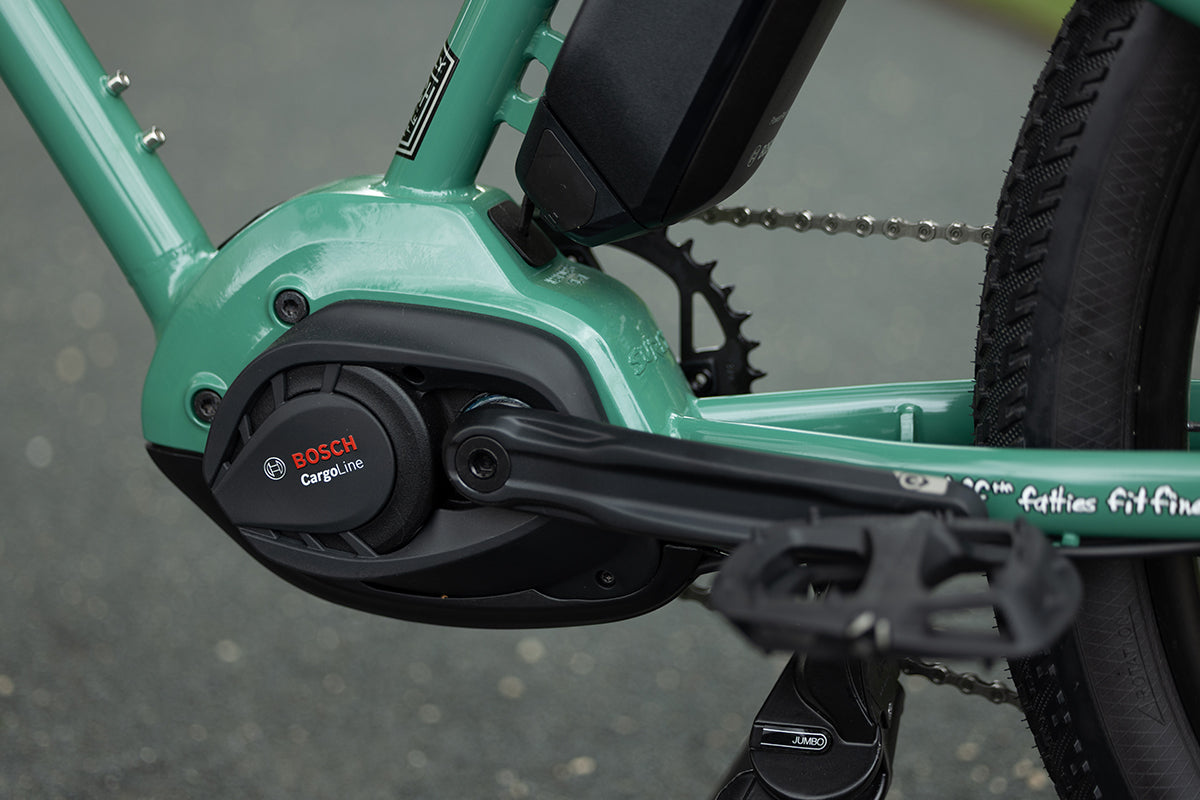

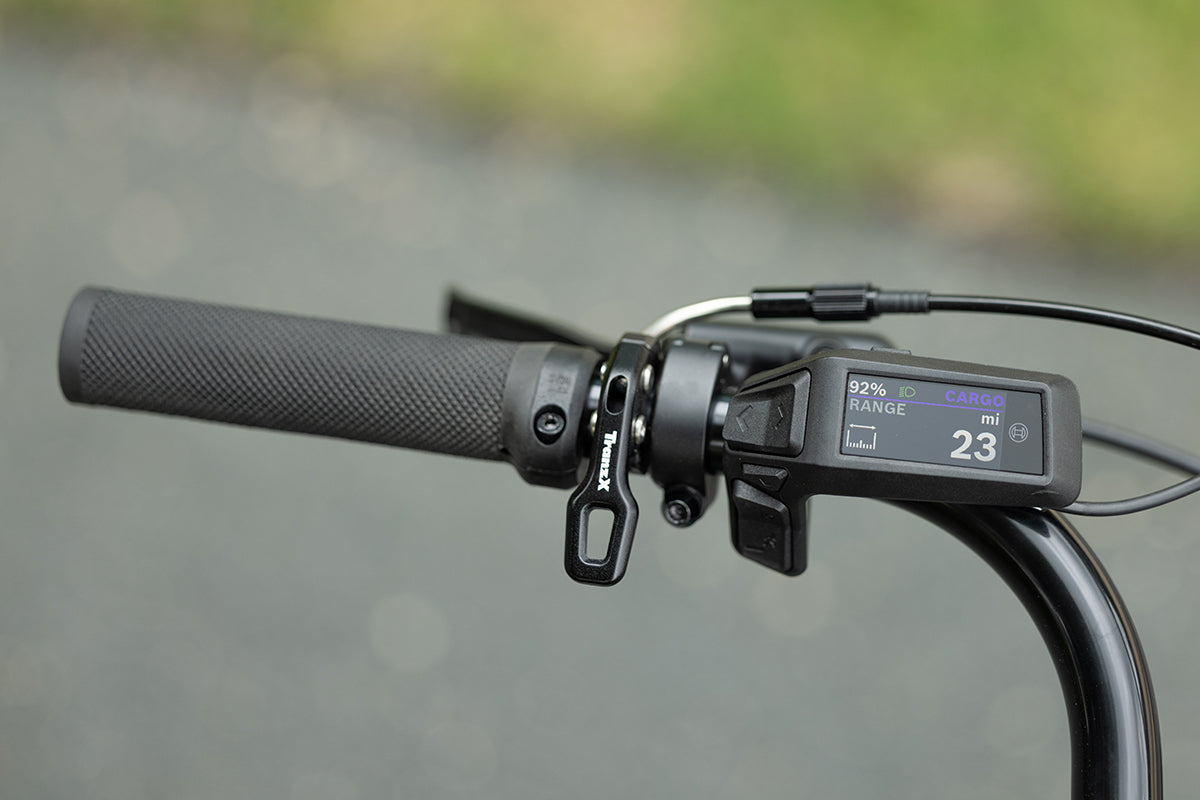

Equipped with Bosch Performance Line Cargo (Smart System) with Purion 200 Remote, featuring four invigorating levels of ride assist
Capable of running dual batteries for extended range

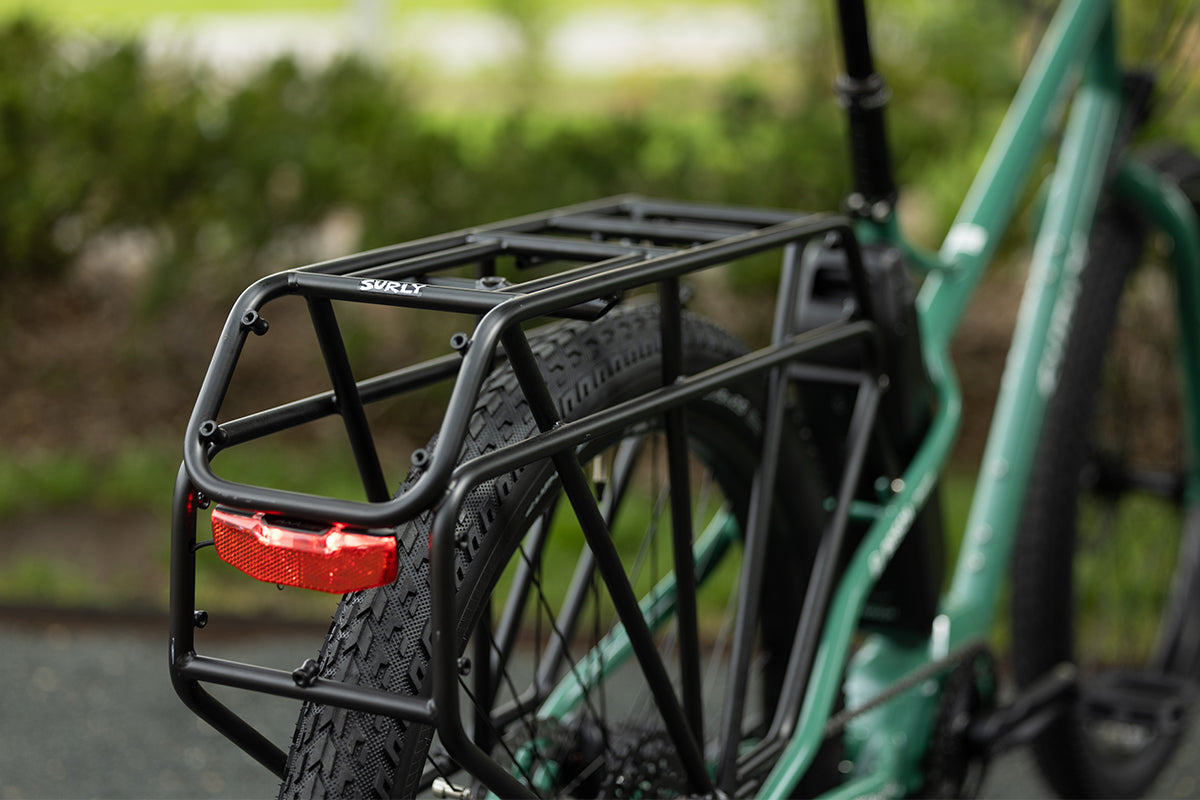

Dedicated rear rack rated for 100 pounds of potatoes, thanks to beefed-up M6 hardware (The maximum cargo capacity of the deck alone is 59lb (27kg))
Internal cable routing for dropper post, brake, shifter, and lights
Mounts for fenders, front rack, and bottle cages (two on Medium and Large, one on Small)
Stable dual-leg kickstand (Ursus Jumbo 80) and front wheel stabilizer for your loading convenience
Sturdy, full-size wheels and large-volume 27.5 x 2.5” ExtraTerrestrial tires

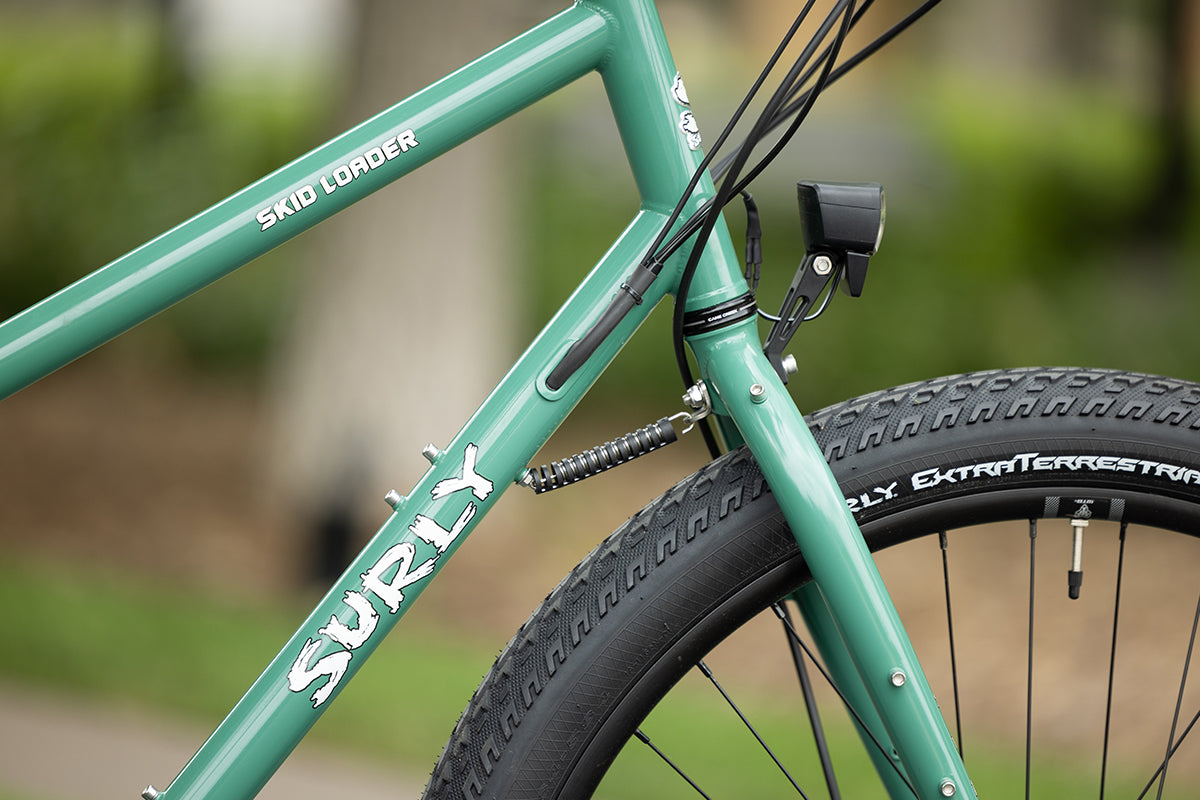

Integrated headlights and taillights for sunrise and sunset cruises
Meets UL 2849, and UL 2271 certification

Specifications

Build Kit

Frameset

Frame

100% Surly Chromoly Steel, Natch tubing, double-butted main traingle, TIG welded, E.D. coated

Color

Illegal Smile Green

Fork

100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Components

Headset

Cane Creek Viscoset Upper / 40 Series Lower 1-1/8"

Seatpost Clamp

Surly Stainless

Seatpost

Tranz-X YSP15 Dropper, 120 mm travel

Stem

Kalloy 31.8

Grips/Bar Tape

Velo Black

Saddle

WTB Volt Medium

Rear Rack

Surly Skid Loader dedicated rear rack features M6 hardware and 100-lb. capacity. * The maximum cargo capacity of the deck alone is 59lb (27kg). Please see Skid Loader Rack Instructions in documents section below.

Handlebar

Surly Terminal

Lights Included

Yes (AXA Nxt 60 Front, AXA Blueline Rear)

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano CUES U6000 GS

Cassette

Shimano Linkglide LG300 11-48t 10sp

Drive Type

Mid-Drive

Chain

Shimano Linkglide LG500

Crankset

FSA CK-763, 38t

Shifter

Shimano CUES U6000

Brake Levers

Tektro HD-M750

Brake Calipers

Tektro HD-M750, 4 piston

Assist Levels

Eco, Tour+, Cargo, Turbo

Rotors

Tektro 180/180, 6-Bolt

Drive Unit

Bosch Performance Line Cargo (Smart System) with Purion 200 Remote

Ebike Classification

Class 1

Max Assist Speed

20 mph

Motor Torque

85Nm

Max Motor Assist

400%

Battery Capacity Watt Hours

545Wh

Battery Type

Frame mounted Lithium-ion, Bosch PowerPack 545 battery

Removable Battery

Yes

Battery Power Volts

36V

Battery Capacity Amp Hours

14.4Ah

Estimated Charge Time

50% charge: approx. 1.8 hours
100% charge: approx. 4.9 hours

Charger Included

Yes, Bosch 4A charger

Range Estimate

A 15–50 mile range is normal for Skid Loader, but your mileage may vary depending on support mode, rider weight, cargo load, and other variables. Peruse the Bosch E-bike Range Calculator to learn how you can extend your bike’s range. https://www.bosch-ebike.com/range-cockpit/?language=en-us

Gross Payload

400-lb. max weight capacity (rider plus cargo)

Throttle

No

Walk Assist

Yes

Wheels

Front Tire

Surly ExtraTerrestrial 27.5 x 2.5", 60 tpi, tubeless ready

Rear Tire

Surly ExtraTerrestrial 27.5 x 2.5", 60 tpi, tubeless ready

Front Hub

Novatec 15 x 110 mm, 6-bolt, 36h

Rear Hub

Novatec 12 x 148 mm, 6-bolt, 36h

Spoke

14 Gauge Stainless

Rim

WTB HTZ Trail i35 27.5", TCS 2.0

Weight

Complete Bike

60 lbs 15 oz for Medium

*Specifications are subject to change without notice

Geometry

Size	Small	Medium	Large
A. Effective Top Tube	570.0	610.0	650.0
B. Stand Over	695.0	732.0	745.0
C. Reach	398.6	424.7	450.3
D. Stack	597.6	625.4	653.2
E. Total Seat Tube Length	471.0	471.0	500.0
F. Headtube Length	170.0	200.0	230.0
G. Headtube Angle	68.0	68.0	68.0
H. Seat Tube Angle	74.0	73.5	73.0
I. BB Drop	60.0	60.0	60.0
J. BB Height	297.3	297.3	297.3
K. Chainstay Length	535.0	535.0	535.0
L. Fork Length Axle to Crown	417.0	417.0	417.0
M. Fork Offset	50.0	50.0	50.0
N. Wheelbase	1201.4	1238.7	1275.5
Crank Arm Length	170.0	170.0	170.0
Handlebar Width	718.0	735.0	735.0
Recommended Rider Height	147.0 - 175.0	157.0 - 185.0	167.0 - 195.0
Stem Length	60.0	70.0	80.0

Measurements based on:

27.5 x 2.5" tire which is the equivalent of an ISO 584 x 63 tire, with an outside diameter of 714.5mm

Frame Specs

Design Wheel/Tire Sizes 27.5 x 2.5"
Frame Construction 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork Construction 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Suspension Fork Length (Travel) N/A
Rigid Fork Length 420mm
Fork Offset 50mm
Axle to Crown 420mm
Rear Spacing 12 x 148mm (Surly axle included)
Front Brake (Rotor) 51mm I.S. (203mm max rotor)
Headset - Upper EC34/28.6
Headset - Lower EC34/30
Front Spacing 15 x 110mm (Surly axle included)
Steerer Tube Ø28.6mm (1-1/8")
Crown Race Ø30mm (1-1/8")
Seatpost Ø30.9mm
Dropper Post Compatible Yes
Seatpost Clamp Ø33.1mm
Accessory Mounts Dual Bosch PowerPack Battery Mounts
Bottle Mounts Frame: 1 Standard (S); 2 Standard (M–L)
Fork Mounts Two 4-pack mounts
Front Fender Mounts Yes
Rear Fender Mounts Yes

Documents

FAQ

Q: Does the Skid Loader work with Surly Bill and Ted Trailers?

A: Out of the box, the Skid Loader is not compatible with our Bill and Ted Trailer system due to rear derailleur cable routing interference. Bill and Ted trailer hitches are best compatible with older rear derailleurs where the cable housing forms a loop around the rear axle and enters the derailleur horizontally from the rear.

Please note that replacing the derailleur may require additional drivetrain modifications to ensure proper functionality. The Skid Loader rear rack is direct mount compatible with the Piccolo and Kazoo Burley Trailercycles.

Warranty

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
