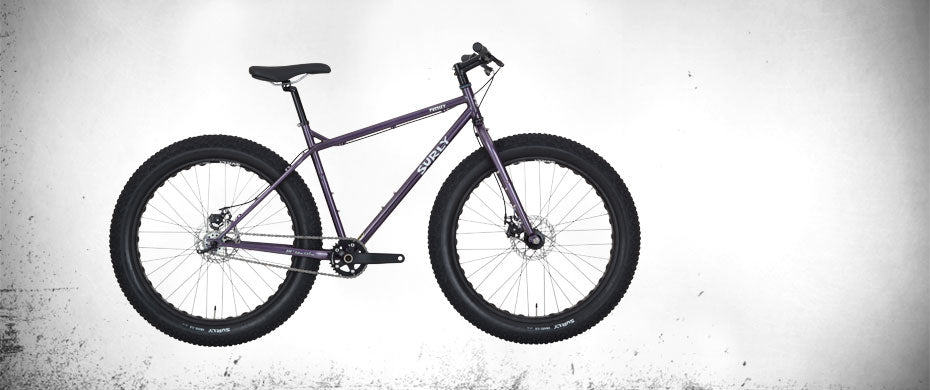

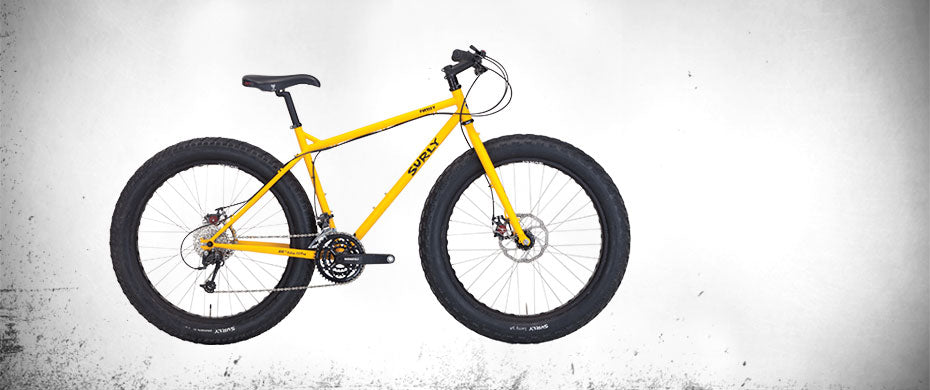

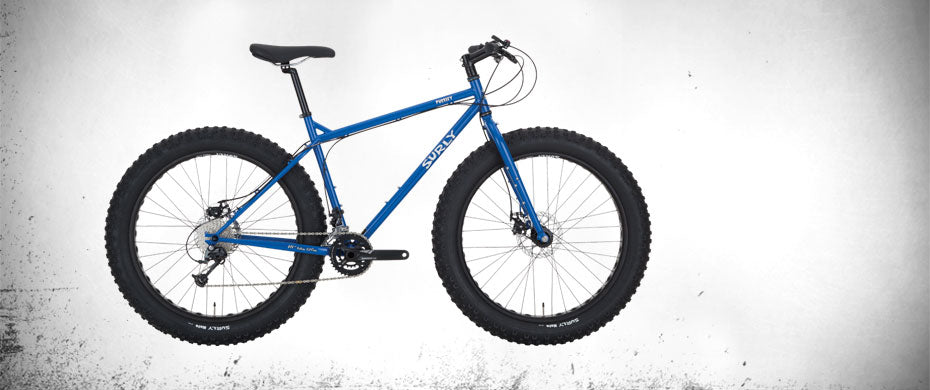

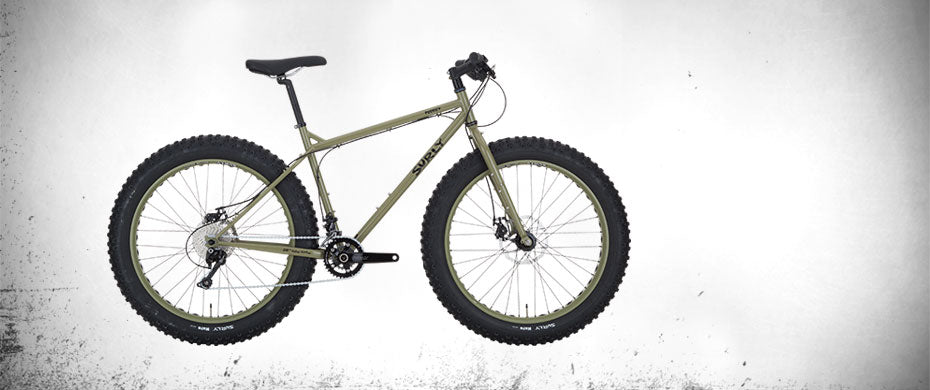

Pugsley

Pugsley

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Many moons ago we began producing the Pugsley because we wanted to ride a bike that could be ridden where other bikes simply faltered. In order to do that, we figured this bicycle needed to have floatation and traction the likes of which have never before been seen. Pugsley is our brilliant solution to this – and it seems to work. This bike rolls through all the sloppiest slop around.

The Pugsley frame is equipped with 135mm spaced horizontal rear-loading dropouts with a derailleur hanger. The rear end of the frame is offset 17.5mm so any type of drivetrain setup can be used without having to worry about chain-on-tire rub. Pugsley frames also come with an internal ED coating. This is a process that coats the frame inside and out with a protective layer to provide a foundation for the finish and give an added level of protection from corrosion on the inside of the frame. We still recommend treating your frame with a protectant such as Framesaver or Boeshield.

Pugsley is available as a frameset only. The frame will accept tires up to 3.8”wide on 84mm rims. The fork is a 135mm spaced symmetric version with extra water bottle cage brazeons on each leg and can handle a 4.8” tire if you want to run the big meats up front. Being the supremely versatile machine it is, the addition of an offset fork gives the rider the ability to swap front and rear wheels. This can be especially handy if you were to find yourself with a blown freehub or completely annihilated rear derailleur in frigid temps or stranded deep in the indifferent forest.

Specifications

Geometry

Geometry Diagram
SIZE xSmall (14) Small (16) Medium (18) Large (20) xLarge (22)
Reach 387.7 395.6 407.2 416.1 424.9
Stack 558.9 567.5 576.9 593.9 612.8
Head Tube Angle 70.0° 70.5° 70.5° 70.5° 70.5°
Head Tube Length 95.0 102.0 112.0 130.0 150.0
Seat Tube Length 356.5 406.4 457.2 508.0 558.8
BB Drop 55.0 55.0 55.0 55.0 55.0
Wheelbase 1061.6 1067.4 1082.4 1097.3 1112.7
Chainstay Length 448.1 448.1 448.1 448.1 448.1
Top Tube Length, Actual 545.8 554.3 566.5 581.9 600.0
Top Tube Length, Effective 560.0 580.9 595.6 610.1 625.0
Seat Tube Angle 73.0° 72.0° 72.0° 72.0° 72.0°
Standover Height 734.9 758.7 786.5 819.6 853.0
Fork Length 447.0 447.0 447.0 447.0 447.0
Fork Rake 43.0 43.0 43.0 43.0 43.0


All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø740mm

Frame Specs

  • Tubing: Surly 4130 CroMoly steel. Main triangle double-butted. TIG-welded . ED Coated.
  • Rear Dropouts: Surly horizontal rear load, with derailleur hanger; 135mm O.L.D.; offset 17.5mm.
  • Brake Compatibility: 51mm IS disc mounts frame and fork. Note: please check your fork specifications for specific brake adaptor requirements. Some of our forks use rear brake adaptors!
  • Braze-ons/extras: Dual water bottle mounts, Surly Trip Guide full line guides for brake and derailleurs, fender and rack eyelets
  • Seatpost Diameter: 27.2mm
  • Seatpost Clamp Diameter: 30.0mm (Surly stainless included)
  • Headset/Steerer Tube: 1-1/8" threadless
  • Front Derailleur Clamp Diameter: 28.6mm, High direct mount (adaptor included)
  • Bottom Bracket Shell: 100mm wide, standard English threading (1.37" x 24t)
  • Chainring Clearance: Compact triple: 22-32-44t (with 65mm rim)
  • Tire Clearance: 3.8" on 82mm rims. Use of 82mm rims requires the use of Surly Mr. Whirly Offset Double crank, O.D.Crank or truncated cassette to avoid tire/chain rub. Standard mountain triple gearing will work with 65mm rims
  • Fork: 447mm axle to crown, tapered straight blade, 4130 CroMoly. 51mm IS disc mount. 135mm-spaced dropouts. 17.5mm offset fork available after market
  • Weight: 5.5 lb (2.5 kg) Fork—uncut = 2.64 lb (1200g)

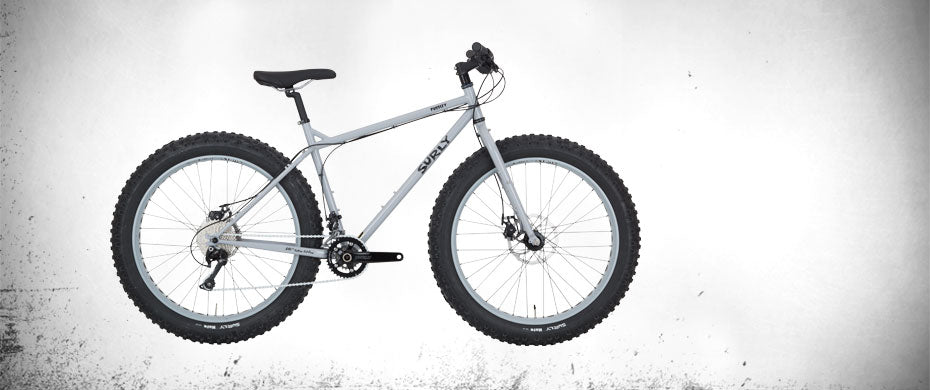

  • Colors: Battleship Gray

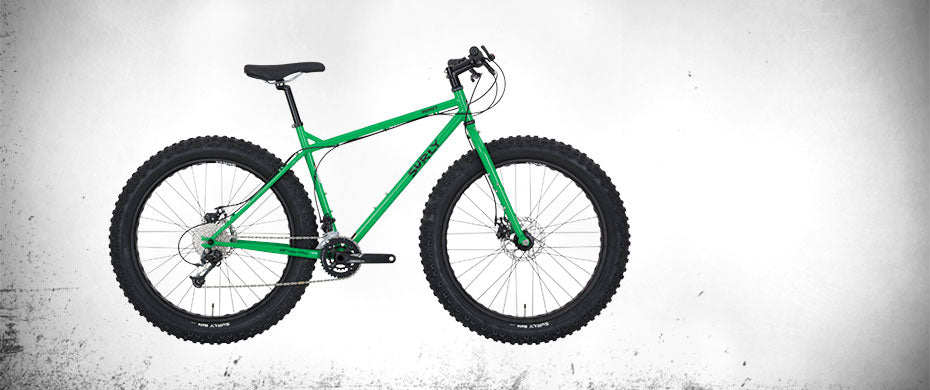

    Grassy Green
    Apathetic Black
    Grape Soda
