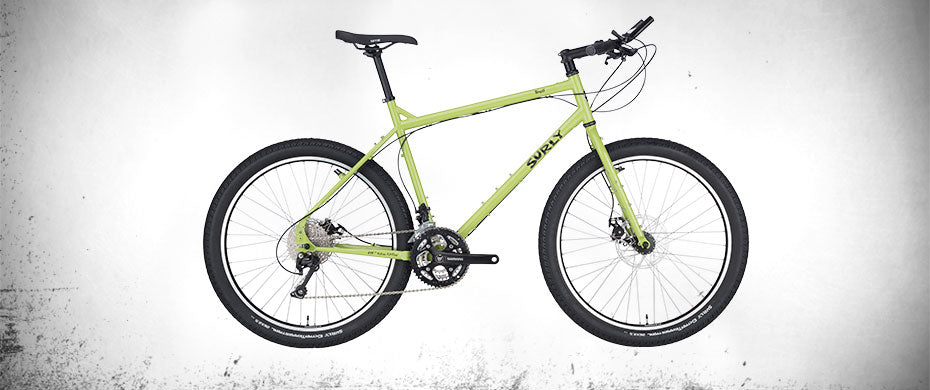

• Surly Troll legacy bike Pea Lime Soup color side view

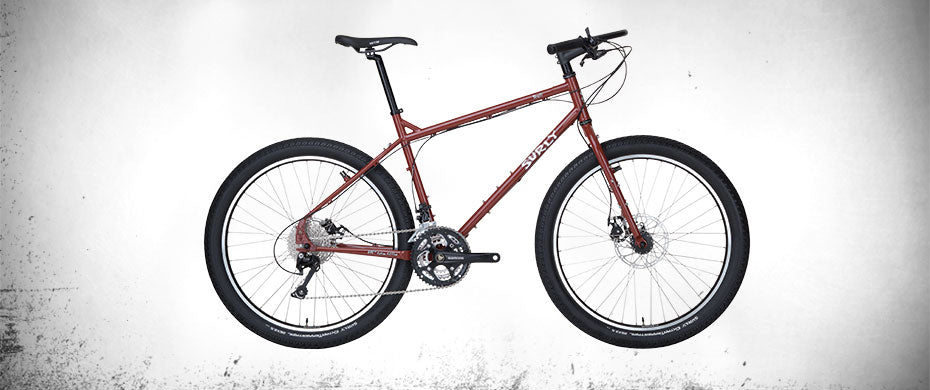

  • Surly Troll legacy bike Get Gone Maroon color side view

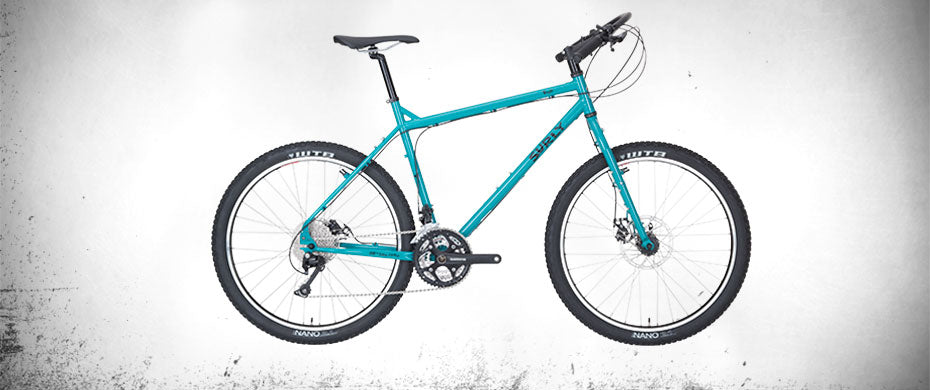

  • Surly Troll legacy bike Steve's Pants Blue color side view
1 3

Troll

Troll

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Off-road touring can be a zesty enterprise, but it’s not without its perils. Bicycles are simple machines that are extremely efficient, but all simple machines carry along with them the chance of breaking down. This efficiency can get you in trouble if your bike decides to break down far away from the comforts of your parent’s basement. If you’re going to ride your bicycles where no one can see, you better take gear that’s up to the task. Troll is up to the task.

Our Troll was once a simple mountain bike frame with a few extras that made it nice for touring. The Troll has evolved into a frame that has been pushed deeper into the category of off-road touring. Its geometry is no longer suspension corrected, which gives it more room for a larger frame bag. We’ve also adorned this frame with our Gnot-Boost spacing, allowing you to use any mountain bike hub whether it be 135mm QR, 12 x 142mm thru-axle, or 12 x 148mm Boost hub. The chainstay yoke has been redesigned to be fully compatible with 26+ tires and comes with the always-comfy Jones Loop bar. The dropouts still allow you to run disc brakes, fenders, a Rohloff hub, and racks simultaneously. It also comes with more braze-ons than you thought possible – there are four triple bottle mounts on the fork alone (don’t get excited, you can only run one Anything Cage per fork leg), as well as two more triple bottle mounts on the down tube.

Troll is a bike that has one purpose – and that purpose is to carry you as far away from society as possible. Man has known for eons the call of the indifferent forest. The inexorable march of time, and dumb shit like cell phones, have dulled our senses and made us afraid. Reclaim your animalistic tendencies atop Man’s greatest invention.

Specifications

Geometry

Geometry Diagram

2017 Model

SIZE XS S M L XL (Frameset Only)
Reach 371 393 415 431 446
Stack 551 561 570 585 604
Head Tube Angle 71.0° 71.0° 71.0° 71.0° 71.0°
Head Tube Length 125 135 145 160 180
Seat Tube Length 336 406 457 508 559
BB Drop 40 40 40 40 40
Wheelbase 1016 1041 1066 1086 1108
Chainstay Length 425 425 425 425 425
Top Tube Length, Actual 530.6 546.7 568.1 589.0 608.6
Top Tube Length, Effective 545 570 595 615 630
Seat Tube Angle 73.0° 73.0° 73.0° 73.0° 73.0°
Standover Height 720 749 778 809 843.0
Stem Length 90 90 100 110
Stem Angle 7° 7° 7° 7°
Handlebar Width 685 685 735 735
Crank Length 170 170 175 175



2014 Model

SIZE xSmall (14) Small (16) Medium (18) Large (20) xLarge (22)
Reach 376.5 398.6 420.8 436.4 445.6
Stack 551.0 560.5 569.9 584.1 603.0
Head Tube Angle 71.0° 71.0° 71.0° 71.0° 71.0°
Head Tube Length 90.0 100.0 110.0 125.0 145.0
Seat Tube Length 355.6 406.4 457.5 508.8 558.8
BB Drop 40.0 40.0 40.0 40.0 40.0
Wheelbase 1011.9 1037.3 1062.6 1083.2 1098.8
Chainstay Length 419.0 419.0 419.0 419.0 419.0
Top Tube Length, Actual 532.0 549.0 570.0 590.0 608.3
Top Tube Length, Effective 546.0 571.0 596.0 616.0 631.0
Seat Tube Angle 73.0° 73.0° 73.0° 73.0° 73.0°
Standover Height 717.0 745.0 774.0 804.0 838.0
Fork Length 453.0 453.0 453.0 453.0 453.0
Fork Rake 40.0 40.0 40.0 40.0 40.0

All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø676mm

Frame Specs

  • Tubing: Surly 4130 CroMoly steel. TIG-welded. Main triangle double-butted . ED Coated.
  • Rear Dropouts: 2014 and earlier: 10 x 135mm QR 2017 and newer: Horizontal slotted with derailleur hanger, 145mm Gnot-Boost O.L.D. Features Rohloff torque arm slot and threaded eyelets for fenders, racks and Surly trailer mounts.
  • Brake Compatibility: Disc and rim brake compatible. Disc mounts are 51mm IS Rim brake pivots are removable. Note: rear disc brake is limited to 160mm maximum rotor diameter and requires the use of Surly caliper adapter (included with frames and bikes).
  • Braze-ons/extras: Full-length Surly Trip Guide housing line guides for derailleurs and brakes; two sets of bottle cage mounts; removable post cantilever pivots; upper seatstay threaded barrels, 4 sets of triple bottle mounts, mid-and low-blade fully threaded through-blade fork eyelets; threaded holes for racks, fenders and trailer mounting nuts; Rohloff OEM2 axle plate mounting slot.
  • Seatpost Diameter: 27.2mm
  • Seatpost Clamp Diameter: 30mm (Surly stainless included)
  • Headset/Steerer Tube: Pea Lime Pie Soup: EC34/28.6 upper, EC34/30 lower
    Get Gone Maroon and Steve's Pants Blue: 1-1/8" threadless
  • Front Derailleur Clamp Diameter: 28.6mm, top-pull or Shimano high direct mount (adaptor included)
  • Bottom Bracket Shell: 73mm shell width, threaded standard English (1.37" x 24t)
  • Chainring Clearance: 24/36/48t
  • Tire Clearance: Pea Lime Pie Soup and Get Gone Maroon: 26 x 3"
    Steve's Pants Blue: 26 x 2.75˝. Individual tire and rim combos affect tire clearance
  • Fork: Pea Lime Pie Soup: TIG-welded tapered & butted 4130 CroMoly. Low- and mid-blade fully threaded through-blade rack eyelets; fender mount eyelets at dropout; 1-1/8" x 260mm threadless steer tube, 51mm disc mount (203mm max. rotor diameter), removable cantilever pivots, two sets of triple bottle mounts on each fork blade. Note: you can’t always mount bottles on the fork with every rack.
    Get Gone Maroon: TIG-welded tapered & butted 4130 CroMoly, non-suspension corrected, tapered straight blade. Low- and mid-blade fully threaded through-blade rack eyelets; fender mount eyelets at dropout; 1-1/8" x 260mm threadless steer tube, 51mm disc mount (180mm max. rotor diameter), removable cantilever pivots, two sets of triple bottle mounts on each fork blade. Note: you can’t always mount bottles on the fork with every rack.
    Steve's Pants Blue: TIG-welded tapered & butted 4130 CroMoly, 100mm suspension corrected, tapered straight blade. Low- and mid-blade fully threaded through-blade rack eyelets; fender mount eyelets at dropout; 1-1/8˝ x 260mm threadless steer tube, 51mm disc mount (203mm max. rotor diameter), removable cantilever pivots, two sets of bottle mounts on each fork blade. Note: you can’t always mount bottles on the fork with every rack
  • Colors: Pea Lime Pie Soup
    Black Forest (Frameset Only)
    Get Gone Maroon
    Steve's Pants Blue
