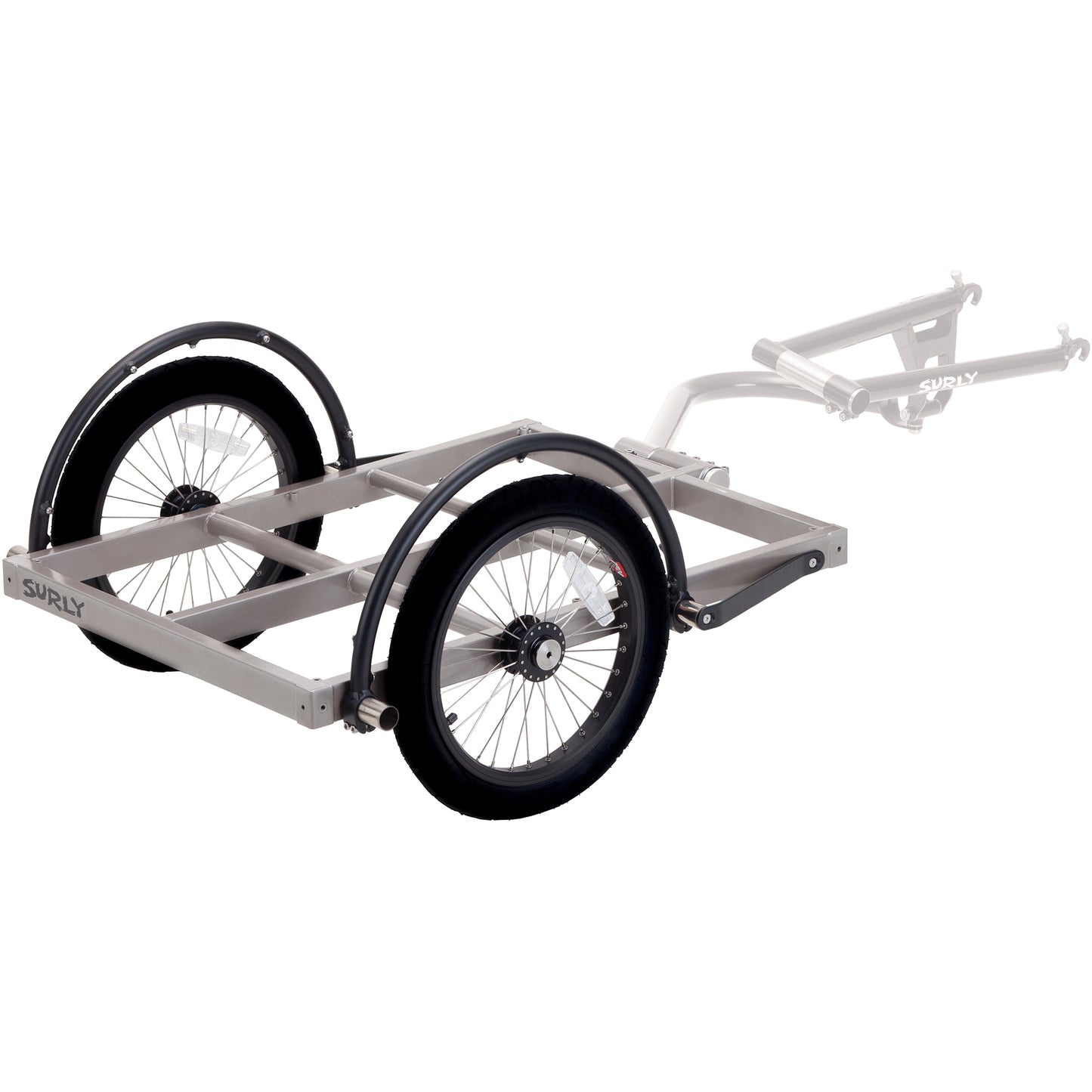

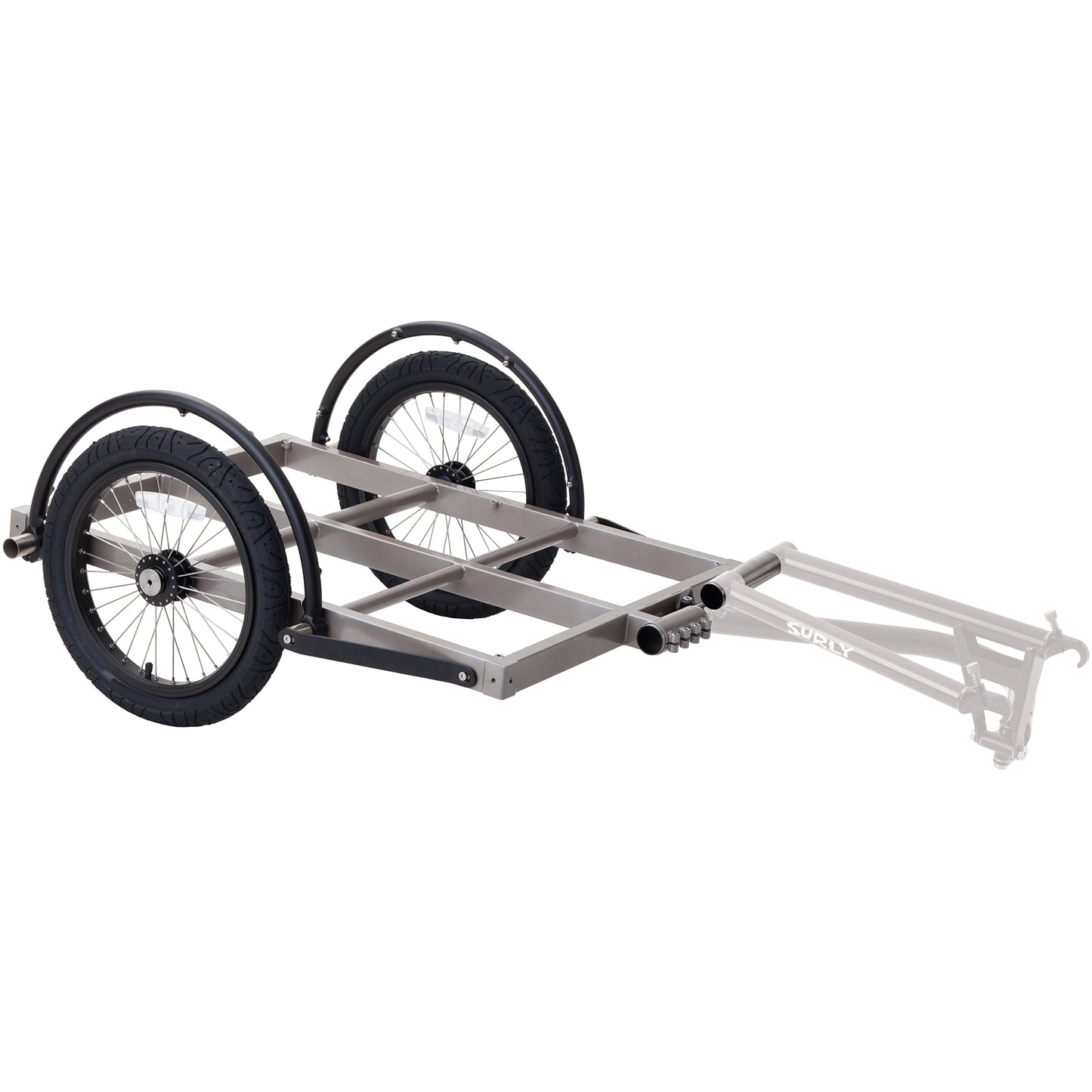

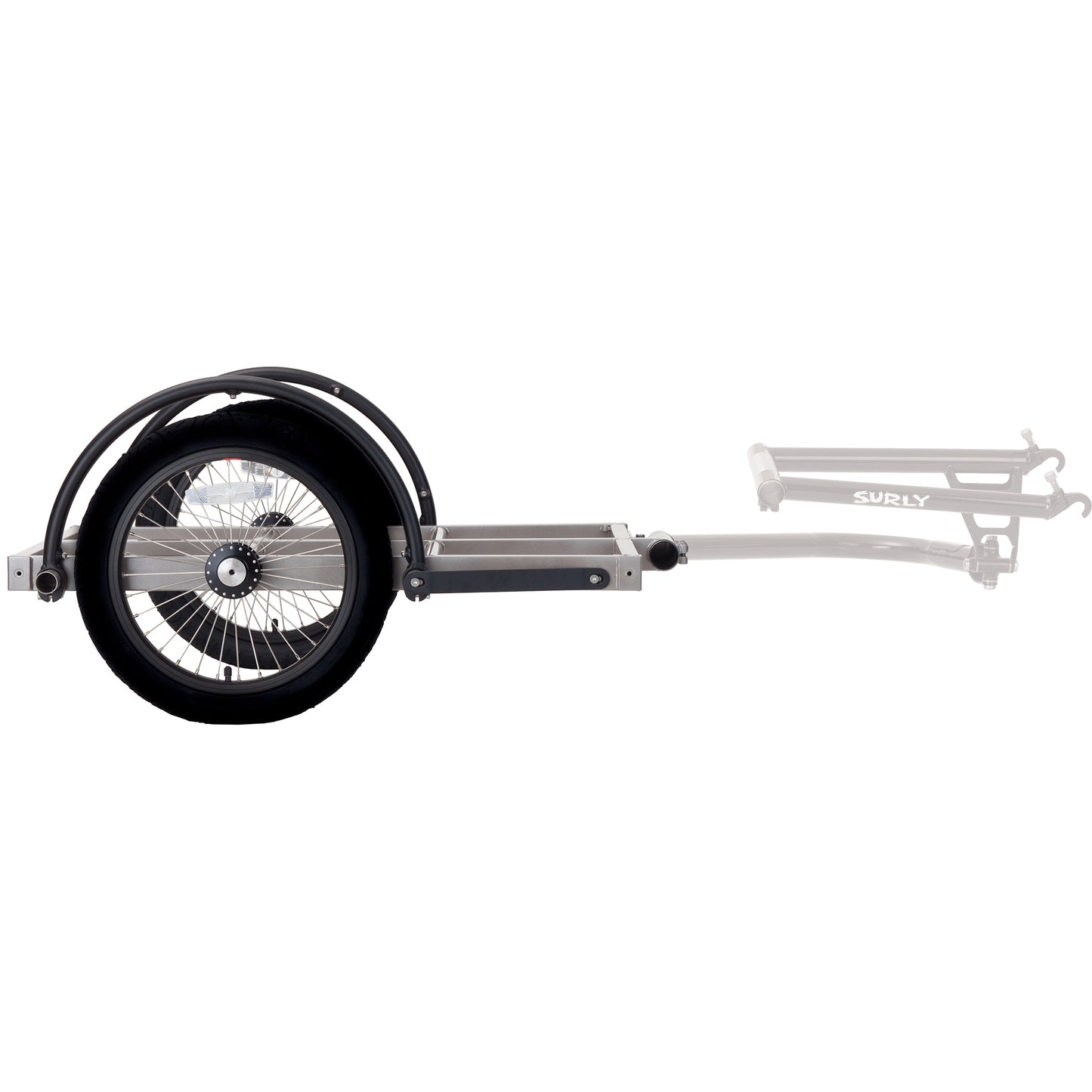

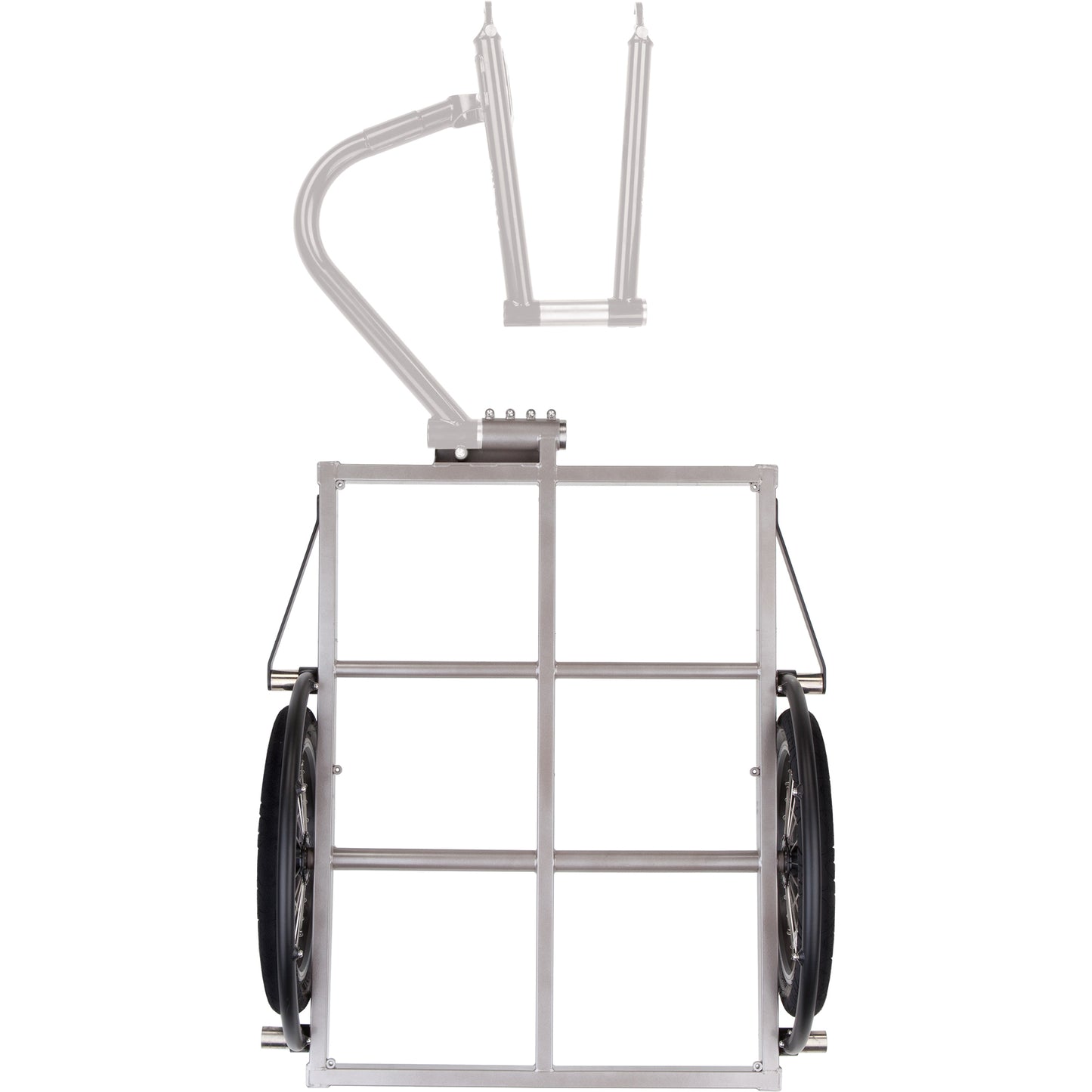

Ted Trailer

• Weight limit: 300 lbs
• Weight: 30 lbs
• Bill and Ted hitch is sold separately
• Numerous threaded bosses for bolting down custom decks, sides or other accessories
• High quality wheels built with double wall rims, custom oversized sealed bearing hubs and 16 x 1.95” Maxxis Hookworm tires
• TIG welded 4130 Chromoly frame
• Stainless steel hardware
• Narrow enough to fit through a 30” door

Our hitch system is designed to be as universal as possible. This hitch will likely fit your bike. It works with full-suspension frames, disc brakes, rear racks and fenders. It adjusts to accommodate hub widths from 120 – 145mm and allows you to align the centerline of the trailer on the centerline of the bike. It will work with bikes that have wheels as small as 20” and as large as 29” while keeping the bed level with the ground. This is especially important when you are hauling long items that hang off the back of the trailer (lumber, tubing, ladders, etc.). Our hitch will attach to your bicycle one of two ways: our direct mount Hitch Nuts or our Trailer Skewer. Our Hitch Nuts are 10 x 1mm threaded inserts that thread directly into any of our frames that come with our touring dropouts a la the ECR, Ogre and Troll. If you’re using a QR rear hub, we also have a skewer mounting system available. If you’re using a hub with a 3/8” threaded, solid axle… yeah we don’t have that.

NOTE: the Bill and Ted hitch is sold separately. Remind your local shop to order hitch and the correct bed length.

There are some things to learn about using a trailer like this to haul stuff. First, you’ll probably want to use a bike with gears. Sounds simple, but this trailer is capable of hauling a lot of weight, and as weight increases, so does the necessity for mechanical advantage. Learn to load it right. Center your load over the axle. Too much weight on the hitch (tongue weight), or too much weight hanging off the back will compromise your bike’s handling, make it harder to control and potentially damage your bike, the trailer, or you. Take these pointers to heart, and you’ll be able to haul all kinds of stuff with your bike that you may not ever have dreamed of.

LIMITED WARRANTY

This Surly product is warranted against defects in materials and workmanship for one year from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.

This warranty does NOT cover the following:

• Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
• Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
• Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
• Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
• Normal wear and tear
• Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
