Surly Trailer Hitch
Surly Trailer Hitch
Couldn't load pickup availability

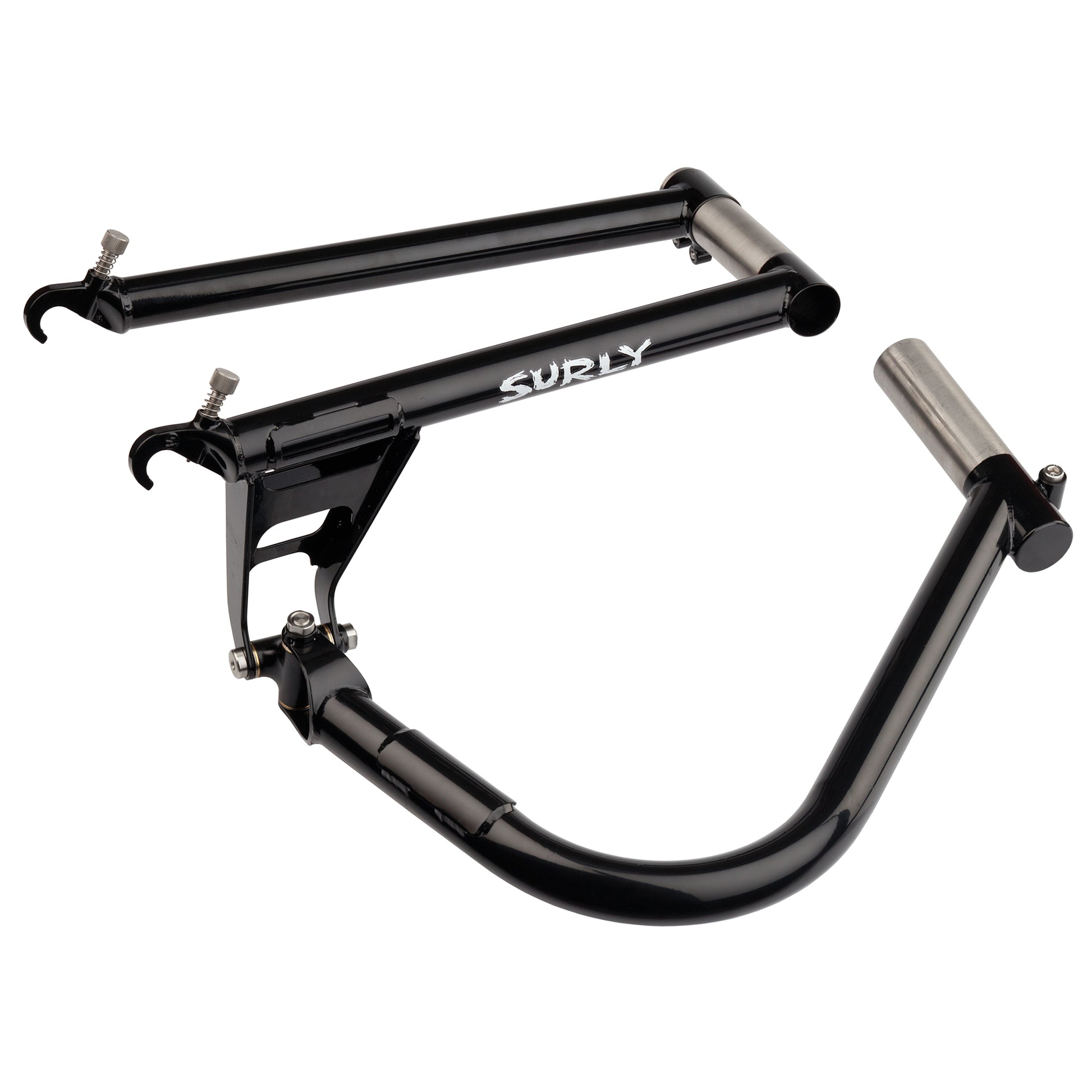

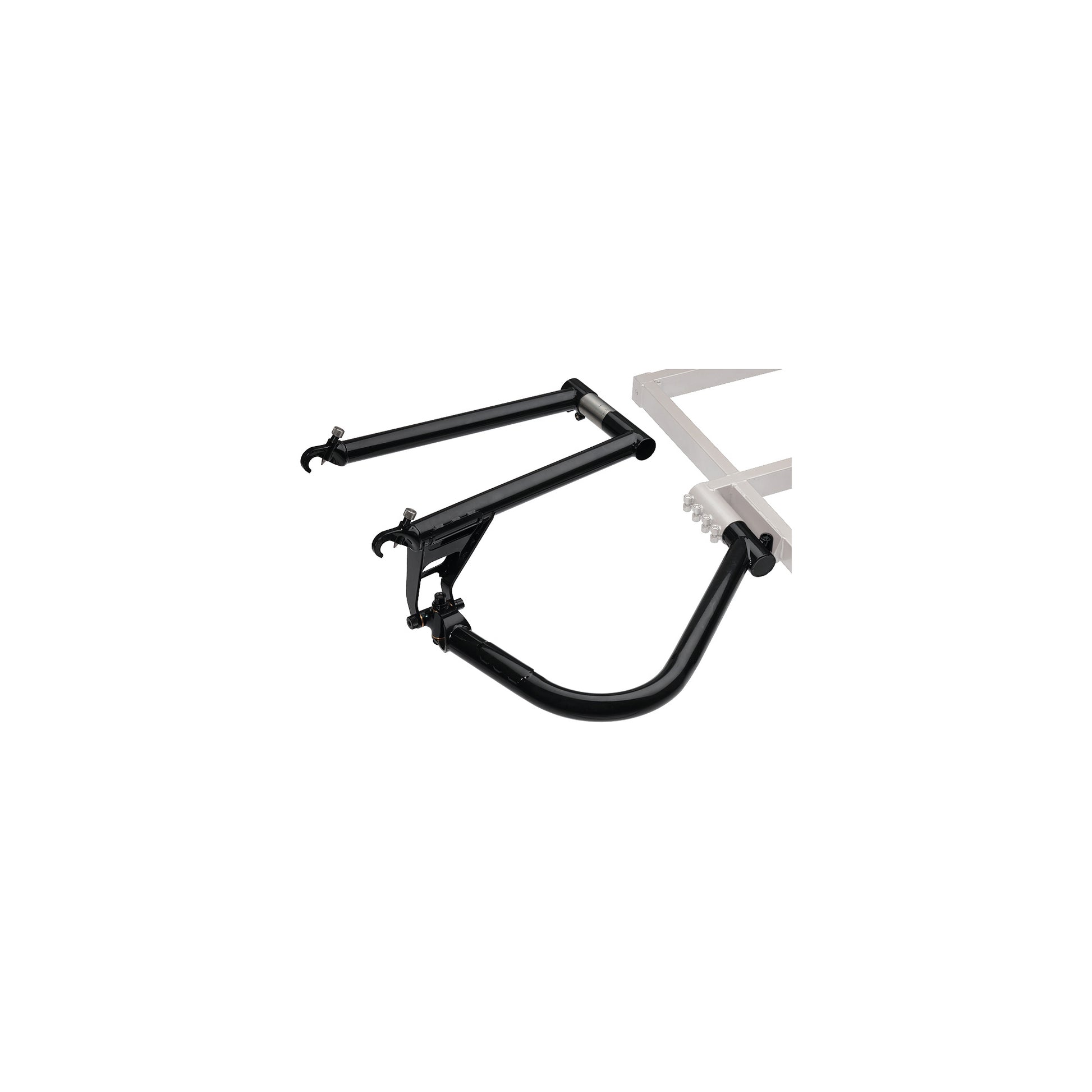

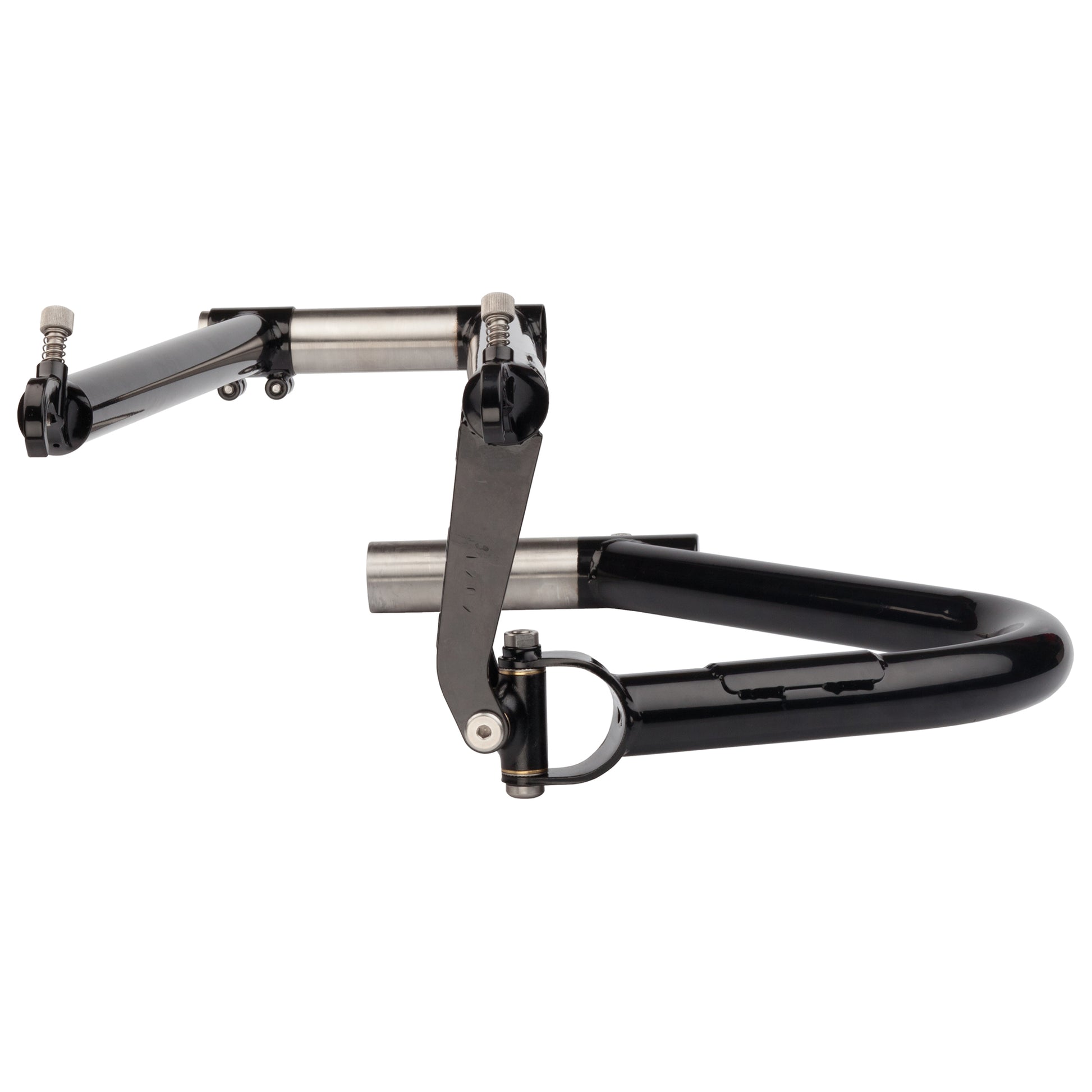

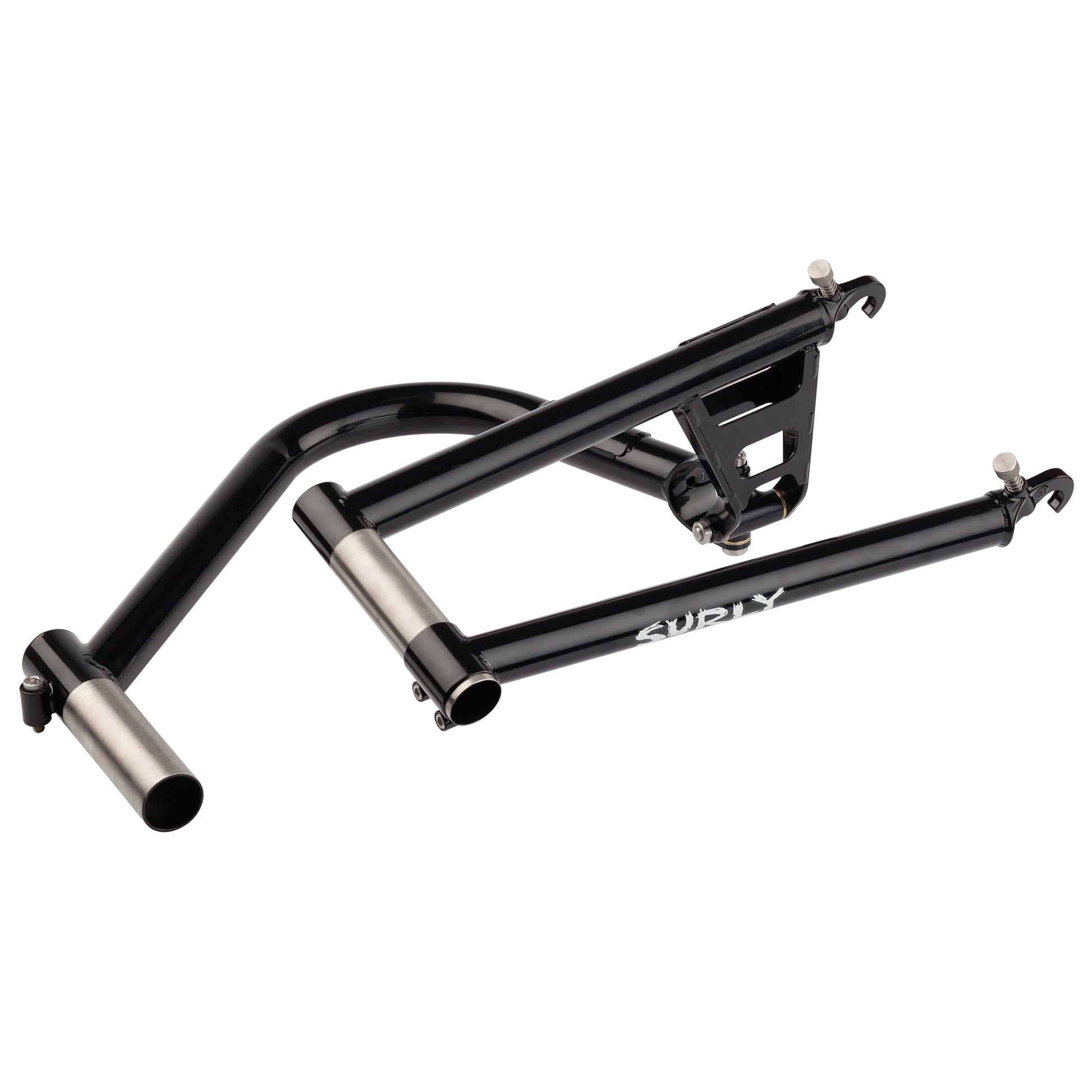

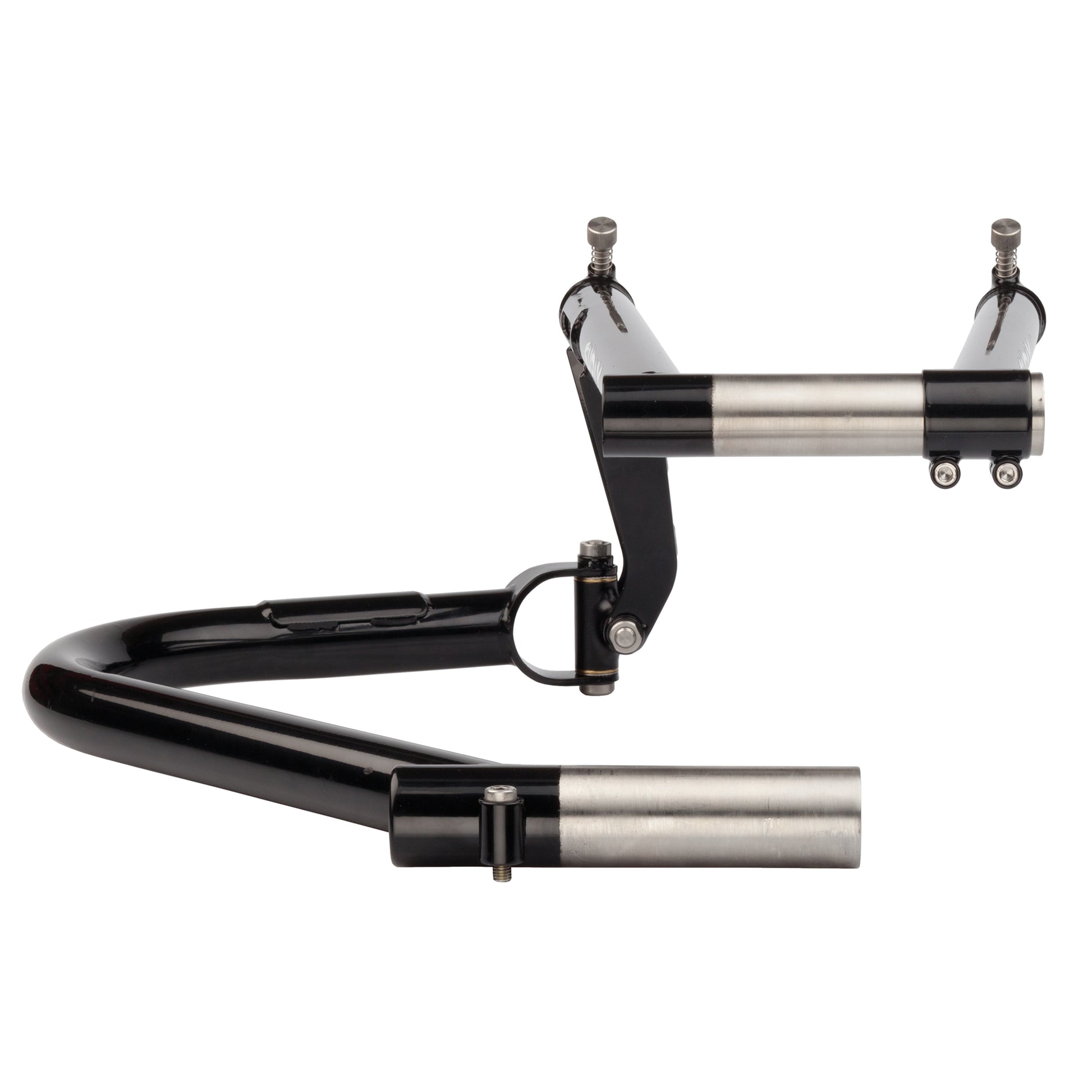

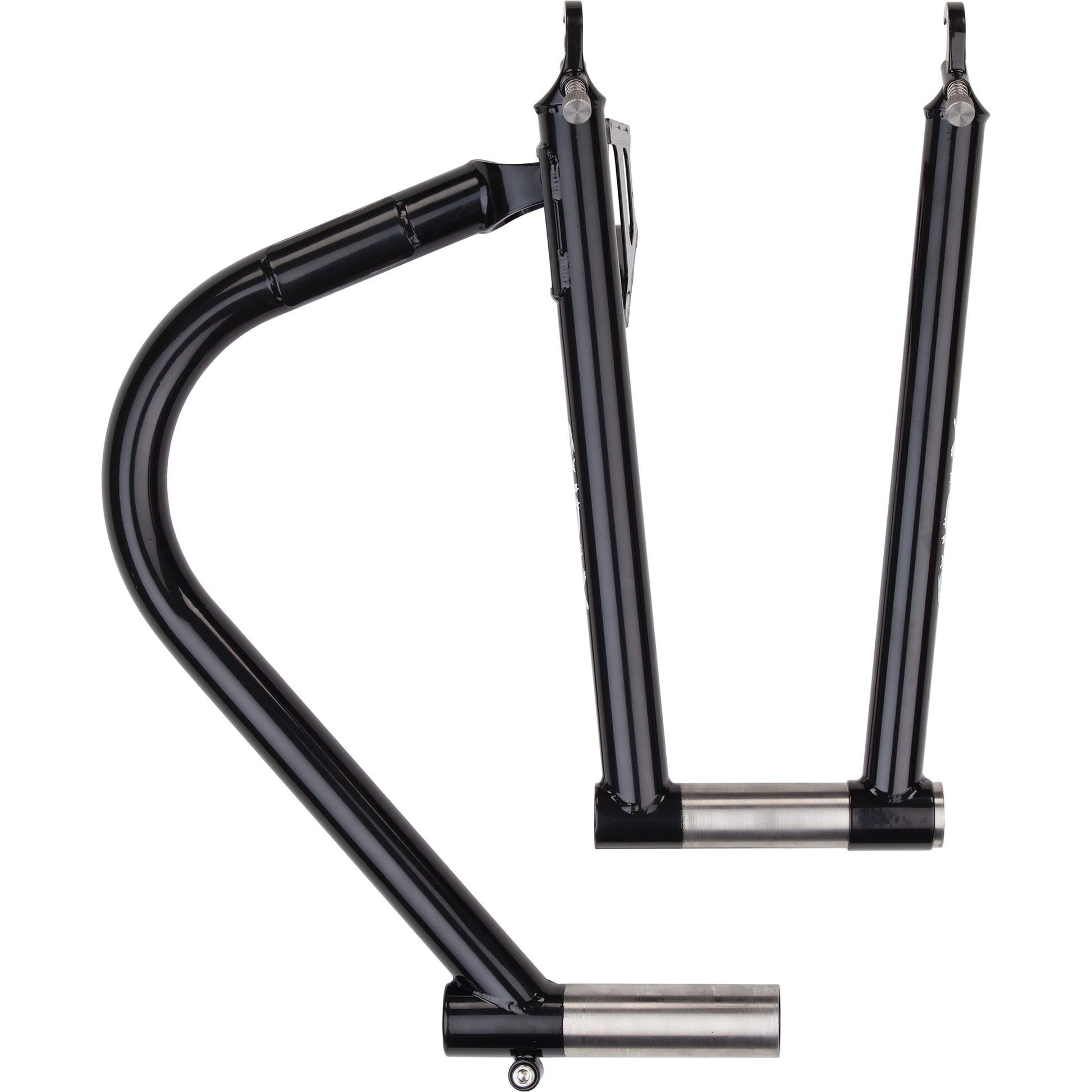

Our hitch system is designed to be as universal as possible. Regardless of the configuration of your bike frame, our hitch will likely fit. It doesn’t clamp to the bike’s frame tubes. Instead, it attaches using a proprietary axle skewer or thread-on axle nuts. The Surly Trailer Hitch works with full-suspension frames, disc brakes, rear racks and fenders. It adjusts to accommodate hub widths from 120mm–145mm and allows you to align the centerline of the trailer on the centerline of the bike. It will work with bikes that have wheels as small as 20” and as large as 29” while keeping the bed level with the ground. This is especially important when you are hauling long items that hang off the back of the trailer (lumber, tubing, ladders, etc.).
Warning for Residents of California
Warning for Residents of California
⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Share
Specifications
Product Details
- Designed for use with Surly Bill and Ted trailers
- TIG welded 4130 Chromoly frame
- Adjustable height to keep load level
- Compatible with 10mm QR frames, with 120 – 145mm hub widths
- Compatible with 20 x 1.75” – 29 x 3.0” tires
- Compatible with 10 x 1mm threaded axles with use of Surly Hitch Mount Nuts (Sold Separately)
Supportive Documents
Warranty
LIMITED WARRANTY
This Surly product is warranted against defects in materials and workmanship for one year from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.
This warranty does NOT cover the following:
- Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
- Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
- Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
- Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
- Normal wear and tear
- Labor required to remove and/or refit and re-adjust the product within the bicycle assembly
This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.
This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.
TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
