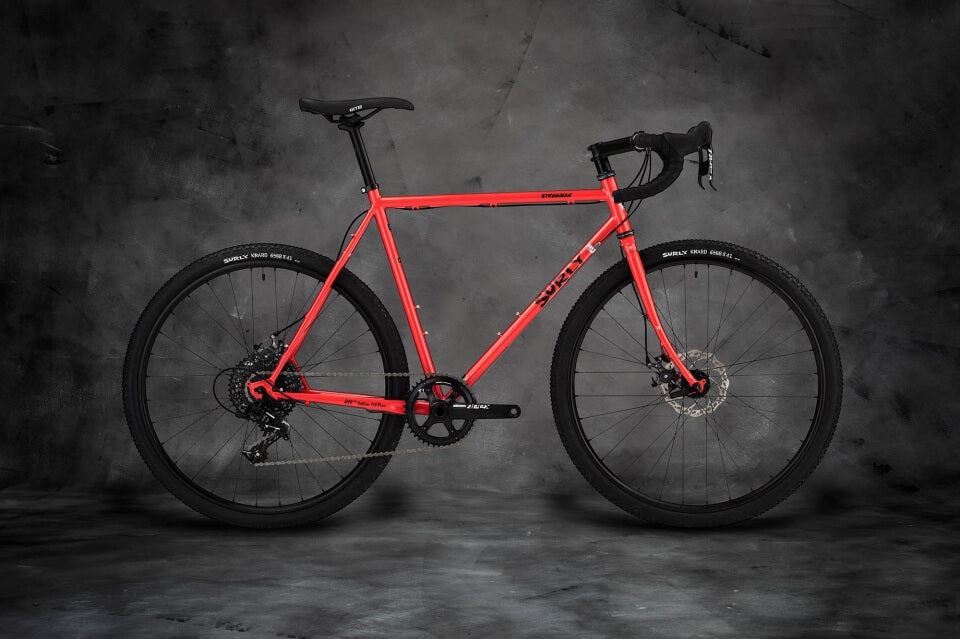

• Surly Straggler bike Salmon Candy Red color side view

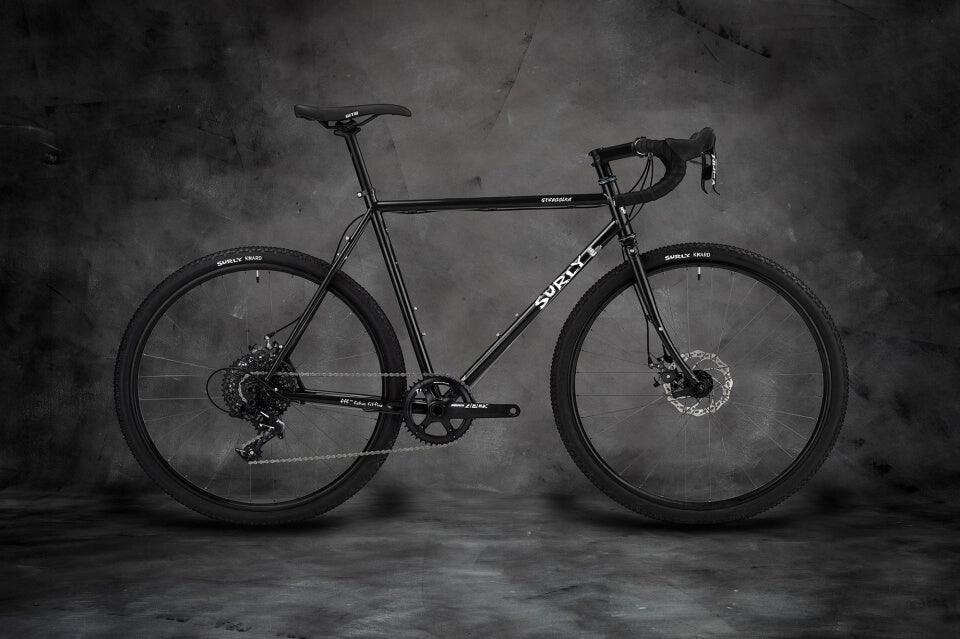

  • Surly Straggler bike Gloss Black Red color side view

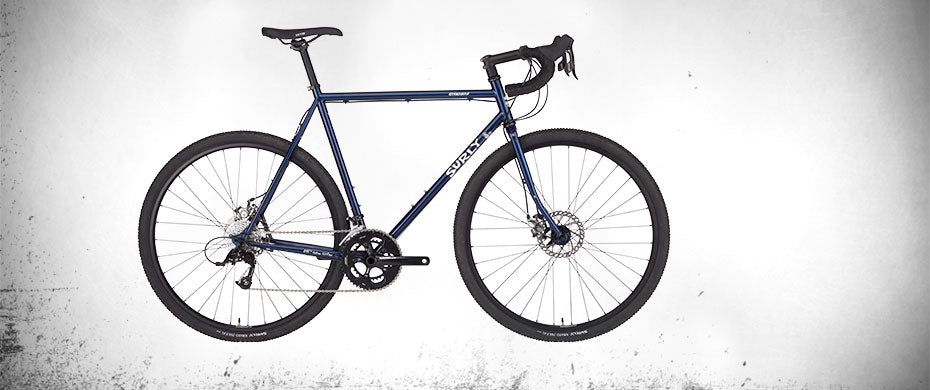

  • Surly Straggler bike Blueberry Muffin Top color side view

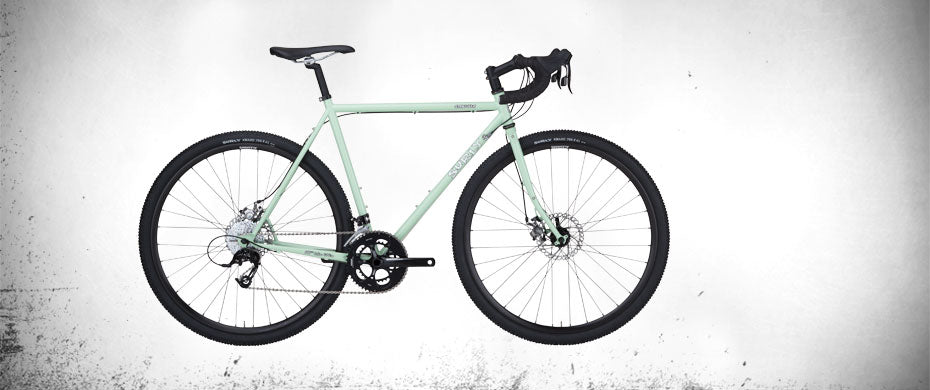

  • Surly Straggler bike Mint color side view

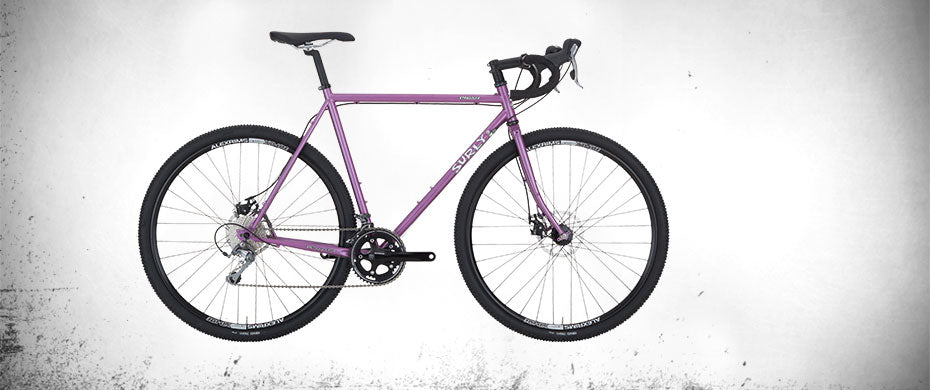

  • Surly Straggler bike Glitter Dreams color side view
1 5

Straggler

Straggler

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Straggler is tuned for cross-over exploration on a wide variety of terrain conditions. It’s a day-tripper and a weekender. It’s a ‘rough road’ road bike, a cyclocross bike with no pretense about racing, a utilitarian townie, a light-duty touring bike and an all-weather
commuter. Think of it as a “mountain biker’s road bike.” If you only have room for one bike in your life, Straggler can (and should) be your one and only.

Straggler’s capabilities to go well beyond asphalt. It also lends itself well to light touring setups. We're talking frame bags, seat bags, and "credit card touring” rather than full-blown touring. Straggler also handles our 8- and 24-Pack Racks well, so you have some
heavier-duty loading options.

  • Available in 650b and 700c wheel diameters
  • Accommodations for racks and fenders
  • Forward-exiting horizontal dropouts for singlespeed compatibility and wheelbase adjustability
  • Clearance for 650b x 42mm or 700c x 42mm tires with fenders!

Specifications

Geometry

Geometry Diagram

650b

SIZE 38cm 42cm 46cm 50cm 52cm 54cm 56cm 58cm
Reach 371.0 369.0 371.0 383.0 386.0 392.0 402.0 410.0
Stack 483.0 498.0 511.0 523.0 534.0 548.0 563.0 586.0
Head Tube Angle 69.5° 70.0° 71.0° 71.5° 72.0° 72.0° 72.0° 72.0°
Head Tube Length 85.0 100.0 110.0 120.0 130.0 145.0 160.0 185.0
Seat Tube Length 380.0 420.0 460.0 500.0 520.0 540.0 560.0 580.0
BB Drop 54.0 54.0 54.0 54.0 54.0 54.0 54.0 54.0
Wheelbase 980.0 978.0 977.0 988.0 990.0 1005.0 1020.0 1035.0
Chainstay Length 405.0 405.0 405.0 405.0 405.0 410.0 410.0 410.0
Top Tube Length, Actual 484.4 495.1 508.0 529.7 545.9 561.8 578.3 591.8
Top Tube Length, Effective 500.0 510.0 520.0 535.0 550.0 565.0 580.0 595.0
Seat Tube Angle 75.5° 74.5° 74.0° 74.0° 73.0° 72.5° 72.5° 72.5°
Standover Height 704.0 726.0 751.0 776.0 789.0 806.0 822.0 844.0
Stem Length 60 60 70 80 100 100 N/A N/A
Stem Angle 6° 6° 6° 6° 6° 6° N/A° N/A°
Handlebar Width 380 380 400 400 420 420 N/A N/A
Crank Length 165 165 165 170 172.5 172.5 N/A N/A
Fork Length 380.0 380.0 380.0 380.0 380.0 380.0 380.0 380.0
Fork Rake 44.0 44.0 44.0 44.0 44.0 44.0 44.0 44.0

All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø679mm

700c

SIZE 54cm 56cm 58cm 60cm 62cm
Reach 396.3 400.7 408.2 412.1 420.9
Stack 549.2 567.3 591.1 609.1 628.2
Head Tube Angle 72.0° 72.0° 72.0° 72.0° 72.0°
Head Tube Length 107.0 121.0 146.0 165.0 185.0
Seat Tube Length 540.0 560.0 580.0 600.0 620.0
BB Drop 72.0 72.0 72.0 72.0 72.0
Wheelbase 1016.5 1031.9 1047.0 1056.8 1071.8
Chainstay Length 425.0 430.0 430.0 430.0 430.0
Top Tube Length, Actual 563.3 579.7 593.2 608.0 623.0
Top Tube Length, Effective 565.0 580.0 595.0 610.0 625.0
Seat Tube Angle 73.0° 72.5° 72.5° 72.0° 72.0°
Standover Height 791.7 809.4 828.7 846.1 865.0
Stem Length 100 100 120 120 120
Stem Angle 6° 6° 6° 6° 6°
Handlebar Width 420 440 440 460 460
Crank Length 172.5 175 175 175 175
Fork Length 400.0 400.0 400.0 400.0 400.0
Fork Rake 44.0 44.0 44.0 44.0 44.0

All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø718mm

Frame Specs

  • Tubing: Surly 4130 CroMoly steel. Main triangle double-butted. ED Coated.
  • Rear Dropouts: Forward–exiting horizontal dropouts with adjusters give you singlespeed compatibility and wheelbase adjustability to help you fit the tires and fenders you want to run with that drivetrain you want to run. 135mm spacing.
  • Brake Compatibility: Disc only. 160mm max rotor size
  • Braze-ons/extras: Fender eyelets at the dropouts, front and rear rack bosses and dual water bottle mounts. Oh yeah, it sports downtube shifter mounts also
  • Seatpost Diameter: 27.2mm
  • Seatpost Clamp Diameter: 30.0mm, Surly stainless clamp included
  • Headset/Steerer Tube: Blueberry Muffin Top and Gloss Black:
    EC34/28.6 upper, EC34/30 lower

    Mint and Black:
    1-1/8" threadless
  • Front Derailleur Clamp Diameter: 28.6mm
  • Bottom Bracket Shell: 68mm wide, standard English threaded 1.37 x 24t
  • Chainring Clearance: Manipulated so you can fit pretty much whatever size rings you want. Go nuts!
  • Tire Clearance: Our Fatties Fit Fine (FFF) stays and our beautiful slope-crowned custom fork provide room for tires up to 700c x 42mm (700c models) or 650b x 42mm (650b models)! With fenders!
  • Fork: 4130 CroMoly, disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets
  • Weight: 54cm = 4.74 lb (2.27kg) Fork—uncut = 2.3 lb (1050g)
  • Colors: Blueberry Muffin Top
    Gloss Black
    Mint
    Black
    Glitter Dreams
    Closet Black
    Salmon Candy Red
