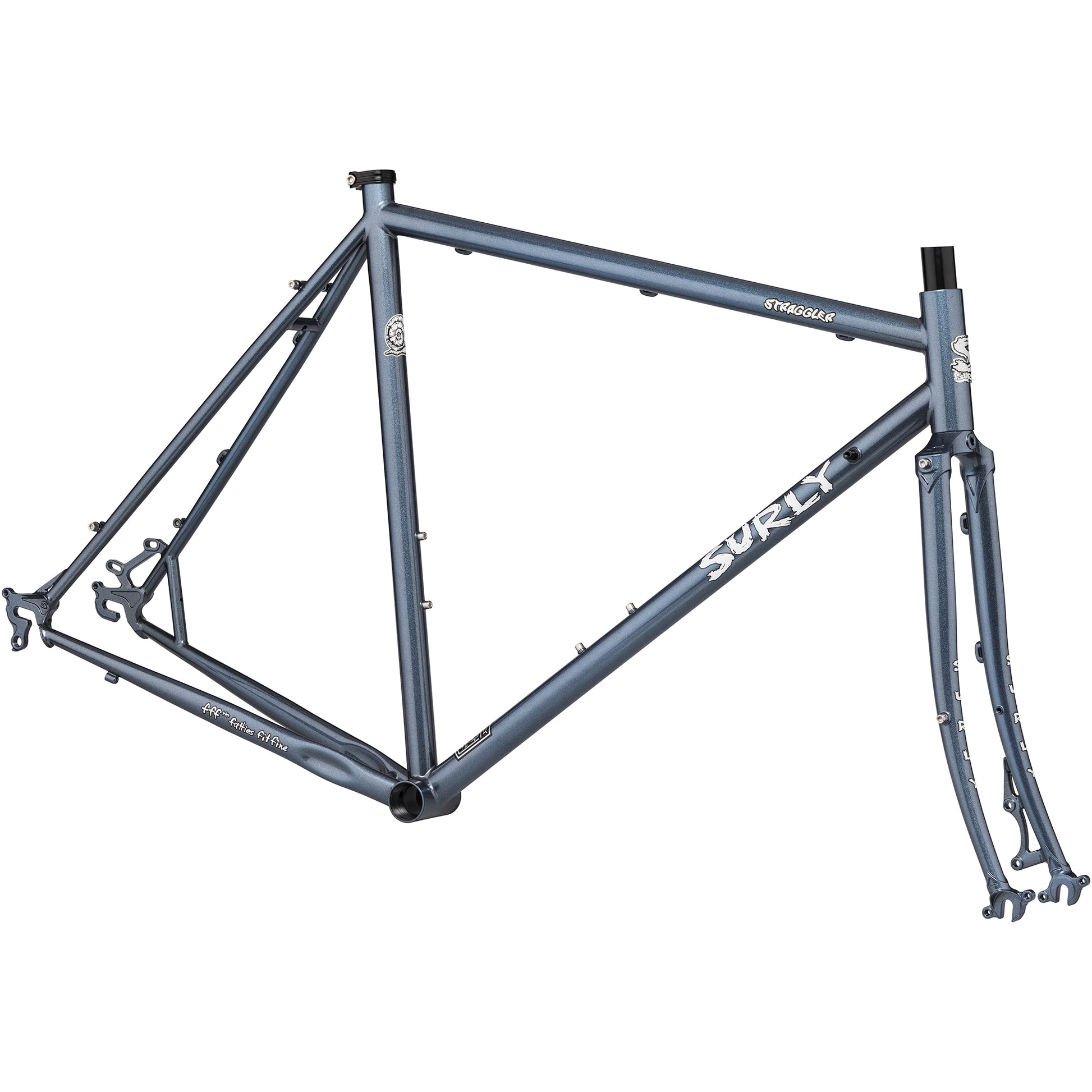

Straggler 650b Frameset - Cold Steel Blue

Gravel – Endurance Road – Light Bikepacking

$649.00 USD

~~$649.00 USD~~ $649.00 USD

Sale

Size 38cm 42cm 46cm 50cm 52cm

Quantity

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Born on Gravel. Raised on Pavement

Straggler is tuned for cross-over exploration on a wide variety of terrain conditions. It’s a day-tripper and a weekender. It’s a ‘rough road’ road bike, a cyclocross bike with no pretense about racing, a utilitarian townie, a light-duty touring bike and an all-weather commuter. It’s a steel gravel bicycle that thrives on the road. Think of it as a “mountain biker’s road bike.” If you only have room for one bike in your life, Straggler can (and should) be your one and only.

Straggler’s capabilities go well beyond asphalt. It also lends itself well to light touring setups. We're talking frame bags, seat bags, and "credit card touring” rather than full-blown touring. Straggler also handles our 8- and 24-Pack Racks well, so you have some heavier-duty loading options.

Available in 650b and 700c wheel diameters
Accommodations for racks and fenders

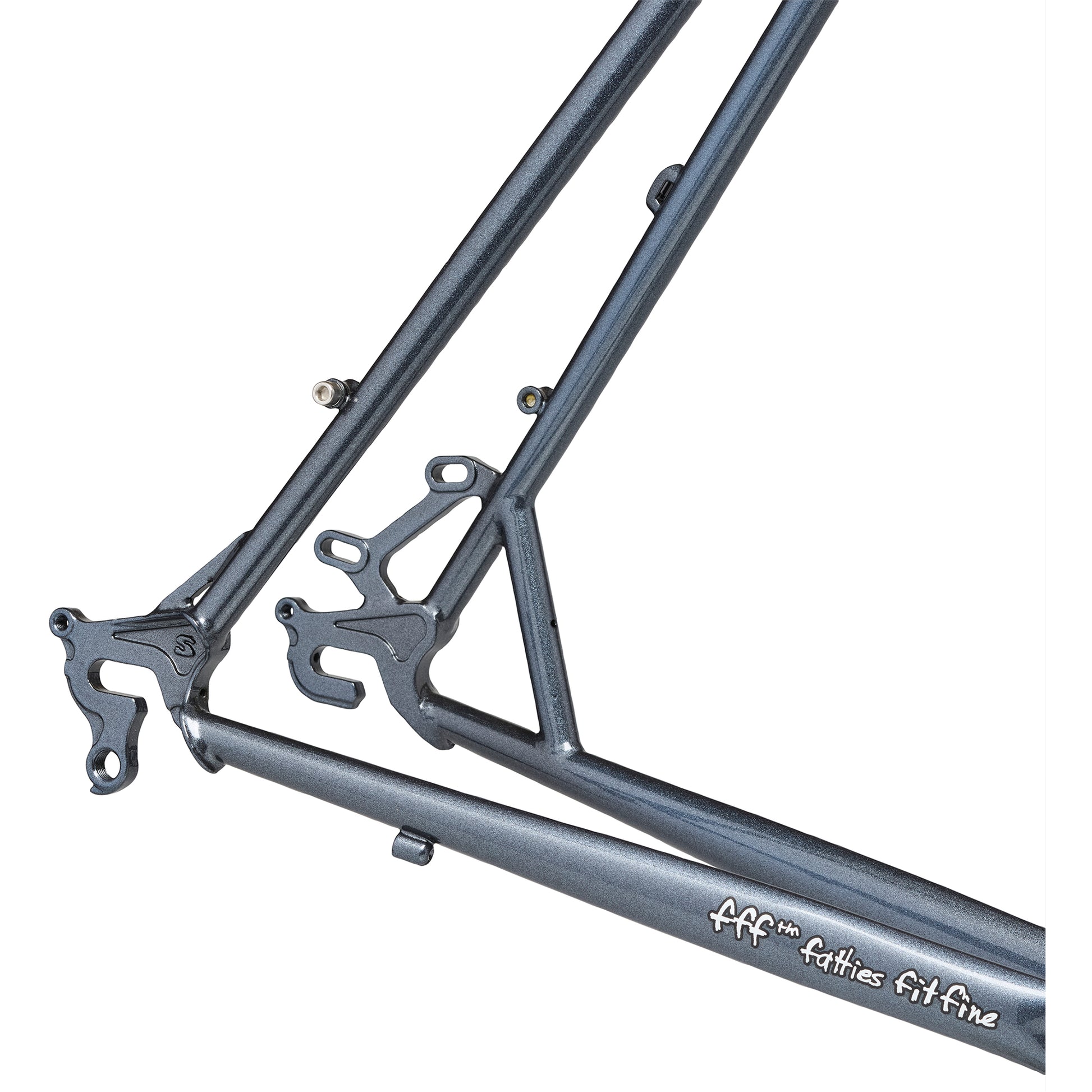

Forward-exiting horizontal dropouts for singlespeed compatibility and wheelbase adjustability
Clearance for 650b x 41mm or 700c x 41mm tires with fenders!

Specifications

Build Kit

Frameset

Frame

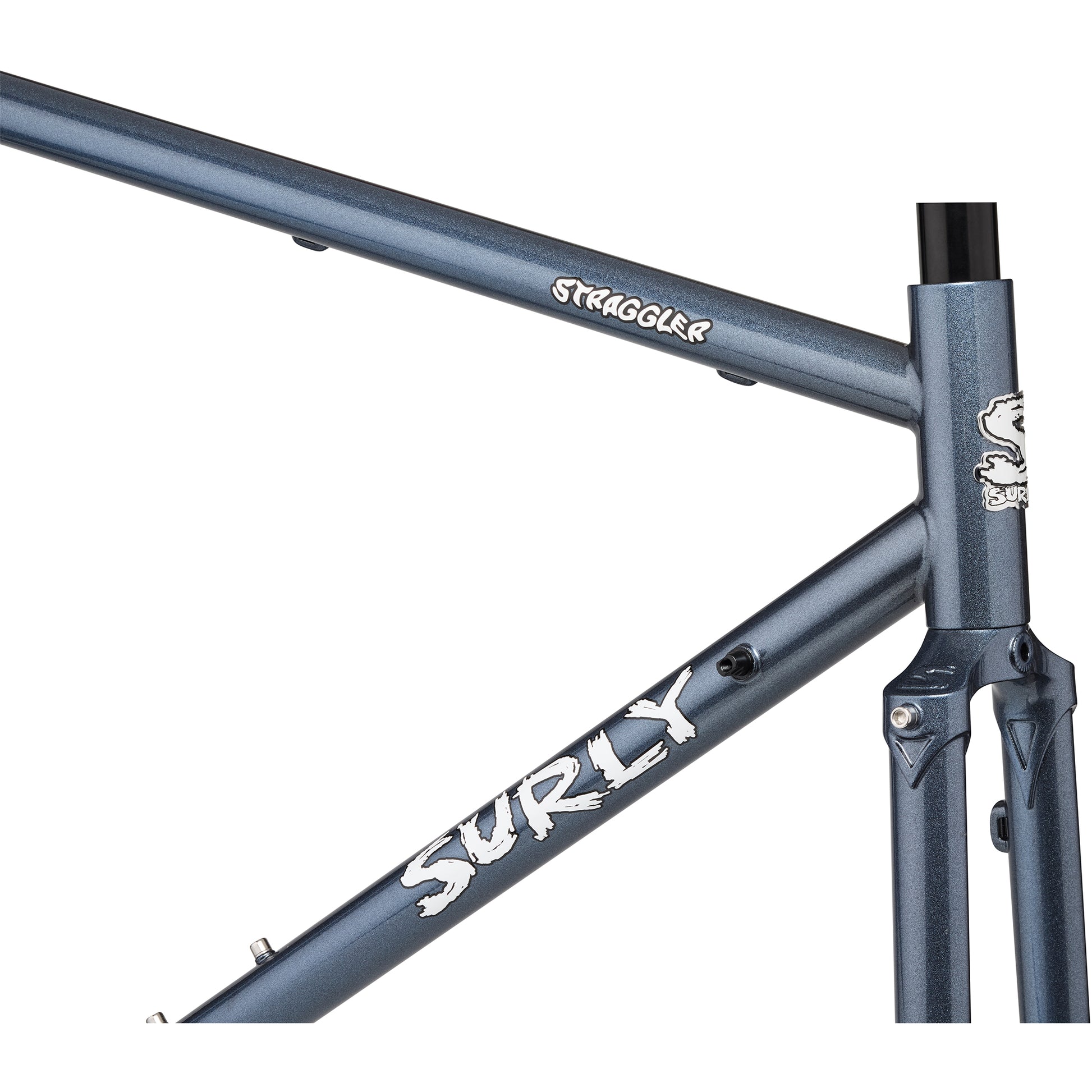

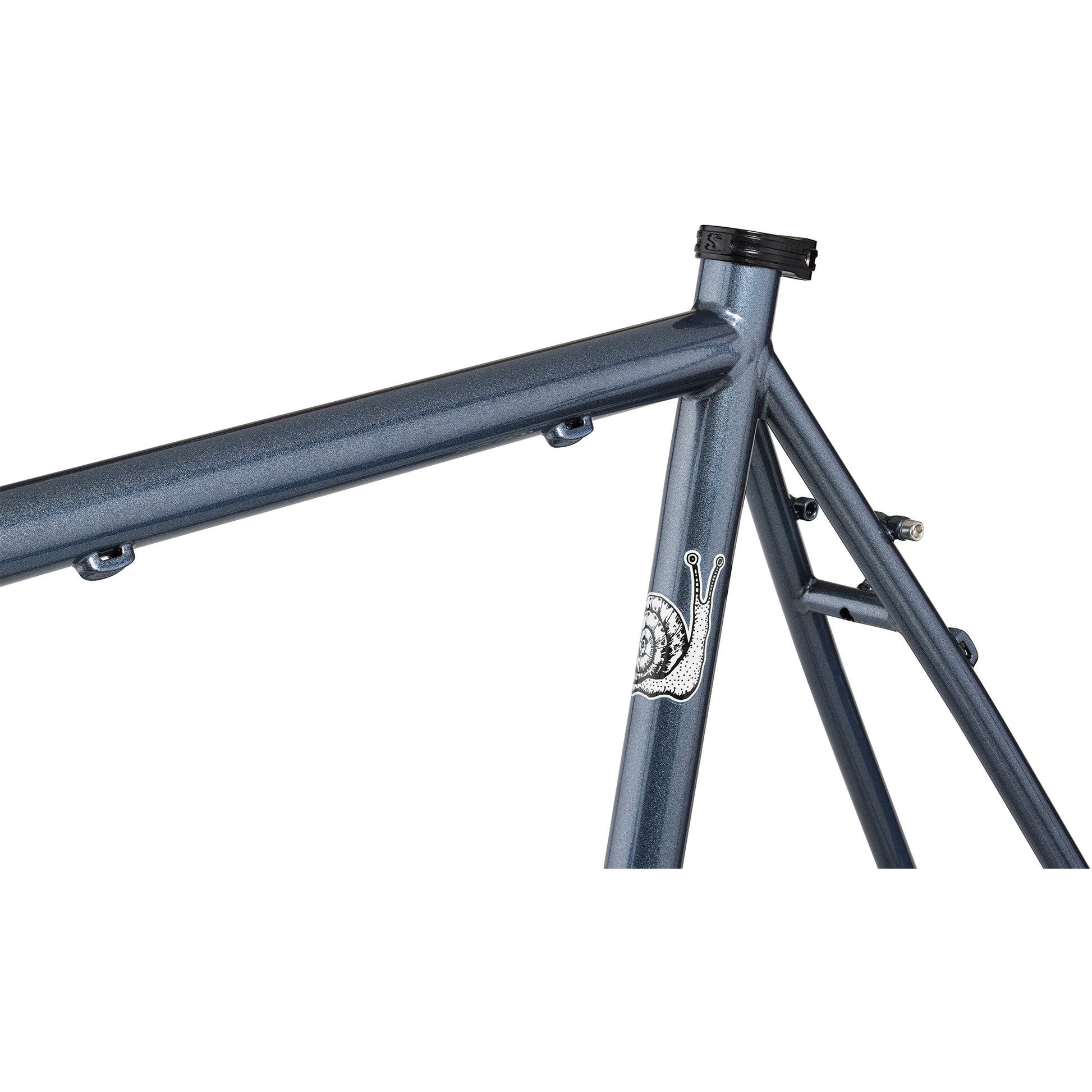

Surly Straggler, 100% Surly proprietary 4130 CroMoly tubing. ED Coated. TIG-welded. Double-butted main triangle

Color

Cold Steel Blue

Fork

Surly Straggler, 4130 CroMoly, disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets

Components

Seatpost Clamp

Surly Stainless, 30.0mm

Drivetrain

Wheels

*Specifications are subject to change without notice

Geometry

Size	38cm	42cm	46cm	50cm	52cm
A. Effective Top Tube	500.0	510.0	520.0	535.0	550.0
B. Stand Over	704.0	726.0	751.0	776.0	789.0
C. Reach	371.0	369.0	371.0	383.0	386.0
D. Stack	483.0	498.0	511.0	523.0	534.0
E. Total Seat Tube Length	380.0	420.0	460.0	500.0	520.0
F. Headtube Length	85.0	100.0	110.0	120.0	130.0
G. Headtube Angle	69.5	70.0	71.0	71.5	72.0
H. Seat Tube Angle	75.5	74.5	74.0	74.0	73.0
I. BB Drop	54.0	54.0	54.0	54.0	54.0
K. Chainstay Length	405.0	405.0	405.0	405.0	405.0
L. Fork Length Axle to Crown	380.0	380.0	380.0	380.0	380.0
M. Fork Offset	44.0	44.0	44.0	44.0	44.0
N. Wheelbase	980.0	978.0	977.0	988.0	990.0
Crank Arm Length
Handlebar Width
Recommended Rider Height
Stem Length

Frame Specs

Design Wheel/Tire Sizes 650b x 41mm (38–52cm sizes)
700c x 41mm (54–62cm sized)
Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
Suspension Fork Length (Travel) N/A
Rigid Fork Length 650b: 380 x 44mm
700c: 400 x 44mm
Fork Offset 44mm
Axle to Crown 650b: 380mm
700c: 400mm
Rear Spacing 10 x 135mm, Forward-exiting horizontal
Front Brake (Rotor) Disc - 51mm I.S. (160mm max rotor)
Headset - Upper EC34/28.6
Headset - Lower EC34/30
Front Spacing 10 x 100mm
Steerer Tube Ø28.6mm (1-1/8")
Crown Race Ø30mm (1-1/8")
Stem Clamp Ø28.6mm (1-1/8")
Seatpost Ø27.2mm
Dropper Post Compatible No
Seatpost Clamp Ø30mm
Front Derailleur Clamp Bottom-pull (Ø28.6mm)

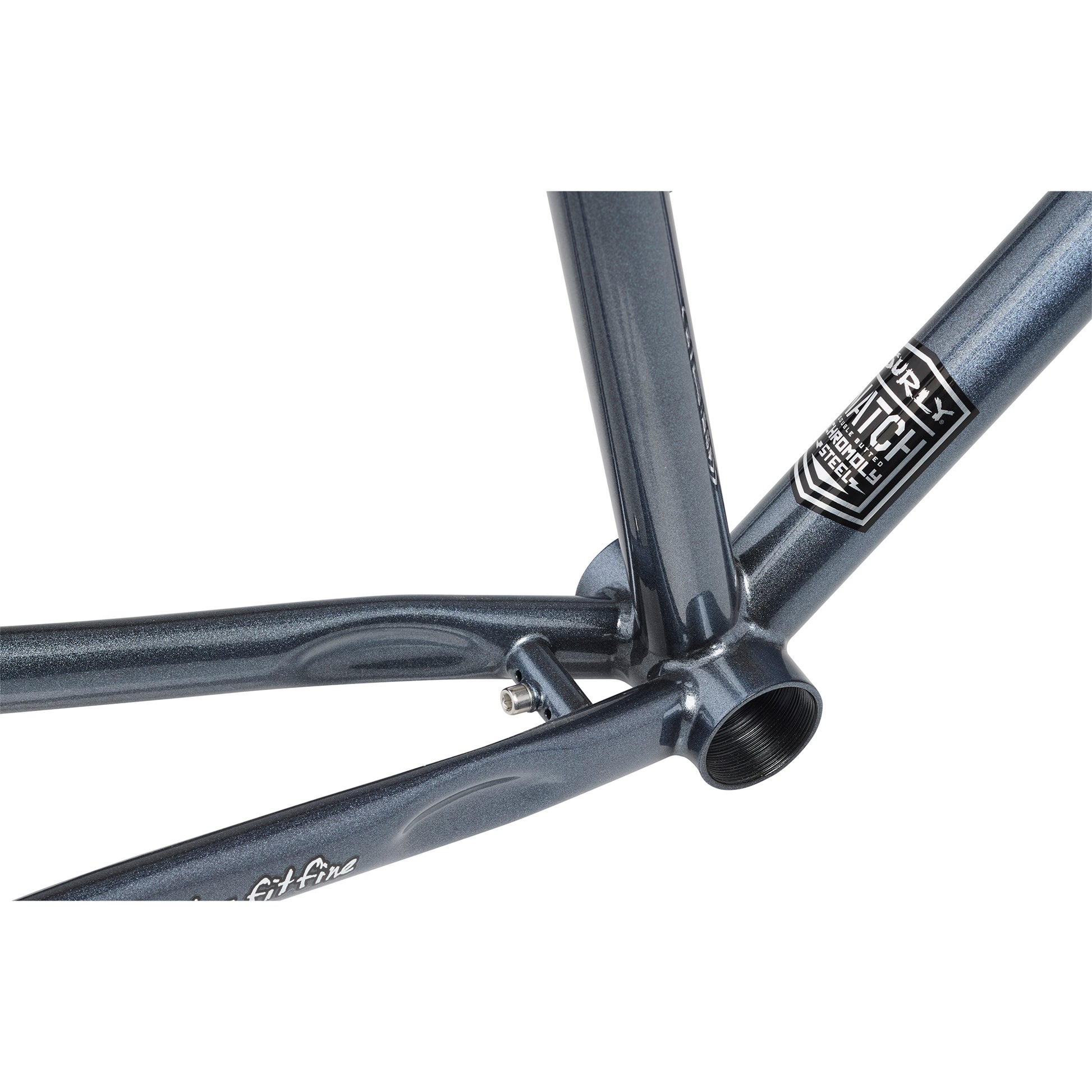

Bottom Bracket 68mm threaded (1.37" x 24TPI)
Crankset (Max Ring) 1x (Road): 50T
2x (Road): 39/53T
Accessory Mounts Rack mounts: upper and lower threaded, Downtube mounted shifter bosses (cable housing stops not included with frameset)
Bottle Mounts 2 Standard
Fork Mounts Rack mounts: upper, lower, and mid-blade threaded
Front Fender Mounts Yes
Rear Fender Mounts Yes

Documents

Warranty

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
