Steamroller

Steamroller

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

The Steamroller is the bicycle in its simplest form — the fixie. You may be thinking, “Fixies are so 2008” or “All the blogs I read say I should like something different now.” Well, the Steamroller is different. Built for the streets, it has a geometry that’s closer to that of a road bike than a true track bike. Couple that with its double-butted 4130 CroMoly steel construction and 38c tire clearance and you have yourself a lively and resilient ride that can handle potholes, grass shortcuts, urban trails, and back alleys like a champ. You need only peruse the Steamroller Image Dump to see just how versatile such a simple machine can be.

As one of the first models we ever produced, the Steamroller is truly like a member of the family. And we’re talking one of the ones we actually like, not your weird Uncle Norman that insists on showing you his magic tricks while always finding a way to ruin Thanksgiving. It was our innate fondness for it that prompted us to bring it back as a complete bike after only offering a frame and fork option for a couple of years. The Steamroller complete is done up right with durable parts that can take some abuse. It’s even spec’d with a flip flop hub and front and rear rim brakes if you find that freewheeling is more your style.

The Steamroller has become a favorite for many a bike nerd over the years, and for good reason. It’s versatile, simple, and smoother than a swig of whiskey in winter on all sorts of terrain

Specifications

Geometry

Geometry Diagram
SIZE 49cm 53cm 56cm 59cm 62cm
Reach 388.1 394.0 402.3 408.2 420.6
Stack 504.9 531.3 558.8 586.4 618.1
Head Tube Angle 72.5° 73.0° 73.5° 74.0° 74.0°
Head Tube Length 83.0 109.0 136.0 163.0 196.0
Seat Tube Length 490.0 530.0 560.0 590.0 620.0
BB Drop 70.0 70.0 70.0 70.0 70.0
Wheelbase 956.8 966.5 978.6 987.5 1009.1
Chainstay Length 398.0 398.0 398.0 398.0 398.0
Top Tube Length, Actual 526.5 547.0 568.0 587.0 608.0
Top Tube Length, Effective 529.5 547.0 568.0 587.0 608.0
Seat Tube Angle 74.5° 74.0° 73.5° 73.0° 73.0°
Standover Height 748.5 780.5 807.9 835.2 865.3
Stem Length N/A N/A N/A N/A N/A
Stem Angle N/A° N/A° N/A° N/A° N/A°
Handlebar Width N/A N/A N/A N/A N/A
Crank Length N/A N/A N/A N/A N/A
Fork Length 375.0 375.0 375.0 375.0 375.0
Fork Rake 38.0 38.0 38.0 38.0 38.0


* Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø682mm

Frame Specs

  • Tubing: Surly 4130 CroMoly steel. Main triangle is double-butted. TIG-welded. ED Coated.
  • Rear Dropouts: Investment cast Surly track dropouts, 120mm spaced
  • Brake Compatibility: Standard reach road calipers, but there are no stops for housing
  • Braze-ons/extras: Eyelets on the rear dropouts and one set of water-bottle mounts on the seattube ’cause we’re not camels
  • Seatpost Diameter: 27.2mm
  • Seatpost Clamp Diameter: 30.0mm Surly stainless, included
  • Headset/Steerer Tube: 1-1/8" threadless
  • Bottom Bracket Shell: 68mm wide, threaded English 1.37" x 24t
  • Chainring Clearance: Heavy manipulation of the chainstays gives room for a 50t ring while maintaining chainline. Track crank-compatible
  • Tire Clearance: Room for tires up to 700c x 38mm. Individual tire and rim combos affect tire clearance, but figure on being able to use tires up to 32mm with fenders (p.s. use clip-on fenders)
  • Fork: 4130 CroMoly, lugged and brazed flat crown that is drilled to accept a standard mid-reach (47–57mm) caliper brake. It has clearance for 700c x 38mm tires. There are no eyelets at the dropouts

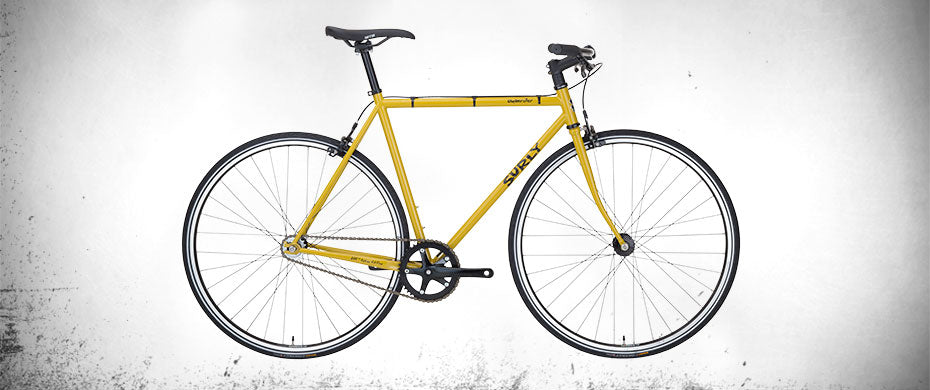

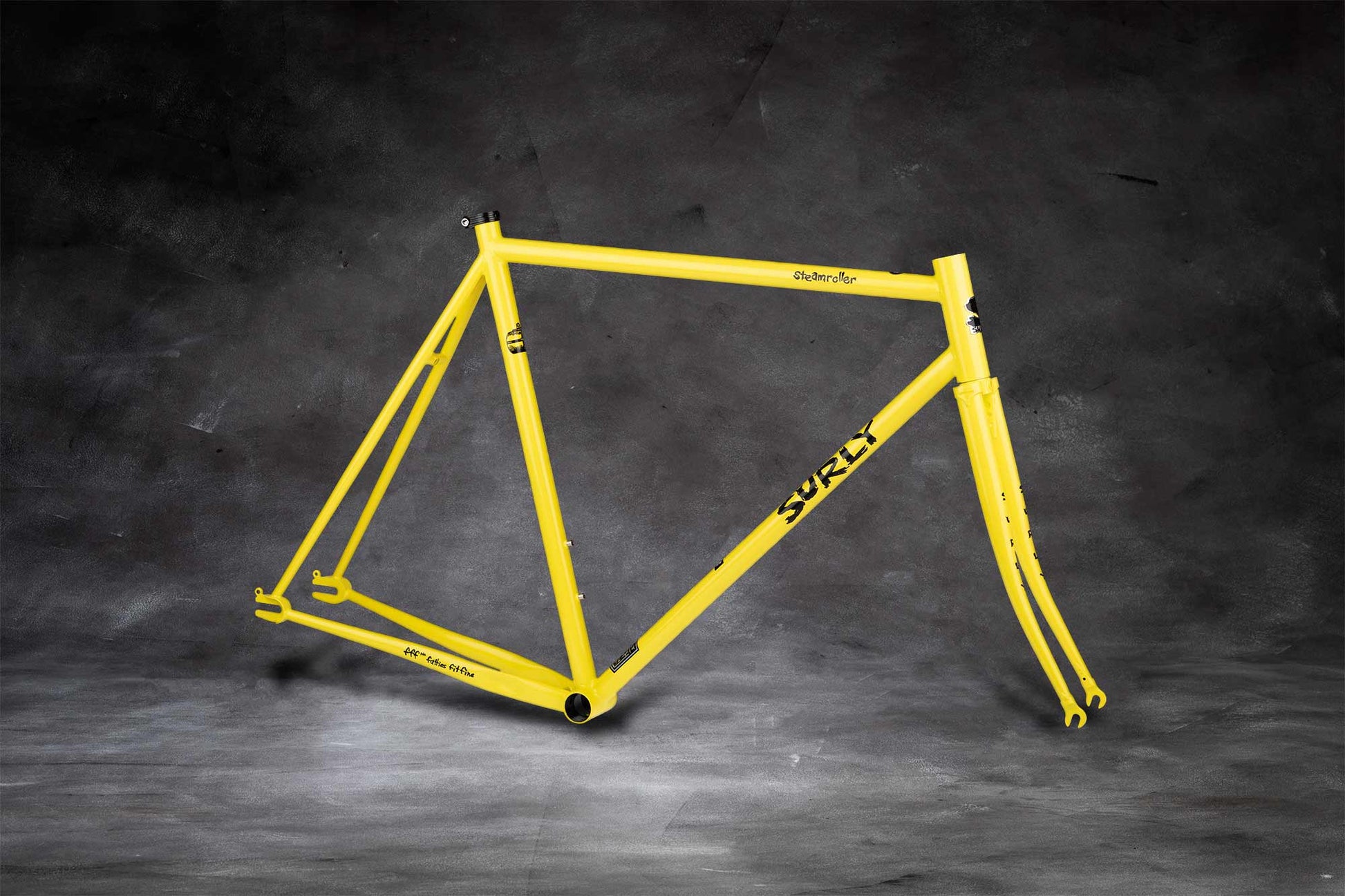

  • Colors: Banana Candy Yellow

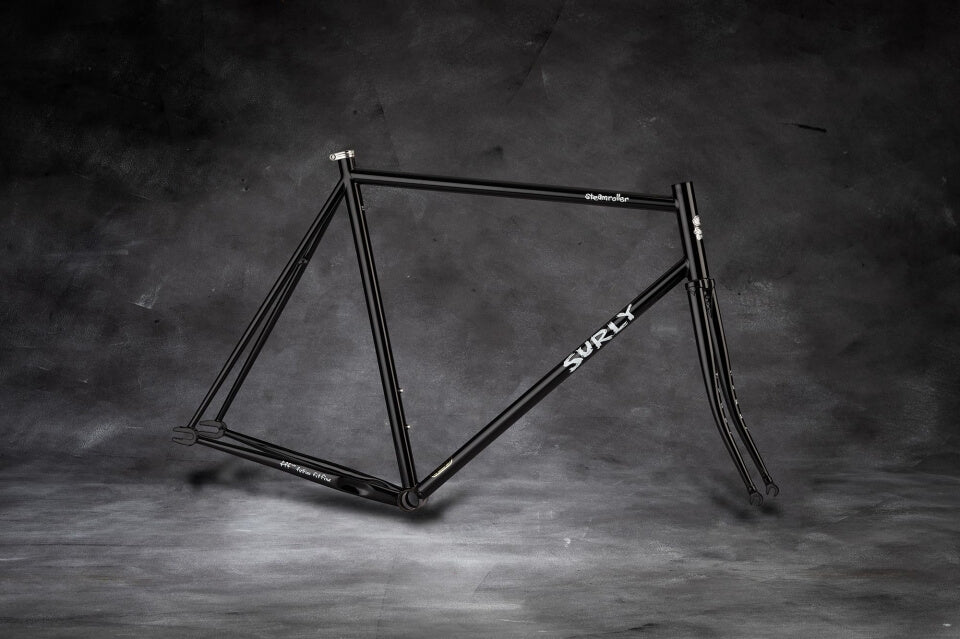

    Black
    Drink More Water Yellow

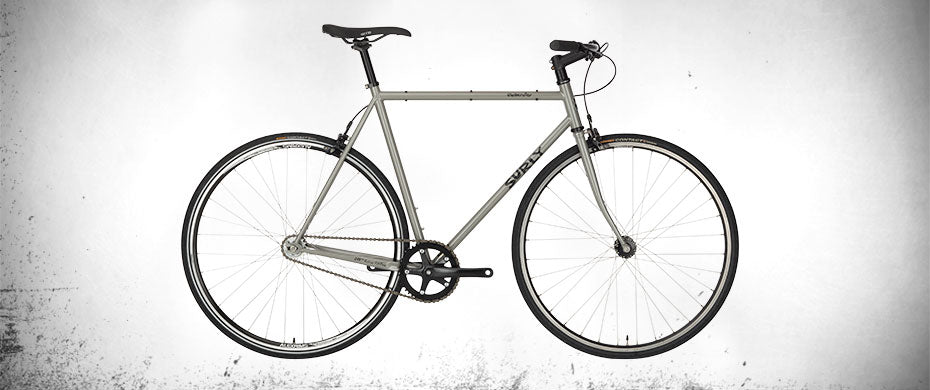

    Ministry Gray

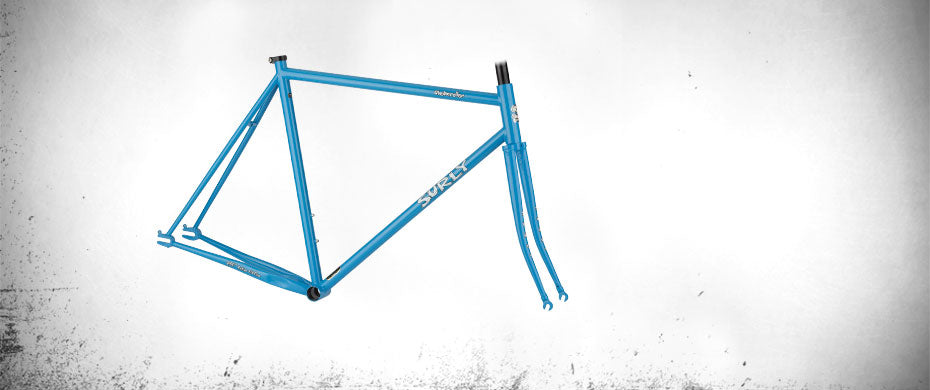

    Frost Blue
    Black
    Shag Carpet Orange

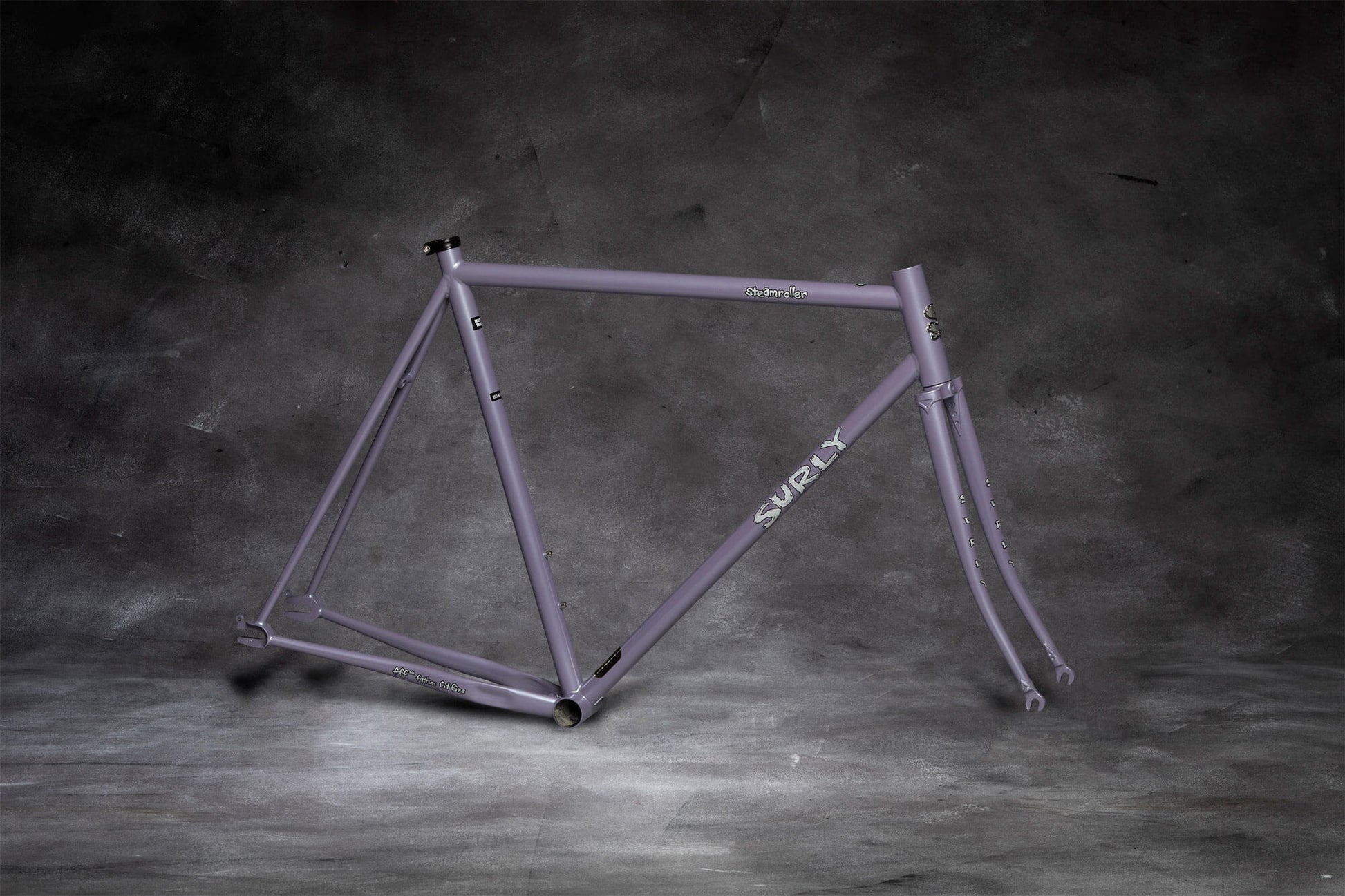

    Metalic Lilac

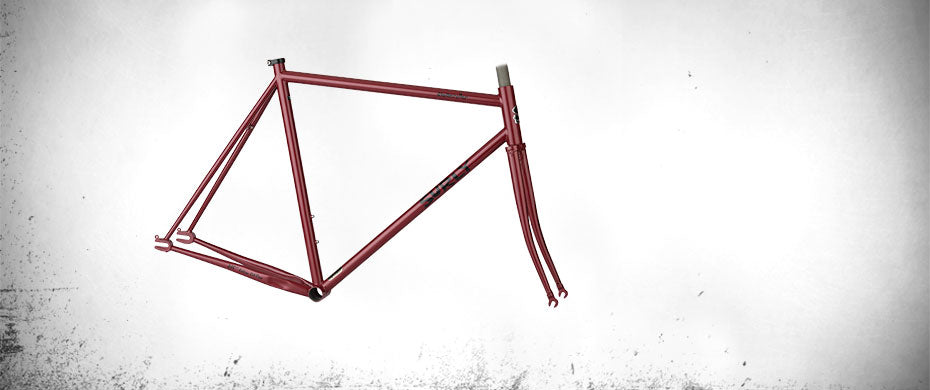

    Monkey Butt Red

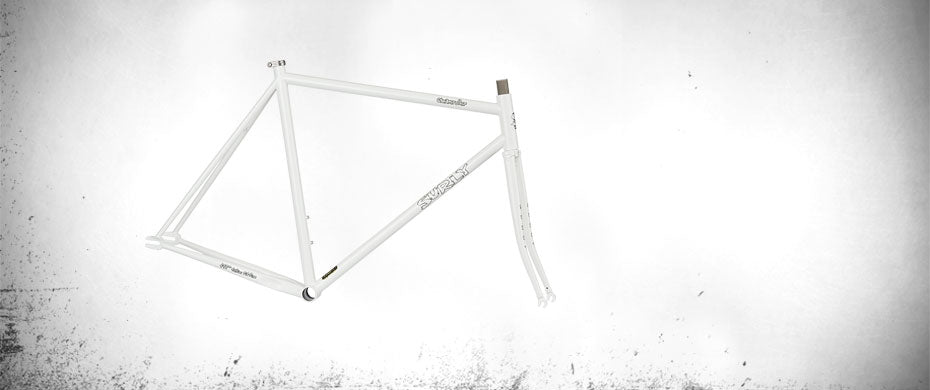

    Zinc
