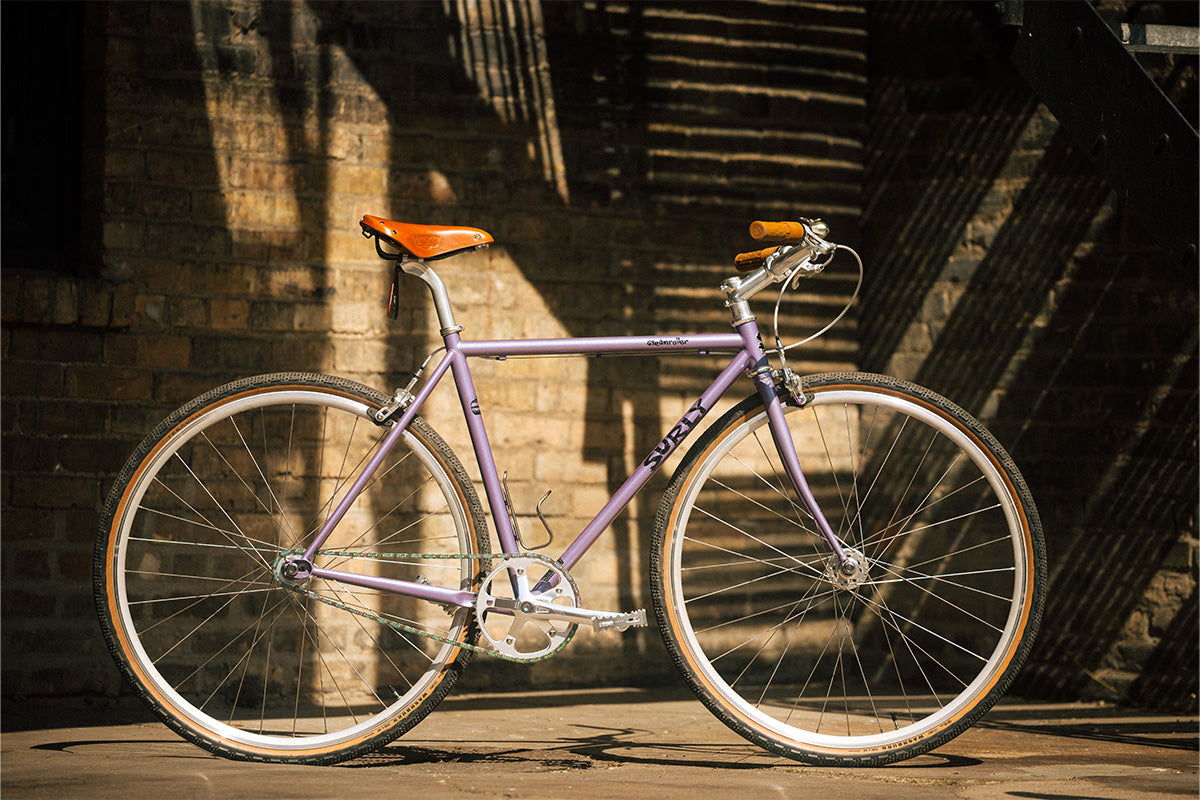

Steamroller is a dedicated single-speed/fixed-gear commuter bike that can handle potholes, grass shortcuts, urban trails, and back alleys like a champ.

Remember when things were simpler? Steamroller remembers. Launched back in 2000 when bikes had triple chainrings, the Triple Rock was still open, and our knees didn’t make noises, this steel classic is back in town for a limited time. Steamroller’s street-proof double-butted 4130 chromoly steel frame and 700c x 38mm tire clearance made it a fixture in the fixie craze, a go-to for messengers, and a trusty accomplice for riding to work, concerts, and shadowy dive bars through its 23-year run. Steamroller mixes track-bike features like 120mm rear spacing and track crank compatibility with touches for nicer everyday riding, like road bike geometry, rim brake mounts, and new brake cable guides for cleaner rear brake routing. No derailleur hanger, no rack mounts, no need. This Steamroller comes only in frameset form — all the better to Make It Your Own.

Road bike geometry with track bike features: 120mm rear spacing, track-legal BB height, track crank compatible

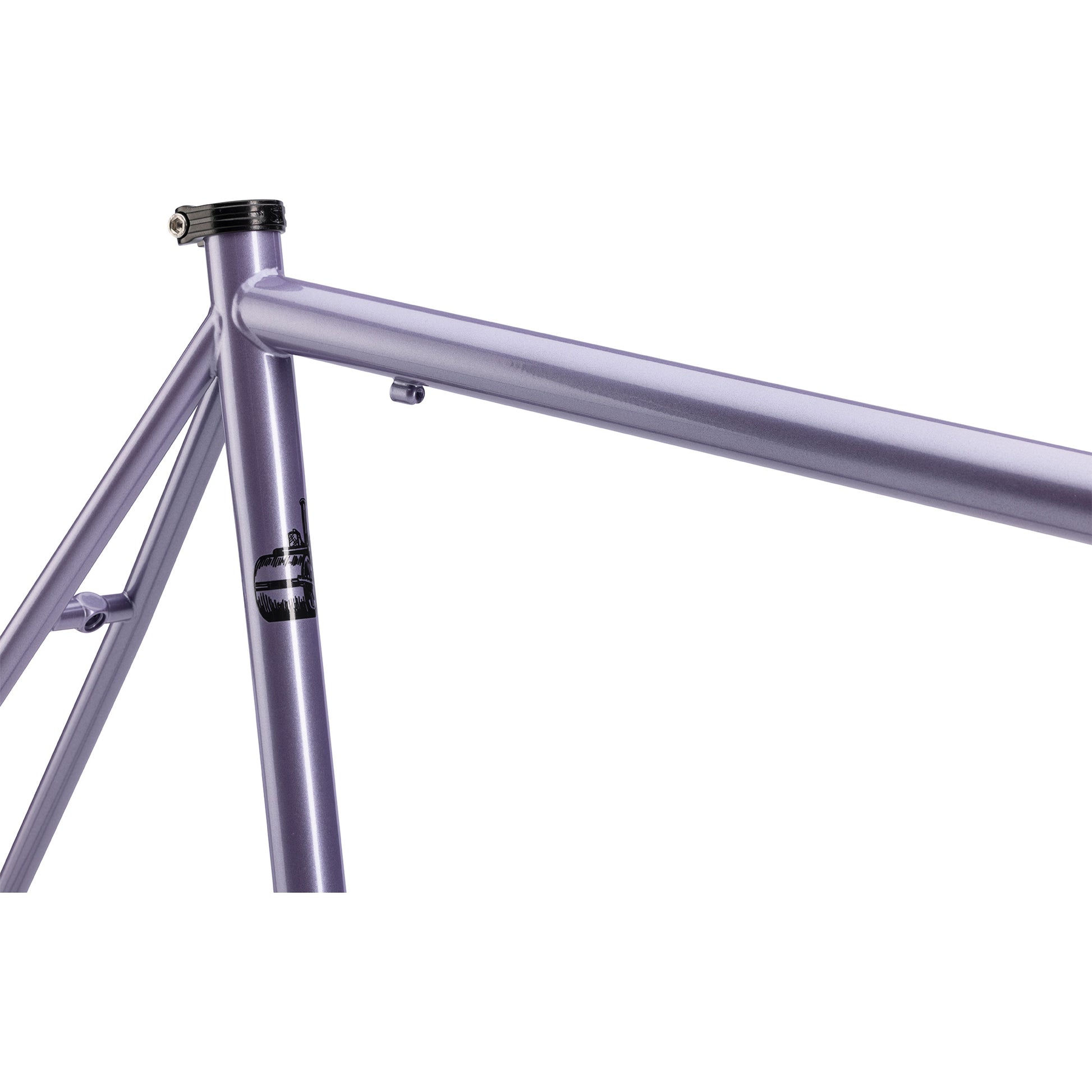

100% Surly 4130 chromoly steel frame and fork; double-butted main triangle, TIG-welded
Brake cable stops for cleaner rear brake routing

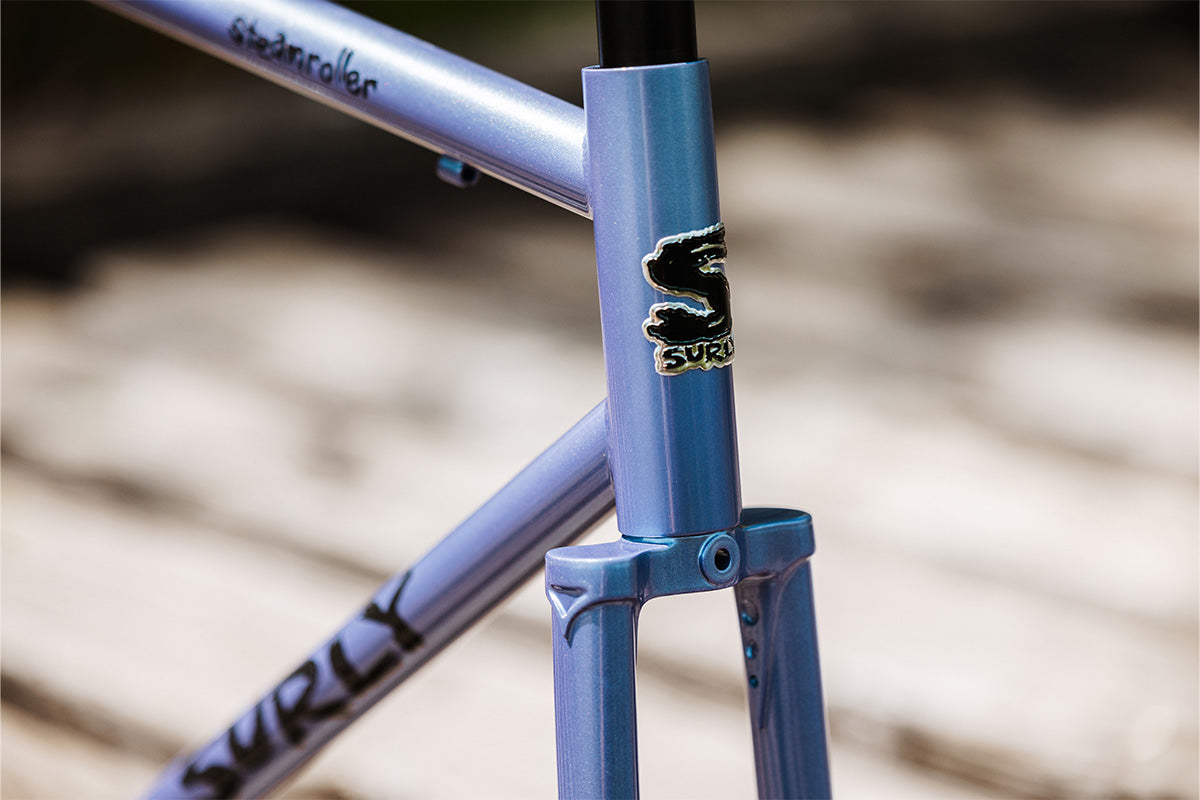

1-1/8" threadless chromoly steel fork, brazed
Fork and seatstay bridge drilled for mid-reach (47-57mm) caliper brakes
700c x 38mm maximum tire clearance without fenders (32mm with fenders — rear fender eyelets only)
One bottle cage mount
Frame is powder coated for a durable finish and E.D. coated for rust resistance

Specifications

Build Kit

Frameset

Frame

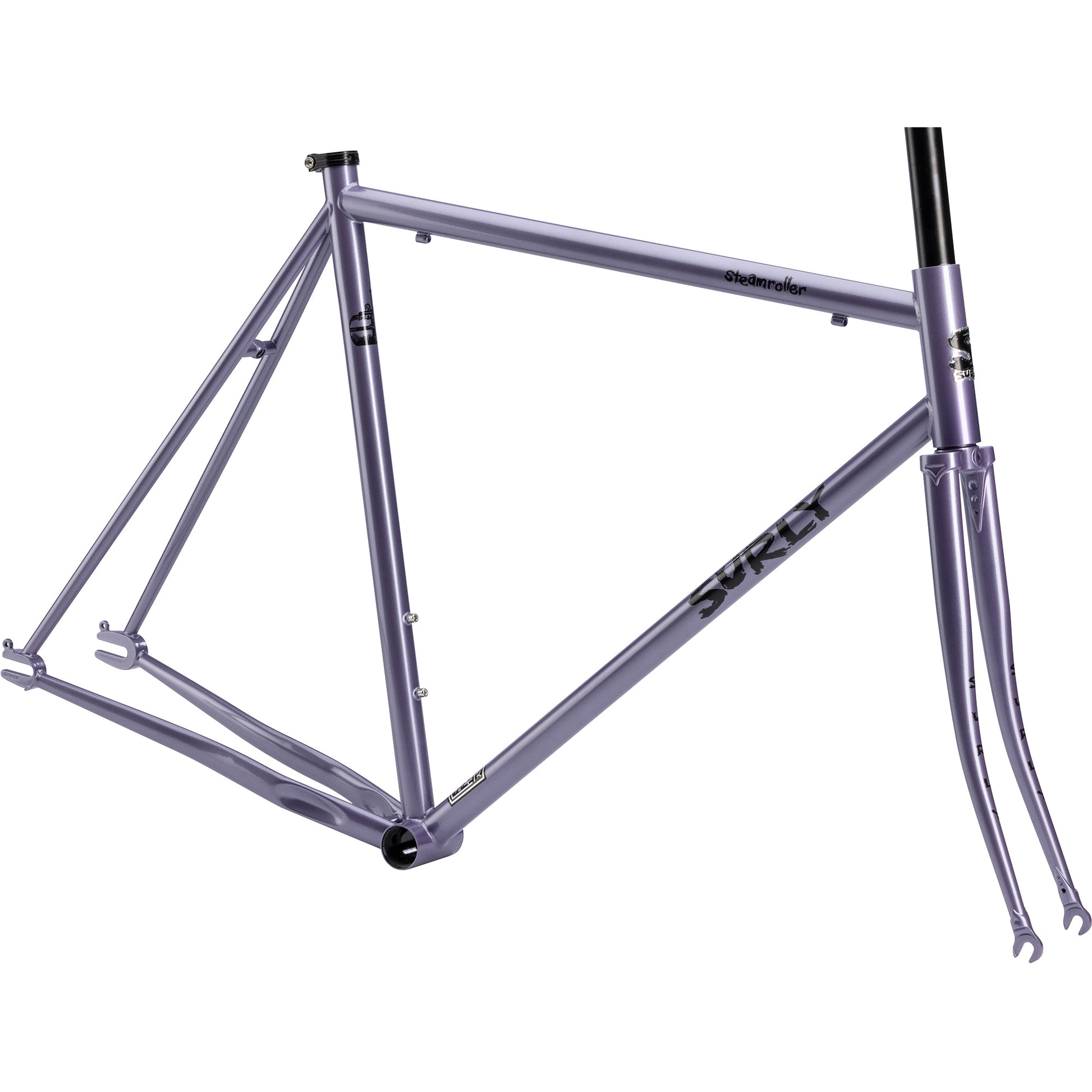

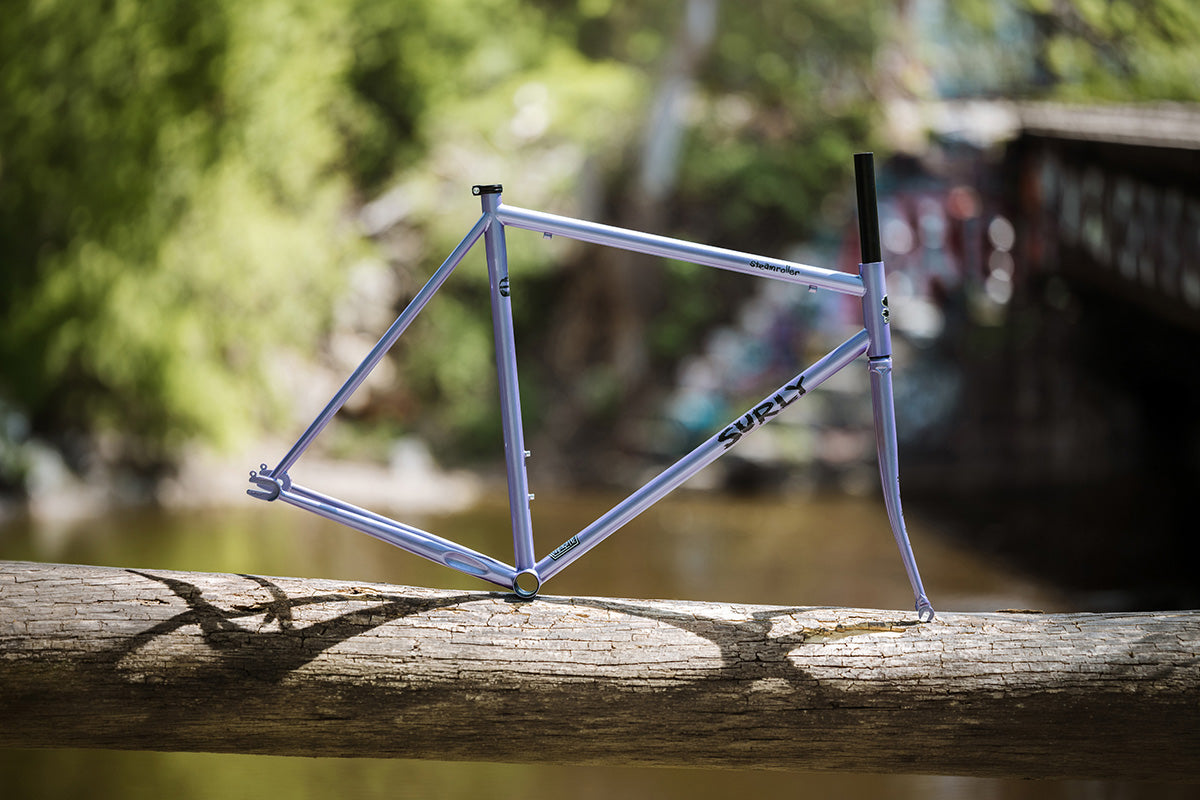

Surly Steamroller - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Color

Anxious Lavender

Fork

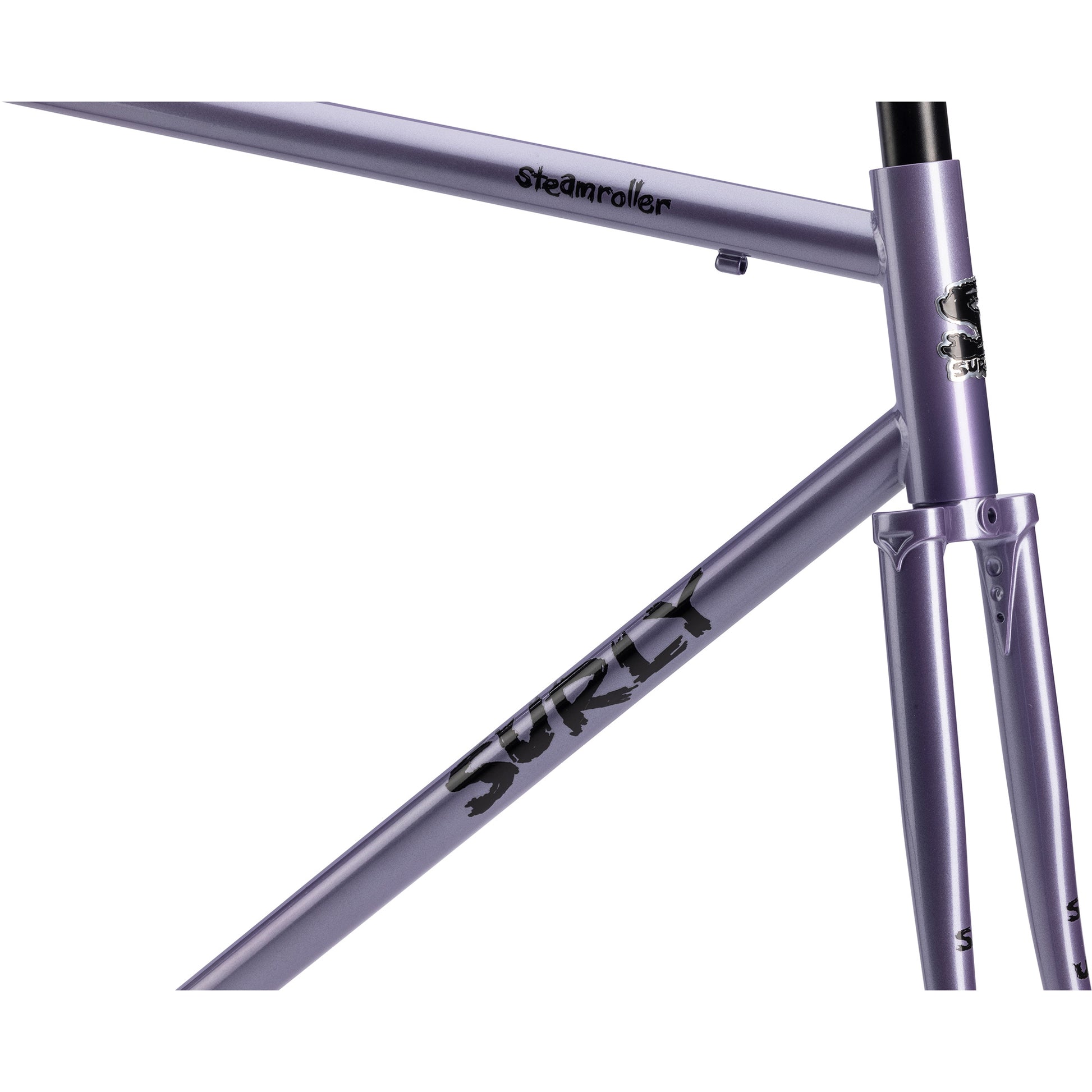

Surly Steamroller - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, E.D. coated

Components

Seatpost Clamp

Surly Stainless 30.0mm

Drivetrain

Wheels

Weight

Frame

7lb 2oz for 56cm

*Specifications are subject to change without notice

Geometry

Size	49cm	53cm	56cm	59cm	62cm
A. Effective Top Tube	528.0	546.0	568.0	588.0	609.0
B. Stand Over	754.0	784.0	812.0	839.0	869.0
C. Reach	388.0	394.0	403.0	408.0	420.0
D. Stack	505.0	531.0	559.0	586.0	618.0
E. Total Seat Tube Length	515.0	555.0	585.0	615.0	645.0
F. Headtube Length	83.0	109.0	136.0	163.0	196.0
G. Headtube Angle	72.5	73.0	73.5	74.0	74.0
H. Seat Tube Angle	74.5	74.0	73.5	73.0	73.0
I. BB Drop	70.0	70.0	70.0	70.0	70.0
J. BB Height	275.0	275.0	275.0	275.0	275.0
K. Chainstay Length	398.0	398.0	398.0	398.0	398.0
L. Fork Length Axle to Crown	375.0	375.0	375.0	375.0	375.0
M. Fork Offset	38.0	38.0	38.0	38.0	38.0
N. Wheelbase	957.0	967.0	979.0	988.0	1008.0
Crank Arm Length
Handlebar Width
Recommended Rider Height	160.0 - 170.0	168.0 - 178.0	173.0 - 188.0	185.0 - 196.0	193.0 - 203.0
Stem Length

Frame Specs

Design Wheel/Tire Sizes 700c x 32mm
Max Tire Outer Diameter Frame & Fork Clearance:
700c x 32mm (w/ fenders)
700c x 38mm (w/o fenders)
Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, E.D. coated
Fork Offset 38mm
Axle to Crown 375mm

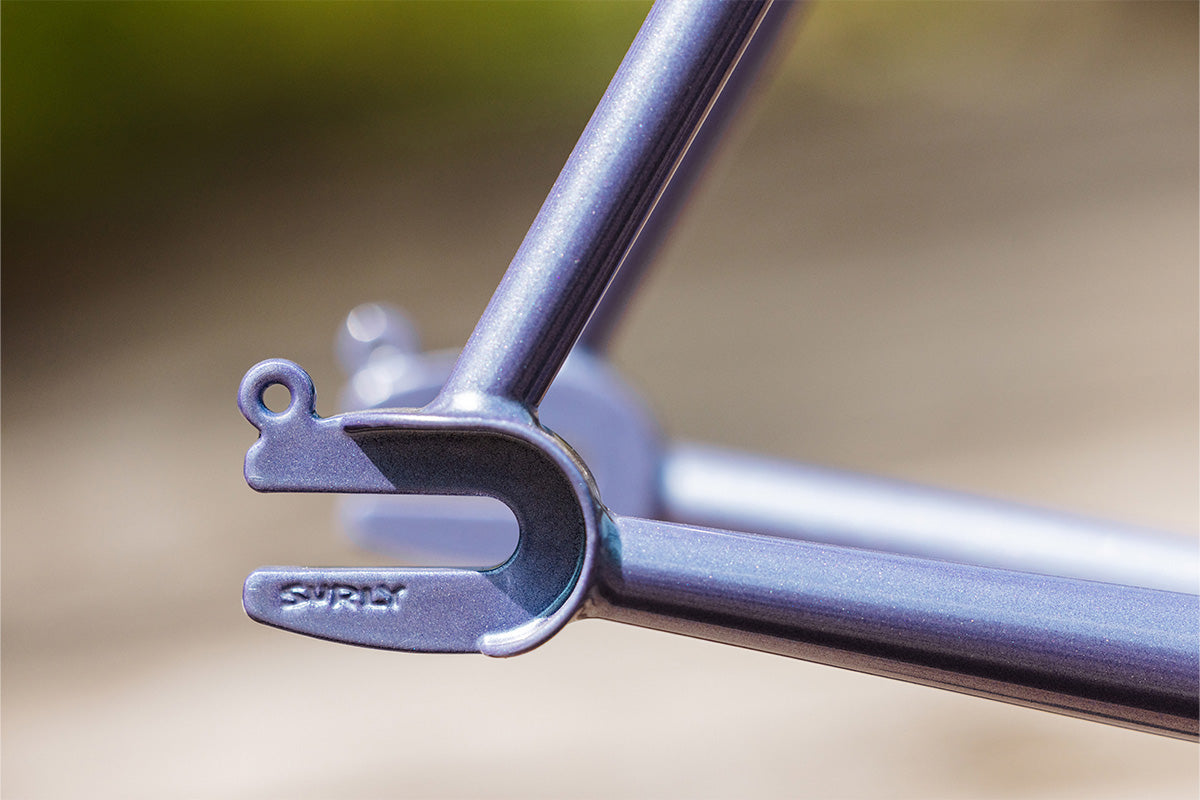

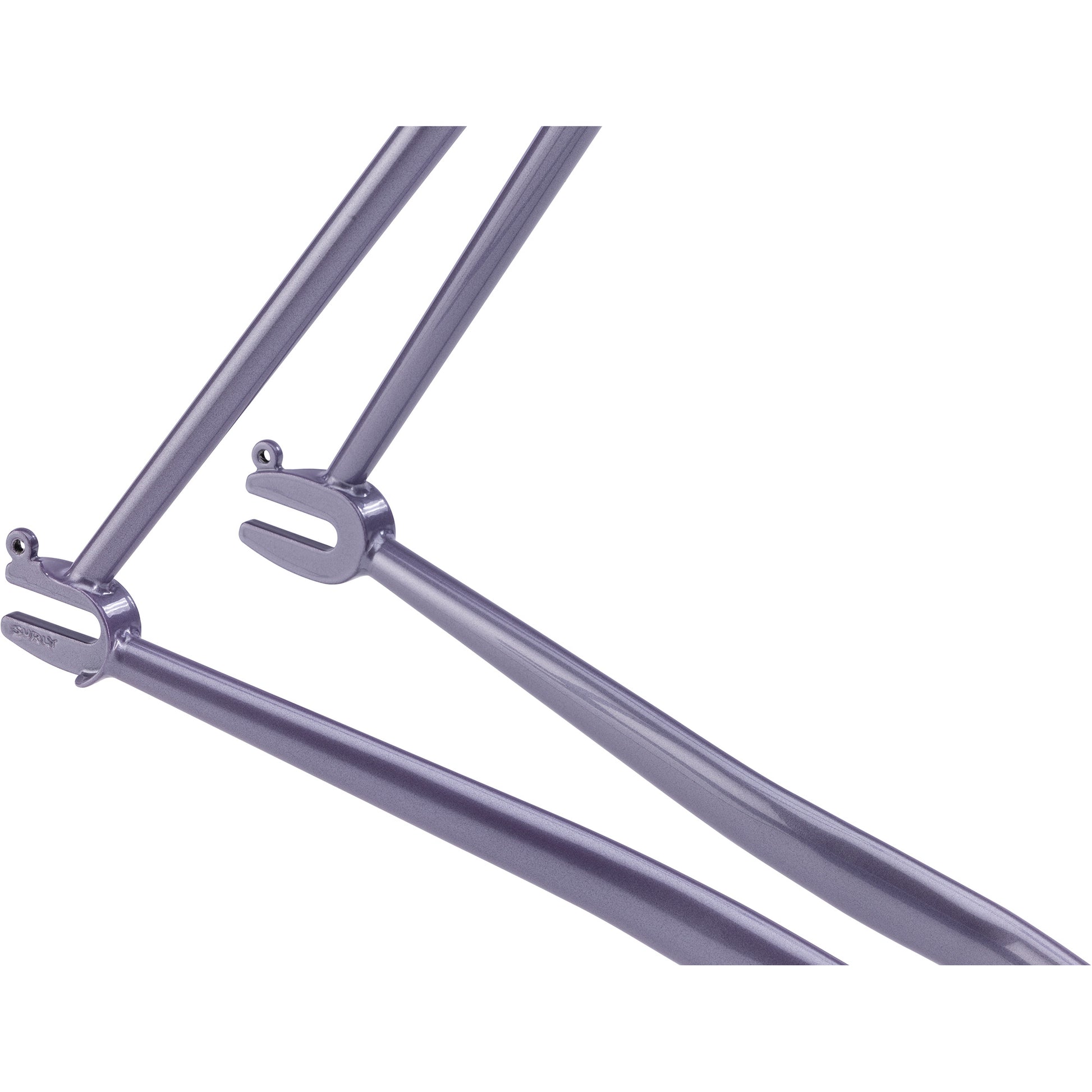

Rear Spacing 10 x 120mm
Rear Brake (Rotor) Rim - Caliper (mid reach)
Front Brake (Rotor) Rim - Caliper (mid reach)
Headset - Upper EC34/28.6
Headset - Lower EC34/30
Front Spacing 9 x 100mm
Steerer Tube Ø28.6mm (1-1/8")
Crown Race Ø30mm
Seatpost Ø27.2mm
Seatpost Clamp Ø30mm
Front Derailleur Clamp N/A

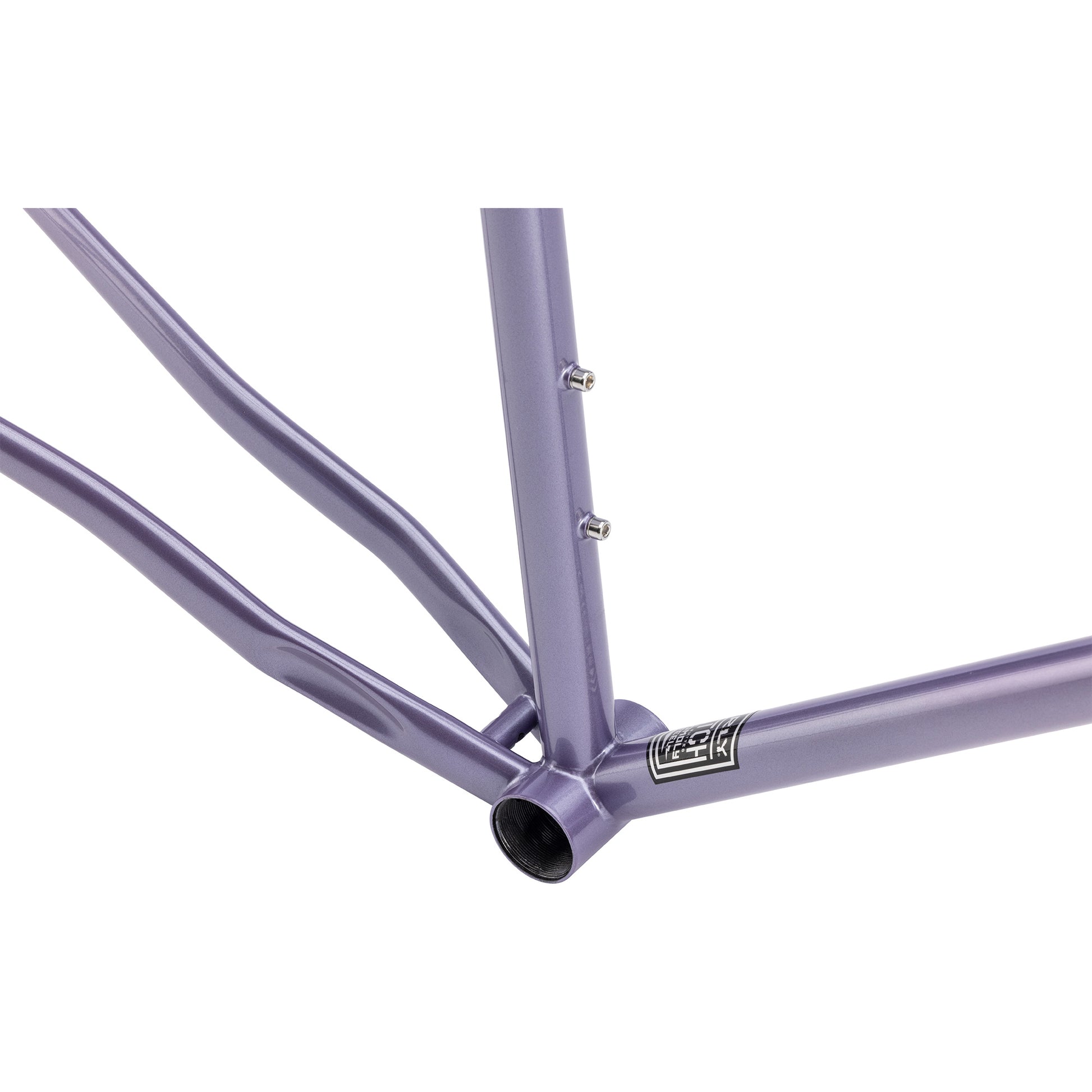

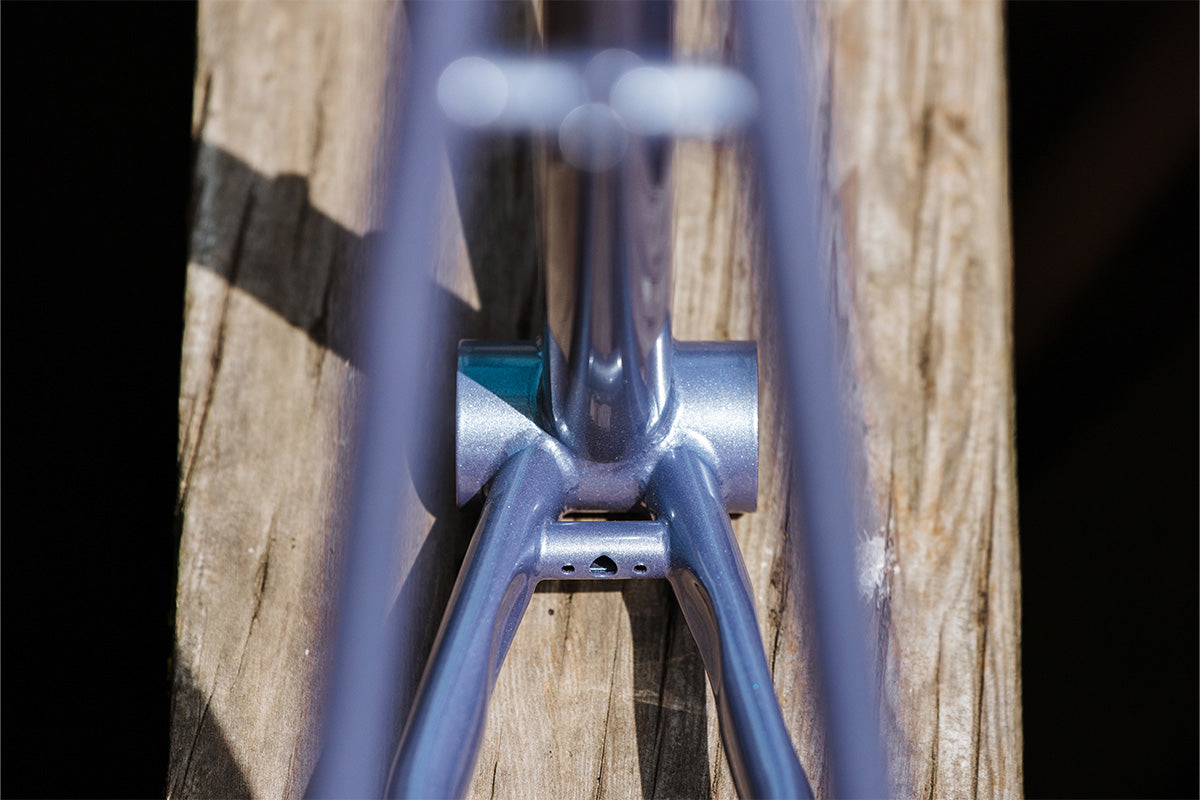

Bottom Bracket 68mm threaded (1.37" x 24TPI)
Crankset (Max Ring) 1x (Track): 50T
Bottle Mounts Frame: 1 Standard
Fork Mounts N/A
Front Fender Mounts N/A
Rear Fender Mounts Yes

Documents

Warranty

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.
