Sorceress Single Speed Bike - Swamp Water Taffy

Singletrack - Rowdy Trails - Sweet Jumps

$2,199.00 USD

~~$0.00 USD~~ $2,199.00 USD

Sale

Size X-Small (27.5") Small (29") Medium (29") Large (29") X-Large (29")

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

A Trail-born Steel Shapeshifter

Our modern trail hardtail with geared and single-speed abilities, Sorceress conjures a spellbinding singletrack experience wherever and whenever you summon it.

Let Sorceress be your guide through steep and gnarly dirt realms; it thrives on flowy, feature-rich singletrack and techy descents.

Sorceress channels our modern trail geometry: a long front center, steep seat tube angle, and slack headtube angle conjure playful riding, stable footing, and efficient climbing (plus the power to levitate). And with maximized standover and room for longer dropper posts, you get less saddle interference and more space to send it.

The alchemy of Surly Natch steel tubing, tuned specifically for Sorceress, gives it a lively yet smooth ride quality. True to form, Sorceress is a shapeshifter: we worked with the wizards at SRAM to develop our new patent-pending DUH dropout system. This grants you the power to run gears with a UDH hanger or Full-Mount drivetrain or swap in a single-speed chip.

Whatever trail magic you seek, Sorceress can summon it.

Steel frame with modern, hard-charging trail geometry designed around a 140mm travel suspension fork for a nice balance of playfulness, efficiency, and control
DUH dropout system (patent pending) allows for SRAM UDH, Full-Mount, and single-speed drivetrain setups. Complete bike comes with the DUH configuration is it sold as. DUH conversion parts sold separately.

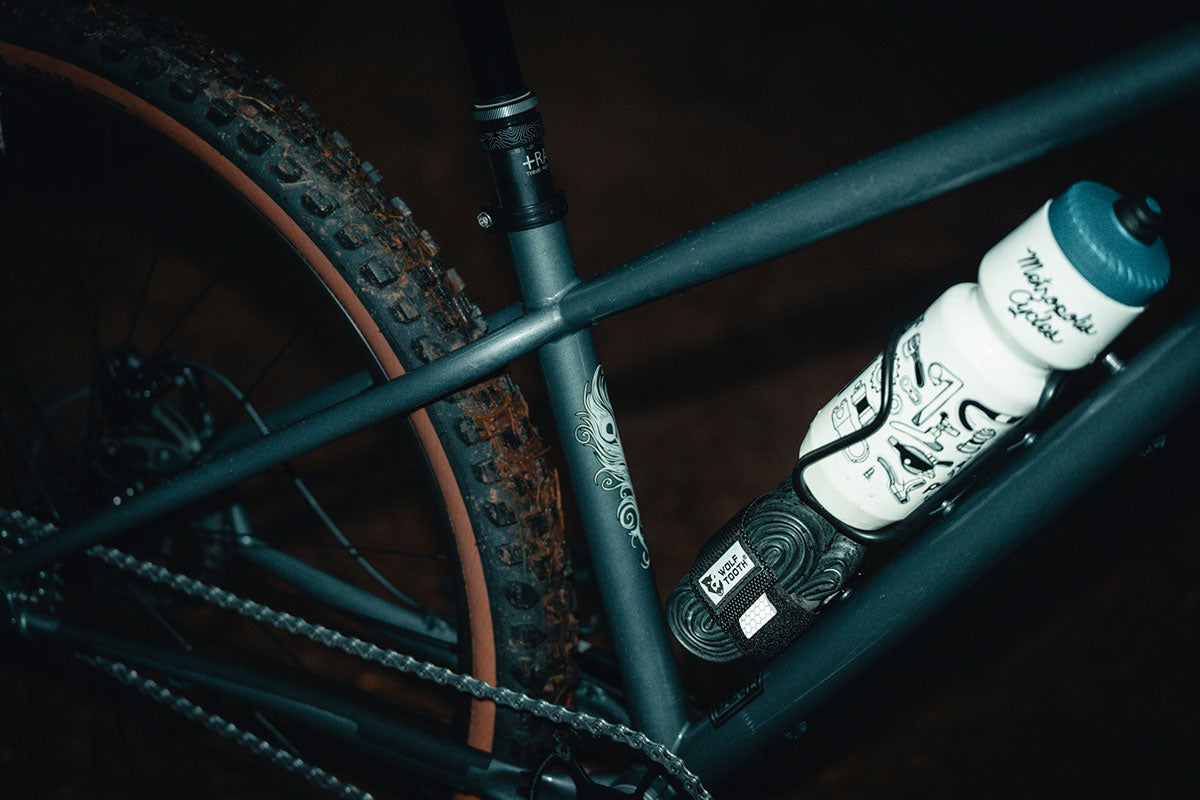

Room for two bottles on MD–XL sizes; one bottle on XS–SM sizes
Inclusive standover clearance and maximized dropper post fit designed to welcome riders from 4′9″ (146cm) to 6′6″ (199cm)
Teravail Kessel tires (29 x 2.5″ or 27.5 x 2.5″ on XS) for enhanced traction, control, and grip

Specifications

Build Kit

Frameset

Frame

Sorceress - 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated. Includes Silicone chainstay protector, 1mm thick.

Color

Swamp Water Taffy

Suspension Fork

SR Suntour Zeron36 Boost EQ 29", 15 x 110mm, 44mm offset, 140mm travel (27.5" on XS), Short fender included

Components

Headset

FSA Orbit ITA

Seatpost Clamp

Surly Stainless 33.1mm clamp

Seatpost

TranzX YSI05 +RAD Dropper Post, 30.9mm (170mm travel on XS, 200mm travel on SM-XL)

Stem

Promax DA-205 Alloy

Grips/Bar Tape

Velo Ultra Light Foam

Saddle

WTB Solano Medium

Handlebar

TranzX Alloy 31.8mm (0mm rise on XS/SM, 20mm rise on MD/LG, 38mm rise on XL)

Drivetrain

Front Derailleur

N/A

Rear Derailleur

N/A

Cassette

Surly 18T Single Speed Cog

Chain

KMC X9 EPT Anti-Rust

Crankset

SRAM NX Eagle, 32T

Shifter

N/A

Brake Levers

Tektro HD-M280

Brake Calipers

Tektro HD-M280, 2 piston

Bottom Bracket

SRAM PowerSpline BSA 73mm

Rotors

Tektro 180/180, Center Lock

Wheels

Front Tire

Teravail Kessel 29 x 2.5" Durable Casing (27.5" on XS), Tan Sidewalls, WTB TCS Sealant Included

Rear Tire

Teravail Kessel 29 x 2.5" Durable Casing (27.5" on XS), Tan Sidewalls, WTB TCS Sealant Included

Front Hub

Shimano TC500 15x110mm, 32h, Center Lock

Rear Hub

Shimano TC500 12x148mm, 32h, Center Lock

Spoke

14G Black

Rim

WTB ST i30 29" TCS 2.0, 32h (27.5" on XS)

Weight

Complete Bike

32 lb 1 oz for Medium

*Specifications are subject to change without notice

Geometry

Size	X-Small (27.5")	Small (29")	Medium (29")	Large (29")	X-Large (29")
A. Effective Top Tube	560.0	590.0	617.0	645.0	675.0
B. Stand Over	730.0	763.0	782.0	796.0	809.0
C. Reach	415.0	437.0	463.0	484.0	507.0
D. Stack	580.0	614.0	618.0	646.0	673.0
E. Total Seat Tube Length	300.0	330.0	360.0	410.0	460.0
F. Headtube Length	95.0	95.0	100.0	130.0	160.0
G. Headtube Angle	64.0	65.0	65.0	65.0	65.0
H. Seat Tube Angle	76.0	76.0	76.0	76.0	76.0
I. BB Drop	55.0	65.0	65.0	65.0	65.0
J. BB Height	303.0	314.0	314.0	314.0	314.0
K. Chainstay Length	410.0	429.0	429.0	429.0	429.0
L. Fork Length Axle to Crown	498.0	518.0	518.0	518.0	518.0
M. Fork Offset	44.0	44.0	44.0	44.0	44.0
N. Wheelbase	1127.0	1166.0	1193.0	1227.0	1263.0
Crank Arm Length	165.0	165.0	165.0	170.0	170.0
Handlebar Width	740.0	740.0	800.0	800.0	800.0
Recommended Rider Height	146.0 - 159.0	156.0 - 169.0	166.0 - 179.0	177.0 - 189.0	187.0 - 199.0
Stem Length	45.0	45.0	45.0	45.0	45.0

Measurements based on:

Measurements are based on a 140mm fork at 25% sag. Fully extended fork geo is 533x44mm (XS) and 553x44mm (SM-XL). Measurements are based on a 27.5x2.6" (XS) and 29x2.6" (SM-XL) tire with an outer diameter of 716mm (XS) and 757mm (SM-XL). Standover is measured at the middle of the top tube with the fork fully extended.

Frame Specs

Max Tire Outer Diameter 27.5/29" x 2.6" w/o fender
Frame Construction 4131 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
Suspension Fork Length (Travel) 572 X 44mm (29” 150mm)
Rear Axle Size 12 x 148mm (Surly single speed axle included)
Rear Brake (Rotor) Disc - 51mm I.S. (203mm max rotor)
Front Brake (Rotor) See suspension fork details
Headset - Upper ZS44/28.6
Headset - Lower EC44/40
Seatpost Ø30.9mm
Dropper Post Compatible Yes
Seatpost Clamp Ø33.1mm
Max Post Insertion XS: 247mm | SM: 277mm | MD: 304mm | LG: 356mm | XL: 408mm
Front Derailleur Type N/A
Bottom Bracket 73mm threaded (1.37" x 24TPI)
Crankset (Max Ring) 1x (55CL): 32T
Bottle Mounts 1 Three-Pack (XS - SM), 1 Standard + 1 Three-Pack (MD-XL)

Documents

Warranty

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
