Preamble Frameset - Skyrim Blue

Commuting – Road – Light Gravel

$549.00 USD

~~$549.00 USD~~ $549.00 USD

Sale

Size X-Small Small Medium Large X-Large

Quantity

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Nothing More is Needed. Nothing Less Will Do.

The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.

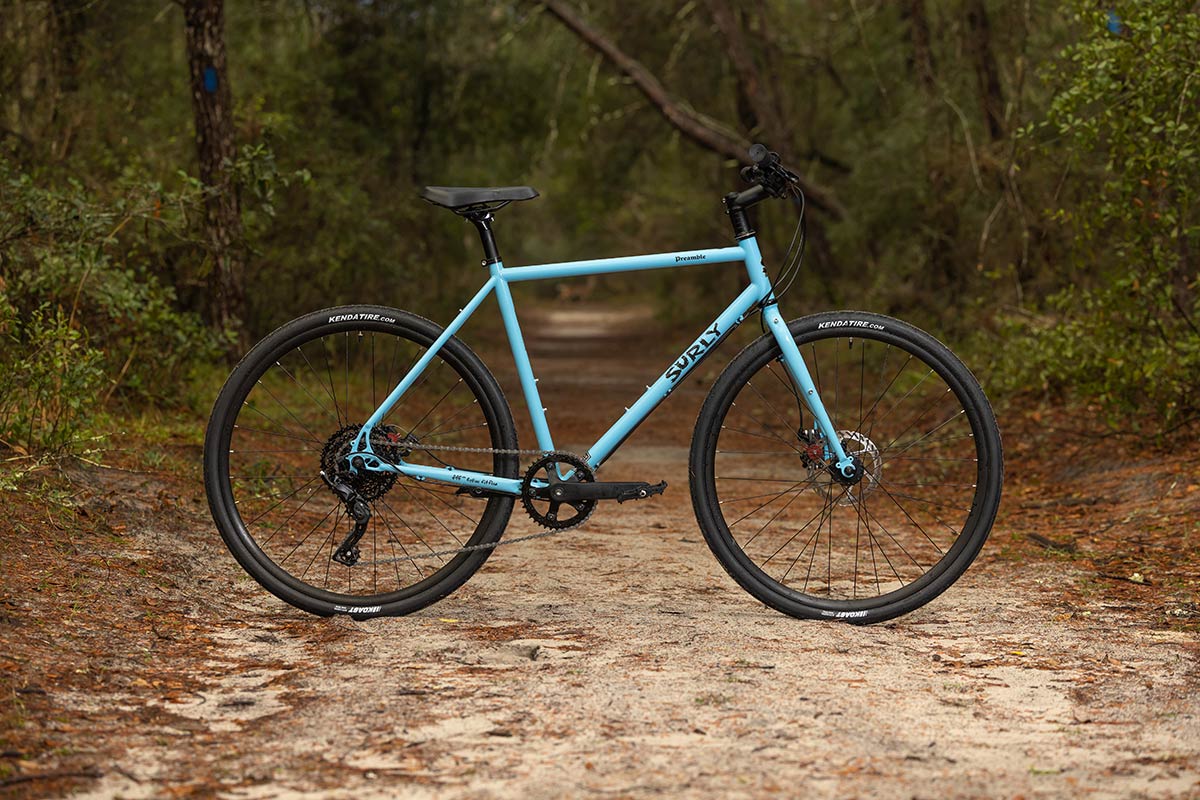

Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.

Let facts be submitted to a candid world: Offered in flat-bar and drop-bar configurations
Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
Sloping top tubes on XS and Small frames for improved standover and comfort
To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c

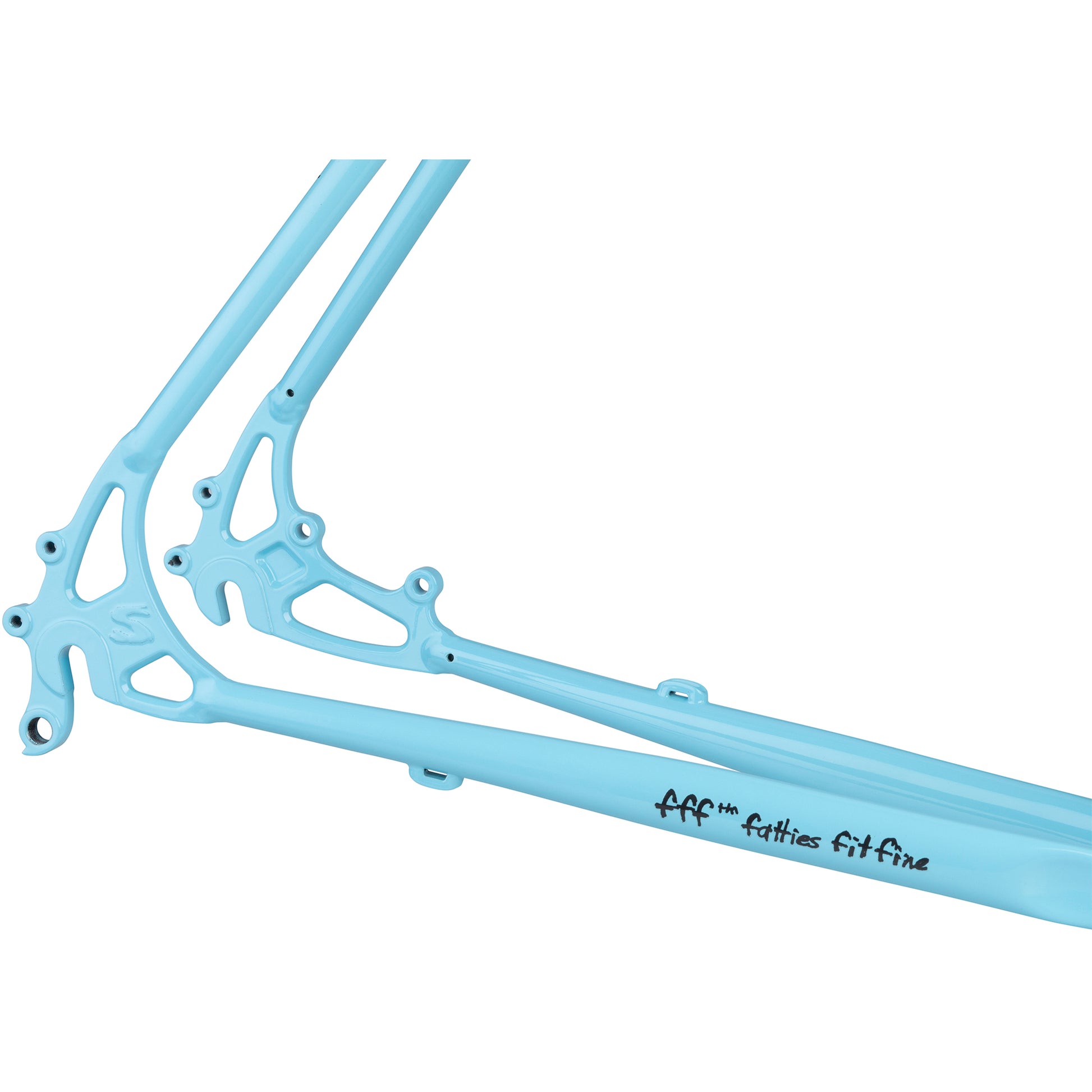

Custom-cast single-position vertical dropout

Specifications

Build Kit

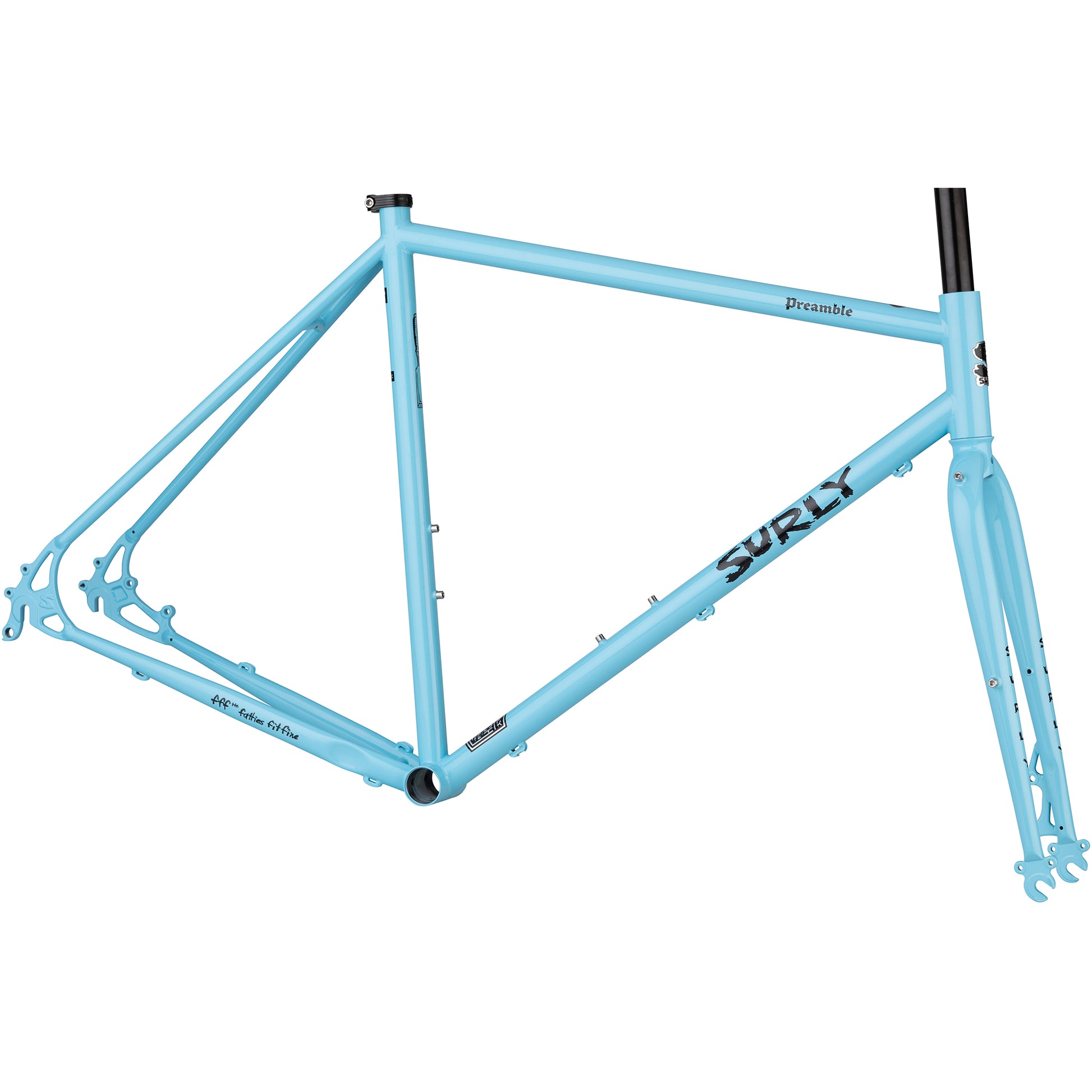

Frameset

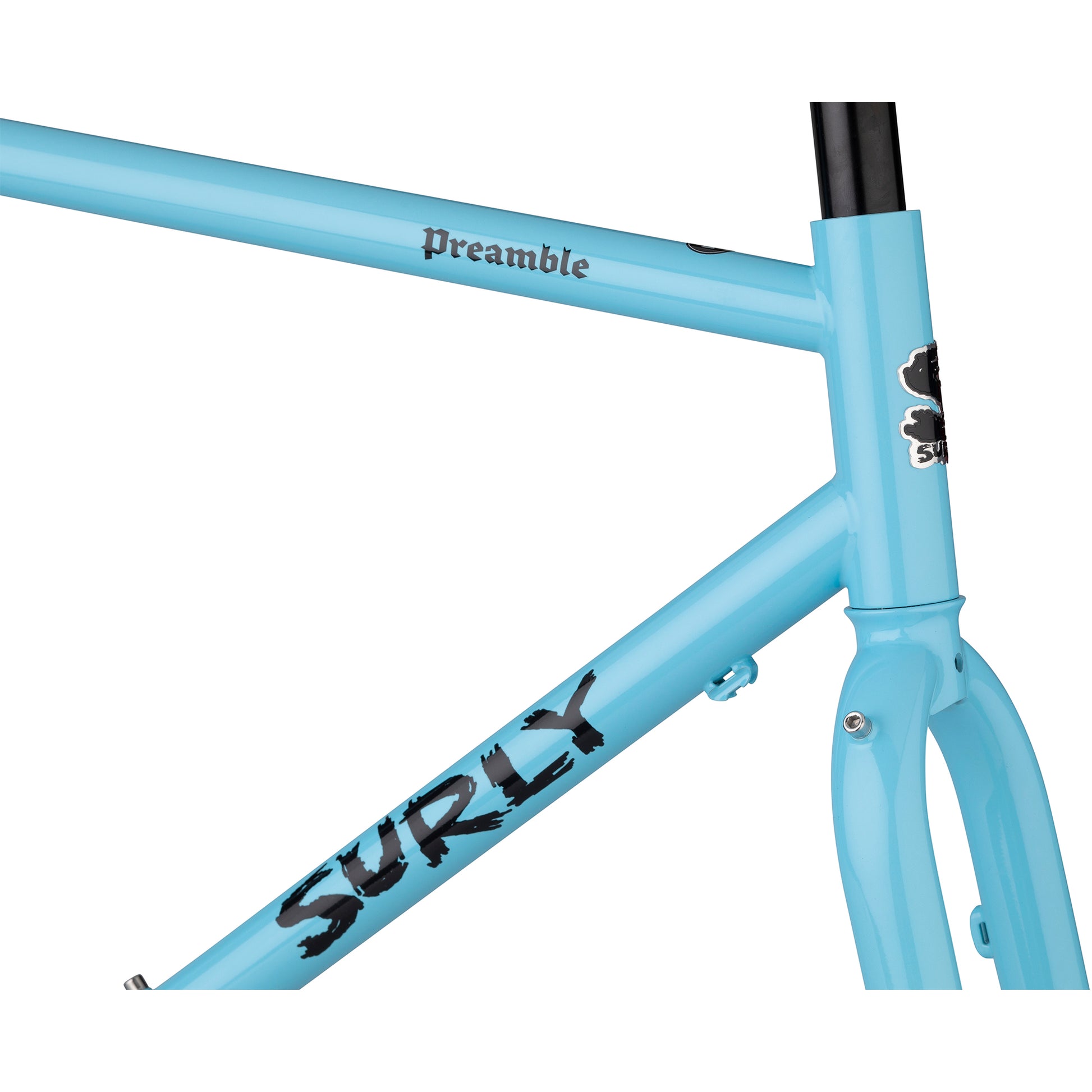

Frame

Surly Preamble, 100% Chromoly steel tubing, E.D. coated

Color

Skyrim Blue

Fork

Surly Preamble, 100% Chromoly steel fork, Disc Only

Components

Seatpost Clamp

Surly Stainless 30.0

Drivetrain

Wheels

*Specifications are subject to change without notice

Geometry

Size	X-Small	Small	Medium	Large	X-Large
A. Effective Top Tube	500.0	545.0	570.0	600.0	630.0
B. Stand Over	722.0	776.0	826.0	863.0	901.0
C. Reach	352.0	381.0	391.0	404.0	421.0
D. Stack	517.0	535.0	567.0	605.0	643.0
E. Total Seat Tube Length	410.0	505.0	565.0	605.0	645.0
F. Headtube Length	120.0	135.0	130.0	170.0	210.0
G. Headtube Angle	70.0	71.0	72.0	72.0	72.0
H. Seat Tube Angle	74.0	73.0	72.5	72.0	72.0
I. BB Drop	54.0	54.0	66.0	66.0	66.0
K. Chainstay Length	420.0	420.0	435.0	435.0	435.0
L. Fork Length Axle to Crown	380.0	380.0	400.0	400.0	400.0
M. Fork Offset	47.0	47.0	44.0	44.0	44.0
N. Wheelbase	987.0	1013.0	1030.0	1055.0	1085.0
Crank Arm Length
Handlebar Width
Recommended Rider Height	152.4 - 165.1	162.56 - 172.72	170.18 - 182.88	180.34 - 190.5	187.96 - 200.66
Stem Length

Frame Specs

Design Wheel/Tire Sizes 650b x 41mm: XS-SM frames
700c x 41mm: MD-XL frames

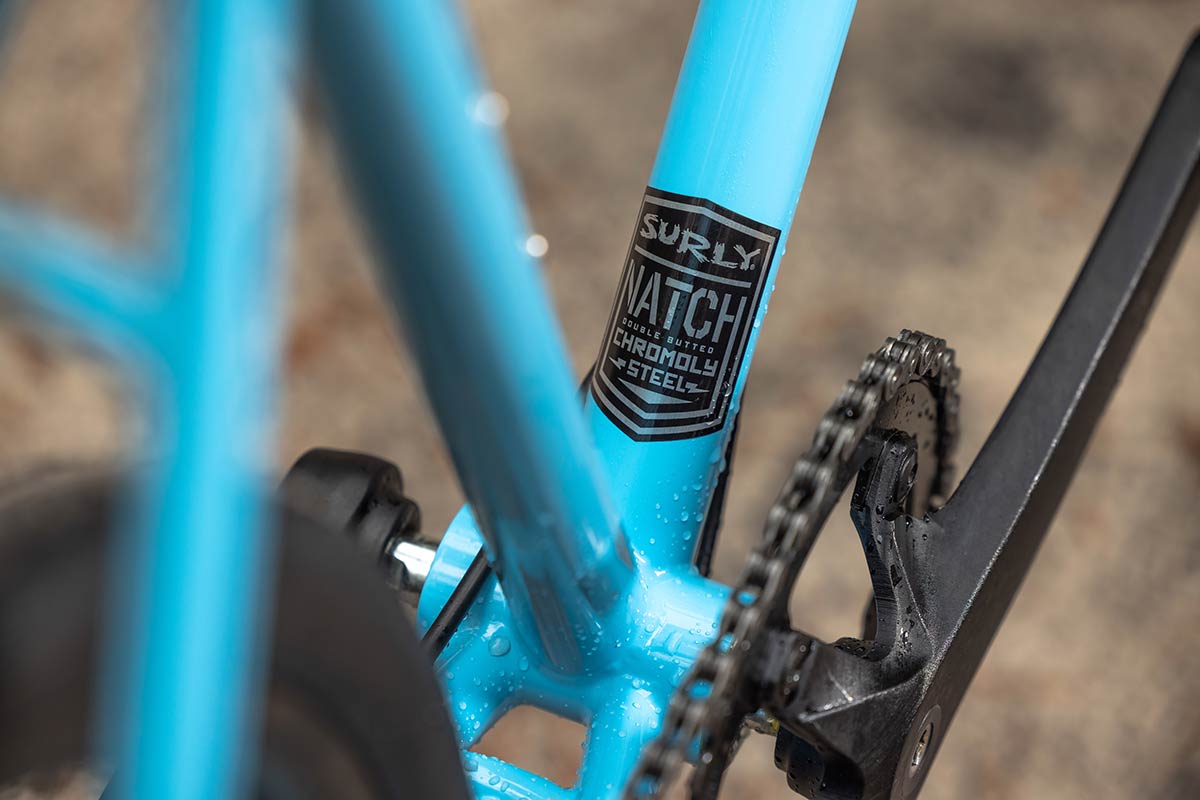

Frame Construction 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Rigid Fork Length 380mm: XS-SM
400mm: MD-XL
Fork Offset 47mm: XS-SM
44mm: MD-XL
Rear Spacing "Gnot-Boost" 138mm
Rear Axle Size 10 x 135mm or 10 x 141mm
Front Brake (Rotor) Disc - 51mm I.S. (203mm max rotor)
Headset - Upper EC34/28.6
Headset - Lower EC34/30
Front Spacing 10 x 100mm
Steerer Tube Ø28.6mm
Crown Race 30mm (1-1/8")
Seatpost Ø27.2mm
Dropper Post Compatible No

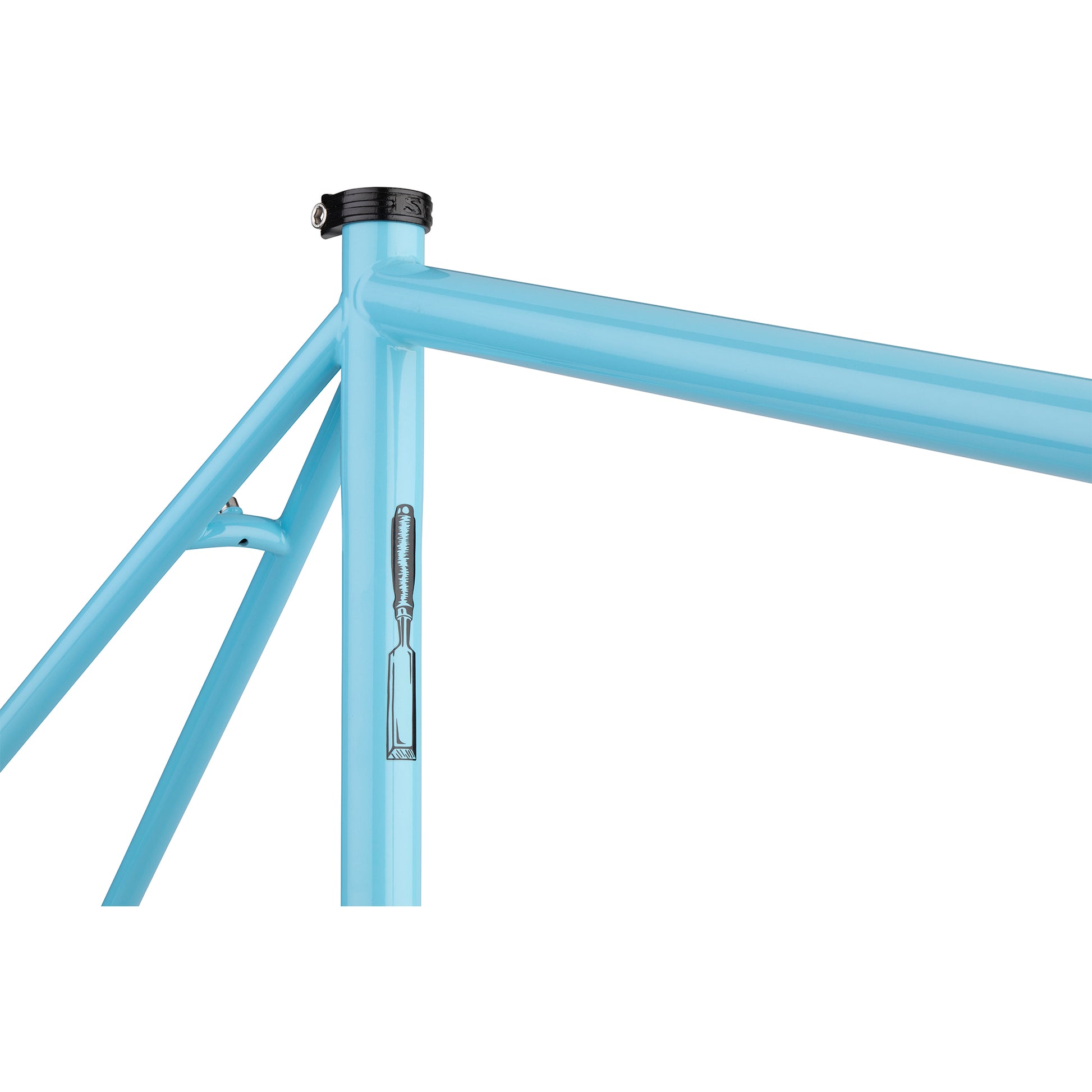

Seatpost Clamp Ø30.0mm
Front Derailleur Clamp High direct mount top-pull (Ø28.6mm)
26mm offset adapter (included) for 135mm rear hub spacing
29mm offset adapter (not included) for 141mm rear hub spacing

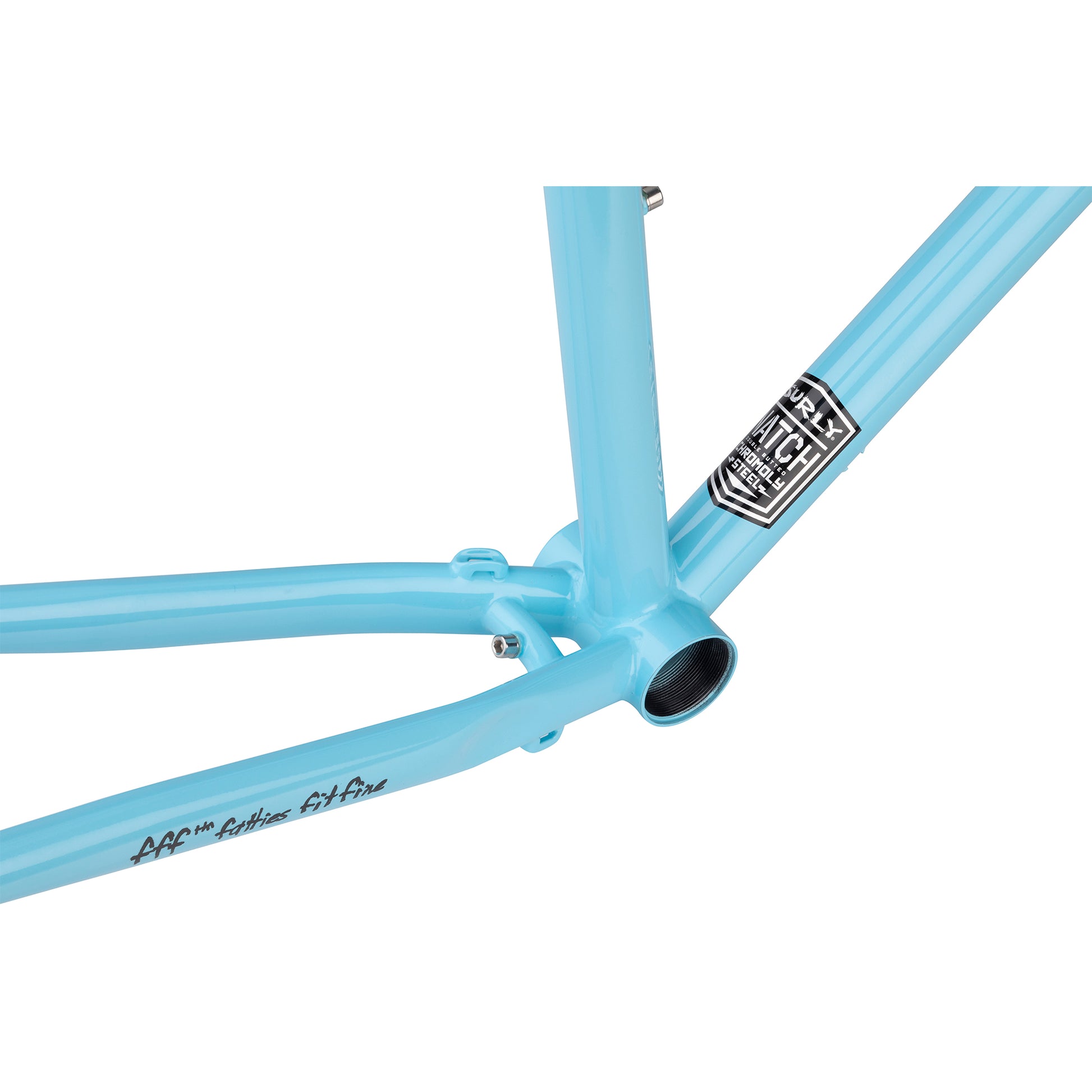

Bottom Bracket 68mm BSA, threaded
Crankset (Max Ring) 1x (47CL): 42T
2x (47CL): 46/36T
Bottle Mounts 2 Standard
Fork Mounts Fork crown and mid-blade rack mounts
Front Fender Mounts Yes
Rear Fender Mounts Yes
