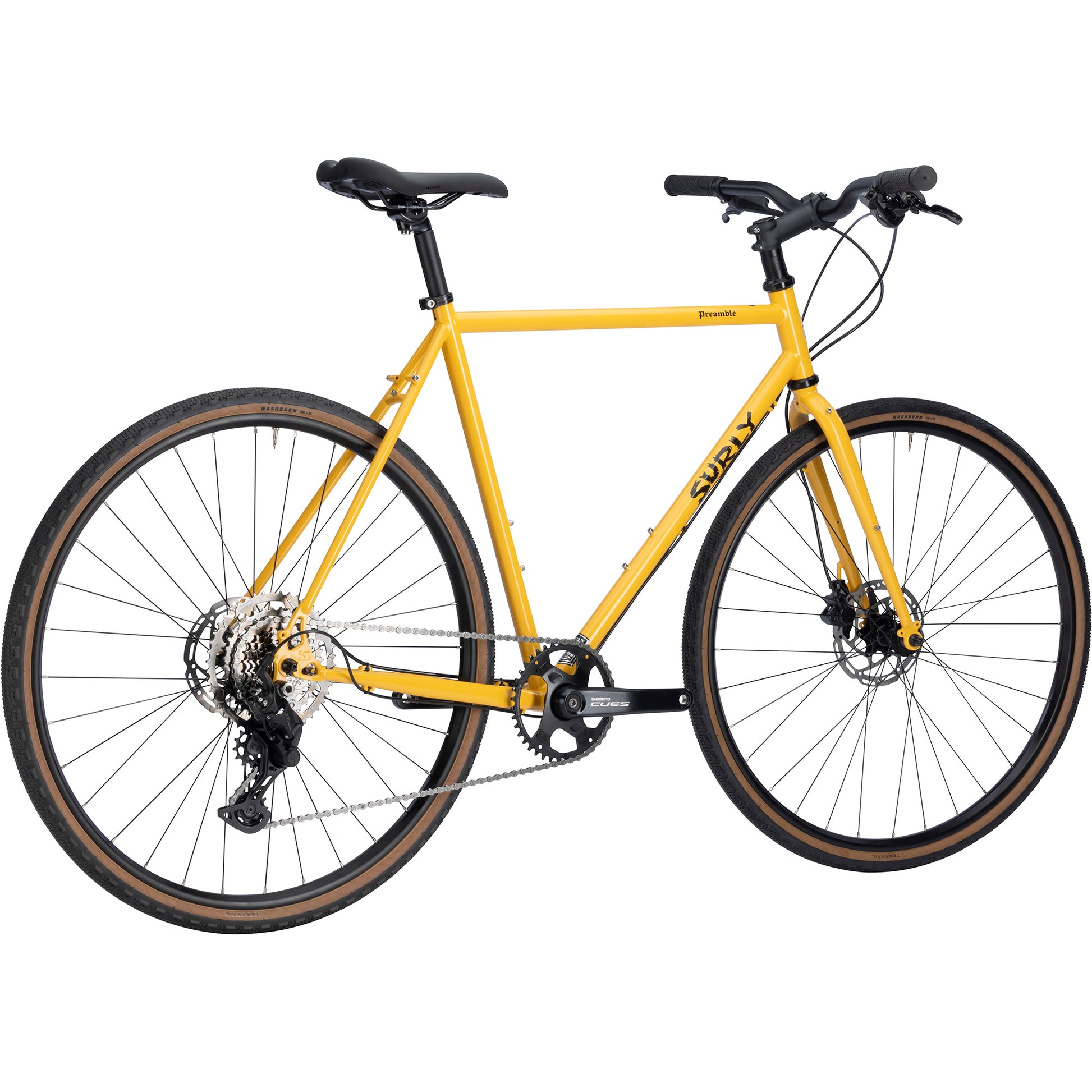

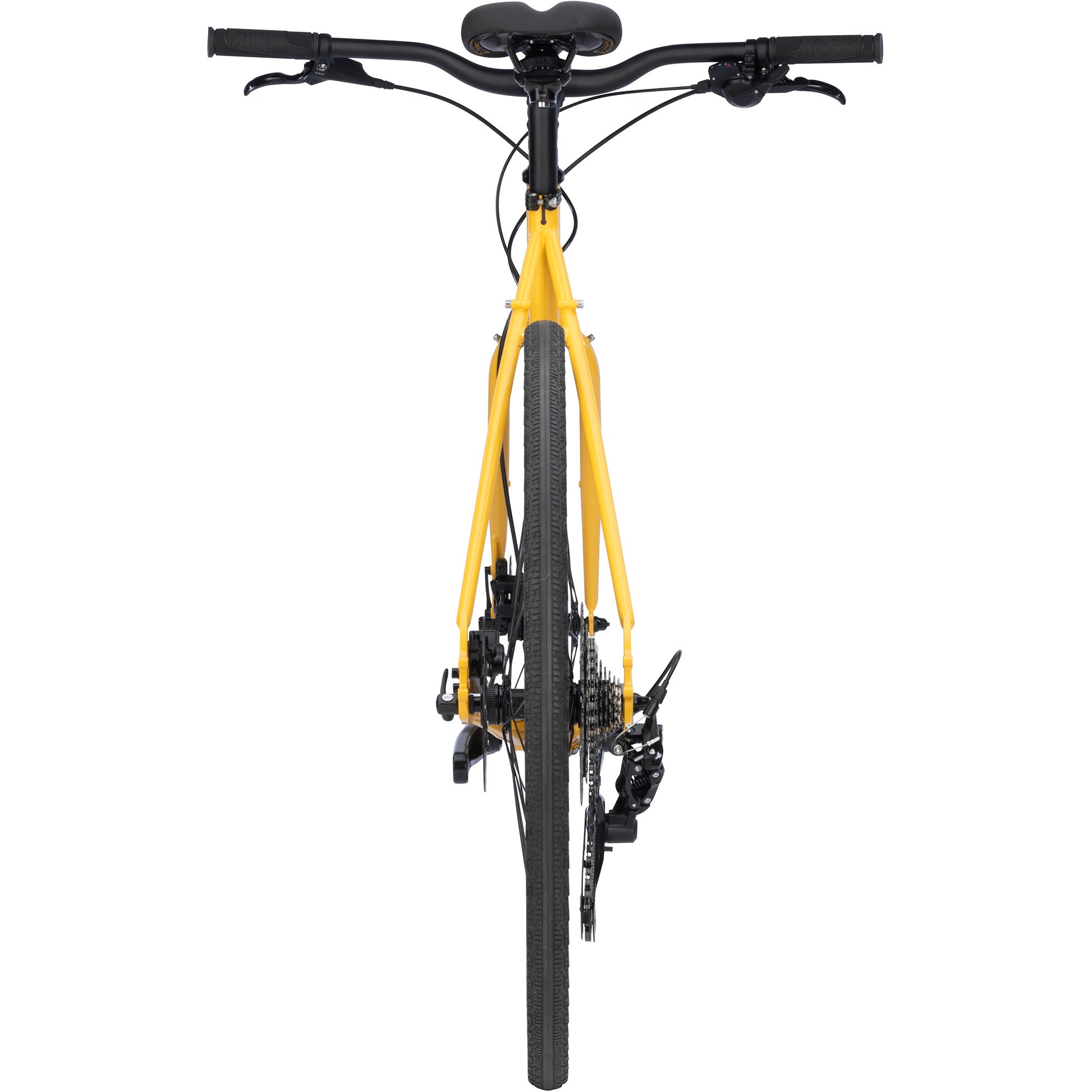

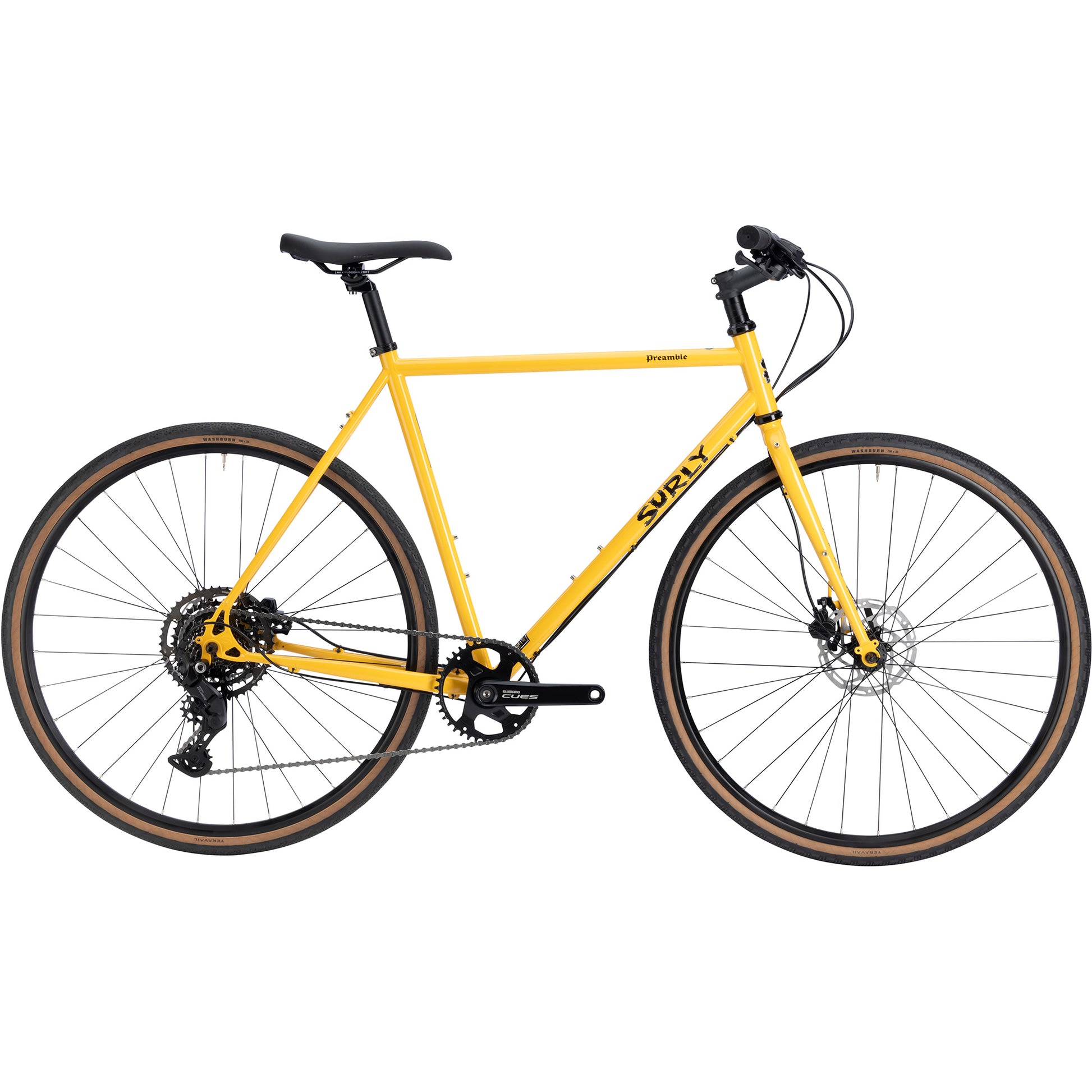

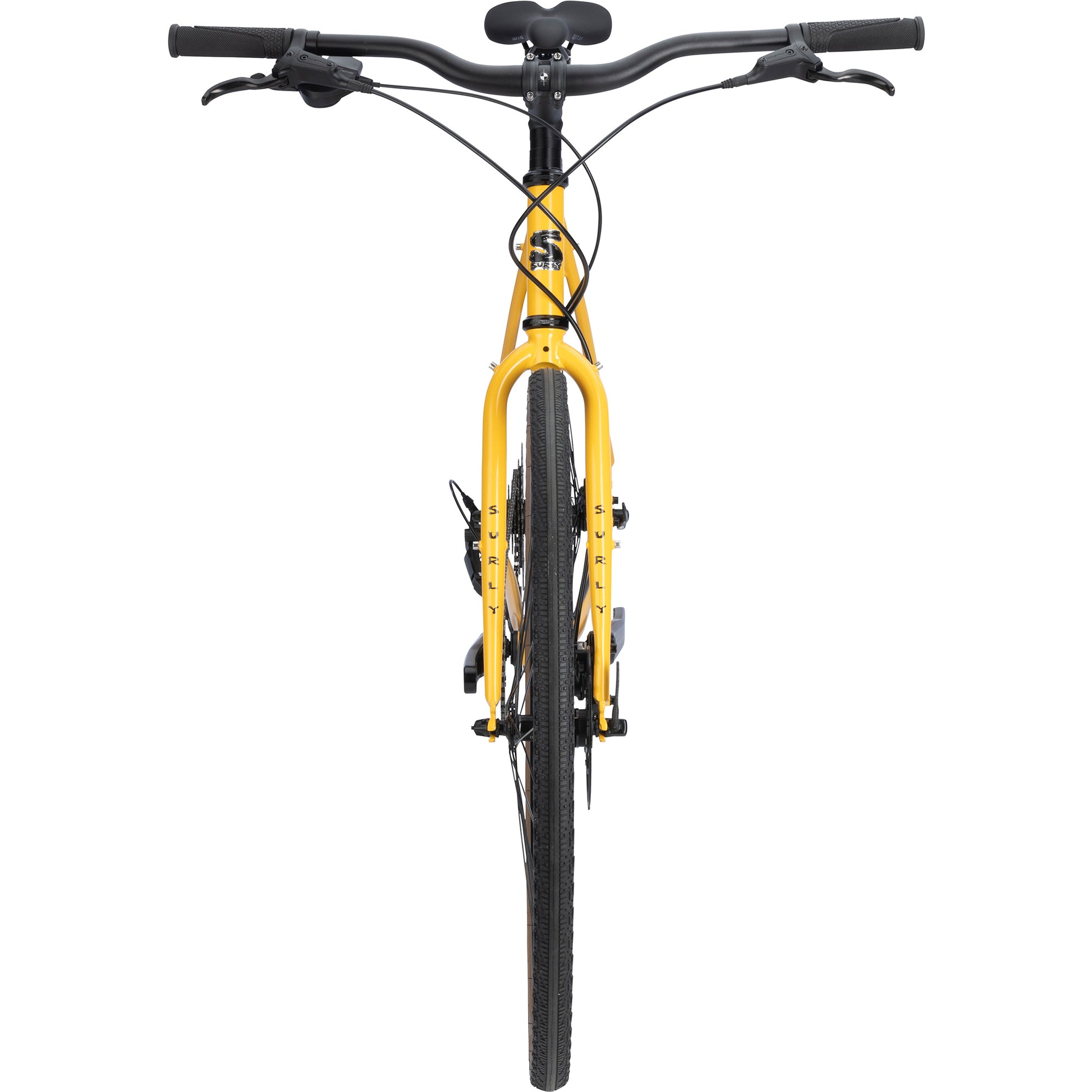

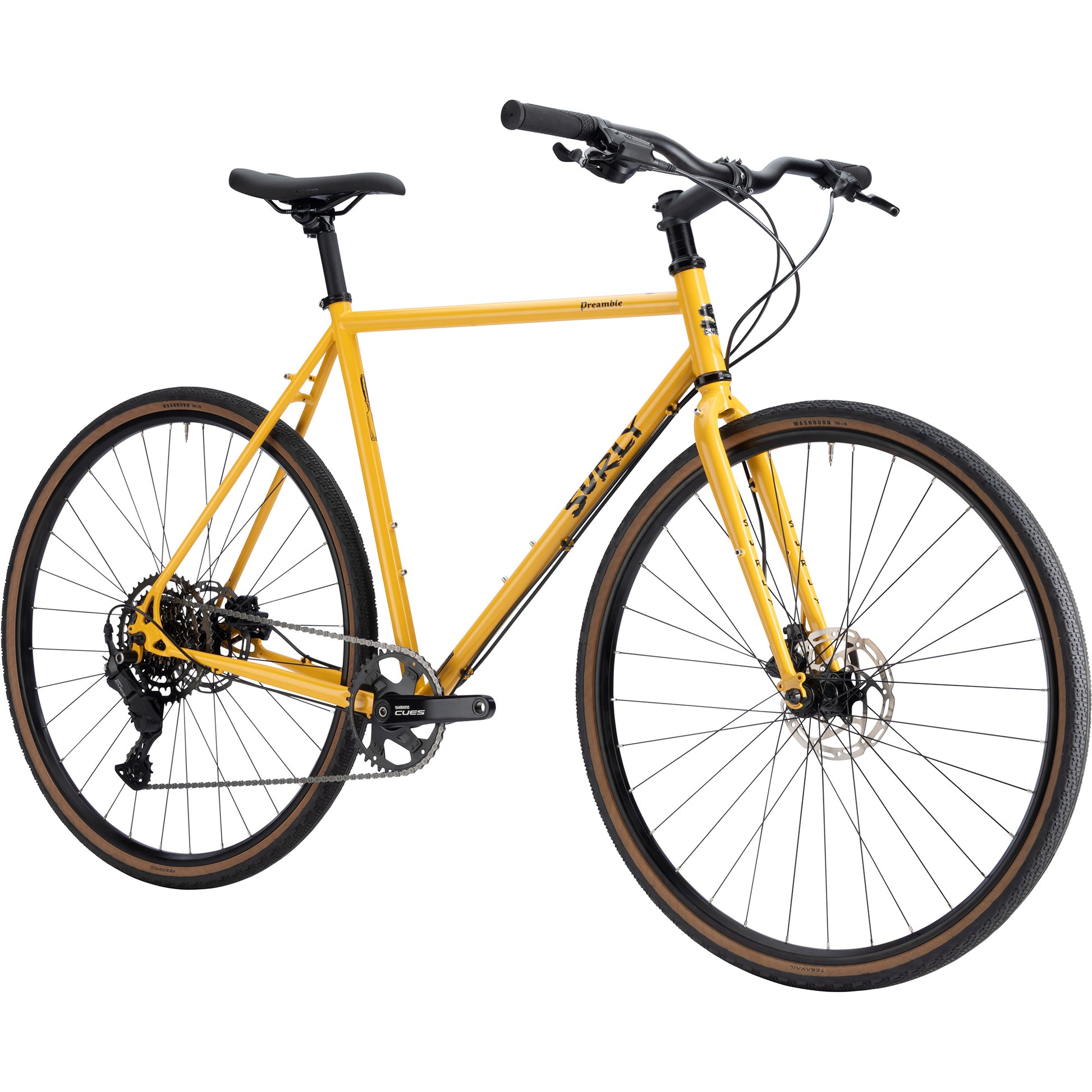

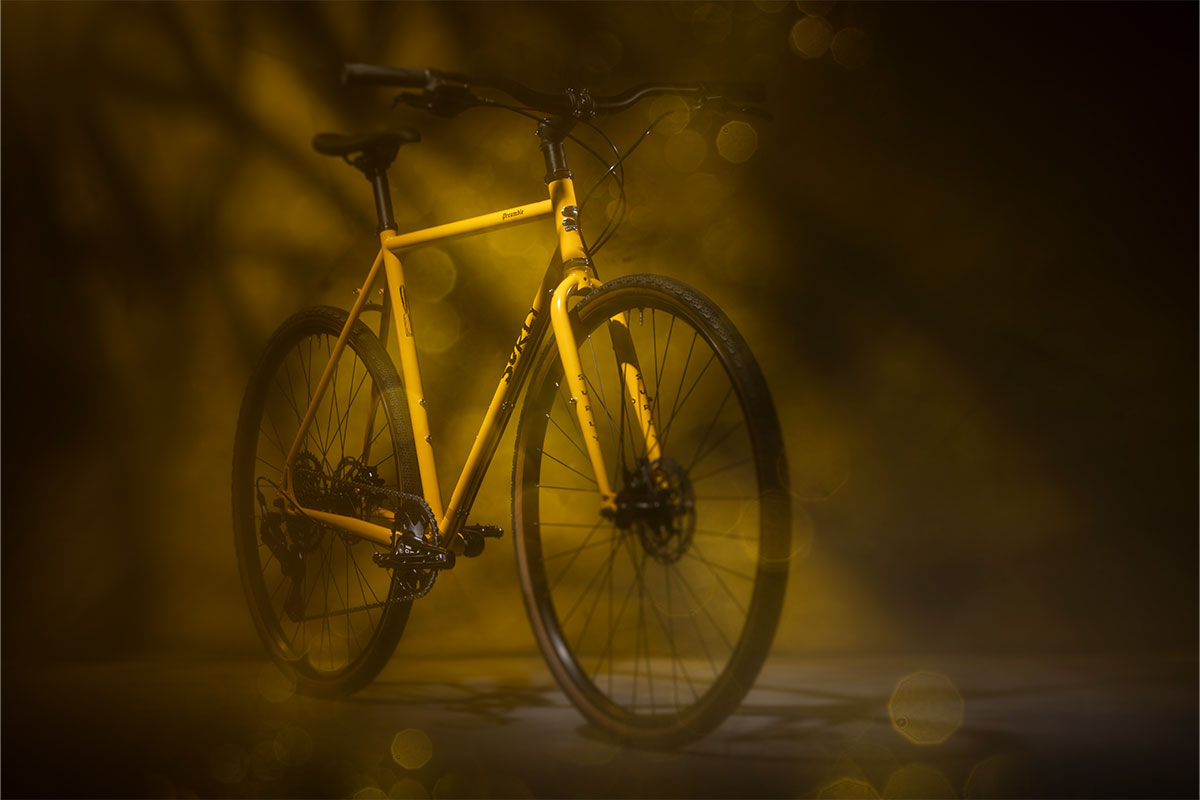

Preamble Flat Bar - Milky Lemonade

Commuting – Road – Light Gravel

$1,099.00 USD

~~$0.00 USD~~ $1,099.00 USD

Sale

Size X-Small Small Medium Large X-Large

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Nothing More is Needed. Nothing Less Will Do.

The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.

Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.

Let facts be submitted to a candid world: Offered in flat-bar and drop-bar configurations
Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
Sloping top tubes on XS and Small frames for improved standover and comfort
To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c
Custom-cast single-position vertical dropout

Specifications

Build Kit

Frameset

Frame

Surly Premble - 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Color

Milky Lemonade

Fork

Surly Preamble - 100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Components

Headset

FSA Orbit MX

Seatpost Clamp

Surly Stainless 30.0

Seatpost

Kalloy 27.2 x 300mm: 0 offset (XS-MD), 12mm offset (LG-XL)

Stem

Kalloy AL 31.8mm

Grips/Bar Tape

Velo Black

Saddle

WTB Volt Wide

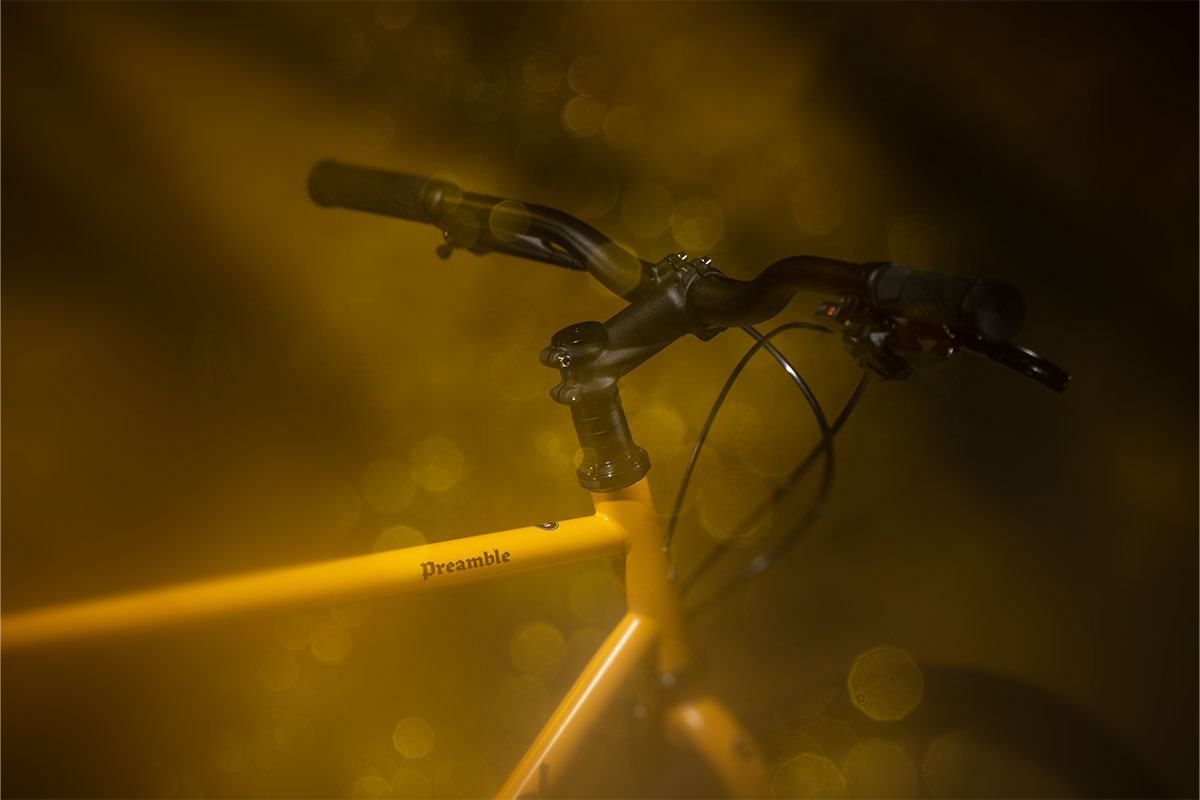

Handlebar

Kalloy AL, 9 degree backsweep, 35mm rise

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano Cues U4000 GS

Cassette

Shimano Cues LG400, 11-46t, 9spd

Chain

Shimano LG500

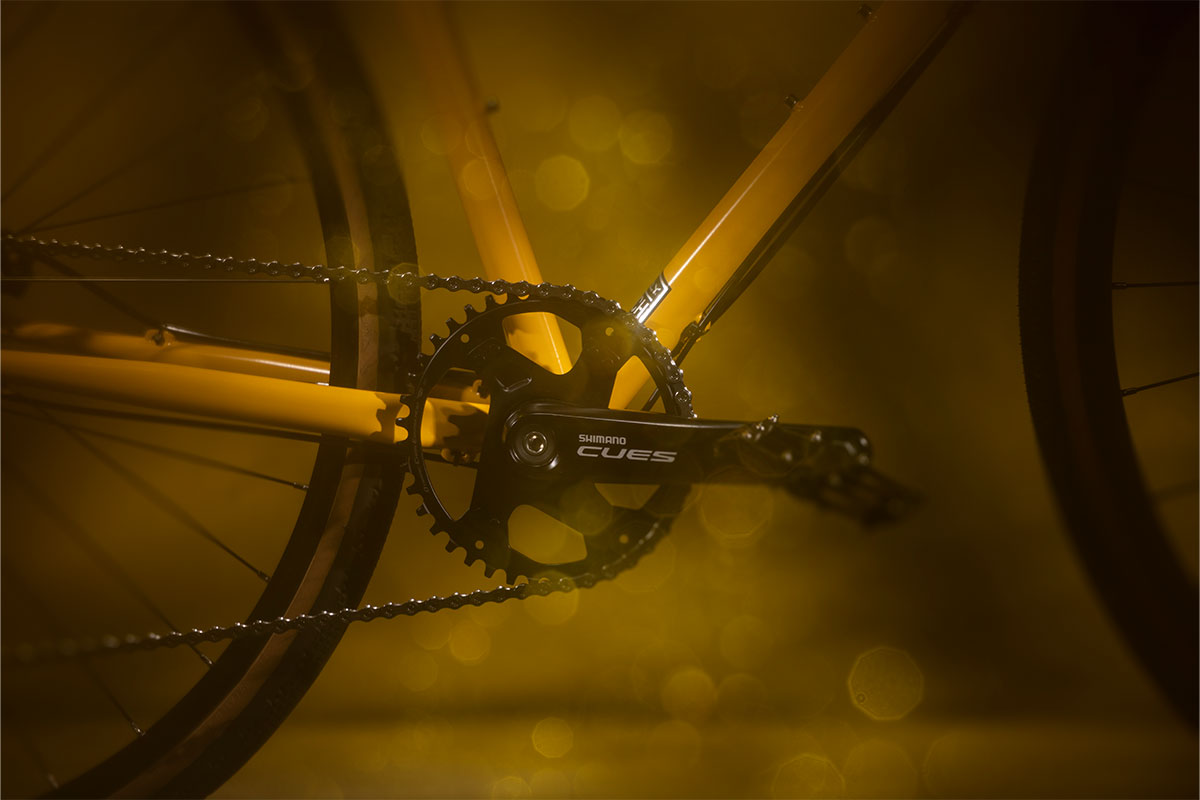

Crankset

Shimano Cues U4000, 40T

Shifter

Shimano Cues U4000

Brake Levers

Tektro Hydraulic M275/276

Brake Calipers

Tektro Hydraulic M275/276, 2 piston

Bottom Bracket

Shimano UN101, 68mm BSA

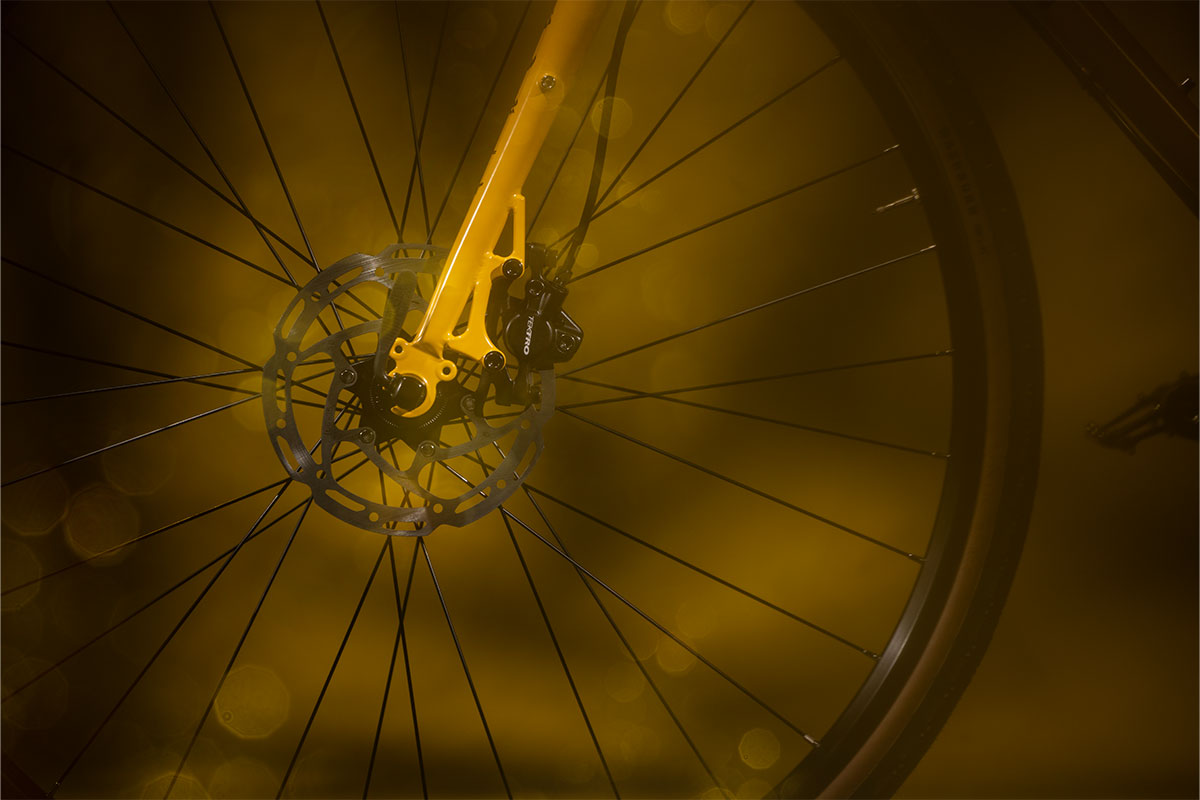

Rotors

Tektro 160/160mm, Center Lock

Wheels

Front Tire

Teravail Washburn 650b x 35, Wire Bead (XS-SM)
Teravail Washburn 700c x 35, Wire Bead (MD-XL)

Rear Tire

Teravail Washburn 650b x 35, Wire Bead (XS-SM)
Teravail Washburn 700c x 35, Wire Bead (MD-XL)

Front Hub

Shimano MT200 QR x 100mm, Center Lock, 32h

Rear Hub

Shimano QC400 QR x 141mm, Center Lock, 32h

Spoke

14G Black

Rim

Shining DB-21, 32h

Weight

Complete Bike

27 lb 7 oz for Medium

*Specifications are subject to change without notice

Geometry

Size	X-Small	Small	Medium	Large	X-Large
A. Effective Top Tube	500.0	545.0	570.0	600.0	630.0
B. Stand Over	722.0	776.0	826.0	863.0	901.0
C. Reach	352.0	381.0	391.0	404.0	421.0
D. Stack	517.0	535.0	567.0	605.0	643.0
E. Total Seat Tube Length	410.0	505.0	565.0	605.0	645.0
F. Headtube Length	120.0	135.0	130.0	170.0	210.0
G. Headtube Angle	70.0	71.0	72.0	72.0	72.0
H. Seat Tube Angle	74.0	73.0	72.5	72.0	72.0
I. BB Drop	54.0	54.0	66.0	66.0	66.0
K. Chainstay Length	420.0	420.0	435.0	435.0	435.0
L. Fork Length Axle to Crown	380.0	380.0	400.0	400.0	400.0
M. Fork Offset	47.0	47.0	44.0	44.0	44.0
N. Wheelbase	987.0	1013.0	1030.0	1055.0	1085.0
Crank Arm Length	170.0	170.0	170.0	175.0	175.0
Handlebar Width	700.0	700.0	720.0	720.0	720.0
Recommended Rider Height	152.4 - 165.1	162.56 - 172.72	170.18 - 182.88	180.34 - 190.5	187.96 - 200.66
Stem Length	80.0	90.0	90.0	100.0	100.0

Frame Specs

Max Tire Outer Diameter Tire Clearance Frame:
Size XS-SM:
650b x 41 (w/ or w/o fenders)
Size MD-XL:
700c x 41 (w/ or w/o fenders)

Tire Clearance Fork:
650b: 650b x 42mm (w/ or w/o fenders)
700c: 700c x 42mm (w/ or w/o fenders)

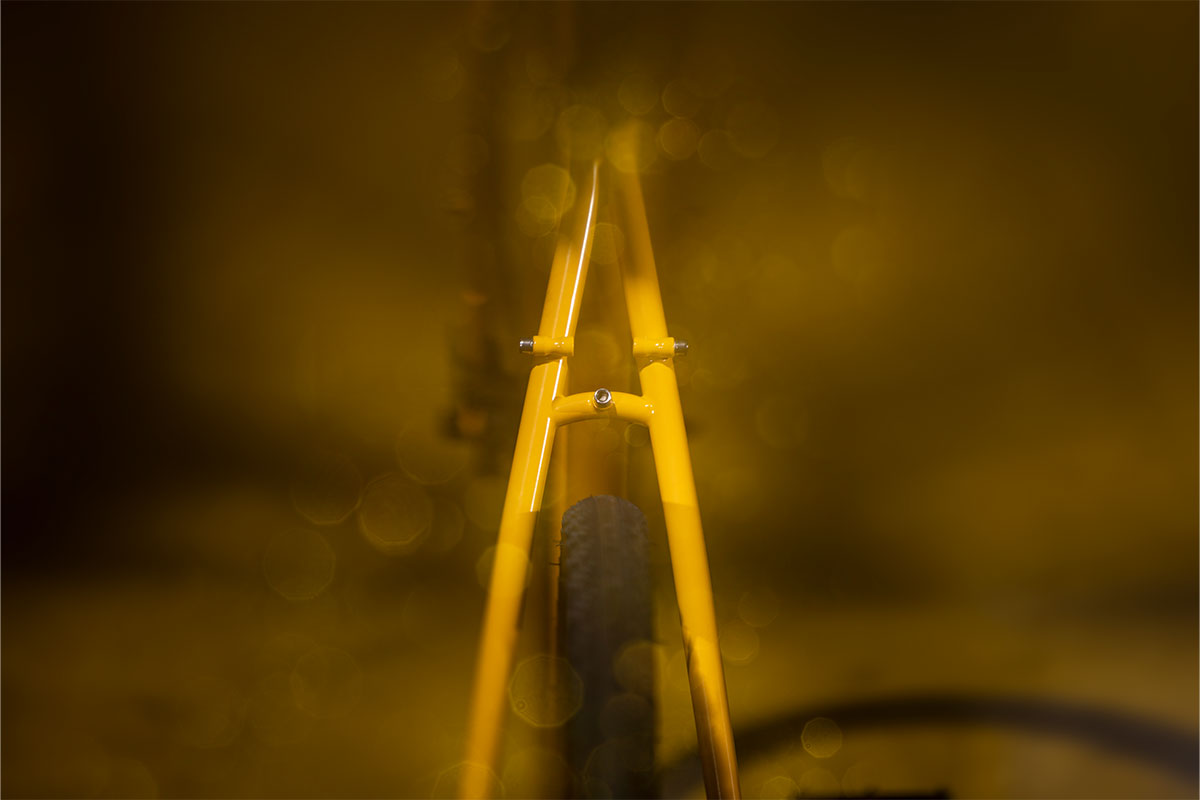

Frame Construction 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Rigid Fork Length 380mm: XS-SM
400mm: MD-XL
Fork Offset 47mm: XS-SM
44mm: MD-XL
Rear Spacing "Gnot-Boost" 138mm
Rear Axle Size 10 x 135mm or 10 x 141mm
Rear Brake (Rotor) Disc - 51mm I.S. (180mm max rotor)
Front Brake (Rotor) Disc - 51mm I.S. (203mm max rotor)
Headset - Upper EC34/28.6
Headset - Lower EC34/30
Front Spacing 10 x 100mm
Steerer Tube Ø28.6mm
Crown Race 30mm (1-1/8")
Seatpost Ø27.2mm
Dropper Post Compatible No
Seatpost Clamp Ø30.0mm
Front Derailleur Clamp High direct mount top-pull (Ø28.6mm)
26mm offset adapter (not included) for 135mm rear hub spacing
29mm offset adapter (not included) for 141mm rear hub spacing
Bottom Bracket 68mm BSA, threaded
Crankset (Max Ring) 1x (47CL): 42T
2x (47CL): 46/36T
Bottle Mounts 2 Standard
Fork Mounts Fork crown and mid-blade rack mounts
Front Fender Mounts Yes
Rear Fender Mounts Yes

Documents

Warranty

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
