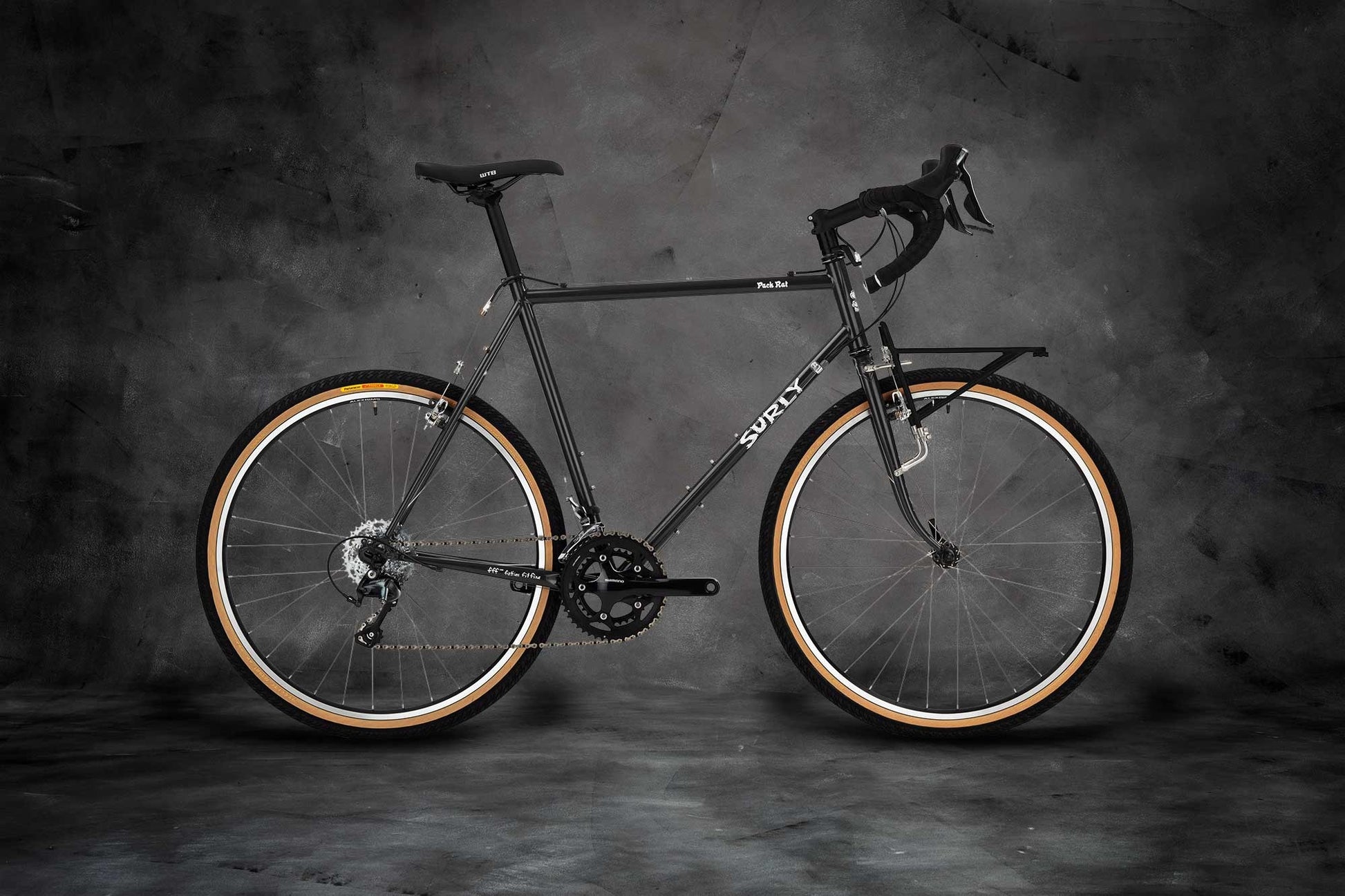

• Surly Pack Rat bike side view with 24-Pack Rack Gray Haze color
1 1

Pack Rat

Pack Rat

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

A Nimble Front Load-Carrying Bike

Pack Rat is specifically designed around porteur-style racks and front-loading optimization. Dedicated commuters, credit card tourers, and sweaty back people looking to ditch their backpack need look no further.

Having your stuff in front of you allows for better weight distribution, keeping the bike nimble and allowing you to more efficiently use your body English to steer from the rear. The drawback typically lies in how it affects the bike’s handling. Pack Rat’s front cargo-specific design eliminates those issues, leaving you wondering if you’re really even hauling any cargo at all.

  • Optimized for carrying front loads, complete bike includes front rack
  • Internal routing on fork for generator hubs
  • Frame sizes 38–50cm have clearance for 26’ x 2.0˝ tires. Frame sizes 52–58cm have clearance for 650b x 48mm tires (with or without fenders).

Specifications

Geometry

Geometry Diagram

26"

SIZE 38cm 42cm 46cm 50cm
Reach 371 372 378 384
Stack 479 495 512 527
Head Tube Angle 72.5° 73° 74° 74°
Head Tube Length 90 105 120 135
Seat Tube Length 380 420 460 500
BB Drop 45 45 45 45
Wheelbase 962 963 965 975
Chainstay Length 410 410 410 410
Top Tube Length, Actual 479.6 490.2 508 527
Top Tube Length, Effective 495 505 520 535
Seat Tube Angle 75.5° 75° 74.5° 74°
Standover Height 698 725 751 777
Stem Length 70 70 70 80
Stem Angle 6° 6° 6° 6°
Handlebar Width 380 380 400 400
Crank Length 165 165 165 170
Fork Length 370 370 370 370
Fork Rake 44 44 44 44



650b

SIZE 52cm 54cm 56cm 58cm
Reach 387 392 397 402
Stack 551 566 580 595
Head Tube Angle 74.0° 74.0° 74.0° 74.0°
Head Tube Length 130 145 160 175
Seat Tube Length 520 540 560 580
BB Drop 55 55 55 55
Wheelbase 986 996 1005 1014
Chainstay Length 415 415 415 415
Top Tube Length, Actual 541 557 572 588.5
Top Tube Length, Effective 550 565 580 595
Seat Tube Angle 73.5° 73.0° 72.5° 72.0°
Standover Height 805 821 837 854
Stem Length 80 90 90 100
Stem Angle 6° 6° 6° 6°
Handlebar Width 420 420 440 440
Crank Length 170 170 175 175
Fork Length 390 390 390 390
Fork Rake 44 44 44 44

Frame Specs

  • Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
  • Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
  • Rear Dropout Configuration: Semi-horizontal
  • Rear Hub Spacing: "Gnot-rite" 132.5mm 10 x 130mm or 10 x 135mm
  • Front Hub Spacing: 10 x 100mm
  • Rear Brake: Rim - Canti
  • Front Brake: Rim - Canti
  • Head Tube: Ø34mm
  • Steerer Tube: Ø28.6mm (1-1/8")
  • Crown Race: Ø30mm (1-1/8")
  • Stock Headset Upper (S.H.I.S.): EC34/28.6
  • Stock Headset Lower (S.H.I.S.): EC34/30
  • Seat Collar: Ø30mm
  • Seatpost: Ø27.2mm
  • Front Derailleur (Clamp): Bottom-pull (Ø28.6mm)
  • Max Chainring (CL)[3]: 1x (Road): 50T 2x (Road): 39/53T
  • Bottom Bracket: 68mm threaded (1.37" x 24TPI)
  • Tire Clearance Frame [1]/[2]: 26in: 26 x 2.0" (38 - 50cm) (with or without fenders) 650b: 650b x 48mm (52 -58cm) (with or without fenders)
  • Tire Clearance Fork [1]: 26in: 26 x 2.0" (38 - 50cm) (with or without fenders) 650b: 650b x 48mm (52 -58cm) (with or without fenders)
  • Rigid Fork Spec: 400 x 44mm
  • Max Suspension Fork Length [4]: N/A
  • Bottle Mounts Frame: 1 Standard + 2 Three-Pack
  • Bottle Mounts Fork: N/A
  • Rack Mounts Frame: Yes (upper and lower threaded)
  • Rack Mounts Fork: Yes (upper and mid-blade threaded)
  • Fender Mounts Frame: Yes
  • Fender Mounts Fork: Yes
  • Other Features: Downtube mounted shifter bosses (cable housing stops not included with frameset)
