Ogre

Ogre

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

This is Ogre, Troll’s big wheeled brother sister. Troll and Ogre offer the same ability to accommodate a wide array of drivetrains, brakes, and cargo-hauling accessories. The main difference is that Ogre runs on 29˝ wheels, the Troll on 26˝.

Built of 4130 CroMoly steel and based on the tried-and-true geometry of our venerable Karate Monkey, Ogre is designed to be a platform for exploration, commuting, trailer-pulling, on-road and off-road touring, and just riding along. Ogre features, mounts for linear-pull and disc brakes, three bottle cage mounts (the mounts on the top of the downtube allow higher or lower cage placement depending on your needs), ample room between the stays for high-volume rubber up to 2.5˝, and housing guides designed to accommodate three lines which cleanly organize full shift and brake housing.

Ogre comes with our suspension-corrected (80mm) fork with threaded mounts for fenders and a rack. It will run cantilever or disc brakes so you can choose a system that best suits your stopping needs. Both fork and frame allow the use of a fender, disc brake, and rack at the same time. That’s surprisingly unusual in many modern frames. The fork also sports triple-boss bottle cage mounts, one set on each side. Each cage can be run in a high or low position, or you can run oversized Anything Cages.

The frame is spaced for 135mm hubs, with the same rear-loading horizontal dropouts as our Troll. The dropouts feature a derailleur hanger, slotted disc brake mounts, M10 x 1mm threaded holes for mounting Surly Bill & Ted trailer-connecting hardware (or B.O.B. Nutz), and a dedicated anchoring point for a Rohloff OEM2 axle plate. We designed a ton of versatility into these dropouts so you can run a singlespeed, internally geared hub or full derailleur drivetrain, with disc or rim brakes, with or without racks and fenders, with new or older parts, whatever best serves you. Framesets and complete bikes are available in sizes small through XXL (equivalent to 24˝). The complete bike parts spec is durable and sensible…just the sort of value you expect from a Surly.

If you’re like us, your bike needs will likely change by the day, week, month or year. Ride it to the office during the day, rip some local single-track after work, use it to tote crates of freakishly-large tubers next weekend, and tour that stretch of off-the-beaten-path double-track next month. With Ogre, you can do that.

Specifications

Geometry

Geometry Diagram

2017

SIZE SM MD LG XL
Reach 395.5 410.5 427.6 447
Stack 592 603.4 613 632
Head Tube Angle 71.5° 72.0° 72.0° 72.0°
Head Tube Length 110 120 130 150
Seat Tube Length 406.4 457.2 508 558
BB Drop 68 68 68 68
Wheelbase 1049.4 1064.5 1084.6 1110
Chainstay Length 440 440 440 440
Top Tube Length, Actual 545.6 560.7 580.2 607
Top Tube Length, Effective 575 595 615 640
Seat Tube Angle 73.0° 73.0° 73.0° 73.0°
Standover Height 763.5 795.7 824.5 857.85
Stem Length 70 80 90 100
Stem Angle
Handlebar Width 700 740 740 740
Crank Length 170 175 175 175
Fork Length 447 447 447 447
Fork Rake 43 43 43 43

2014

SIZE Small (16) Medium (18) Large (20) xLarge (22) xxLarge (24)
Reach 394.9 415.1 428.6 440.1 451.7
Stack 591.1 602.5 614.0 628.2 642.5
Head Tube Angle 71.0° 71.5° 72.0° 72.0° 72.0°
Head Tube Length 90.0 100.0 110.0 125.0 140.0
Seat Tube Length 406.4 457.2 508.0 558.8 609.6
BB Drop 68.0 68.0 68.0 68.0 68.0
Wheelbase 1046.1 1064.9 1076.8 1093.0 1109.2
Chainstay Length 431.0 431.0 431.0 431.0 431.0
Top Tube Length, Actual 557.7 575.0 589.9 607.1 627.1
Top Tube Length, Effective 575.6 599.3 616.3 632.2 648.1
Seat Tube Angle 73.0° 73.0° 73.0° 73.0° 73.0°
Standover Height 762.9 792.7 822.5 853.5 884.4
Fork Length 468.0 468.0 468.0 468.0 468.0
Fork Rake 43.0 43.0 43.0 43.0 43.0


All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø737mm

Frame Specs

  • Tubing: Surly 4130 Cromoly steel. Main triangle custom double butted. Tig Welded. ED coated.
  • Rear Dropouts: Horizontal slotted with derailleur hanger. 145mm Gnot-Boost O.L.D. features Rohloff torque arm slot and threaded eyelets for fenders, racks, and Surly trailer mounts.
  • Brake Compatibility: Disc and rim brake compatible. Disc mounts are 51mm IS Rim brake pivots are removable. Note: rear disc brake is limited to 160mm maximum rotor diameter and requires the use of Surly caliper adapter (included with frames and bikes).
  • Braze-ons/extras: Full-length Surly Trip Guide housing line guides for derailleurs and brakes; two sets of bottle cage mounts; removable post cantilever pivots; upper seatstay threaded barrels, 4 sets of triple bottle mounts, mid-and low-blade fully
    threaded through-blade fork eyelets; threaded holes for racks, fenders and trailer mounting nuts; Rohloff OEM2 axle plate mounting slot.
  • Seatpost Diameter: 27.2mm
  • Seatpost Clamp Diameter: 30mm (Surly stainless included)
  • Headset/Steerer Tube: 1-1/8" threadless
  • Front Derailleur Clamp Diameter: Rover Brown: 31.8mm, top-pull or Shimano high direct mount (adaptor included); Tanish Gray and Blacktacular: 28.6mm, top-pull or Shimano high direct mount (adaptor included)
  • Bottom Bracket Shell: 73mm shell width, threaded standard English (1.37" x 24t)
  • Chainring Clearance: 24/36/48t
  • Tire Clearance: 29 x 2.5" or 27.5 x 3"
  • Fork: TIG-welded tapered & butted 4130 CroMoly, non-suspension corrected, tapered straight blade. Low- and mid-blade fully threaded through-blade rack eyelets; fender mount eyelets at dropout; 1-1/8˝ x 260mm threadless steer tube, 51mm disc mount (180mm max. rotor diameter), removable cantilever pivots, two sets of triple bottle mounts on each fork blade. Note: you can’t always mount bottles on the fork with every rack.
  • Thru Axle: HU0134 Surly 12x142/148 Rear Thru Axle

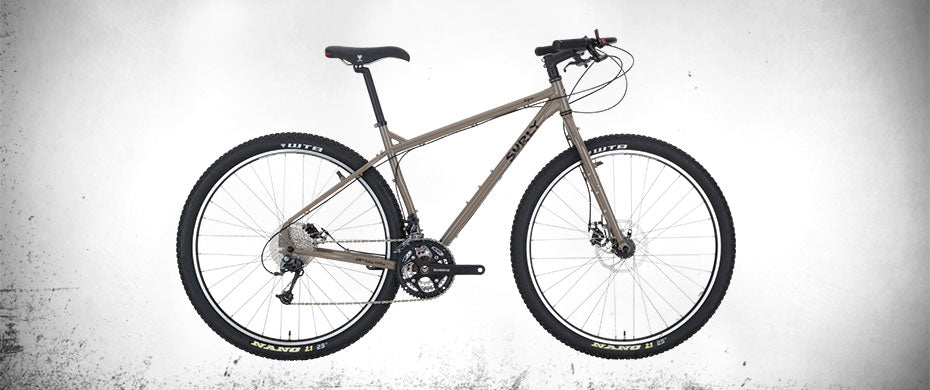

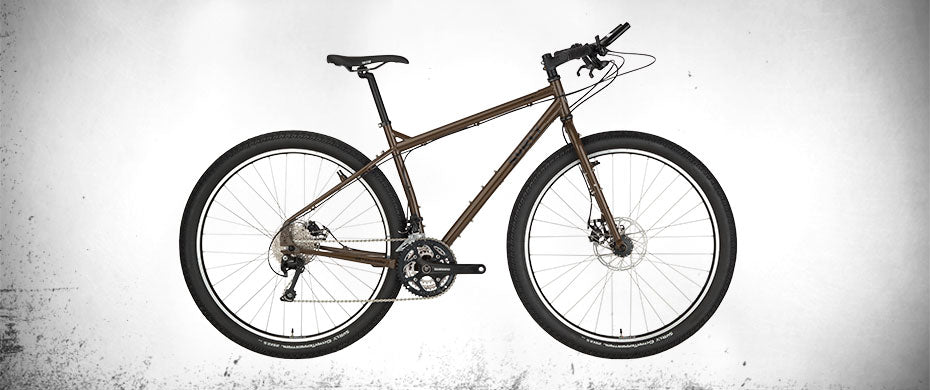

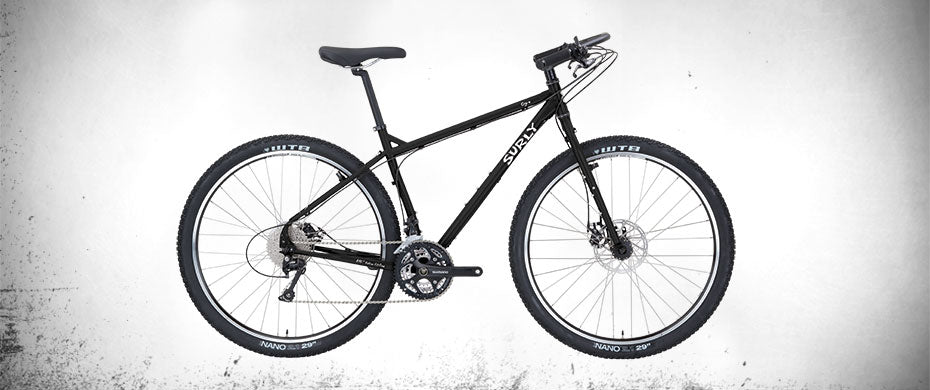

  • Colors: Rover Brown; Blacktacular; Tanish Gray
