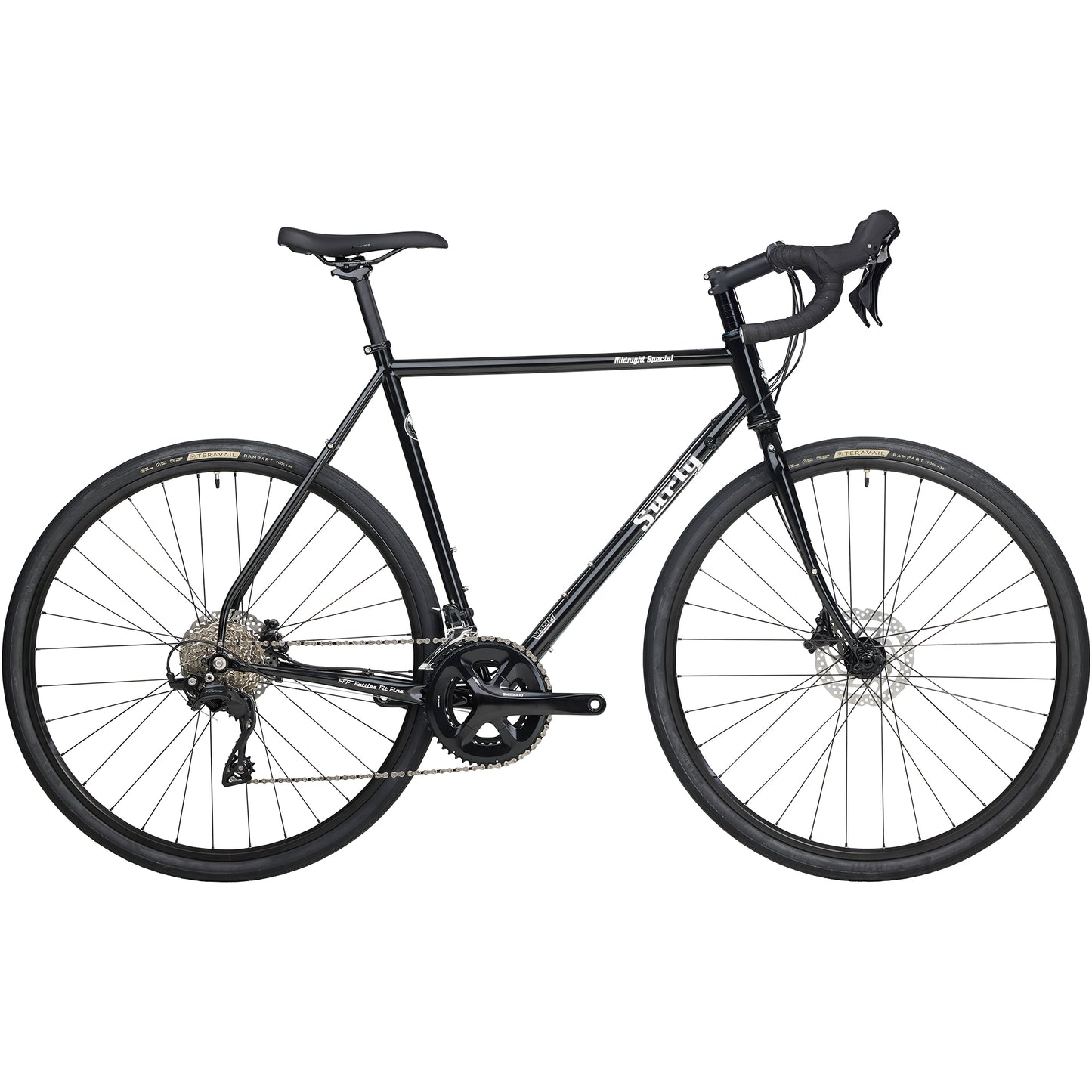

• Surly Midnight Special bike Hi-Viz Black side view

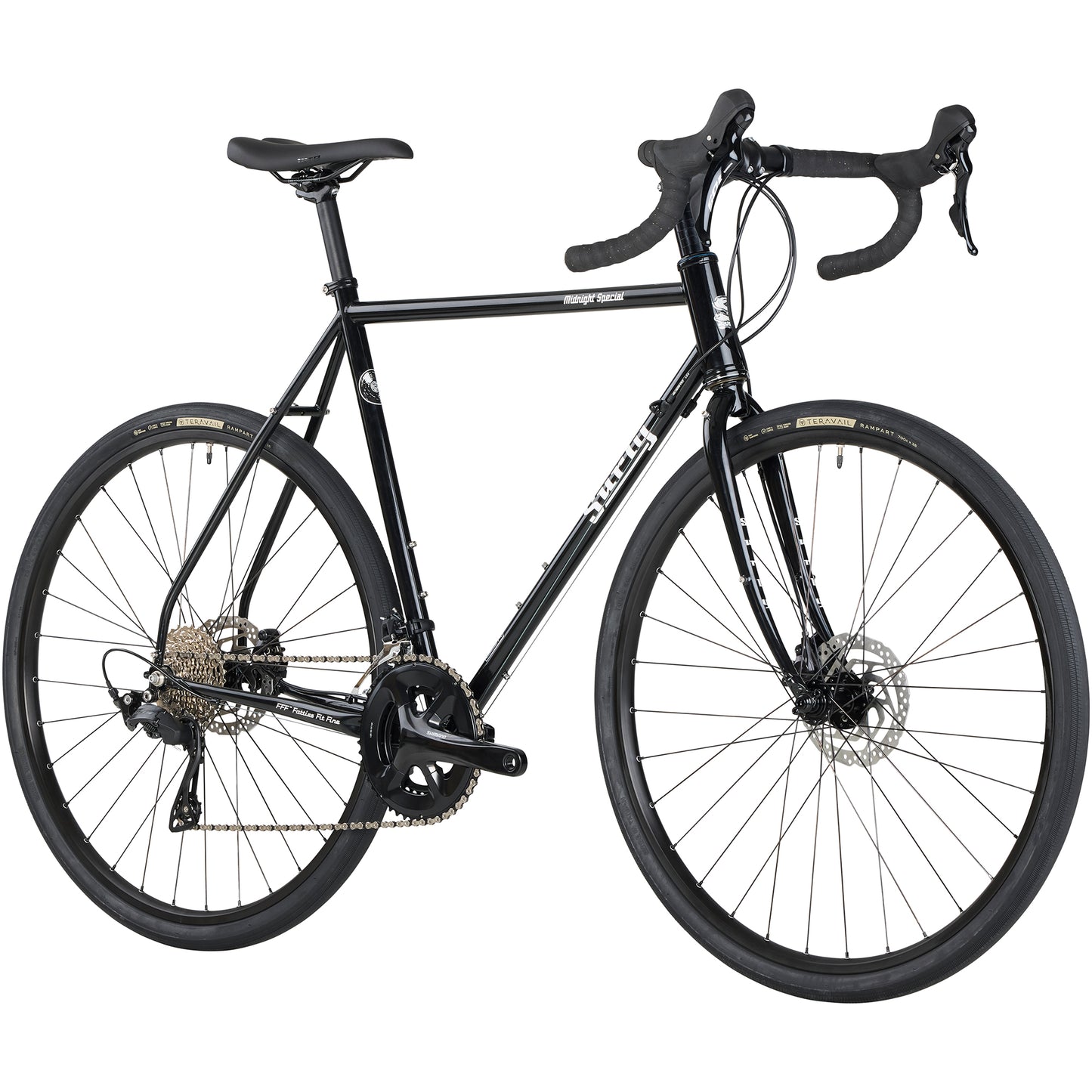

  • Surly Midnight Special bike Hi-Viz Black front three-quarter view

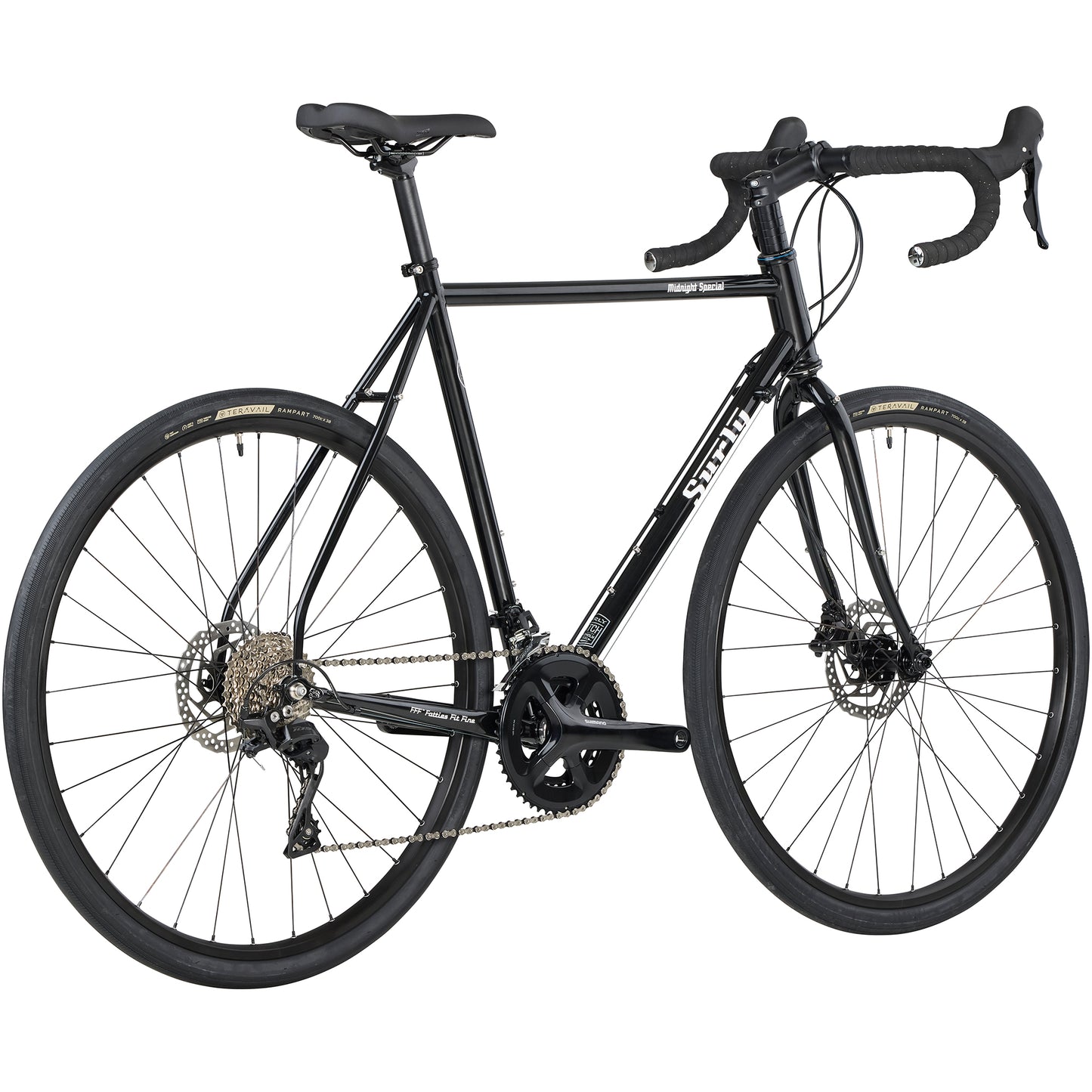

  • Surly Midnight Special bike Hi-Viz Black rear three-quarter view

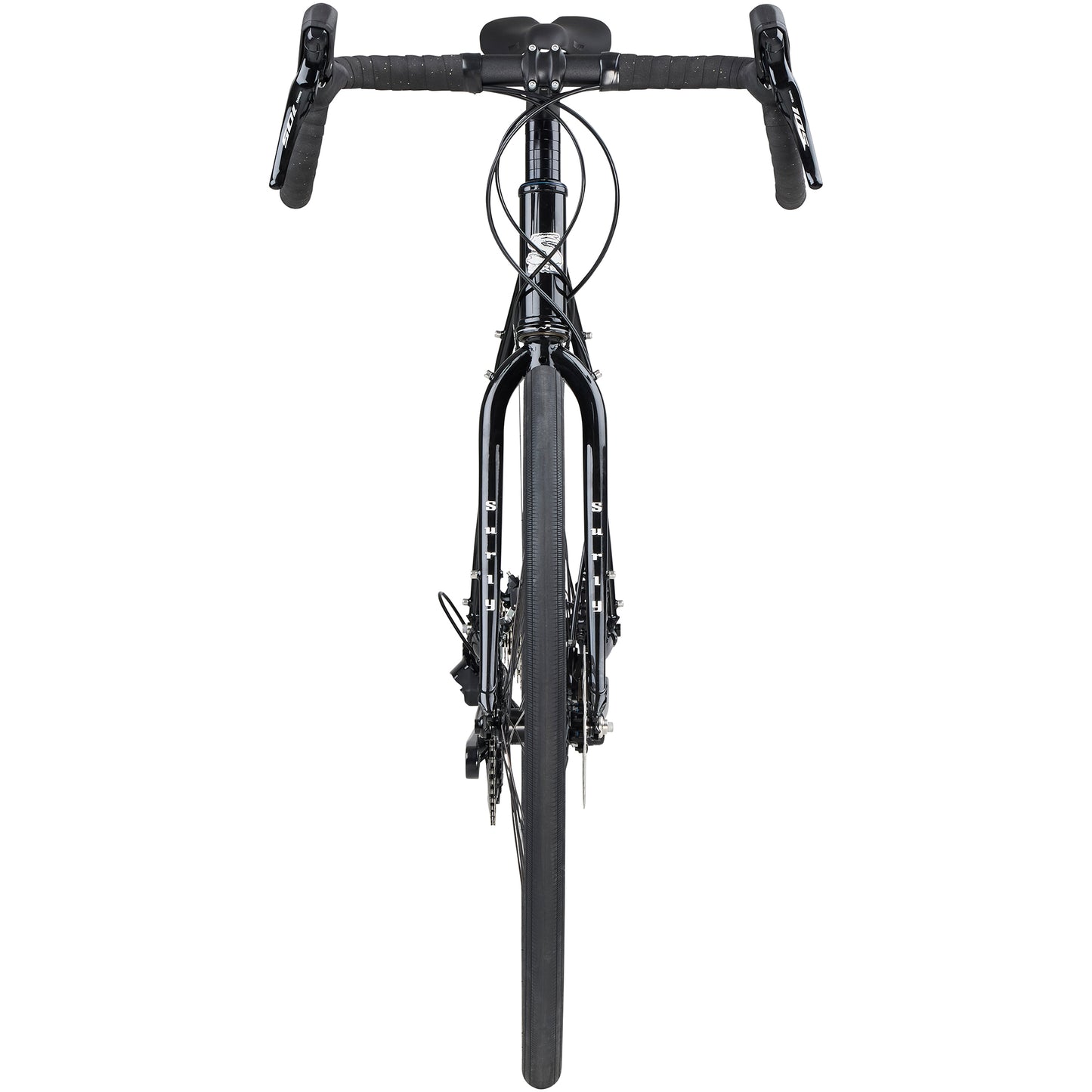

  • Surly Midnight Special bike Hi-Viz Black front view

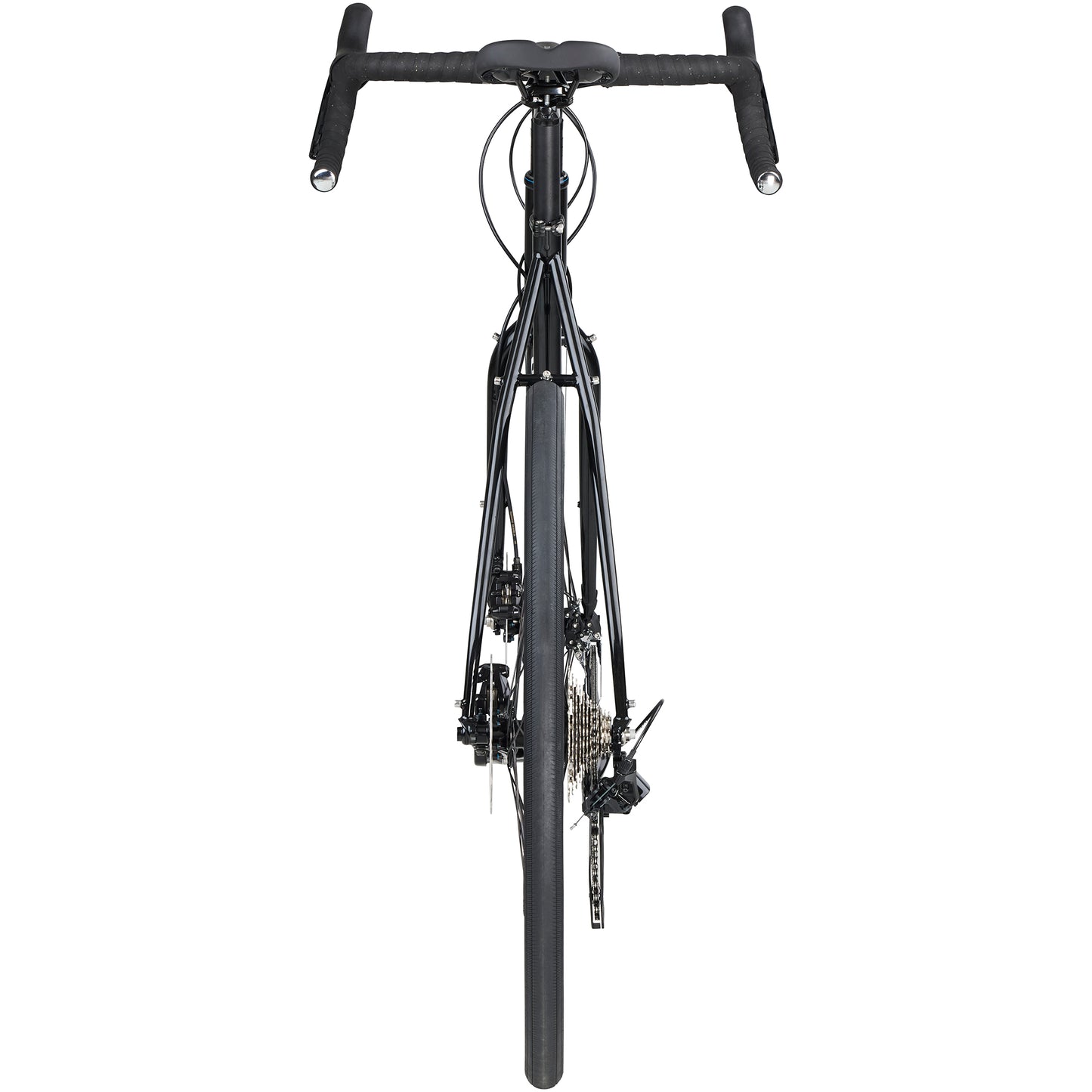

  • Surly Midnight Special bike Hi-Viz Black rear view
1 5

Midnight Special 700c - Hi-Viz Black

Midnight Special 700c - Hi-Viz Black

Road – Endurance Road – Light Gravel

$2,349.00 USD
$2,349.00 USD $2,349.00 USD
Sale
Size

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Road Plus Bike That Tackles Pavement Gravel

Midnight Special shines on pot-holed, deteriorating pavement and the occasional long stretch of gravel. Its 700c tires eat up road chatter and absorb all the bumps in the road like the champion it was designed to be.

When it comes to road bikes, we just want to toss a few bananas into our pockets and see where the road takes us. We seek out varied surfaces on our rides and frequently go from pavement to gravel to shittier pavement. Midnight Special allows us to accomplish all of that quite comfortably.

  • Higher volume tires allow better fine-tuning of tire pressure on varying surfaces and create a wider contact patch for increased traction
  • Modern road standards like flat-mount disc brakes, 12mm front and rear thru-axles, and a 44mm head tube
  • Clearance for 650b x 60mm or 700c x 42mm tires without fenders (650b x 50mm or 700c x 38mm with fenders)

Specifications

Build Kit

Frameset

Frame

Surly Midnight Special 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Color

Hi-Viz Black

Fork

Surly Midnight Special 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, ED coated

Components

Headset

Cane Creek 40

Seatpost Clamp

30.0mm Surly Stainless

Seatpost

Promax 27.2 x 300 (offset on 54-64cm)

Stem

Promax DA-296

Grips/Bar Tape

Black Cork

Saddle

WTB Volt Medium

Handlebar

Salsa Cowbell

Drivetrain

Front Derailleur

Shimano R7100 105

Rear Derailleur

Shimano R7100 105

Cassette

Shimano R7101, 11-34t, 12-spd

Chain

KMC X12

Crankset

Shimano RS520, 50-34T

Shifter

Shimano R7120

Brake Levers

Shimano R7120

Brake Calipers

Shimano R7170

Bottom Bracket

Shimano RS501

Rotors

Shimano RT26, 160/160, 6-Bolt

Wheels

Front Tire

Teravail Rampart 700 x 38 Light and Supple

Rear Tire

Teravail Rampart 700 x 38 Light and Supple

Front Hub

Novatec 12 x 100mm thru-axle, 32h

Rear Hub

Novatec 12 x 142mm thru-axle, 32h

Spoke

DT Swiss Champion 14G

Rim

Alex Adventurer 2, 700c, 32h

Weight

Complete Bike

26 lb 13 oz, size 56cm

*Specifications are subject to change without notice

Geometry

Geometry Diagram
Size40cm46cm50cm54cm56cm58cm60cm
A. Effective Top Tube 500.0 520.0 540.0 555.0 570.0 585.0 605.0
B. Stand Over 720.0 751.0 778.0 806.0 827.0 846.0 866.0
C. Reach 363.0 366.0 379.0 389.0 393.0 402.0 409.0
D. Stack 531.0 538.0 544.0 560.0 580.0 599.0 620.0
E. Total Seat Tube Length 400.0 460.0 500.0 540.0 560.0 580.0 600.0
F. Headtube Length 95.0 100.0 110.0 125.0 140.0 160.0 180.0
G. Headtube Angle
71.0
71.5
72.0
72.5
73.0
73.0
73.5
H. Seat Tube Angle
75.5
74.0
73.5
73.5
73.0
73.0
72.5
I. BB Drop 70.0 70.0 65.0 65.0 65.0 65.0 65.0
K. Chainstay Length 425.0 425.0 425.0 425.0 425.0 425.0 425.0
L. Fork Length Axle to Crown 400.0 400.0 400.0 400.0 400.0 400.0 400.0
M. Fork Offset 50.0 50.0 50.0 50.0 40.0 40.0 40.0
N. Wheelbase 993.0 994.0 1007.0 1018.0 1012.0 1027.0 1036.0
Crank Arm Length 165.0 170.0 170.0 175.0 175.0 175.0 175.0
Handlebar Width 400.0 400.0 400.0 420.0 440.0 440.0 460.0
Recommended Rider Height
Stem Length 70.0 80.0 80.0 100.0 100.0 120.0 120.0

Frame Specs

  • Design Wheel/Tire Sizes 650b x 50mm
  • Alternate Wheel/Tire Sizes 700c x 42mm
  • Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
  • Fork Construction 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, ED coated
  • Suspension Fork Length (Travel) N/A
  • Rigid Fork Length 400 x 50mm (40 - 54cm)
    400 x 40mm (56 - 64cm)
  • Axle to Crown 400mm
  • Rear Spacing 12 x 142mm (Surly axle included)
    10 x 135mm with Surly 10/12 Adapter Washers (not included)
  • Front Brake (Rotor) Disc - Flat Mount (160mm max rotor) – Use Brake Manufacturer's Front Flat Mount Adapter and Supplied Bolts
  • Headset - Upper ZS44/28.6
  • Headset - Lower EC44/30
  • Front Spacing 12 x 100mm (Surly axle included)
  • Steerer Tube Ø28.6mm (1-1/8")
  • Crown Race Ø30mm (1-1/8")
  • Seatpost Ø27.2mm
  • Dropper Post Compatible No
  • Seatpost Clamp Ø30mm
  • Front Derailleur Type Bottom-pull (Ø28.6mm)
  • Bottom Bracket 68mm threaded (1.37" x 24TPI)
  • Crankset (Max Ring) 1x (Road): 44T
    2x (Road): 34/50T
    3x (Road): 30/39/50T
  • Accessory Mounts Downtube mounted shifter bosses (cable housing stops not included with frameset)
  • Bottle Mounts 3 Standard
  • Fork Mounts Rack mounts: upper, lower, and mid-blade threaded
  • Front Fender Mounts Yes
  • Rear Fender Mounts Yes
