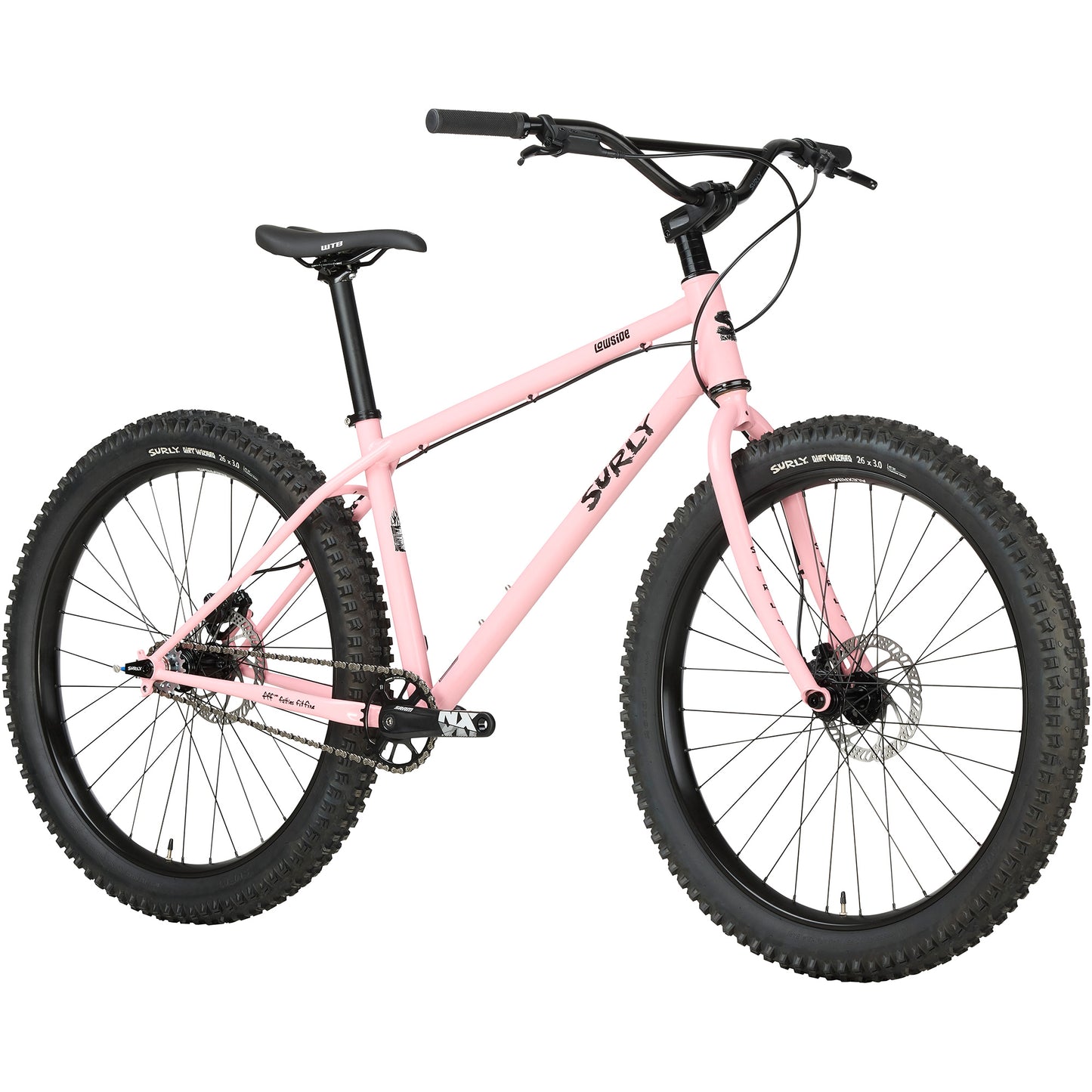

Lowside - New Pig Smell

Singlespeeding – Singletrack – Pumptrack

$1,499.00 USD

~~$1,499.00 USD~~ $1,499.00 USD

Sale

Size X-Small Small Medium Large X-Large

Quantity

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

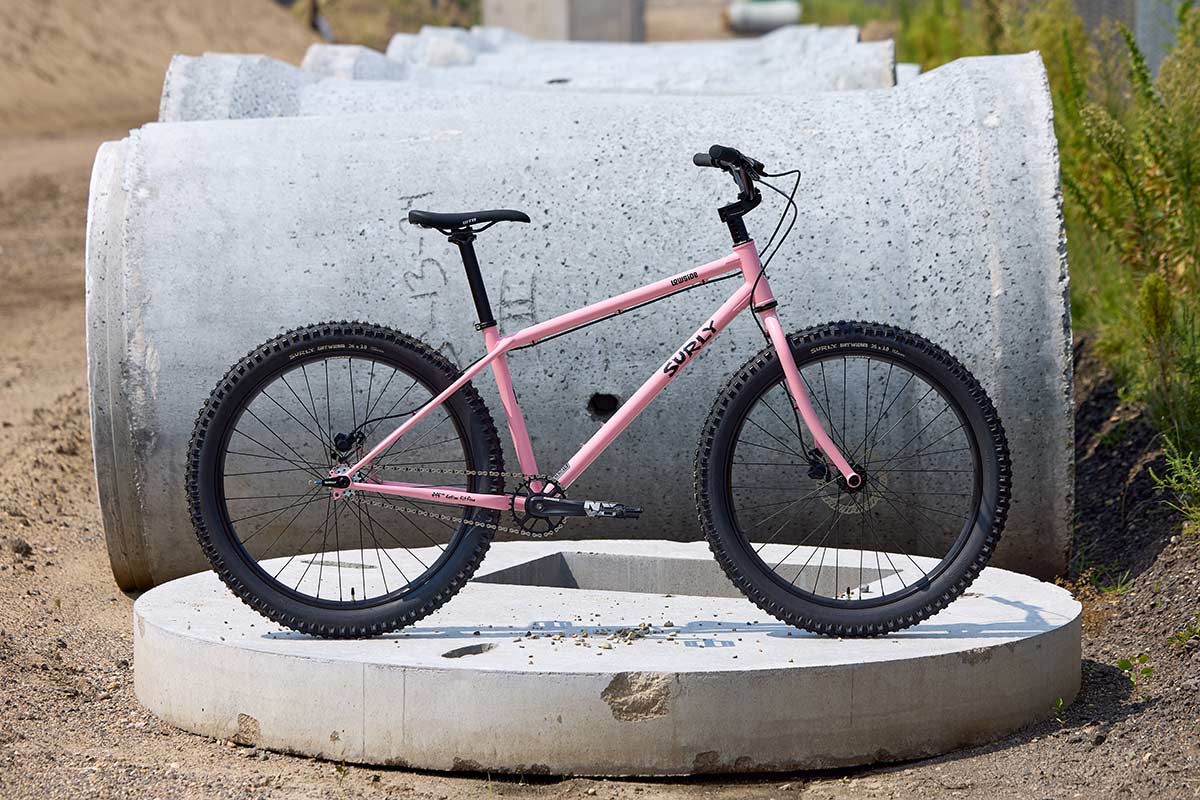

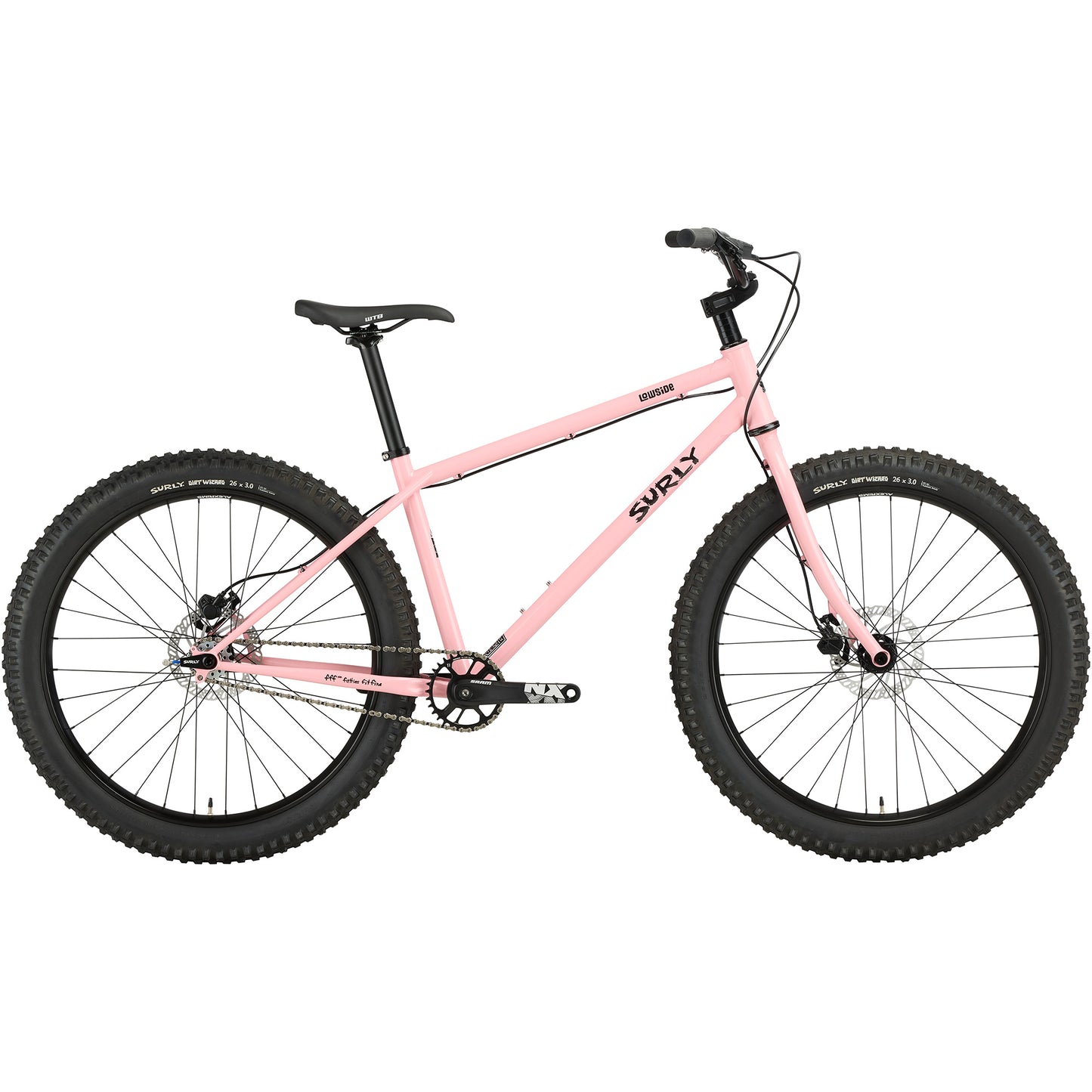

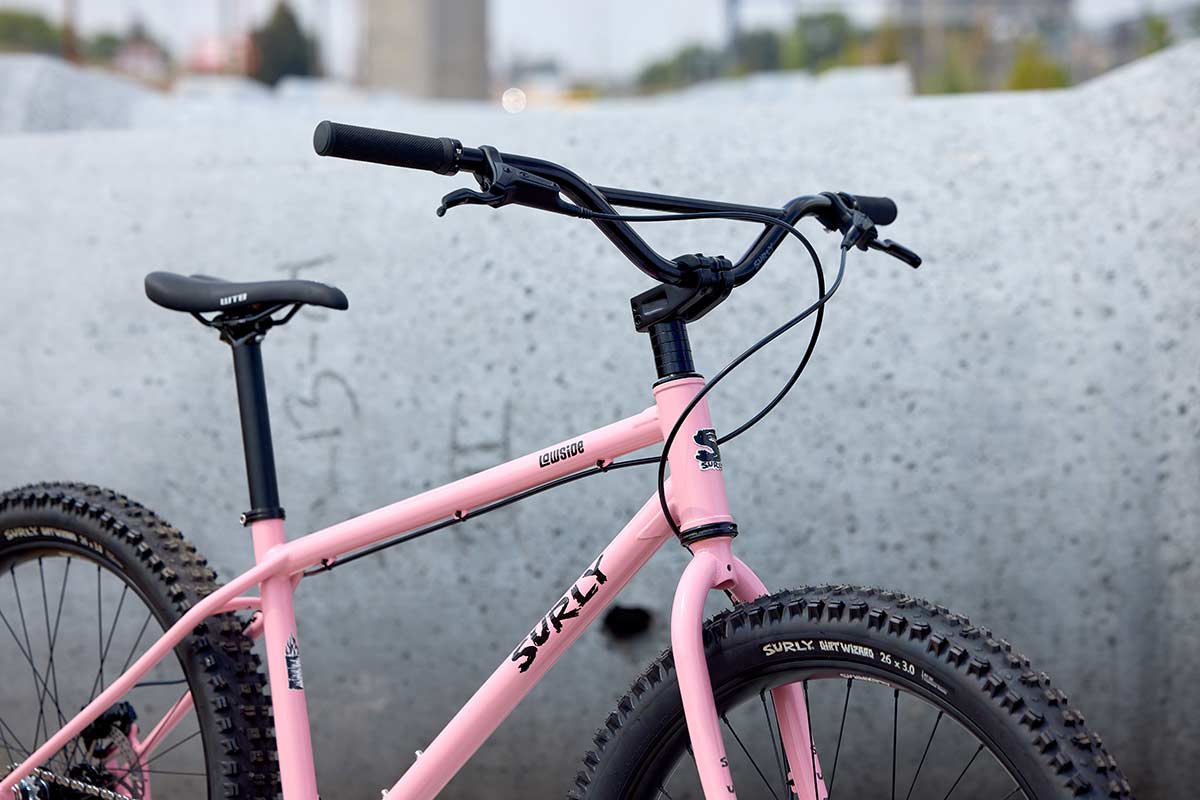

Your BMX Bike All Grown Up

Lowside is like the grownup version of the bike you rode when you were a kid and still had hopes and dreams and some semblance of ambition. It’s just as happy riding singletrack as it is parked outside your favorite drinking establishment.

Lowside is a single speed mountain bike. Singlespeeding has been a part of Surly’s DNA since day one when we launched the 1x1 Rat Ride. After a lot of Homie Fall Fests and more feats of strength than we can recall, we decided to discontinue it a couple years back. Lowside picks up right where the 1x1 left off.

“Some have dubbed the Lowside the ultimate pub cruiser.”

Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles
Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
Spec'd in alternating years with 26 x 3” or 27.5 x 2.8” tires, the Lowside remains capable of running either option

Specifications

Build Kit

Frameset

Frame

Surly Lowside - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Color

New Pig Smell

Fork

Surly Lowside - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Components

Headset

Cane Creek

Seatpost Clamp

Surly Stainless 33.1mm clamp

Seatpost

Promax SP-2019, 0 Offset, 30.9mm diameter

Stem

Sunday Freeze Stem Top Load

Grips/Bar Tape

Velo Black Lock-On

Saddle

WTB Volt

Handlebar

Surly Sunrise

Drivetrain

Front Derailleur

N/A

Rear Derailleur

N/A

Cassette

Surly 17t w/ spacer kit

Chain

KMC X10

Crankset

SRAM NX 32t

Shifter

N/A

Brake Levers

Tektro HD-M275 (Tektro HD-M276 on XS)

Brake Calipers

Tektro HD-M275 (Tektro HD-M276 on XS)

Bottom Bracket

SRAM Powerspline

Rotors

Tektro 160/160, 6-Bolt

Wheels

Front Tire

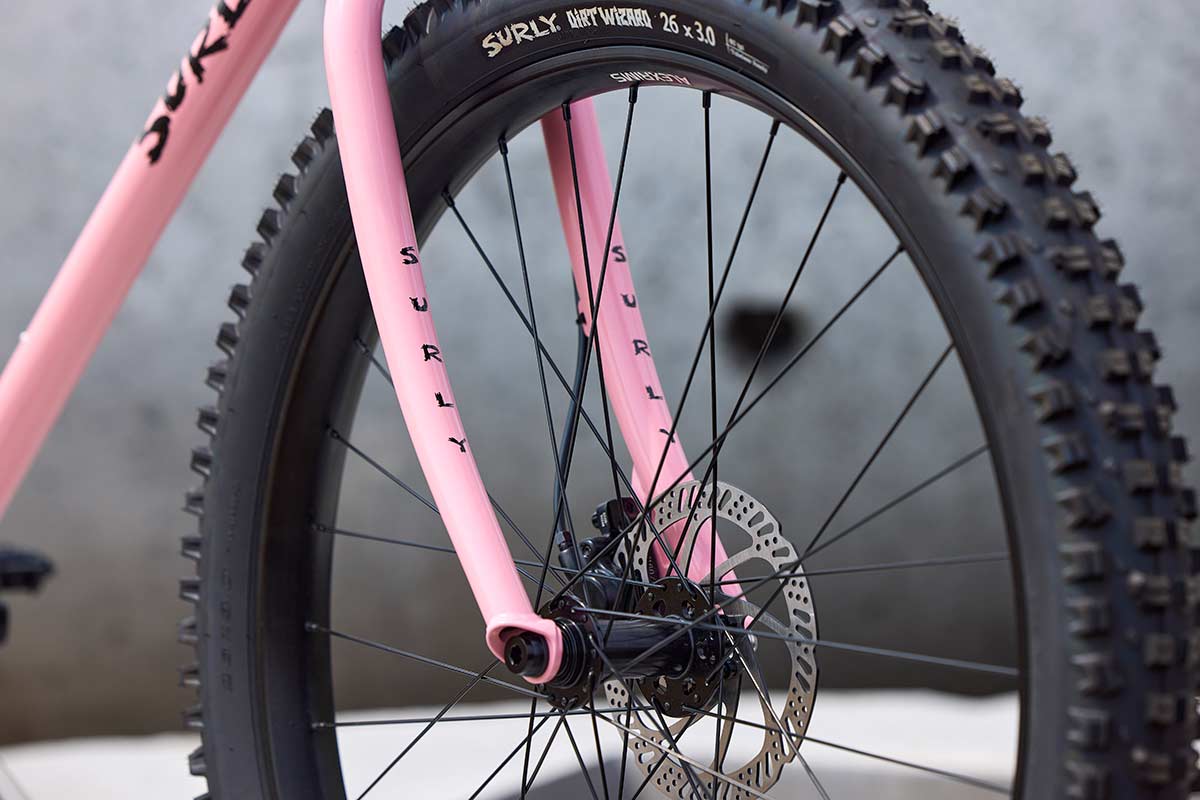

Surly Dirt Wizard 26 x 3.0", 60tpi

Rear Tire

Surly Dirt Wizard 26 x 3.0", 60tpi

Front Hub

Novatec 15 x 110mm, 6-bolt, 32h

Rear Hub

Novatec 12 x 148mm, 6-bolt, 32h

Spoke

14G Black

Rim

ALEX MD40 26"

Weight

Complete Bike

31 lb. 6 oz. for Medium

*Specifications are subject to change without notice

Geometry

Size	X-Small	Small	Medium	Large	X-Large
A. Effective Top Tube	570.0	590.0	610.0	630.0	650.0
B. Stand Over	700.0	729.0	762.0	792.0	823.0
C. Reach	414.5	429.3	445.3	461.0	477.0
D. Stack	542.2	560.3	574.4	588.5	602.5
E. Total Seat Tube Length	316.0	366.0	416.0	466.0	516.0
F. Headtube Length	110.0	125.0	140.0	155.0	170.0
G. Headtube Angle	70.0	70.0	70.0	70.0	70.0
H. Seat Tube Angle	74.0	74.0	74.0	74.0	74.0
I. BB Drop	55.0	55.0	55.0	55.0	55.0
K. Chainstay Length	425.0	425.0	425.0	425.0	425.0
L. Fork Length Axle to Crown	420.0	420.0	420.0	420.0	420.0
M. Fork Offset	47.0	47.0	47.0	47.0	47.0
N. Wheelbase	1068.0	1089.0	1110.0	1131.0	1152.0
Crank Arm Length	170.0	170.0	175.0	175.0	175.0
Handlebar Width	820.0	820.0	820.0	820.0	820.0
Recommended Rider Height	142.0 - 151.0	152.0 - 164.0	165.0 - 174.0	175.0 - 184.0	185.0
Stem Length	52.0	52.0	52.0	52.0	52.0

Frame Specs

Design Wheel/Tire Sizes 26 x 3.0"
Alternate Wheel/Tire Sizes 27.5 x 2.8"
Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Suspension Fork Length (Travel) 490 x 47mm (26 100mm)
Rigid Fork Length 420mm
Fork Offset 47mm
Axle to Crown 420mm

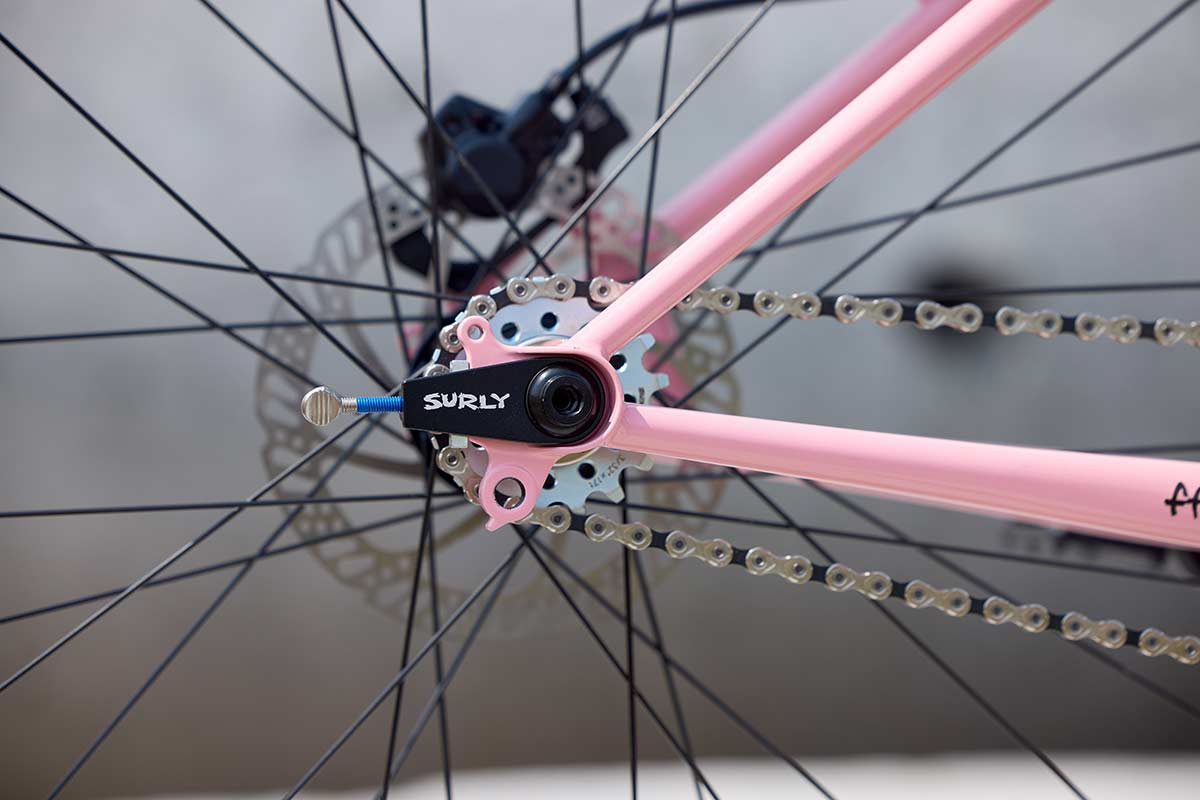

Rear Spacing "Gnot-Boost" 145mm
Rear Axle Size 12 x 142mm or 12 x 148mm (Surly axle included) / 10 x 135mm with Surly 10/12 Adapter Washers (not included)
Front Brake (Rotor) Disc - 51mm I.S. (203mm max rotor)
Headset - Upper ZS44/28.6
Headset - Lower EC44/30
Front Spacing 15 x 110mm
Steerer Tube Ø28.6mm (1-1/8")
Crown Race Ø30mm (1-1/8")
Stem Clamp Ø28.6mm (1-1/8")
Seatpost Ø30.9mm
Dropper Post Compatible Yes
Seatpost Clamp Ø33.1mm
Front Derailleur Clamp Ø34.9mm
Front Derailleur Type High direct mount top-pull (Ø34.9mm) 26mm offset adapter (not included) for 142 or 135mm rear hub spacing 29mm offset adapter (not included) for 148mm rear hub spacing
Bottom Bracket 73mm threaded (1.37" x 24TPI)
Crankset (Max Ring) 1x (Mtn): 33T / 1x (Boost): 36T
Bottle Mounts 1 Standard
Fork Mounts N/A
Front Fender Mounts N/A
Rear Fender Mounts N/A
