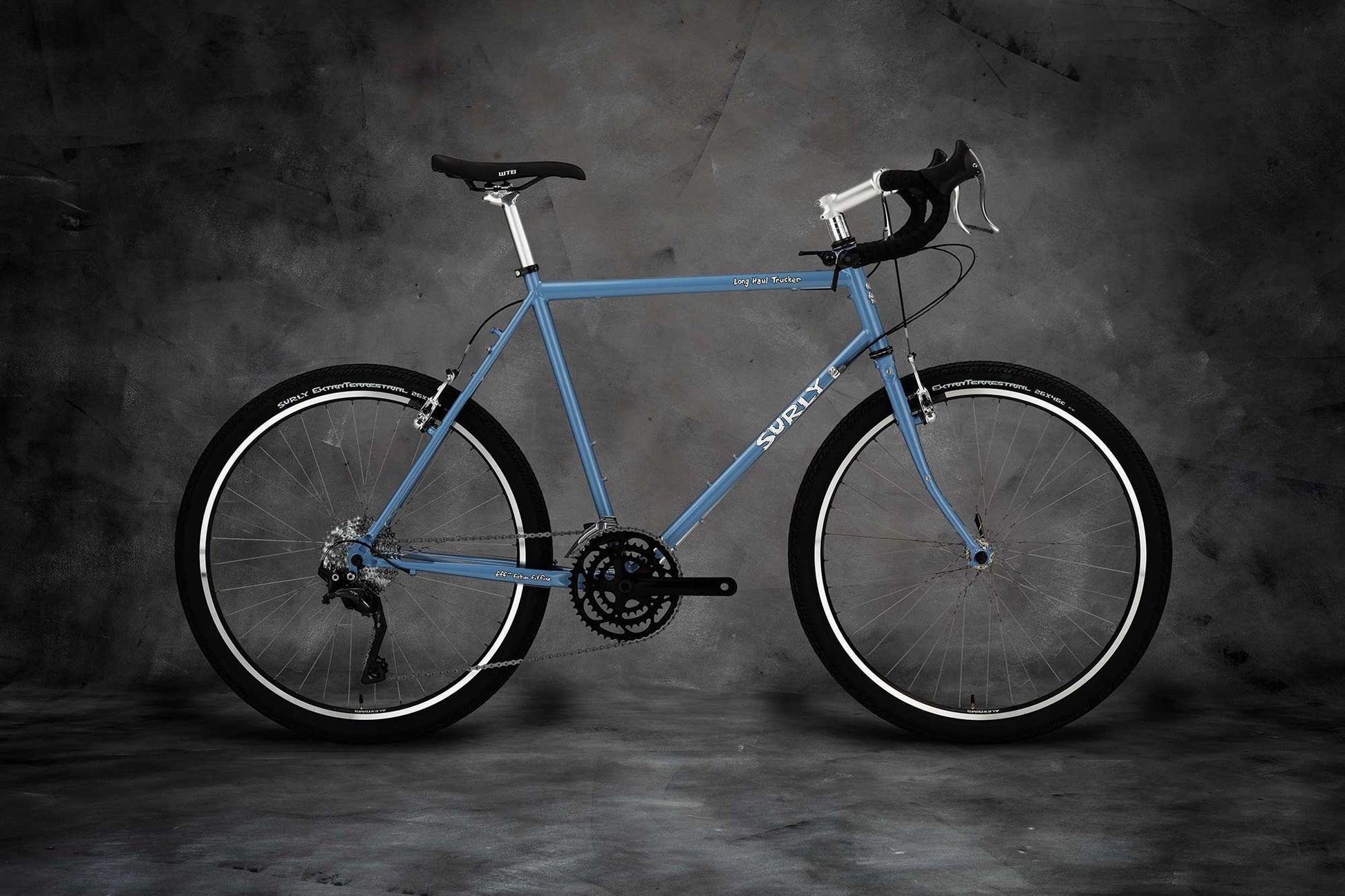

• Surly Long Haul Trucker bike side view Blue Suit of Leisure color

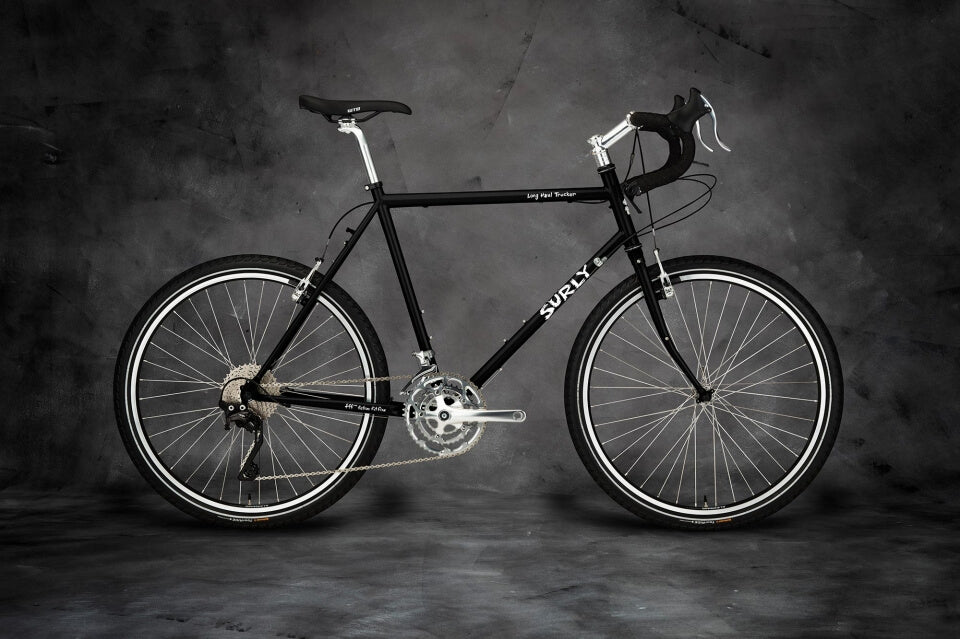

  • Surly Long Haul Trucker bike side view Blacktacular color
1 2

Long Haul Trucker

Long Haul Trucker

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Long Distance Cargo Bike Ready to Go Anywhere

Designed for comfort while simultaneously hauling a lot of stuff long distances, many consider Long Haul Trucker to be the gold standard of touring bikes. It features everything a long-distance bicycle tourist would need when traversing the globe.

LHT’s applications go well beyond global touring. It’s a great option for what we refer to as "extreme commuting." That means more than just carrying your laptop and change of clothes with you. You have the capacity for whatever the day throws at you.

  • Every braze-on you’ll ever need: front and rear rack mounts, fender eyelets, water bottle bosses, spare spoke holder, pump peg
  • Available in 26” (sizes 42–58 cm) and 700c (sizes 56–62 cm) wheel diameters
  • Rim brake-specific (if disc brakes are more your thing, check out the Disc Trucker)
  • Clearance for 26” x 2.1” tires with or without fenders (26” platform) or 700c x 42mm with fenders, 45mm without fenders (700c platform)

Specifications

Geometry

Geometry Diagram

26"

SIZE 42cm 46cm 50cm 52cm 54cm 56cm 58cm 60cm 62cm
Reach 367.2 371.3 374.5 374.6 379.4 388.3 393.5 402.5 400.5
Stack 497.2 502.9 532.3 550.3 568.3 588.1 606.1 623.3 643.2
Head Tube Angle 70.0˚° 70.0˚° 71.0˚° 71.0˚° 71.0˚° 71.0˚° 71.0˚° 71.5˚° 71.5˚°
Head Tube Length 110.7 116.7 144.0 163.0 182.0 203.0 222.0 238.0 259.0
Seat Tube Length 420.0 460.0 500.0 520.0 540.0 560.0 580.0 600.0 620.0
BB Drop 47.0 47.0 47.0 47.0 47.0 47.0 47.0 47.0 47.0
Wheelbase 1036.6 1042.7 1046.8 1053.1 1064.0 1079.8 1091.2 1100.4 1105.1
Chainstay Length 460.0 460.0 460.0 460.0 460.0 460.0 460.0 460.0 460.0
Top Tube Length, Actual 492.7 508.4 525.4 535.0 549.7 564.5 580.3 594.8 603.8
Top Tube Length, Effective 505.0 515.0 530.0 540.0 555.0 570.0 586.0 600.0 610.0
Seat Tube Angle 75.0˚° 74.5˚° 74.0˚° 73.5˚° 73.0˚° 73.0˚° 72.5˚° 72.5˚° 72.0˚°
Standover Height 702.1 723.2 756.1 774.5 792.4 811.9 829.7 847.9 866.6
Stem Length 70 70 70 90 100 100 110 120 120
Stem Angle 35° 35° 35° 17° 17° 17° 17° 17° 17°
Handlebar Width 400 400 400 420 420 440 440 460 460
Crank Length 165 165 170 170 170 175 175 175 175
Fork Length 376.0 376.0 376.0 376.0 376.0 376.0 376.0 376.0 376.0
Fork Rake 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0 45.0

All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø628 or 690mm



700c

SIZE 56cm(700c) 58cm(700c) 60cm(700c) 62cm(700c)
Reach 389.3 394.4 401.0 403.0
Stack 588.0 606.1 623.2 643.2
Head Tube Angle 72.0˚° 72.0˚° 72.0˚° 72.0˚°
Head Tube Length 152.0 171.0 189.0 210.0
Seat Tube Length 560.0 580.0 600.0 620.0
BB Drop 78.0 78.0 78.0 78.0
Wheelbase 1055.6 1066.7 1080.8 1085.3
Chainstay Length 460.0 460.0 460.0 460.0
Top Tube Length, Actual 564.5 580.2 594.8 603.9
Top Tube Length, Effective 570.0 586.0 600.0 610.0
Seat Tube Angle 73.0° 72.5° 72.5° 72.0°
Standover Height 811.9 829.8 847.8 866.5
Stem Length 100 110 120 120
Stem Angle 6° 6° 6° 6°
Handlebar Width 440 440 460 460
Crank Length 175 175 175 175
Fork Length 390.0 390.0 390.0 390.0
Fork Rake 45.0 45.0 45.0 45.0

All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø628 or 690mm

Frame Specs

  • Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
  • Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
  • Rear Dropout Configuration: Vertical
  • Rear Hub Spacing: 10 x 135mm
  • Front Hub Spacing: 10 x 100mm
  • Rear Brake: Rim - Canti (removable posts)
  • Front Brake: Rim - Canti (removable posts)
  • Head Tube: Ø34mm
  • Steerer Tube: Ø28.6mm (1-1/8")
  • Crown Race: Ø30mm (1-1/8")
  • Stock Headset Upper (S.H.I.S.): EC34/28.6
  • Stock Headset Lower (S.H.I.S.): EC34/30
  • Seat Collar: Ø30mm
  • Seatpost: Ø27.2mm
  • Front Derailleur (Clamp): Bottom-pull (Ø28.6mm)
  • Max Chainring (CL)[3]: 1x (Road): 44T; 2x (Road): 42/53T; 3x (Road): 38/52/56T
  • Bottom Bracket: 68mm threaded (1.37" x 24TPI)
  • Tire Clearance Frame [1]/[2]: 26in: 26 x 2.1" (w/ fenders); 700c: 700c x 42mm (w/ fenders); 700c: 700c x 45mm (w/o fenders)
  • Tire Clearance Fork [1]: 26in: 26 x 2.0" (with or without fenders); 700c: 700c x 50mm (with or without fenders); 700c: 29 x 2.0" (with or without fenders)
  • Rigid Fork Spec: 26in: 376 x 45mm; 700c: 390 x 45mm
  • Max Suspension Fork Length [4]: N/A
  • Bottle Mounts Frame: 3 Standard
  • Bottle Mounts Fork: N/A
  • Rack Mounts Frame: Yes (upper and lower threaded)
  • Rack Mounts Fork: Yes (upper, lower, and mid-blade threaded)
  • Fender Mounts Frame: Yes
  • Fender Mounts Fork: Yes
  • Other Features: Chainstay mounted spoke holder; Surly removable kickstand plate (included); Downtube mounted shifter bosses (cable housing stops not included with frameset)


[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3] Listed chainring clearance is worst case scenario.  Clearances vary widely depending on components and configurations.
[4] Suspension fork length listed at full extension (not at sag)
