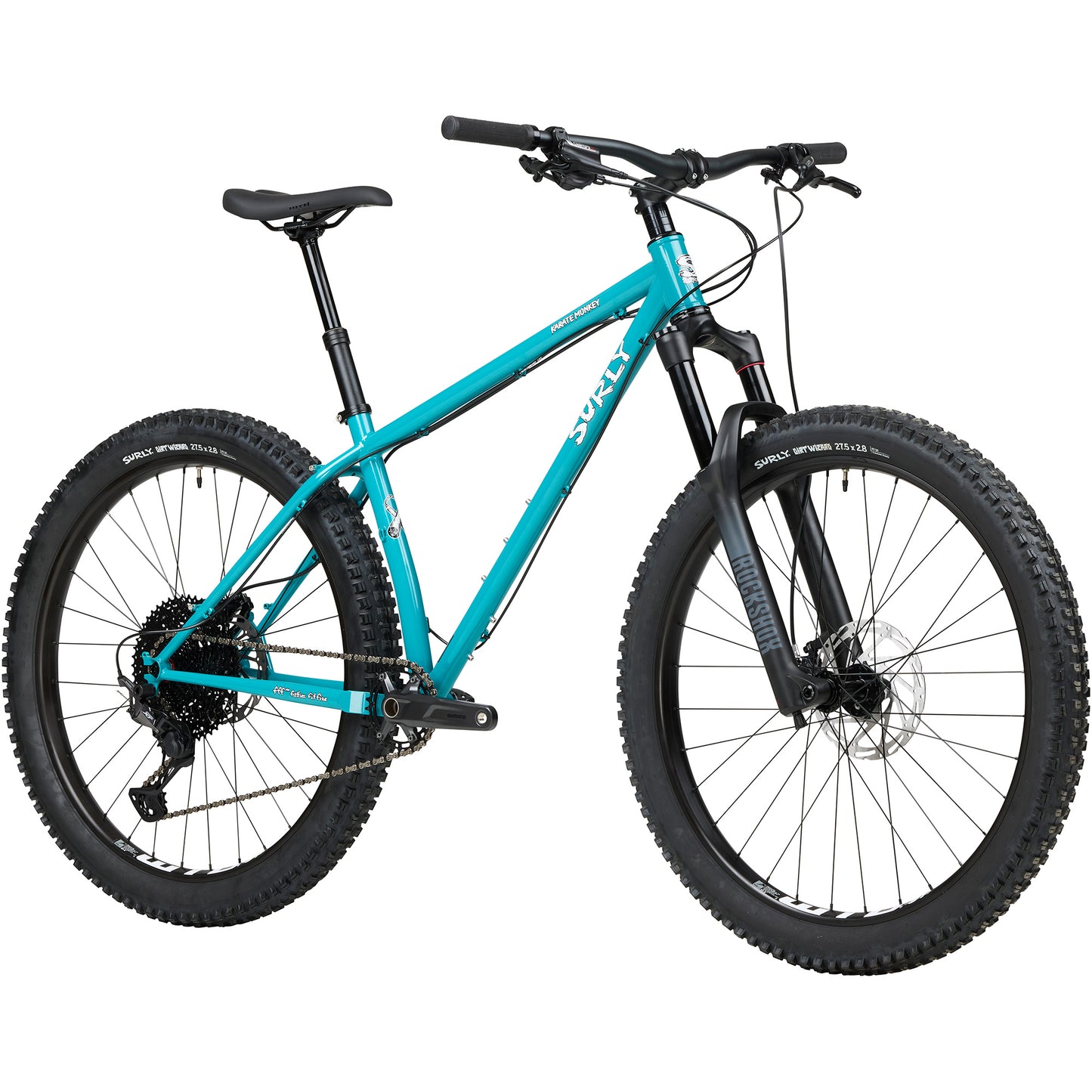

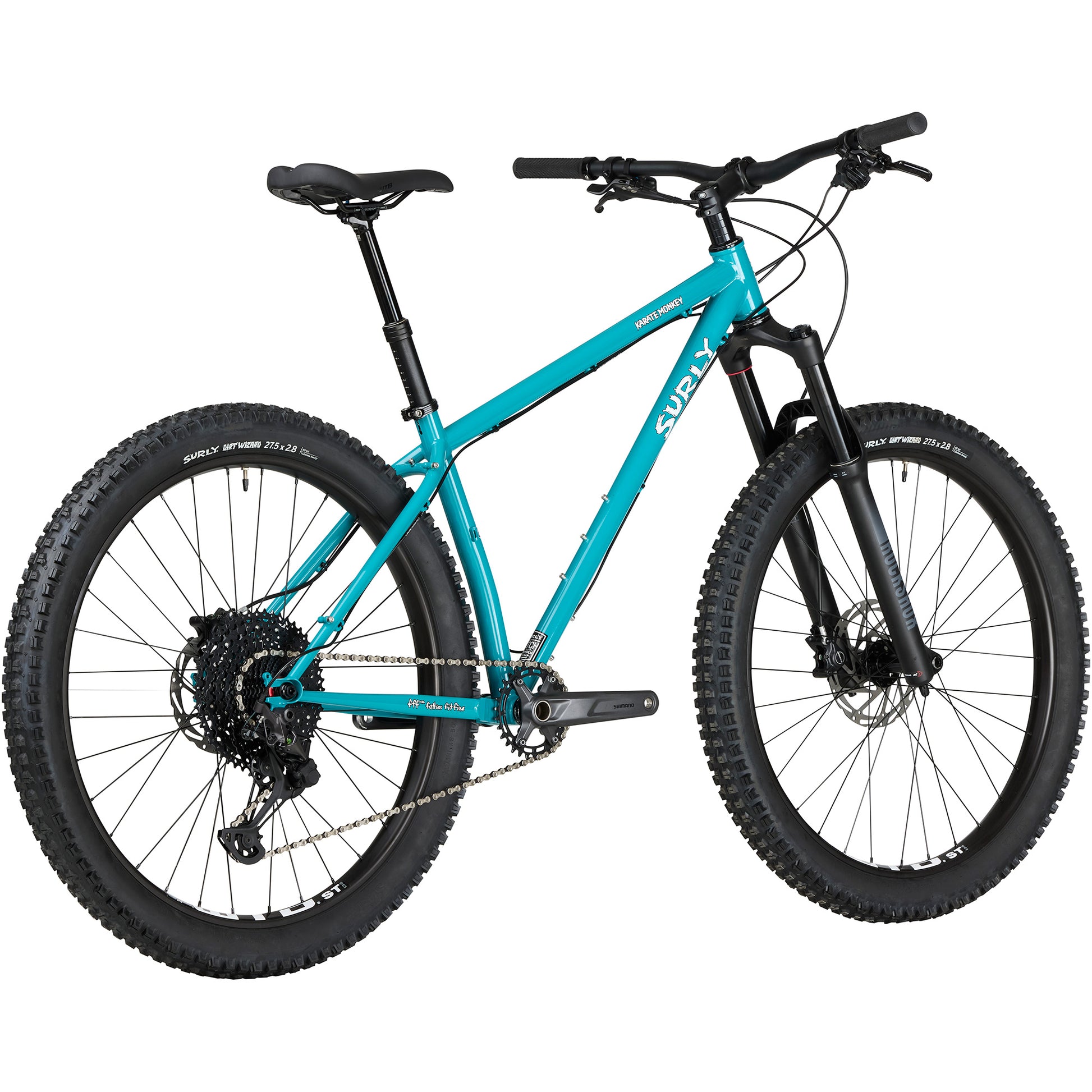

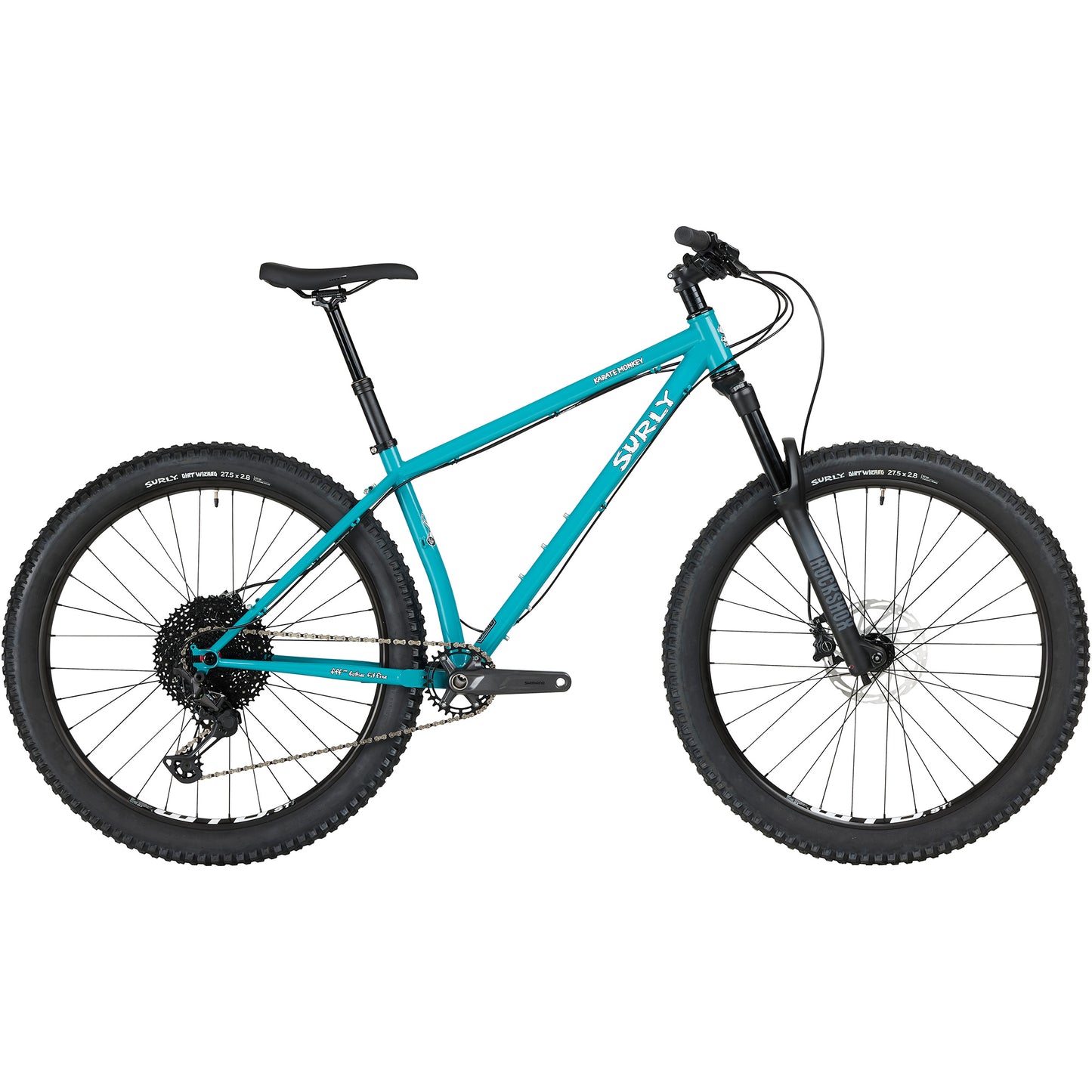

Karate Monkey Front Suspension - Lost at Sea Blue

Singletrack – Doubletrack – Bikepacking

$2,599.00 USD

~~$2,599.00 USD~~ $2,599.00 USD

Sale

Size X-Small Small Medium Large X-Large

Quantity

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Multipurpose Hardtail Mountain Bike

Karate Monkey delivers a resilient, lively ride on all sorts of gnarly terrain. Its frame is a highly-versatile canvas for whatever dirty masterpiece your brain cooks up. According to our computing machine (Thor) it can be set up in approximately 487 different configurations.

Originally designed as a 29er (and the frame that helped spark the 29” wheel movement), the latest Karate Monkey is designed to perform just as admirably as a 27.5+ rig as well. This allows you to pick your poison — provided your poison is having a really great time while permanently donning a shit-eating grin, of course.

Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
Clearance for 29” x 2.5” or 27.5” x 3” tires

Specifications

Build Kit

Frameset

Frame

Surly Karate Monkey - 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated

Color

Lost at Sea Blue

Suspension Fork

RockShox 35 Gold RL, 27.5", 15 x 110mm, 140mm travel, 44mm offset

Components

Headset

Cane Creek

Seatpost Clamp

Surly stainless, 33.1mm

Seatpost

TranzX YSP15, 30.9 Travel XS: 100mm, SM-XL: 120mm

Stem

Promax DA-296, 31.8mm

Grips/Bar Tape

Velo Black

Saddle

WTB Volt Medium

Handlebar

Salsa Rustler

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano M8100 XT SGS

Cassette

SunRace CSMZ800, 11-51t, 12spd

Chain

KMC X12 Anti-Rust

Crankset

Shimano MT511, 30T

Shifter

Shimano Deore XT M8100

Brake Levers

Tektro HD-M3520

Brake Calipers

Tektro HD-M3520

Bottom Bracket

Shimano MT501, BSA

Rotors

Tektro 180/160, 6-Bolt

Wheels

Front Tire

Surly Dirt Wizard 27.5 x 2.8", 60tpi, Tubeless Ready

Rear Tire

Surly Dirt Wizard 27.5 x 2.8", 60tpi, Tubeless Ready

Front Hub

Novatec 15x110mm, 32h

Rear Hub

Novatec 12x148mm, 32h

Spoke

14G Black

Rim

WTB ST i35 TCS 2.0 27.5"

Weight

Complete Bike

33 lb. 13 oz. for Medium

*Specifications are subject to change without notice

Geometry

Size	X-Small	Small	Medium	Large	X-Large
A. Effective Top Tube	562.0	587.0	612.0	637.0	662.0
B. Stand Over	751.0	769.0	791.0	819.0	848.0
C. Reach	371.0	396.0	421.0	443.0	466.0
D. Stack	601.0	601.0	602.0	611.0	621.0
E. Total Seat Tube Length	330.0	368.0	419.0	470.0	521.0
F. Headtube Length	100.0	100.0	100.0	110.0	120.0
G. Headtube Angle	68.0	68.0	68.0	68.0	68.0
H. Seat Tube Angle	72.0	72.0	72.0	72.0	72.0
I. BB Drop	51.0	51.0	51.0	51.0	51.0
K. Chainstay Length	423.0	423.0	423.0	423.0	423.0
L. Fork Length Axle to Crown	499.0	499.0	499.0	499.0	499.0
M. Fork Offset	44.0	44.0	44.0	44.0	44.0
N. Wheelbase	1057.0	1082.0	1107.0	1132.0	1158.0
Crank Arm Length	170.0	170.0	175.0	175.0	175.0
Handlebar Width	750.0	750.0	800.0	800.0	800.0
Recommended Rider Height	145.0 - 160.0	155.0 - 170.0	165.0 - 180.0	175.0 - 191.0	185.0 - 201.0
Stem Length	60.0	70.0	70.0	70.0	80.0

Frame Specs

Design Wheel/Tire Sizes 27.5 x 3.0"
Alternate Wheel/Tire Sizes 29 x 2.5"
Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
Suspension Fork Length (Travel) 140mm
Fork Offset 44mm
Axle to Crown 499mm
Rear Spacing "Gnot-Boost" 145mm
Rear Axle Size 12 x 142mm or 12 x 148mm (Surly axle included)
Front Brake (Rotor) Disc - 51mm I.S. (203mm max rotor)
Headset - Upper ZS44/28.6
Headset - Lower EC44/30
Front Axle Size 15 x 110mm (Surly axle included)
Steerer Tube Ø28.6mm (1-1/8")
Crown Race Ø30mm (1-1/8")
Seatpost Ø30.9mm
Dropper Post Compatible Yes
Seatpost Clamp Ø33.1mm
Front Derailleur Clamp (Ø34.9mm)
Front Derailleur Type High direct mount top-pull (Ø34.9mm); 26mm offset adapter (not included) for 142 or 135mm rear hub spacing; 29mm offset adapter (not included) for 148mm rear hub spacing
Bottom Bracket 73mm threaded (1.37" x 24TPI)
Crankset (Max Ring) 1x (Mtn): 28T / 2x (Mtn): 24/34T / 1x (Boost): 32T / 2x (Boost): 24/36T
Bottle Mounts 1 Standard + 1 Three-Pack (XS - M) / 2 Standard + 1 Three-Pack (L - XL)
Fork Mounts 2 Three-Pack
Front Fender Mounts N/A
Rear Fender Mounts Yes
