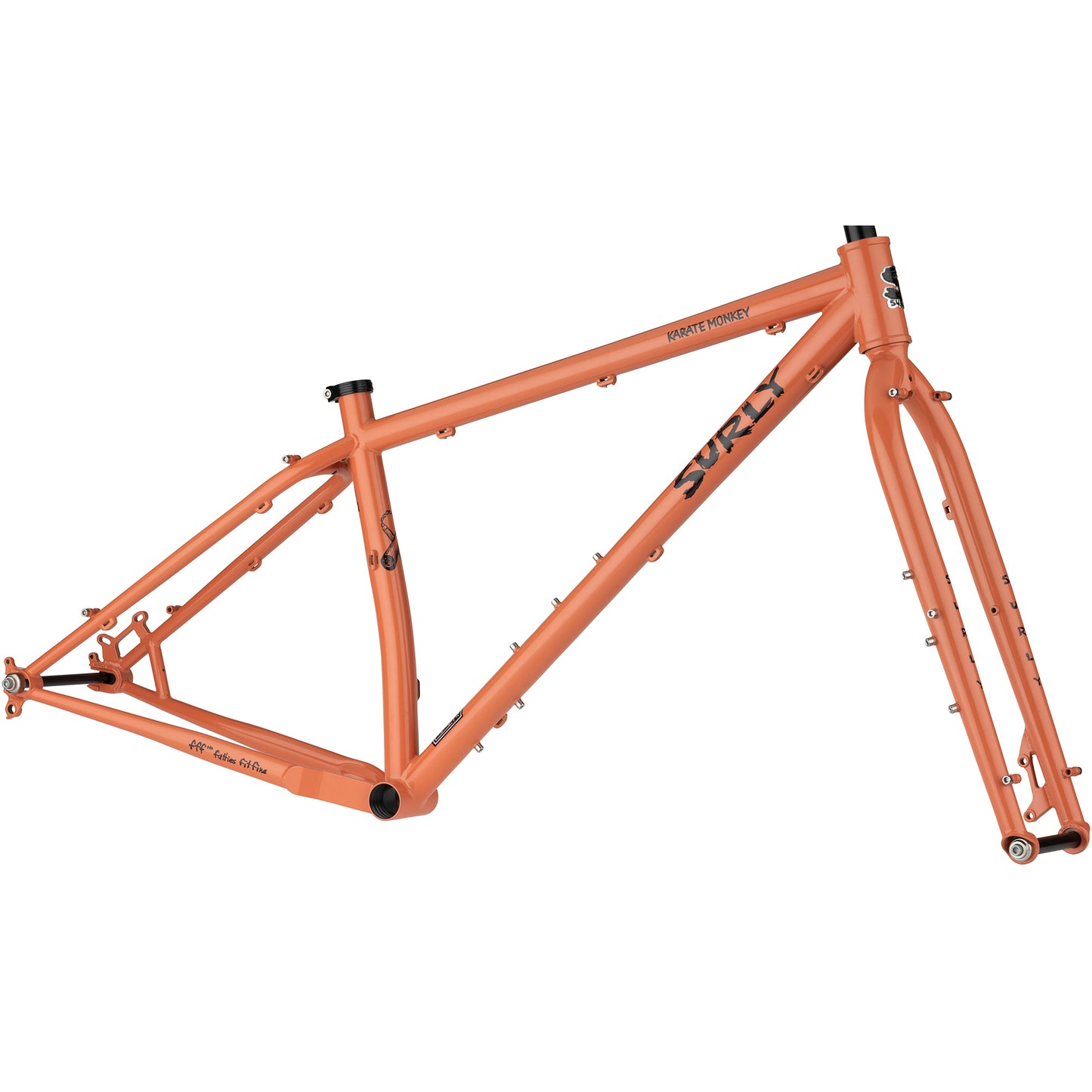

• Surly Karate Monkey Frameset Peach Salmon Sundae side view

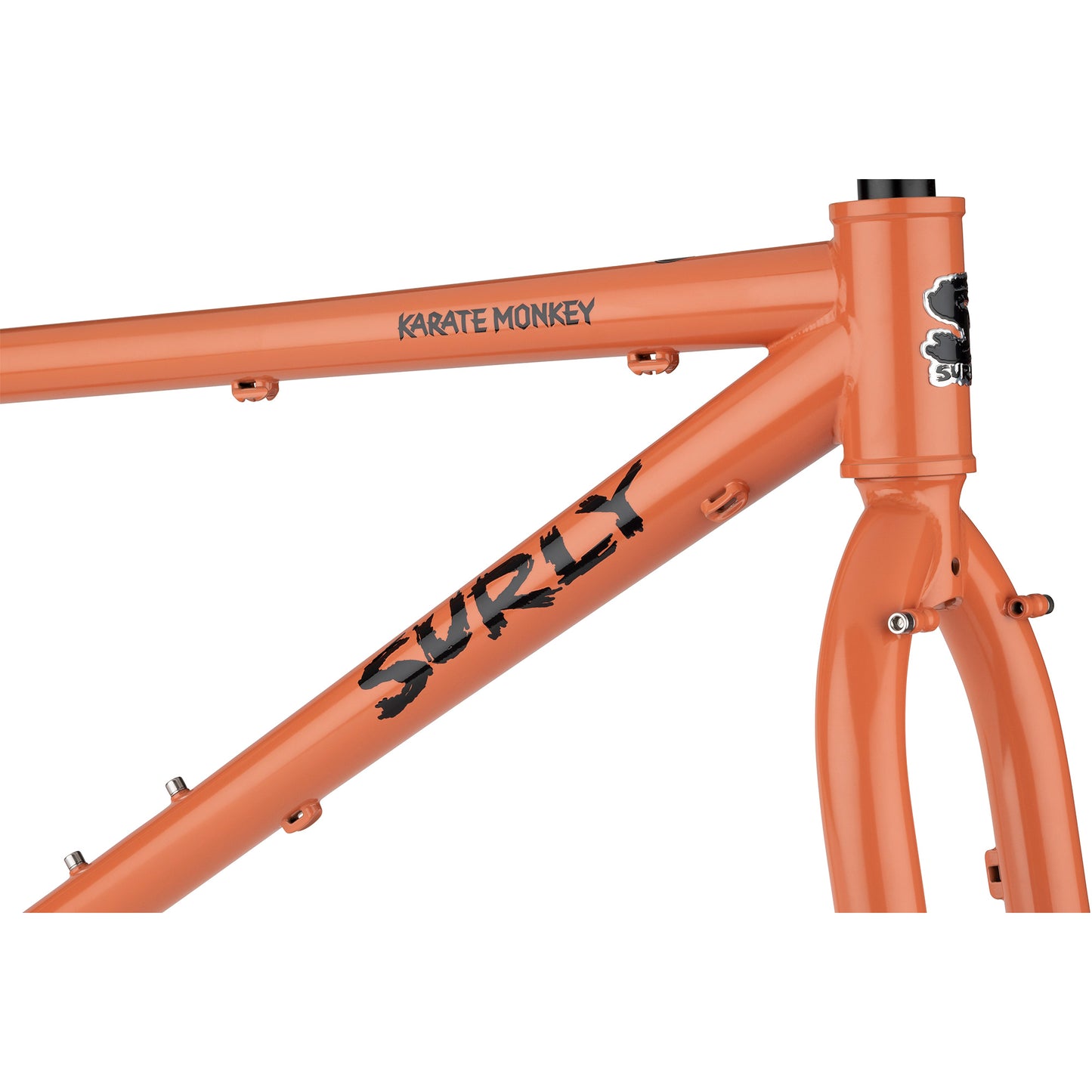

  • Surly Karate Monkey Frameset Peach Salmon Sundae head tube area focus

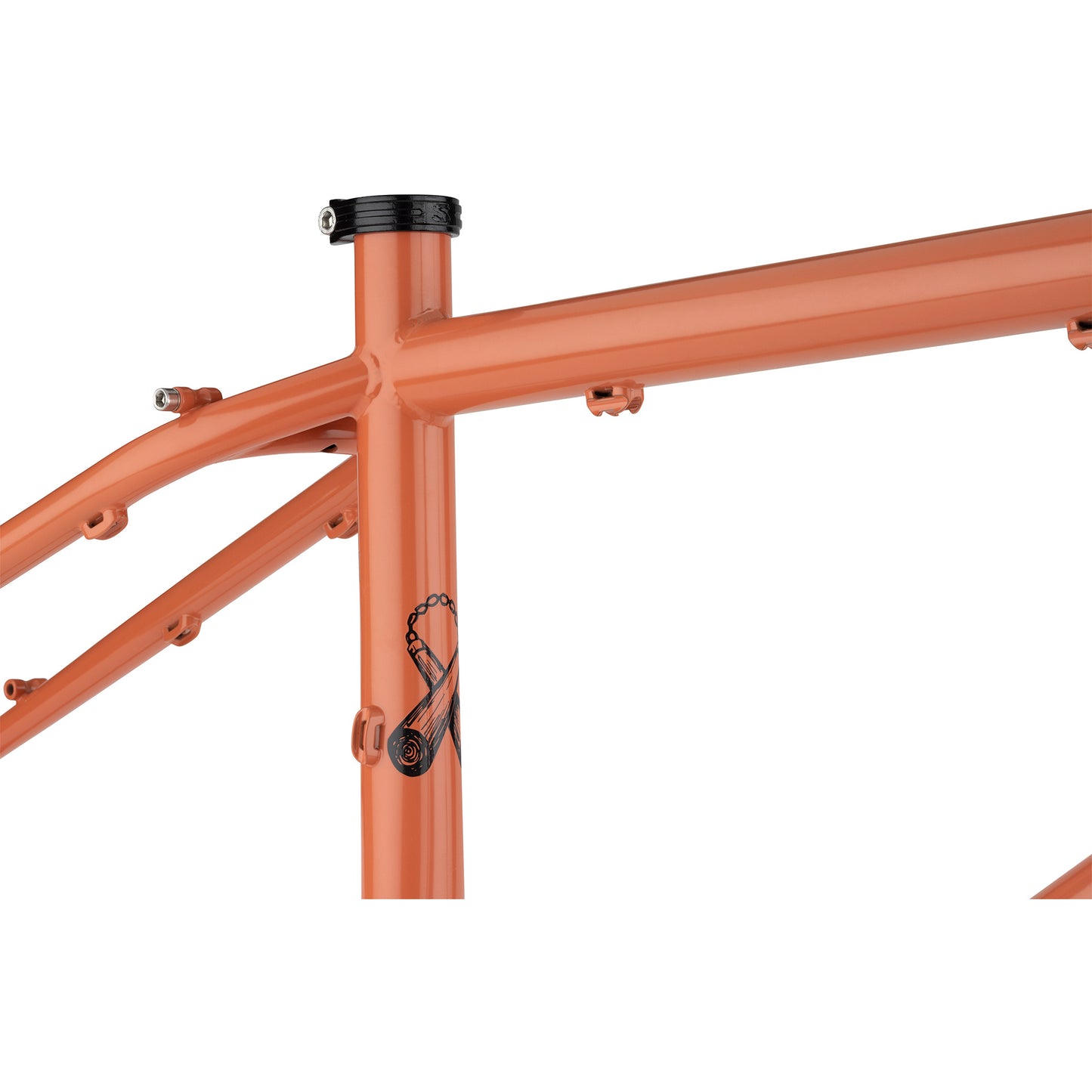

  • Surly Karate Monkey Frameset Peach Salmon Sundae seat tube area focus

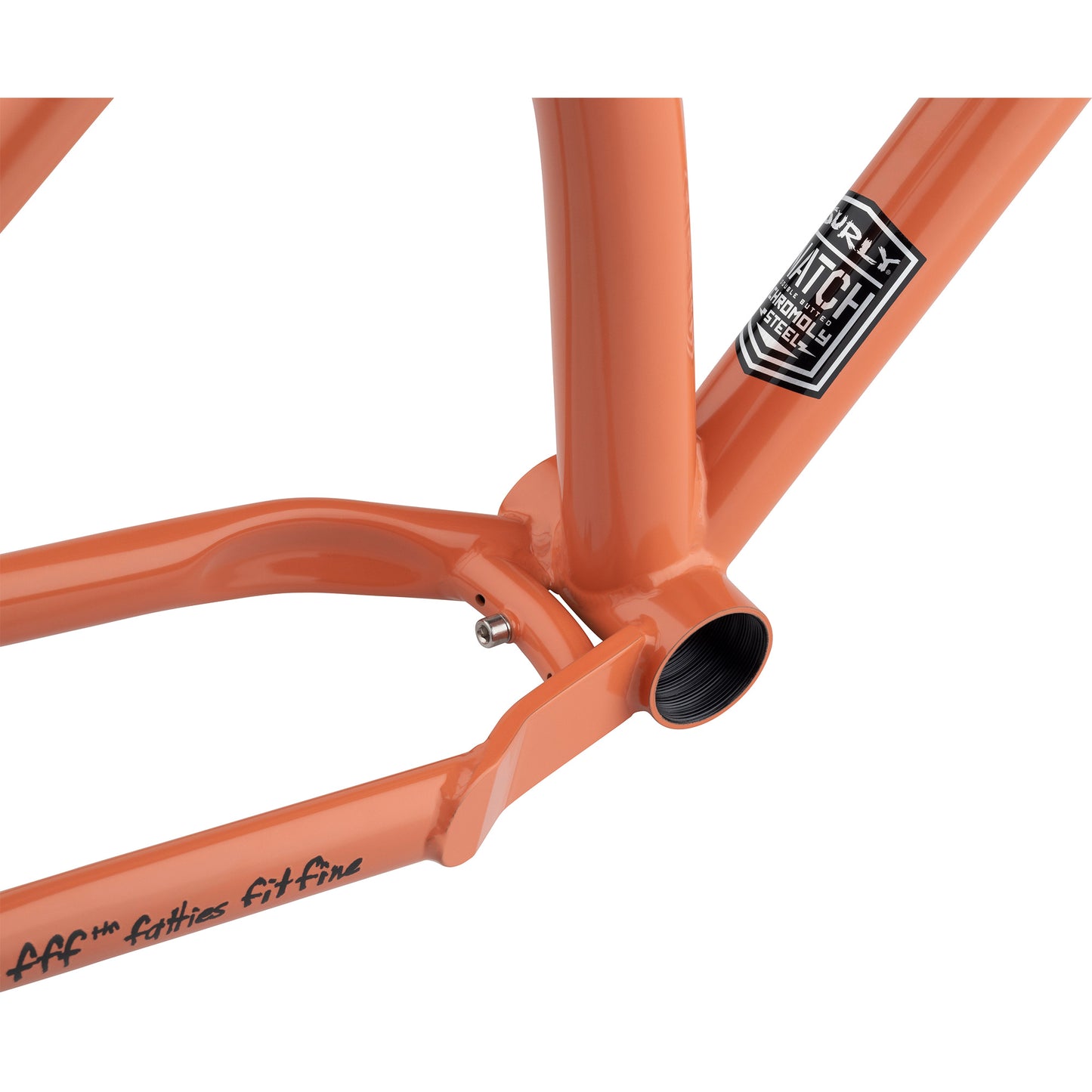

  • Surly Karate Monkey Frameset Peach Salmon Sundae bottom bracket area focus

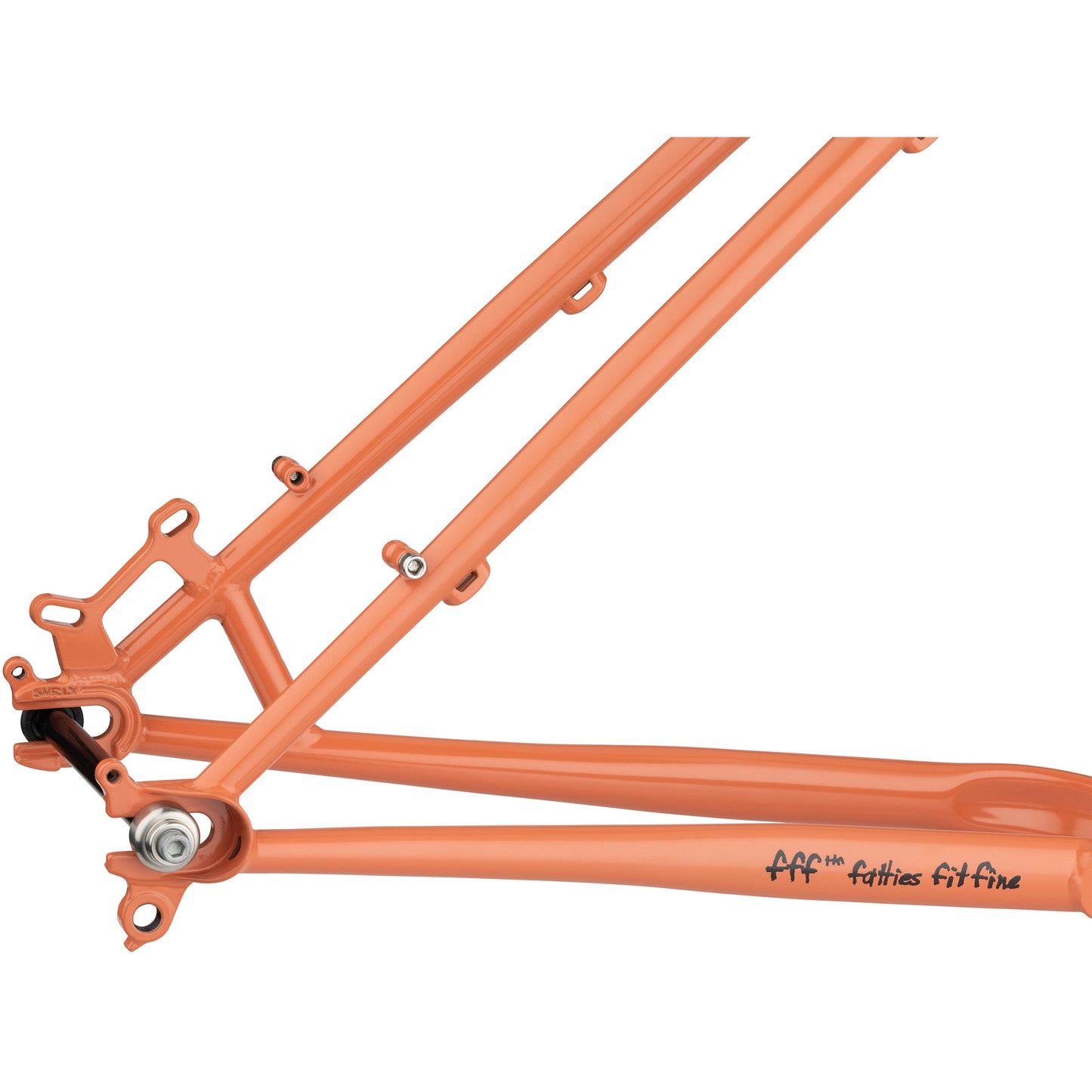

  • Surly Karate Monkey Frameset Peach Salmon Sundae rear dropout area focus
1 5

Karate Monkey Frameset - Peach Salmon Sundae

Karate Monkey Frameset - Peach Salmon Sundae

Singletrack – Doubletrack – Bikepacking

$999.00 USD
$999.00 USD $999.00 USD
Sale
Size

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Multipurpose Hardtail Mountain Bike

Karate Monkey delivers a resilient, lively ride on all sorts of gnarly terrain. Its frame is a highly-versatile canvas for whatever dirty masterpiece your brain cooks up. According to our computing machine (Thor) it can be set up in approximately 487 different configurations.

Originally designed as a 29er (and the frame that helped spark the 29” wheel movement), the latest Karate Monkey is designed to perform just as admirably as a 27.5+ rig as well. This allows you to pick your poison — provided your poison is having a really great time while permanently donning a shit-eating grin, of course.

  • Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
  • Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
  • Clearance for 29” x 2.5” or 27.5” x 3” tires

Specifications

Build Kit

Frameset

Frame

Surly Karate Monkey - 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated

Color

Peach Salmon Sundae

Fork

Surly Karate Monkey - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Components

Seatpost Clamp

Surly stainless, 33.1mm

Drivetrain

Wheels

Front Axle

15 x 110mm (Surly axle included)

Rear Axle

12 x 148mm (Surly axle included)

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 560.0 585.0 610.0 635.0 660.0
B. Stand Over 743.0 759.0 783.0 812.0 827.0
C. Reach 377.0 402.0 427.0 450.0 472.0
D. Stack 597.0 597.0 597.0 606.0 615.0
E. Total Seat Tube Length 330.0 368.0 419.0 470.0 521.0
F. Headtube Length 100.0 100.0 100.0 110.0 120.0
G. Headtube Angle
69.0
69.0
69.0
69.0
69.0
H. Seat Tube Angle
73.0
73.0
73.0
73.0
73.0
I. BB Drop 55.0 55.0 55.0 55.0 55.0
K. Chainstay Length 423.0 423.0 423.0 423.0 423.0
L. Fork Length Axle to Crown 483.0 483.0 483.0 483.0 483.0
M. Fork Offset 47.0 47.0 47.0 47.0 47.0
N. Wheelbase 1053.0 1078.0 1103.0 1129.0 1155.0
Crank Arm Length
Handlebar Width
Recommended Rider Height 145.0 - 160.0 155.0 - 170.0 165.0 - 180.0 175.0 - 191.0 185.0 - 201.0
Stem Length

Frame Specs

  • Design Wheel/Tire Sizes 27.5 x 3.0"
  • Alternate Wheel/Tire Sizes 29 x 2.5"
  • Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
  • Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
  • Suspension Fork Length (Travel) Max. Suspension fork length: 551 x 51mm (27.5+ 140mm)
  • Rigid Fork Length 483mm
  • Fork Offset 47mm
  • Axle to Crown 483mm
  • Rear Spacing "Gnot-Boost" 145mm
  • Rear Axle Size 12 x 142mm or 12 x 148mm (Surly axle included)
  • Front Brake (Rotor) Disc - 51mm I.S. (203mm max rotor)
  • Headset - Upper ZS44/28.6
  • Headset - Lower EC44/30
  • Front Axle Size 15 x 110mm (Surly axle included)
  • Steerer Tube Ø28.6mm (1-1/8")
  • Crown Race Ø30mm (1-1/8")
  • Seatpost Ø30.9mm
  • Dropper Post Compatible Yes
  • Seatpost Clamp Ø33.1mm
  • Front Derailleur Clamp (Ø34.9mm)
  • Front Derailleur Type High direct mount top-pull (Ø34.9mm); 26mm offset adapter (not included) for 142 or 135mm rear hub spacing; 29mm offset adapter (not included) for 148mm rear hub spacing
  • Bottom Bracket 73mm threaded (1.37" x 24TPI)
  • Crankset (Max Ring) 1x (Mtn): 28T / 2x (Mtn): 24/34T / 1x (Boost): 32T / 2x (Boost): 24/36T
  • Bottle Mounts 1 Standard + 1 Three-Pack (XS - M) / 2 Standard + 1 Three-Pack (L - XL)
  • Fork Mounts 2 Three-Pack
  • Front Fender Mounts N/A
  • Rear Fender Mounts Yes
