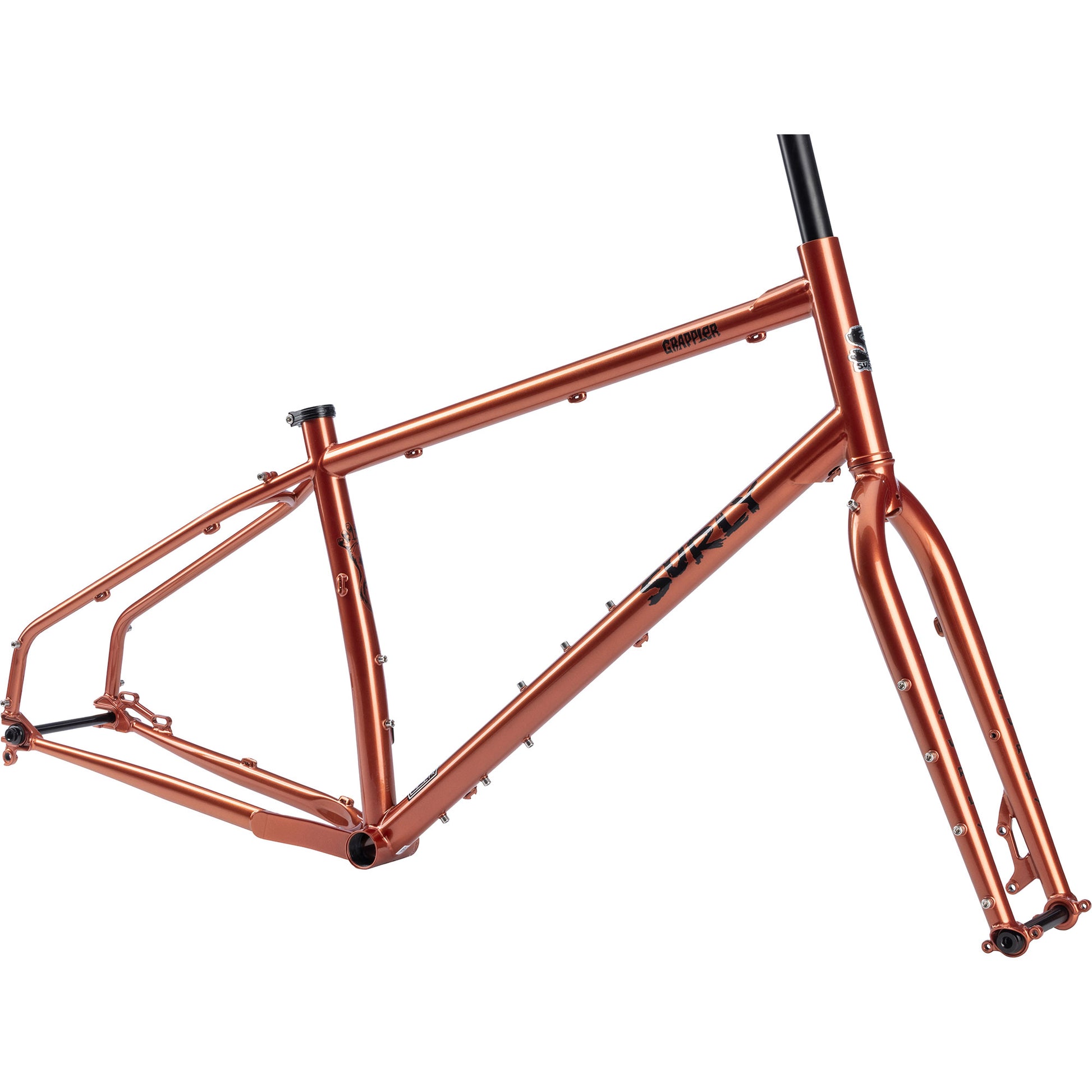

• Surly Grappler Frameset Caramelized Copper color side view on white background

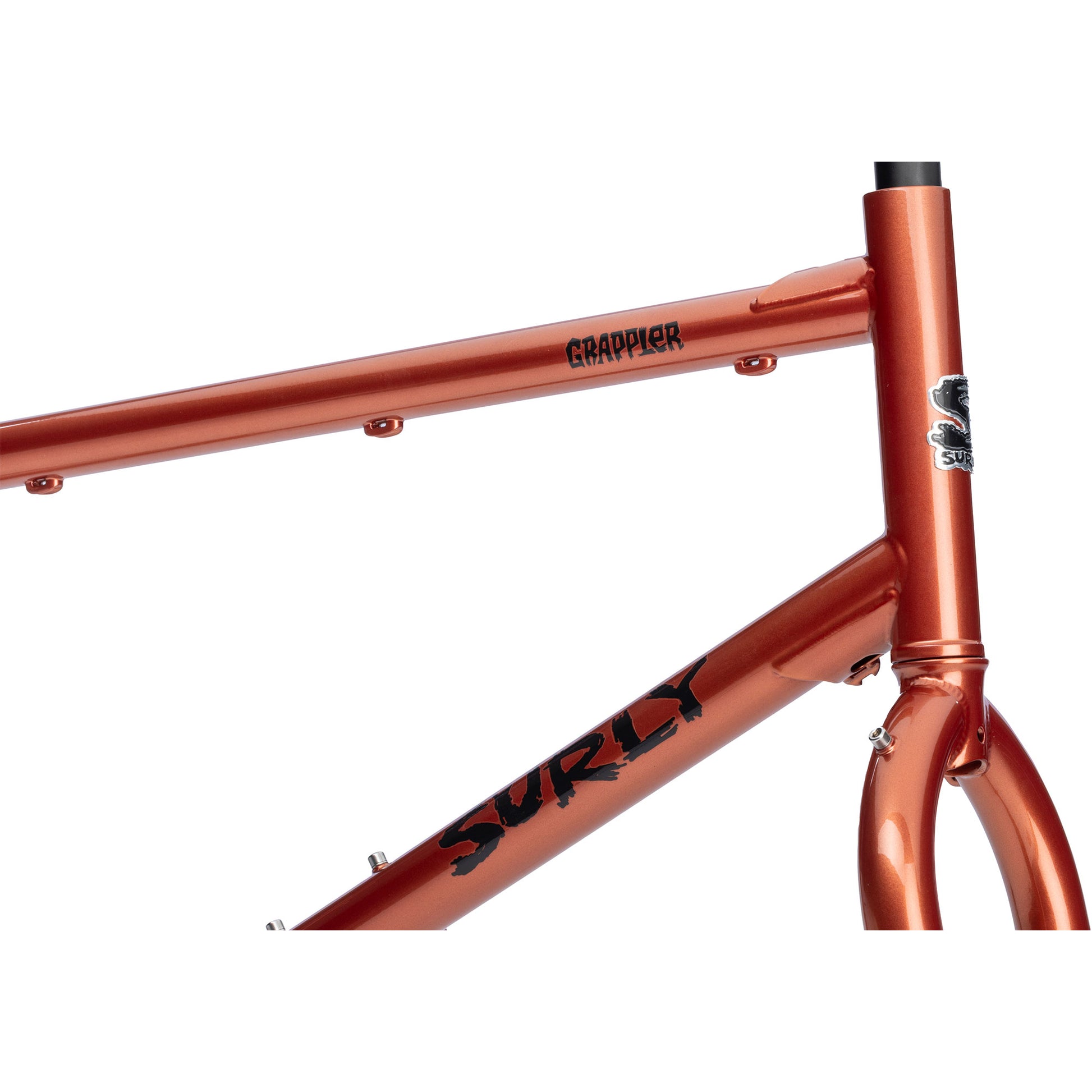

  • Surly Grappler Frameset Caramelized Copper color head tube area focus on white background

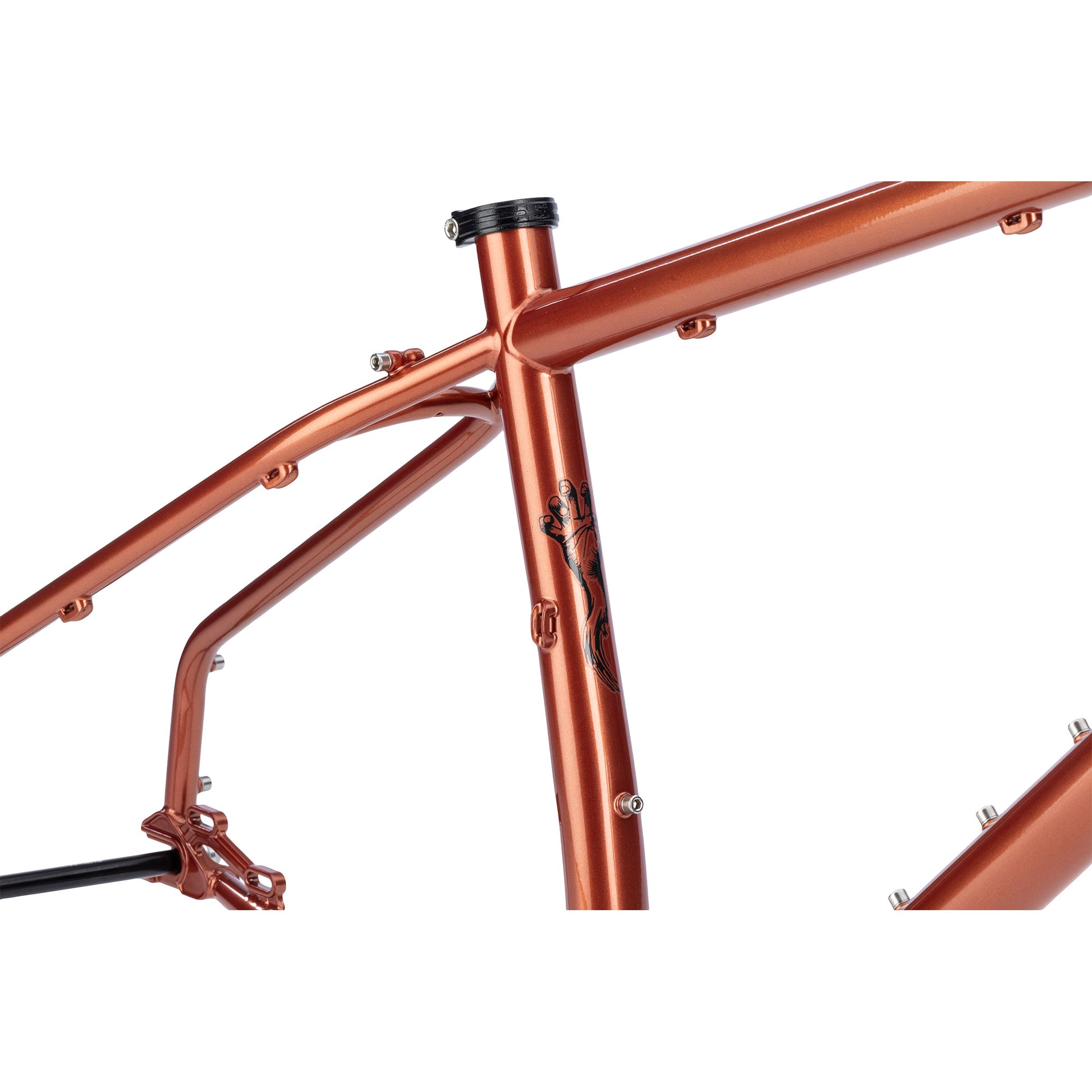

  • Surly Grappler Frameset Caramelized Copper color seat tube area focus on white background

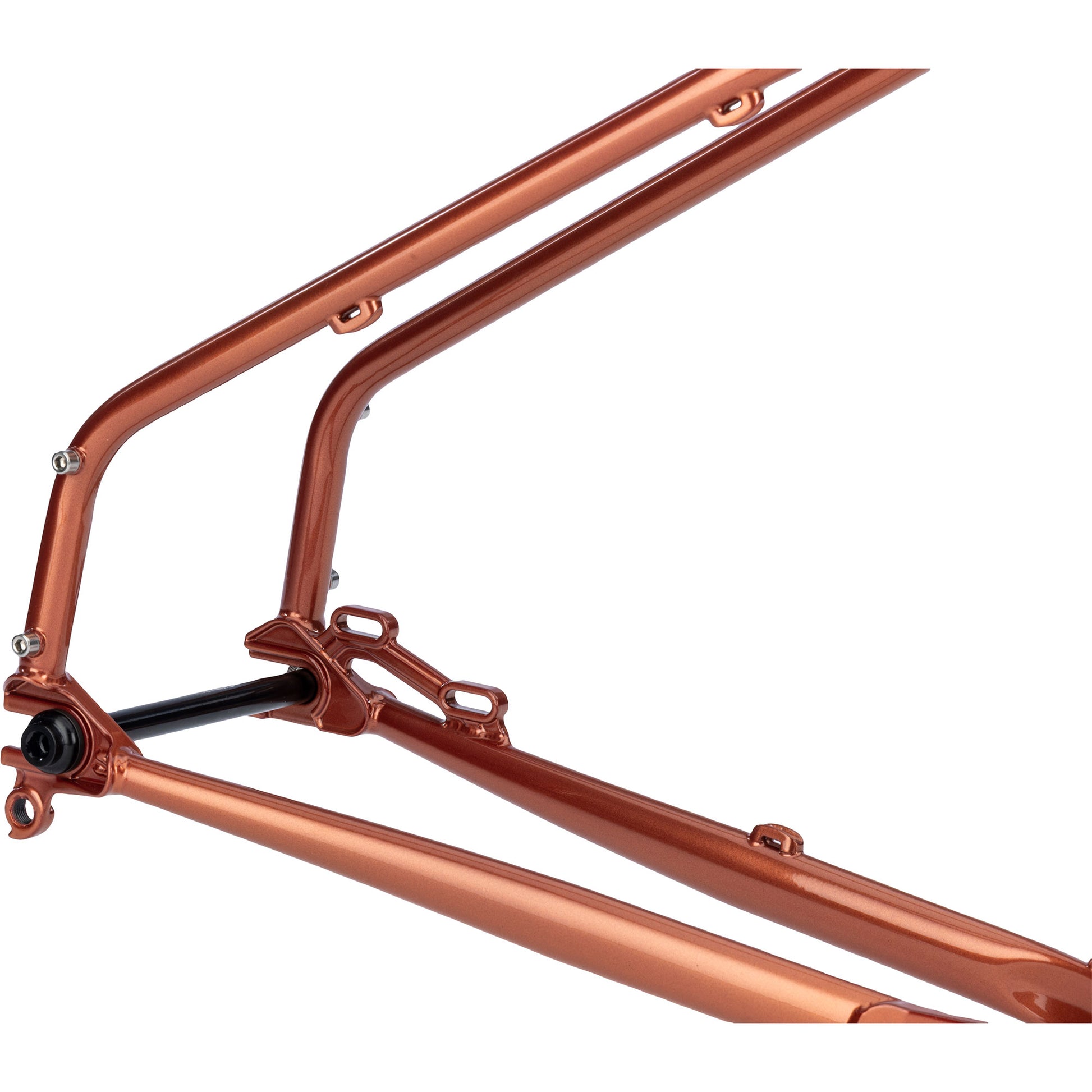

  • Surly Grappler Frameset Caramelized Copper color rear dropout area focus on white background

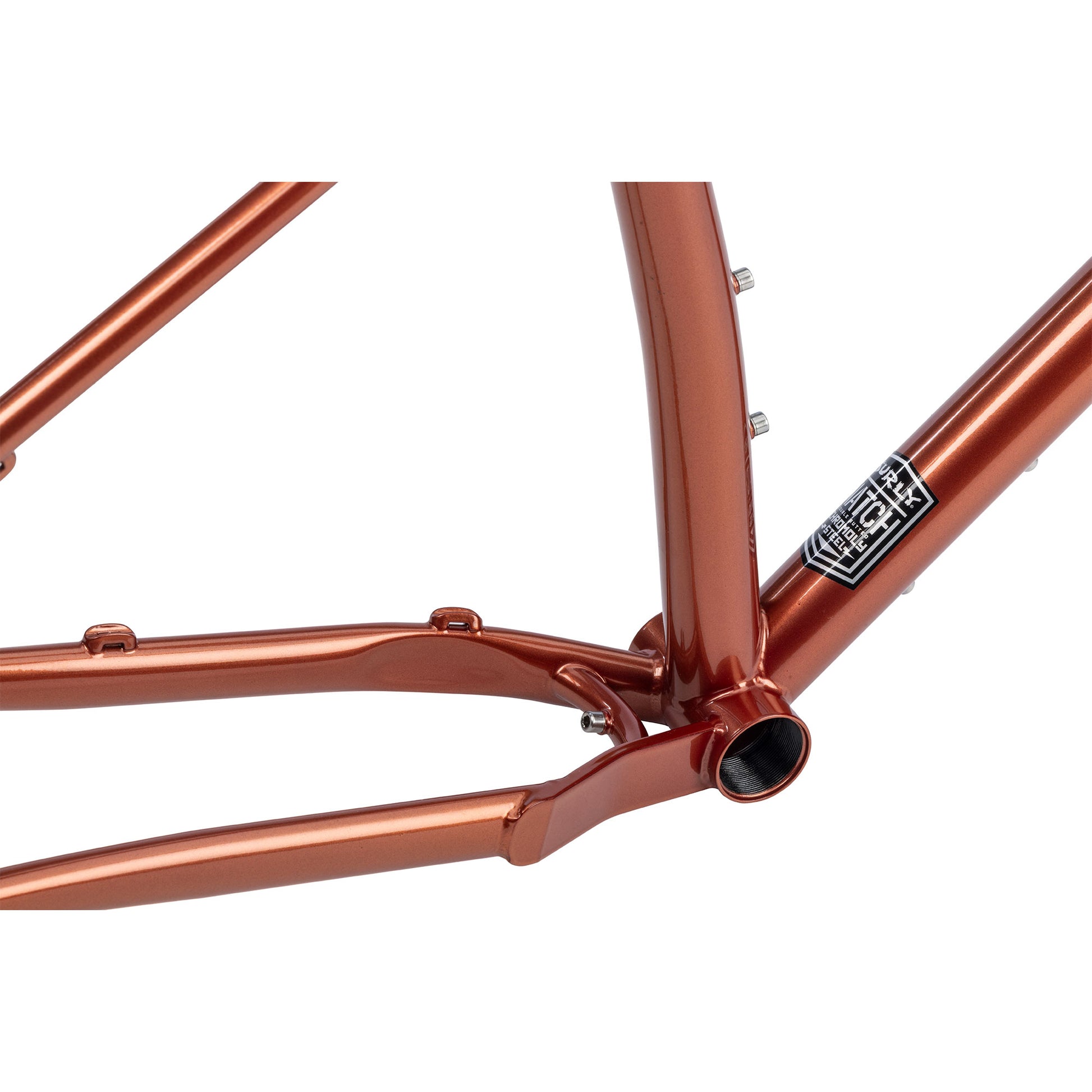

  • Surly Grappler Frameset Caramelized Copper color bottom bracket area focus on white background
1 5

Grappler Frameset - Caramelized Copper

Grappler Frameset - Caramelized Copper

Bikepacking – Singletrack - Fire Roads

The limited-edition Caramelized Copper frameset is available only for customers in Germany or Thailand.

Size

This is a legacy bike/frame model. Check out all the current bikes and frames.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

The limited-edition Caramelized Copper frameset is available only for customers in Germany or Thailand.

A Trail Bike Tailored for Drop Bars

Off-road enthusiasts have been Frankensteining drop bars onto trail bikes for decades, so we designed the Grappler to scratch that itch with a little more precision. Engineered first and foremost around a stable and comfortable drop-bar hand position, its trail-ready geo provides a spirited ride on mixed terrain.

Cleared for girthy tires and decorated with an array of mounts for hauling your daily provisions and overnight gear, the Grappler is ready to take you and your paraphernalia down that overgrown fire road for an extrasensory experience. There’s nothing to be afraid of. Probably.

  • Featuring Surly’s versatile Gnot-Boost spacing, allowing riders to run 142mm or Boost 148mm rear hubs; thru-axles; stealth dropper post routing; non-suspension corrected
  • Custom dropouts ready to run single-speed or internally geared hub setups
  • Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube
  • Frame tire clearance: 27.5 x 2.8" w/ fender, 27.5 x 3.0" w/o fender, 29 x 2.1" w/ fender (front axle position, 29 x 2.5" w/ fender (rear axle position)

Specifications

Build Kit

Frameset

Frame

Surly Grappler - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Color

Caramelized Copper

Fork

Surly Dinner Fork - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Components

Seatpost Clamp

Surly Stainless 33.1

Drivetrain

Wheels

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 560.0 590.0 610.0 640.0 660.0
B. Stand Over 719.0 762.0 795.0 829.0 862.0
C. Reach 381.0 405.0 420.0 444.0 458.0
D. Stack 585.0 604.0 623.0 641.0 660.0
E. Total Seat Tube Length 316.0 386.0 437.2 488.0 539.0
F. Headtube Length 160.0 180.0 200.0 220.0 240.0
G. Headtube Angle
69.5
69.5
69.5
69.5
69.5
H. Seat Tube Angle
73.0
73.0
73.0
73.0
73.0
I. BB Drop 50.0 50.0 50.0 50.0 50.0
K. Chainstay Length 425.0 425.0 425.0 425.0 425.0
L. Fork Length Axle to Crown 420.0 420.0 420.0 420.0 420.0
M. Fork Offset 50.0 50.0 50.0 50.0 50.0
N. Wheelbase 1057.0 1088.0 1109.0 1140.0 1162.0
Crank Arm Length
Handlebar Width
Recommended Rider Height 142.0 - 151.0 152.0 - 164.0 165.0 - 174.0 175.0 - 184.0 185.0
Stem Length

Frame Specs

  • Design Wheel/Tire Sizes 27.5 x 2.5"
  • Alternate Wheel/Tire Sizes 29 x 2.2"
  • Frame Construction 100% Surly Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
  • Fork Construction 100% Surly Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
  • Rigid Fork Length 420mm
  • Fork Offset 50mm
  • Axle to Crown 420mm
  • Rear Spacing "Gnot-Boost" 145mm
    12 x 142mm or 12 x 148mm (Surly axle included)
    10 x 135mm with Surly 10/12 Adapter Washers (not included)
  • Rear Axle Size 12 x 148mm (Surly axle included)
  • Rear Brake (Rotor) Disc - 51mm I.S. (203mm max rotor)
  • Front Brake (Rotor) Disc - 51mm I.S. (203mm max rotor)
  • Headset - Upper EC34/28.6
  • Headset - Lower EC34/30
  • Front Axle Size 15 x 110mm (Surly axle included)
  • Steerer Tube Ø28.6mm
  • Crown Race Ø30mm (1-1/8")
  • Stem Clamp Ø28.6mm
  • Seatpost Ø30.9mm
  • Dropper Post Compatible Yes
  • Seatpost Clamp 33.1mm
  • Front Derailleur Clamp Ø34.9mm
  • Front Derailleur Type High direct mount top-pull (Ø34.9mm) 26mm offset adapter (not included) for 142 or 135mm rear hub spacing 29mm offset adapter (not included) for 148mm rear hub spacing
  • Bottom Bracket 73mm BSA, threaded
  • Crankset (Max Ring) 1x (mtn): 36T / 2x (mtn): 36/26T / 1x (Boost): 38T / 2x (Boost): 39/32T
  • Bottle Mounts 3-pack mounts on upper and lower downtube; seat tube bottle mounts on frame sizes S–XL
  • Fork Mounts 3-pack mounts on each fork blade, upper and lower threaded rack mounts
  • Front Fender Mounts Yes
  • Rear Fender Mounts Yes
