Disc Trucker

Disc Trucker

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

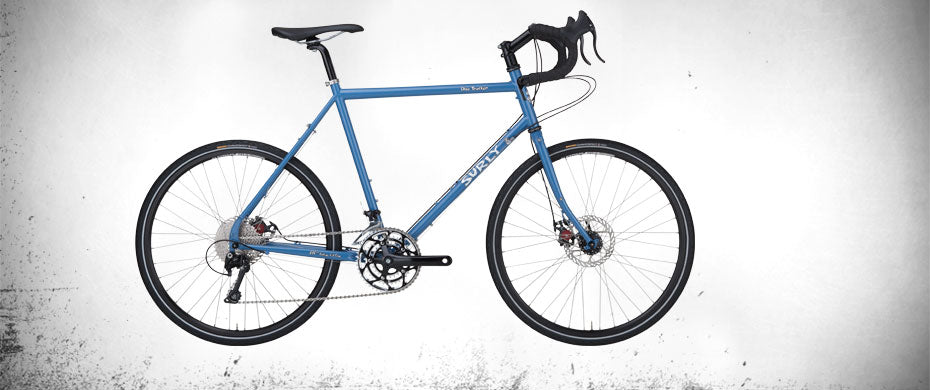

Our Long Haul Trucker enjoys a reputation as one of the best riding and most value-packed touring bikes out there. It’s been around long enough to be tested in the real world, in all kinds of places, with all kinds of loads on all kinds of roads.

Sometimes, however, a combination of load, climate and terrain demands a bit more braking performance than a standard rim-brake LHT can provide. That’s where the Disc Trucker comes in. Disc Trucker is a Long Haul Trucker specifically designed for the unique forces discs impose. We’ve made sure it can run discs, racks, and fenders with no jury rigging, a somewhat unique feature we’ve just now decided to call Simulpatibility.

Most of the components on the complete bike are the same as the standard LHT, parts chosen for their balance of technical capability, durability, and value. The drivetrain uses the sort of wide gearing you will need for loaded and unloaded travel, cable operated disc brakes for their proven reliability and ease of service, and hubs that are durable and easy to maintain.

You’ll need to outfit it with the extras you want, like fenders and racks. We don’t include that stuff because everybody’s needs are different. From the casual commuter to the person who rides around the world more than once, the Disc Trucker is more than capable. It’s a tool designed from the ground up to take you and a bunch of stuff just about anywhere you’d like to go. It is a tool to help you get lost and find yourself.

Specifications

Geometry

Geometry Diagram

700c

56cm 58cm 60cm 62cm 64cm
Reach 389.3 394.4 403.0 401.0 406.1
Stack 588.0 606.1 623.2 643.2 658.4
Head Tube Angle 72.0° 72.0° 72.0° 72.0° 72.0°
Head Tube Length 152.0 171.0 189.0 210.0 226.0
Seat Tube Length 560.0 580.0 600.0 620.0 640.0
BB Drop 78.0 78.0 78.0 78.0 78.0
Wheelbase 1055.6 1066.7 1080.8 1085.3 1095.3
Chainstay Length 460.0 460.0 460.0 460.0 460.0
Top Tube Length, Actual 564.5 580.2 594.8 603.9 615.0
Top Tube Length, Effective 570.0 586.0 600.0 610.0 620.0
Seat Tube Angle 73.0° 72.5° 72.5° 72.0° 72.0°
Standover Height 811.9 829.8 847.8 866.5 883.6
Stem Length 100 110 120 120 120
Stem Angle
Handlebar Width 440 440 460 460 460
Crank Length 175 175 175 175 175
Fork Length 390.0 390.0 390.0 390.0 390.0
Fork Rake 45.0 45.0 45.0 45.0 45.0

All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø628 or 690mm



26"

42cm 46cm 50cm 52cm 54cm 56cm 58cm
Reach 367.2 371.3 374.5 374.6 379.4 388.3 393.5
Stack 497.2 502.9 532.3 550.3 568.3 588.1 606.1
Head Tube Angle 70.0° 70.0° 71.0° 71.0° 71.0° 71.0° 71.0°
Head Tube Length 110.7 116.7 144.0 163.0 182.0 203.0 222.0
Seat Tube Length 420.0 460.0 500.0 520.0 540.0 560.0 580.0
BB Drop 47.0 47.0 47.0 47.0 47.0 47.0 47.0
Wheelbase 1036.6 1042.7 1046.8 1053.1 1064.0 1079.8 1091.2
Chainstay Length 460.0 460.0 460.0 460.0 460.0 460.0 460.0
Top Tube Length, Actual 492.7 508.4 525.4 535.0 549.7 564.5 580.3
Top Tube Length, Effective 505.0 515.0 530.0 540.0 555.0 570.0 586.0
Seat Tube Angle 75.0° 74.5° 74.0° 73.5° 73.0° 73.0° 72.5°
Standover Height 702.1 723.2 756.1 774.5 792.4 811.9 829.7
Stem Length 70 70 70 90 100 110 120
Stem Angle
Handlebar Width 400 400 400 420 420 440 440
Crank Length 165 165 170 170 170 175 175
Fork Length 376.0 376.0 376.0 376.0 376.0 376.0 376.0
Fork Rake 45.0 45.0 45.0 45.0 45.0 45.0 45.0

All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø628 or 690mm

Frame Specs

  • Tubing: 100% Surly 4130 CroMoly steel. ED Coated.
  • Rear Dropouts: Vertical, 135mm O.L.D.
  • Brake Compatibility: Disc Trucker uses 51mm disc calipers (160mm rotor only)
  • Braze-ons/extras: Upper bosses and dropout eyelets for
    racks front and rear, fender eyelets, pump peg, downtube lever bosses,
    three sets of H2O cage bosses, emergency spoke mounts.
  • Seatpost Diameter: 27.2mm
  • Seatpost Clamp Diameter: 30.0mm, Surly stainless included
  • Headset/Steerer Tube: 1-1/8" threadless
  • Front Derailleur Clamp Diameter: 28.6mm (bottom-pull)
  • Bottom Bracket Shell: 68mm wide, threaded standard English (1.37" x 24t)
  • Chainring Clearance: 42/53t double, 38/52/56t triple
  • Tire Clearance: 26": 2.1" with or without fenders; 700c:
    42mm with fenders, 45mm without fenders. Individual tire and rim combos
    affect tire clearance.
  • Fork: 4130 CroMoly, lugged and brazed. Proprietary sloping
    crown with threaded eyelets, tapered and butted curved blades with
    mid-blade rack eyelets, dual dropout eyelets.
  • Color: Blue
  • Weight: 42cm = 4.98 lb (2.25kg) 26˝ Fork—uncut = 2.1 lb (0.97kg)
