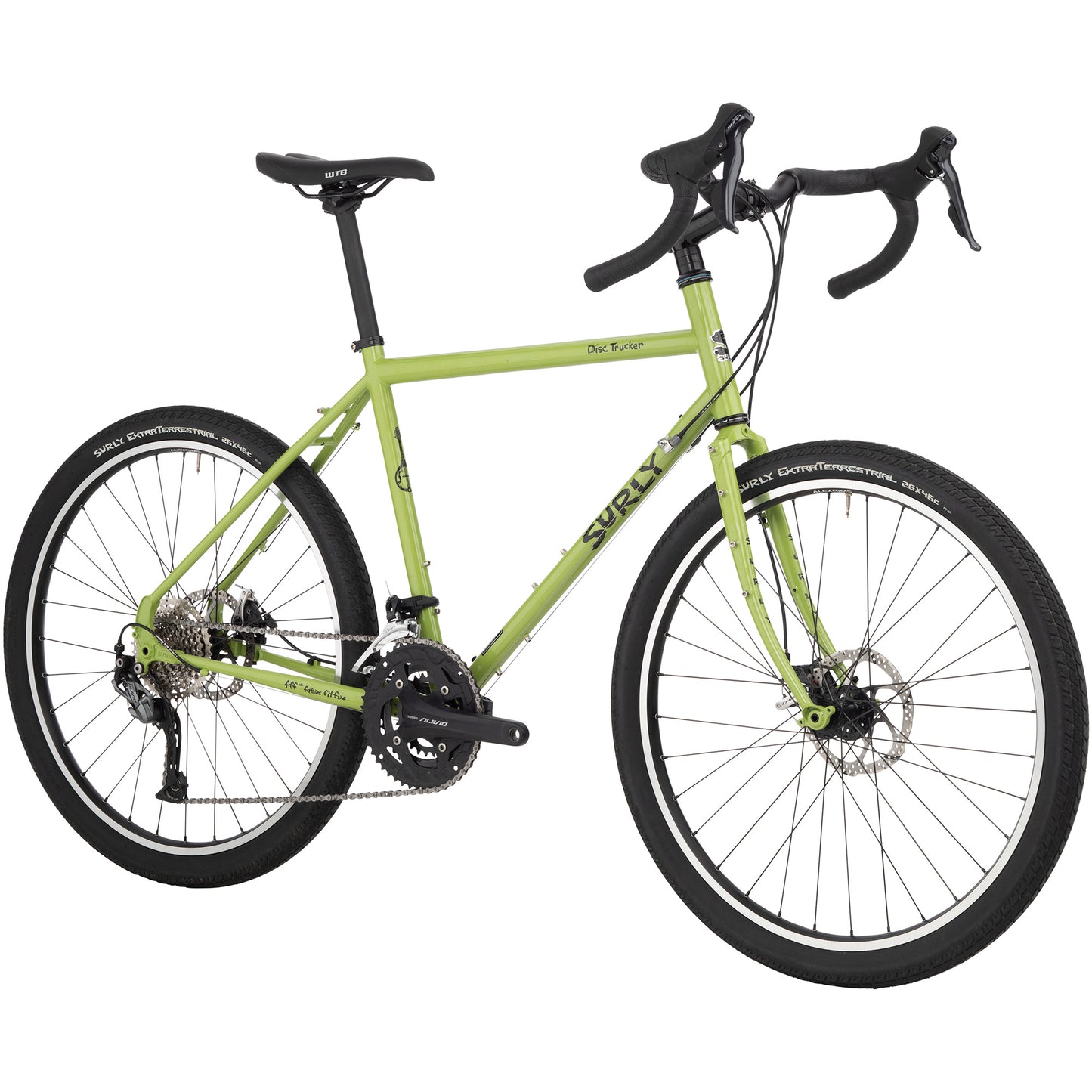

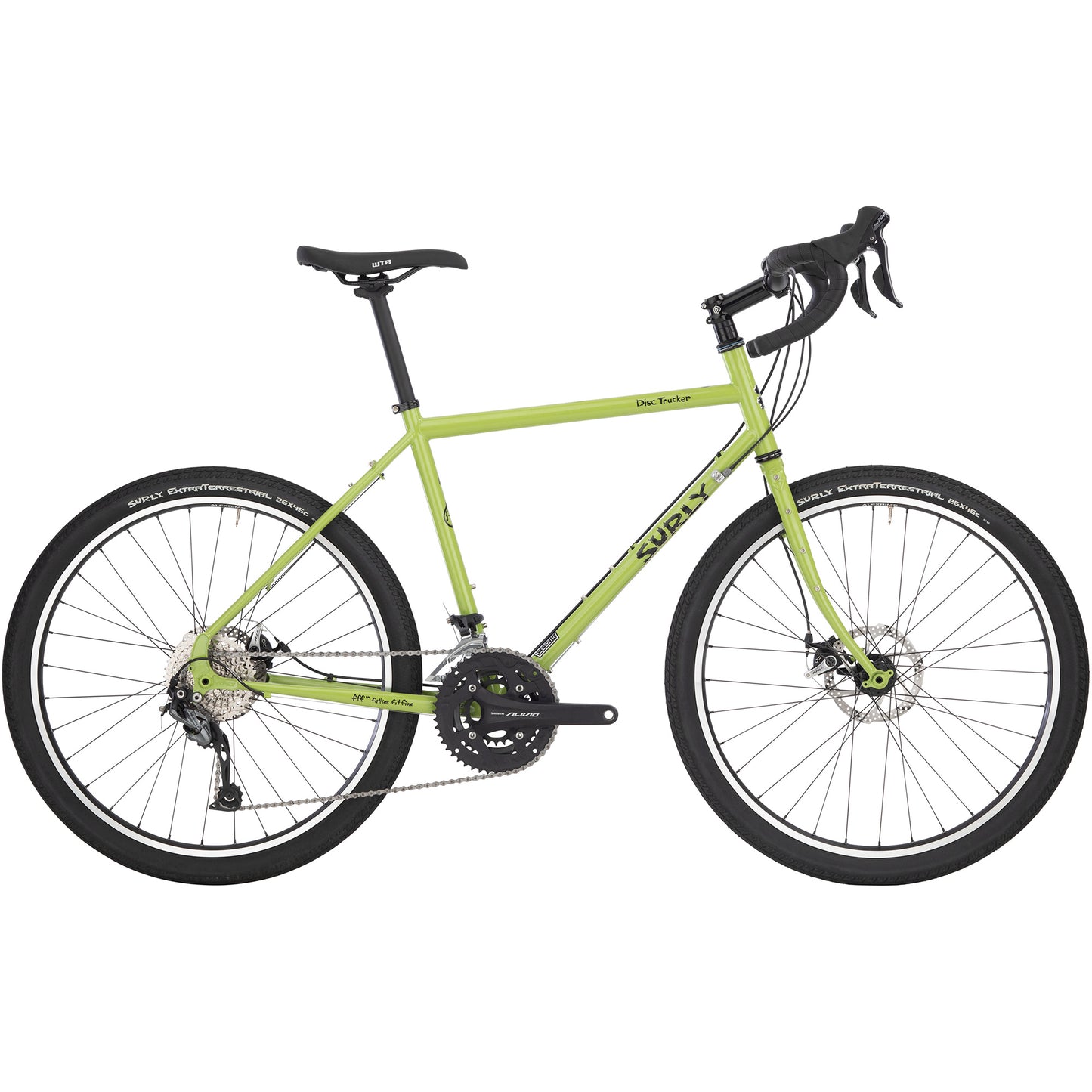

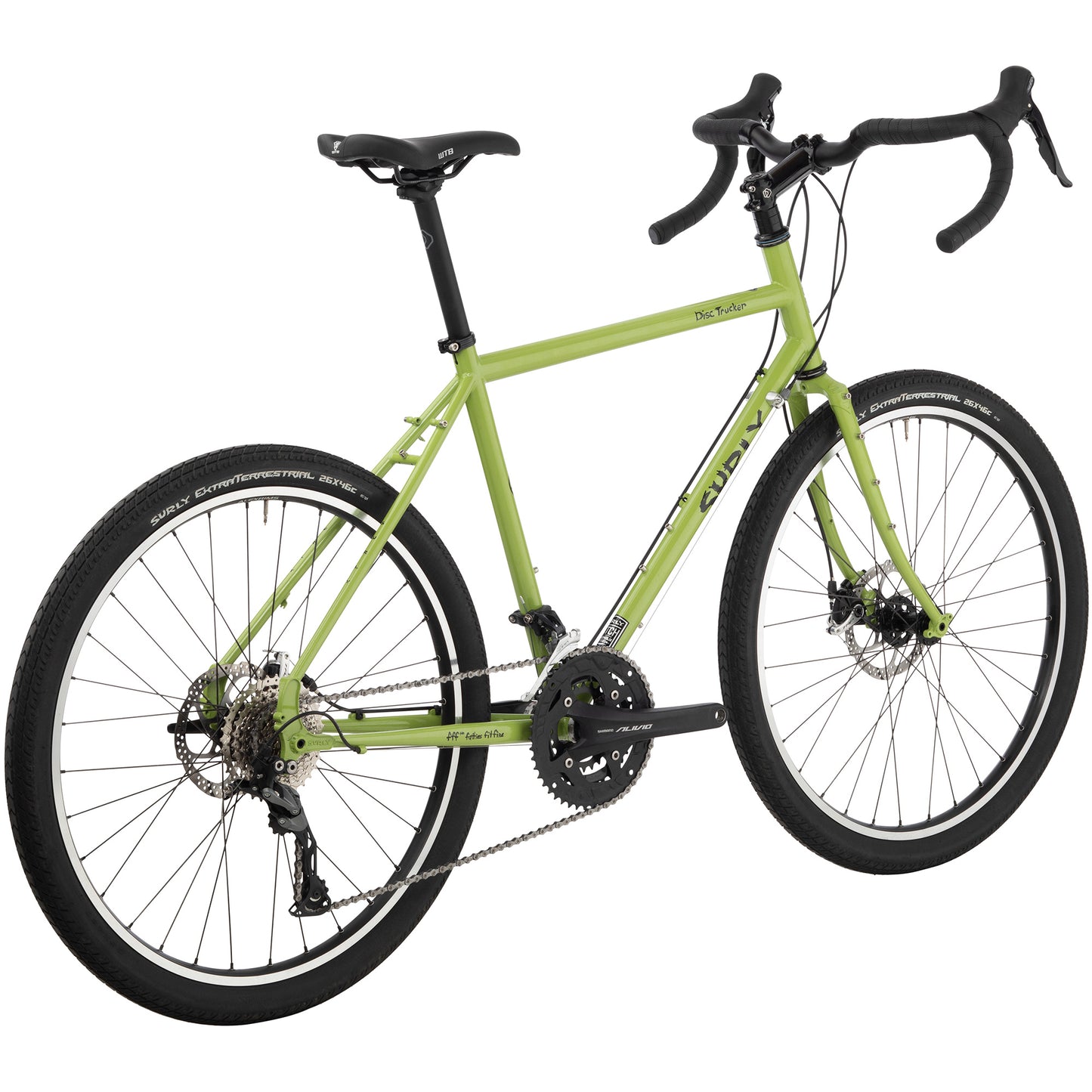

Disc Trucker 26" - Pea Lime Soup

On-Road Touring – Commuting – Light Gravel

$1,999.00 USD

~~$1,999.00 USD~~ $1,999.00 USD

Sale

Size 42cm 46cm 50cm 52cm 54cm 56cm

Quantity

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Why Disc Brake Touring Bikes?

Disc Trucker enjoys the same reputation as Long Haul Trucker: It’s one of the best-riding and most value-packed drop bar touring bikes out there. Sometimes, however, a combination of load, climate, and terrain demands a bit more braking performance than a standard rim-brake LHT can provide.

That’s where the newly redesigned Disc Trucker comes in. Packing reliable stopping power and a horde of useful mounting points, shortened chainstays up the Disc Trucker’s stiffness and maneuverability around corners. Add in improved fit and handling under load, plus captured thru-axles for tool-free removal and installation, and the Disc Trucker is ready to help you meet — or dodge — your daily obligations.

Dynamo routing on the fork, plus three-pack mounts on the blade and every braze-on you’ll ever need for racks, fenders, water bottle cages, and more
12mm thru-axles for a stiffer feel and increased stability when fully loaded
Shortened seat tube and slightly sloped top tube for improved stand-over clearance, plus increased stack height for a more upright and comfortable riding position on those long hauls
Spec’d with the Truck Stop Bar and tubeless ExtraTerrestrial tires for dependable handling and traction
Flat-mount disc brakes
Frame sizes 42–56cm are available with 26” diameter wheels, while frame sizes 56–64cm are available with 700c diameter wheels
Clearance for 26” x 2.1” tires with or without fenders, or 700c x 47mm with or without fenders

Specifications

Build Kit

Frameset

Frame

Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Color

Pea Lime Soup

Fork

Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Components

Headset

Cane Creek 40

Seatpost Clamp

Surly Stainless, 30.0mm

Seatpost

ProMax 27.2, 350L, non-offset (42-50), offset (52-64)

Stem

ProMax 31.8 4 bolt

Grips/Bar Tape

Black Cork

Saddle

WTB Volt Sport

Handlebar

Surly Truckstop Bar

Drivetrain

Front Derailleur

Shimano Sora R3030

Rear Derailleur

Shimano Alivio M4000 SGS

Cassette

Shimano Alivio, 11-34t, 9 speed

Chain

KMC X9

Crankset

Shimano Alivio 48x36x26t

Shifter

Shimano Sora 3x9

Brake Levers

Shimano Sora

Brake Calipers

TRP Spyre C

Bottom Bracket

Shimano SM-BB52

Rotors

TRP 160mm front and rear

Wheels

Front Tire

Surly ExtraTerrestrial 26x46

Rear Tire

Surly ExtraTerrestrial 26x46

Front Hub

Novatec 12x100, 6 bolt, 36H

Rear Hub

Novatec 12x142, 6 bolt, 36H

Rim

Alex Adventurer 2

*Specifications are subject to change without notice

Geometry

Size	42cm	46cm	50cm	52cm	54cm	56cm
A. Effective Top Tube	500.0	515.0	530.0	545.0	560.0	575.0
B. Stand Over	710.0	731.0	766.0	782.0	800.0	819.5
C. Reach	362.0	371.0	369.0	374.5	378.0	387.5
D. Stack	515.0	520.0	561.0	575.5	594.5	613.0
E. Total Seat Tube Length	420.0	460.0	500.0	520.0	540.0	560.0
F. Headtube Length	125.0	130.0	170.0	185.0	205.0	225.0
G. Headtube Angle	70.0	70.0	71.0	71.0	71.0	71.0
H. Seat Tube Angle	75.0	74.5	74.0	73.5	73.0	73.0
I. BB Drop	50.0	50.0	50.0	50.0	50.0	50.0
K. Chainstay Length	450.0	450.0	450.0	450.0	450.0	450.0
L. Fork Length Axle to Crown	376.0	376.0	376.0	376.0	376.0	376.0
M. Fork Offset	45.0	45.0	45.0	45.0	45.0	45.0
N. Wheelbase	1026.0	1037.0	1040.0	1050.0	1060.5	1076.0
Crank Arm Length	165.0	165.0	170.0	170.0	170.0	175.0
Handlebar Width	420.0	420.0	420.0	450.0	450.0	480.0
Recommended Rider Height
Stem Length	70.0	70.0	70.0	90.0	100.0	110.0

Frame Specs

Design Wheel/Tire Sizes 26 x 2.0" or 700c x 47mm
Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
Rigid Fork Length 26": 376mm / 700c: 390mm
Fork Offset 45mm (26" & 700c)
Axle to Crown 26": 376mm / 700c: 390mm
Rear Spacing 12x142 (Axle included)
Rear Axle Size Ø12 x 162, TP=1.5, TL=12
Front Brake (Rotor) Disc - Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
Headset - Upper EC34/28.6
Headset - Lower EC34/30
Front Spacing 12x100 (Axle included)
Front Axle Size Ø12 x 118.5, TP=1.5, TL=12
Steerer Tube Ø28.6mm (1-1/8")
Crown Race Ø30mm (1-1/8")
Stem Clamp Ø28.6mm (1-1/8")
Seatpost Ø27.2mm
Dropper Post Compatible No
Seatpost Clamp Ø30mm
Front Derailleur Type Bottom-pull (Ø28.6mm)
Bottom Bracket 68mm threaded (1.37" x 24TPI)
Crankset (Max Ring) 1x (Road): 47T / 2x (Road): 34/50T / 3x (Road): 33/47/56T
Accessory Mounts Seatstay mounted spoke holder, Surly removable kickstand plate included with complete bikes
Bottle Mounts 3 Standard
Fork Mounts 2 Three-Pack, Rack mounts: upper, lower, and mid-blade threaded
Front Fender Mounts Yes
Rear Fender Mounts Yes
