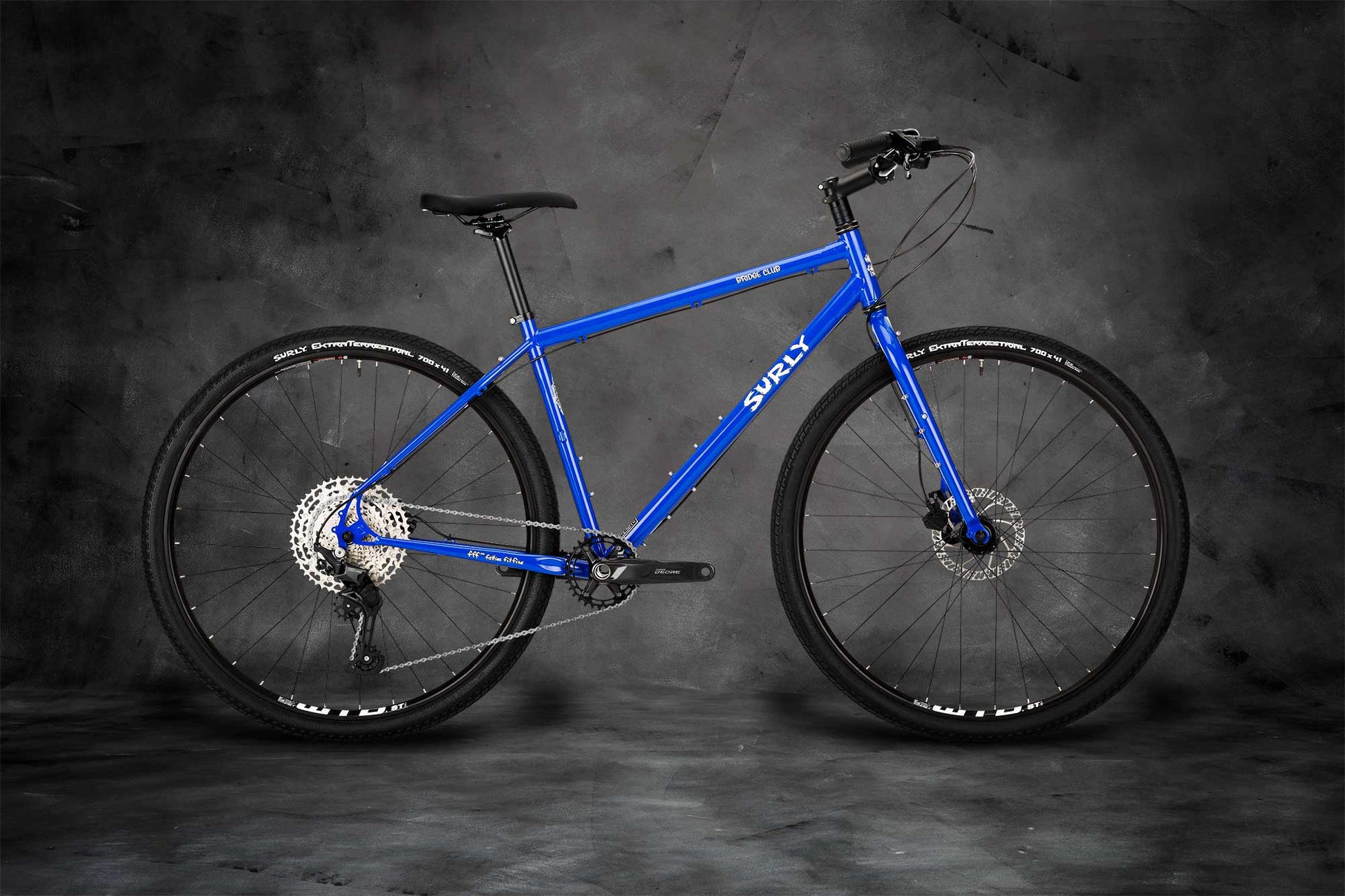

• Surly Bridge Club bike blue color side view

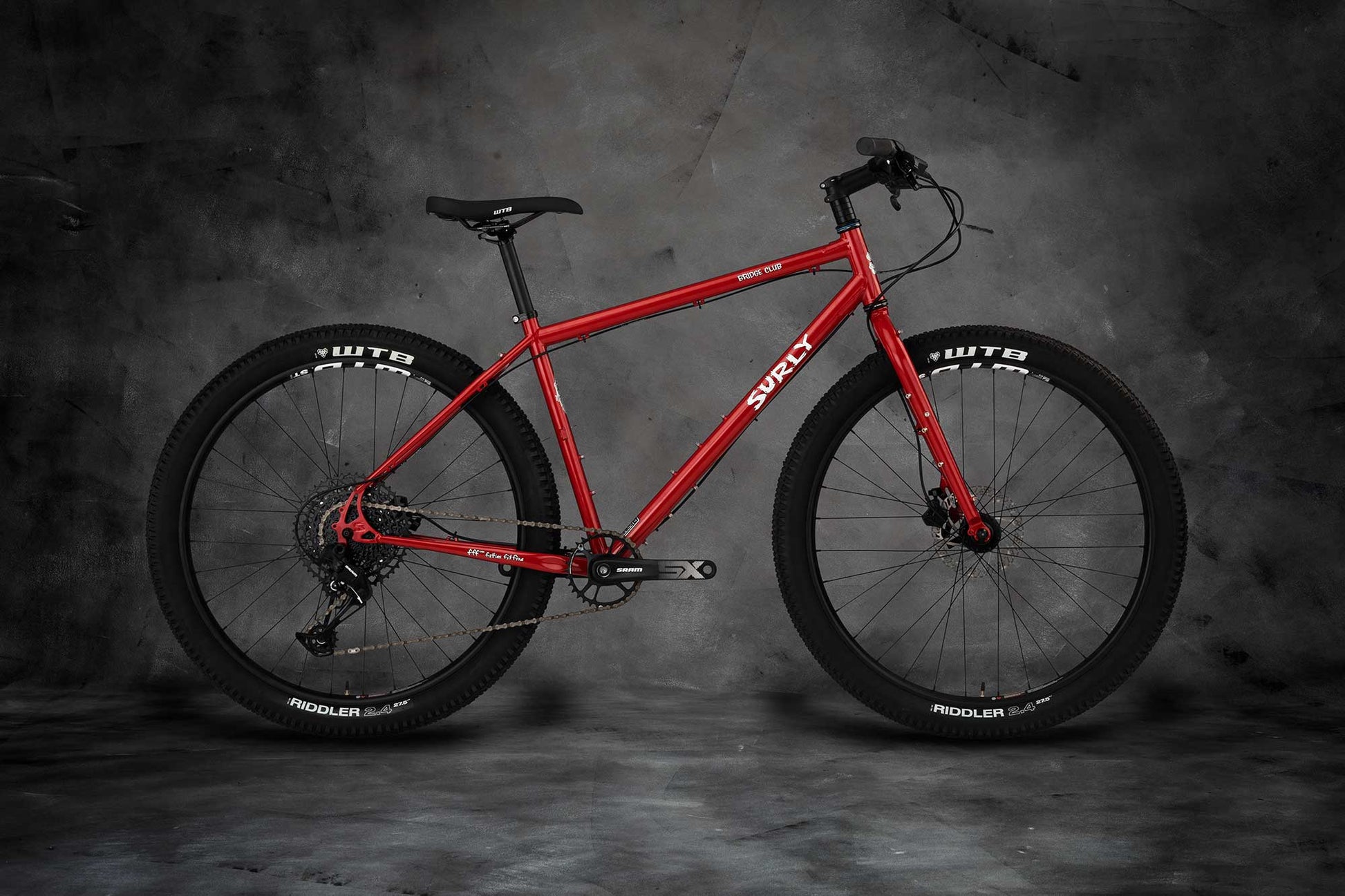

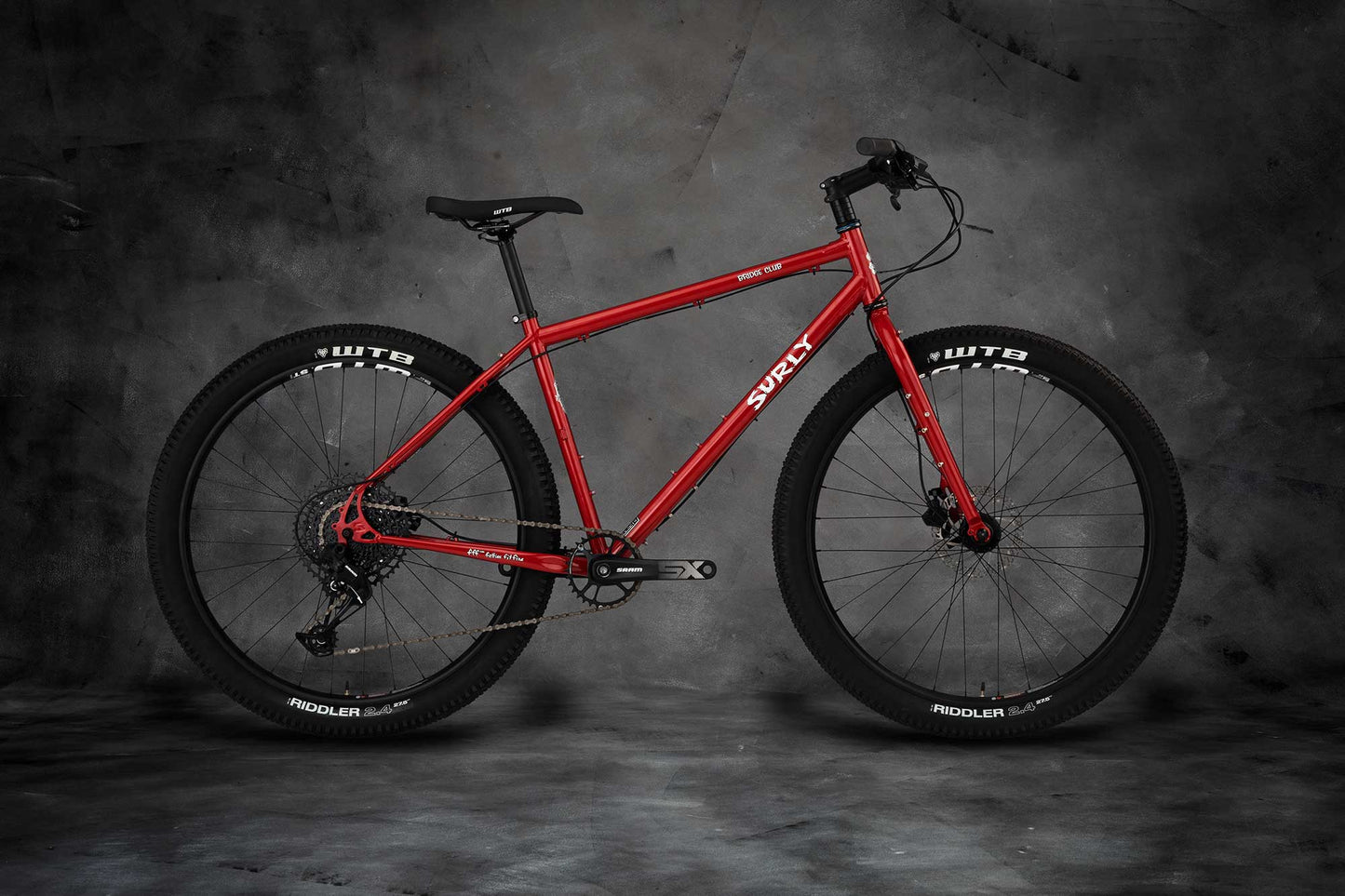

  • Surly Bridge Club bike red color side view

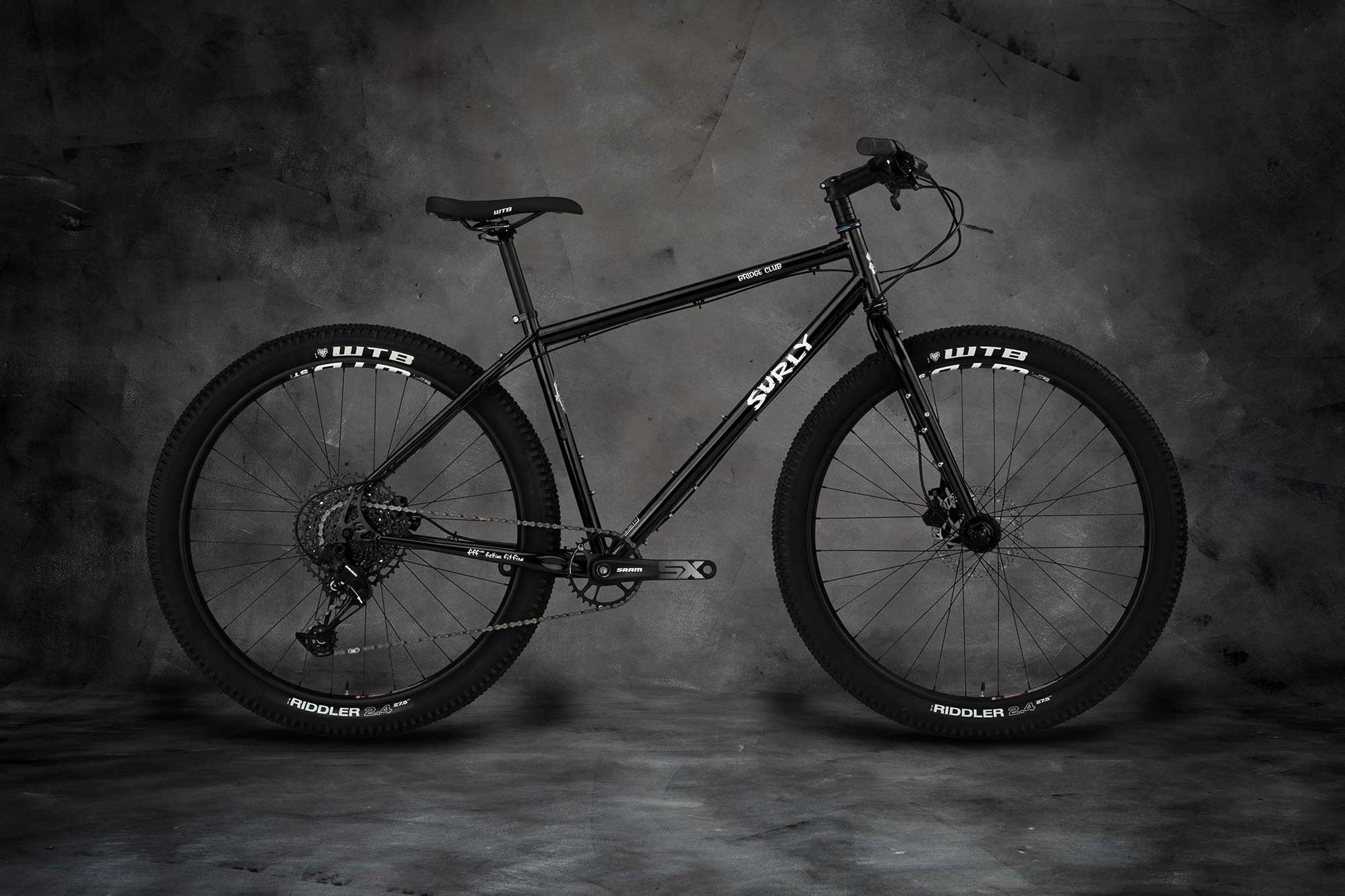

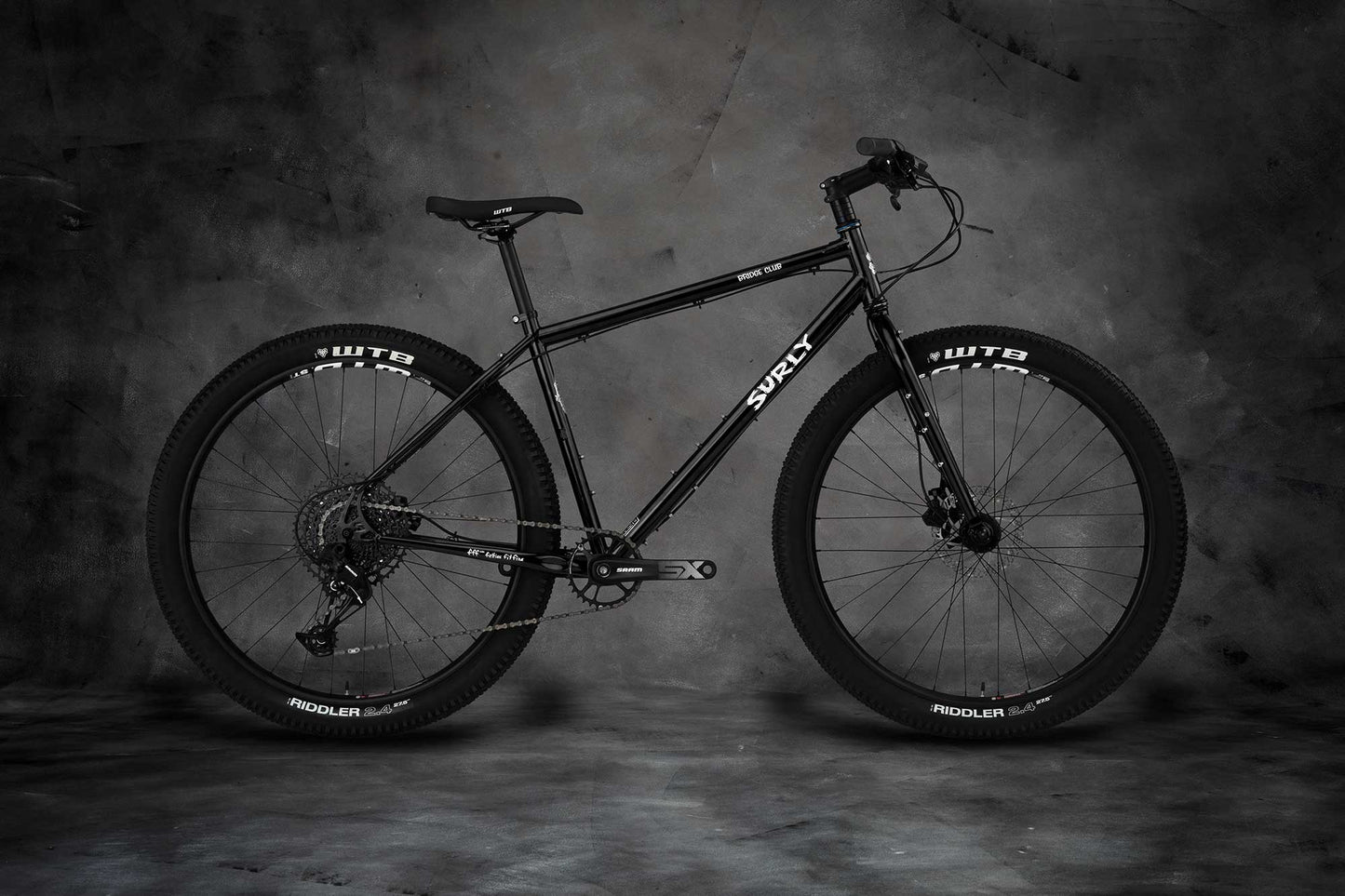

  • Surly Bridge Club bike black color side view

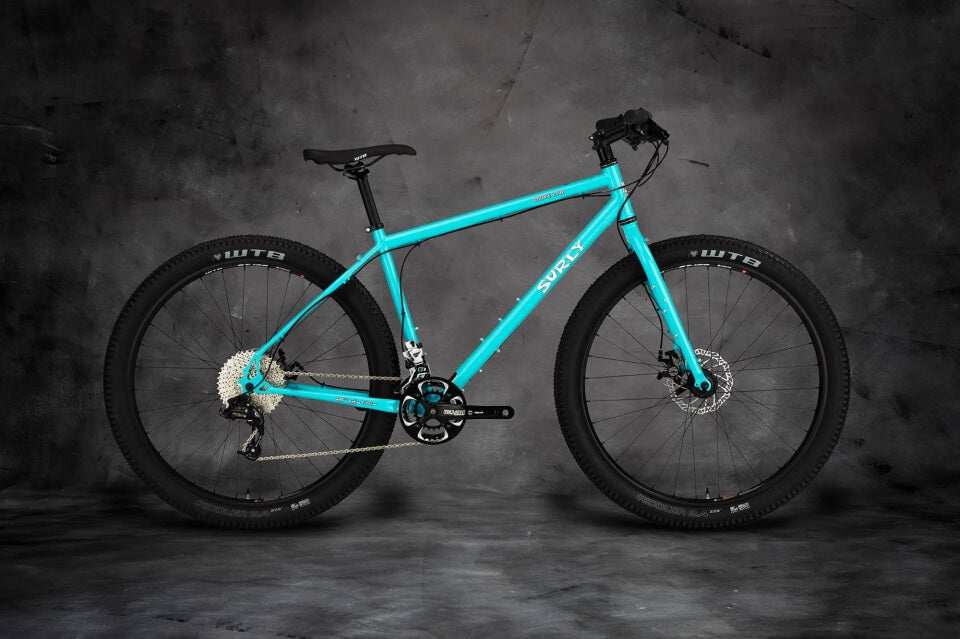

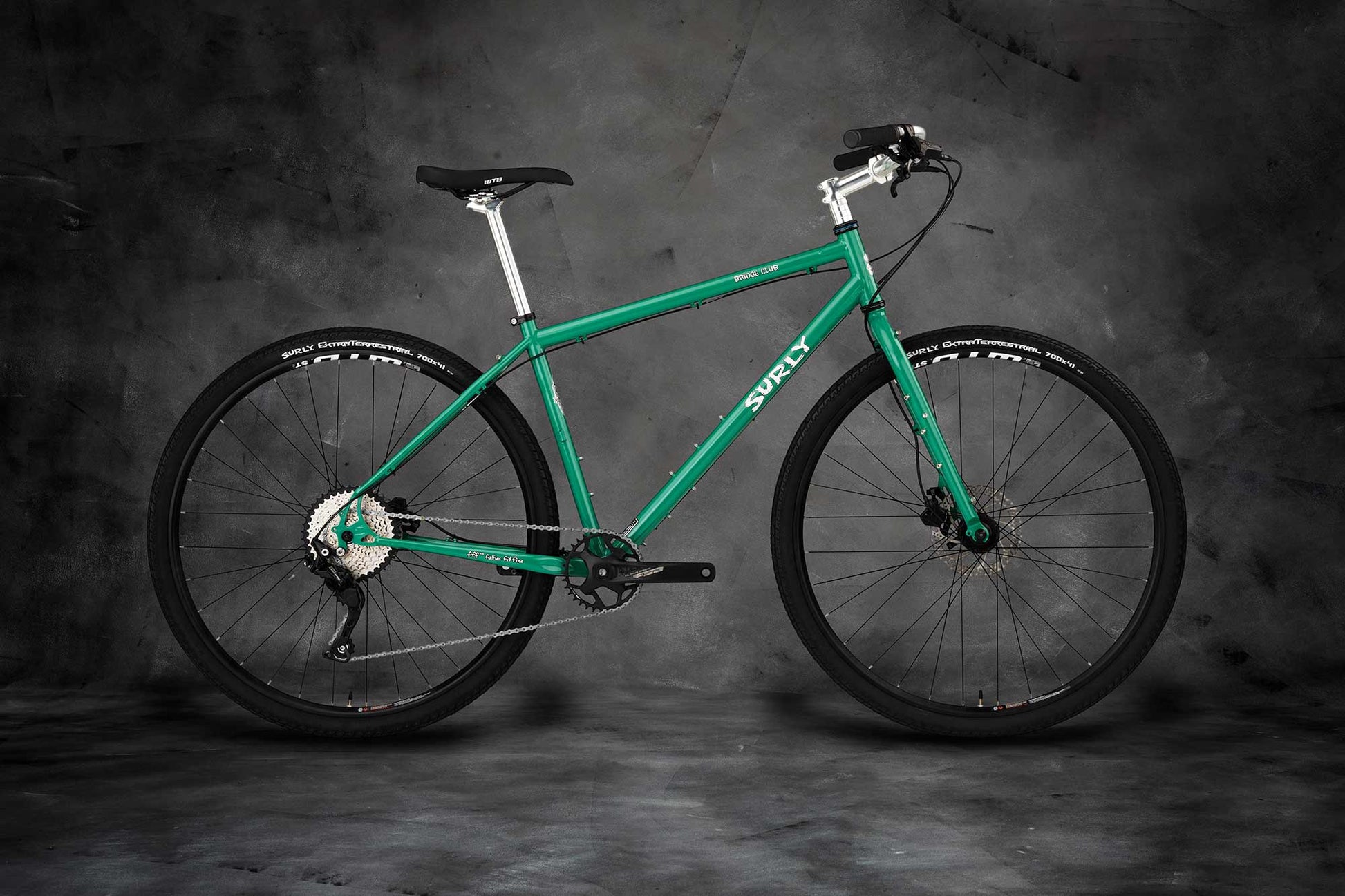

  • Surly Bridge Club bike green color side view

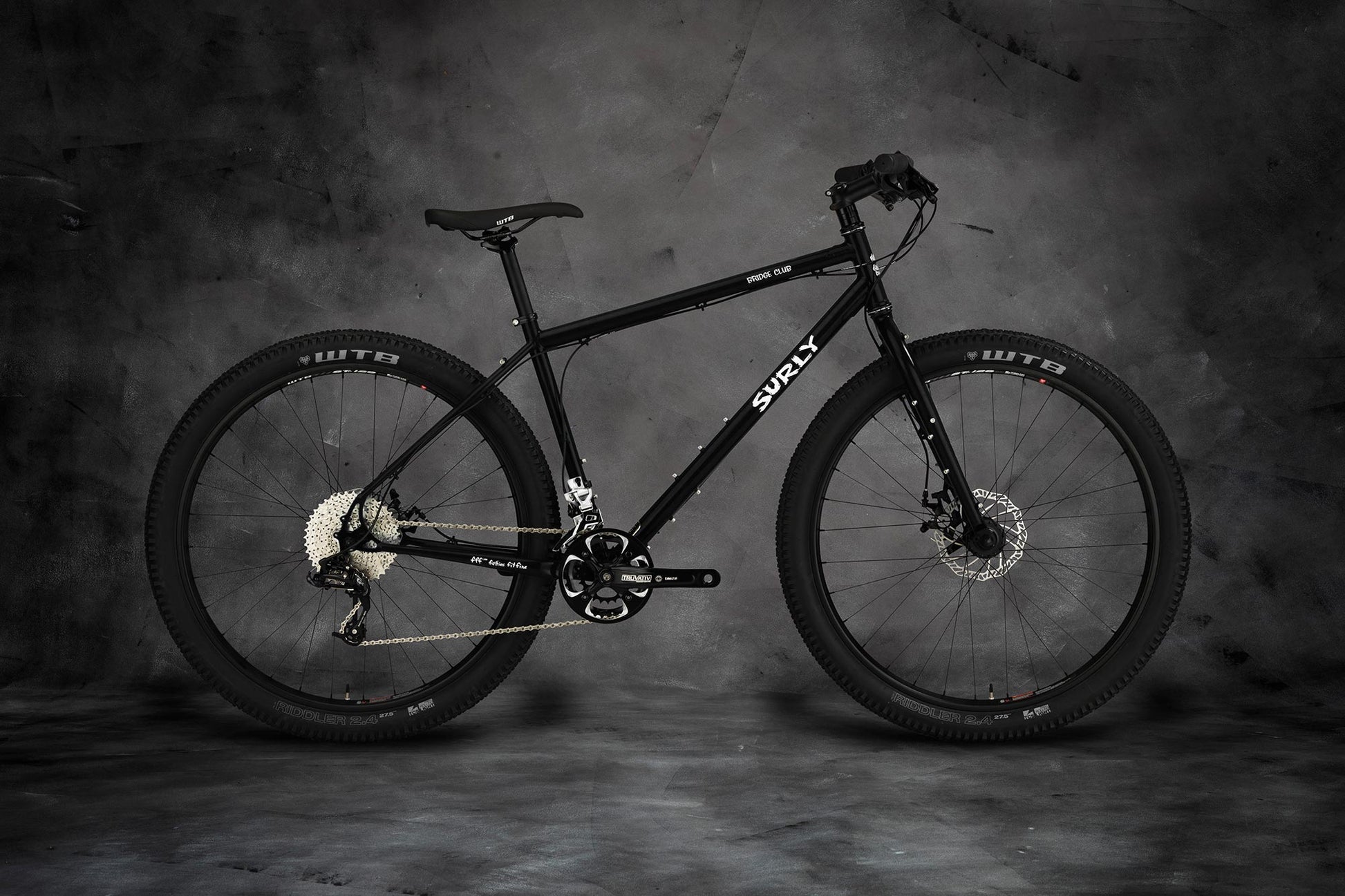

  • Surly Bridge Club bike dark black color side view
  • Surly Bridge Club bike diving board blue color side view
1 6

Bridge Club

Bridge Club

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

All Road Touring Bike for Any Destination

Bridge Club is for those multi-surface outings — planned or unplanned. We've all run out the clock on a dirt tour and had to add in some paved shortcuts. Conversely, when you’re feeling a little zesty on your next road tour, Bridge Club is ready for reroutes through the woods.

Some people hear "bike touring" and immediately think of long-forgotten stretches of highway, small-town oddities, and roadside attractions. Some instantly recall desolate stretches of desert dirt roads or lush green forest trails. With Bridge Club, you can have your dessert and eat it too!

  • Ultra-focused on simplicity, it only has the barnacles that matter most to the discerning bike tourist
  • Two build kit options: Pavement (700c) and Off-Road (27.5)
  • Run racks and panniers, framebags, or all of the above
  • Disc brake-specific, single position vertical rear dropout makes it less intimidating than other bikes in the category
  • Clearance for 700 x 47mm tires (with or without fenders), 27.5 x 2.8” tires (27.5 x 2.6” with fenders), and 26 x 3” tires (26 x 2.8” with fenders)

Specifications

Geometry

Geometry Diagram
SIZE XS SM MD LG XL
Reach 376 397 419 434.5 444
Stack 553 567 576 590 609
Head Tube Angle 70.0° 71.0° 71.0° 71.0° 71.0°
Head Tube Length 110 120 130 145 165
Seat Tube Length 335.6 406.4 457.2 508 558.8
BB Drop 60 60 60 60 60
Wheelbase 1032 1047.5 1073 1093 1109
Chainstay Length 435 435 435 435 435
Top Tube Length, Actual 534 547.5 570 591.5 610.3
Top Tube Length, Effective 545 570 595 615 630
Seat Tube Angle 73.0° 73.0° 73.0° 73.0° 73.0°
Standover Height 709 750.5 780 812 845.5
Stem Length 80 80 90 90 90
Stem Angle 6° 6° 6° 6° 6°
Crank Length 170 170 175 175 175
Fork Length 420 420 420 420 420
Fork Rake 43 43 43 43 43

Frame Specs

  • Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
  • Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
  • Rear Dropout Configuration: Vertical
  • Rear Hub Spacing: "Gnot-Boost" 138mm
  • Rear Hub Spacing: 10 x 135mm or 10 x 141mm
  • Front Hub Spacing: 10 x 100mm
  • Rear Brake: Disc - 51mm I.S. (180mm max rotor)
  • Front Brake: Disc - 51mm I.S. (203mm max rotor)
  • Head Tube: Ø34mm
  • Steerer Tube: Ø28.6mm (1-1/8")
  • Crown Race: Ø30mm (1-1/8")
  • Stock Headset Upper (S.H.I.S.): EC34/28.6
  • Stock Headset Lower (S.H.I.S.): EC34/30
  • Seat Collar: Ø30mm
  • Seatpost: Ø27.2mm
  • Front Derailleur (Clamp): High direct mount top-pull (Ø28.6mm)
  • Front Derailleur: 26mm offset adapter (not included) for 135mm rear hub spacing
  • Front Derailleur: 29mm offset adapter (not included) for 141mm rear hub spacing
  • Max Chainring (CL): 1x (Mtn): 34T
  • Max Chainring (CL): 2x (Mtn): 26/40T
  • Max Chainring (CL): 3x (Mtn): 22/36/44T
  • Max Chainring (CL): 1x (Boost): 40T
  • Max Chainring (CL): 2x (Boost): 32/42T
  • Bottom Bracket: 73mm threaded (1.37" x 24TPI)
  • Tire Clearance Frame: 26 x 3.0" (26 x 2.8" with fenders)
  • Tire Clearance Frame: 27.5 x 2.8" (27.5 x 2.6" with fenders)
  • Tire Clearance Frame: 700c x 47 with or without fenders
  • Tire Clearance Fork: 26 x 3.0" (26 x 2.8" with fenders)
  • Tire Clearance Fork: 27.5 x 2.8" (27.5 x 2.6" with fenders)
  • Tire Clearance Fork: 700c x 47 with or without fenders
  • Rigid Fork Spec: 420 x 43mm
  • Max Suspension Fork Length: N/A
  • Bottle Mounts Frame: 2 Three-Pack (XS)
  • Bottle Mounts Frame: 1 Standard + 2 Three-Pack (S - XL)
  • Bottle Mounts Fork: 2 Three-Pack
  • Rack Mounts Frame: Yes (upper and lower threaded)
  • Rack Mounts Fork: Yes (upper, lower, and mid-blade threaded)
  • Fender Mounts Frame: Yes
  • Fender Mounts Fork: Yes
