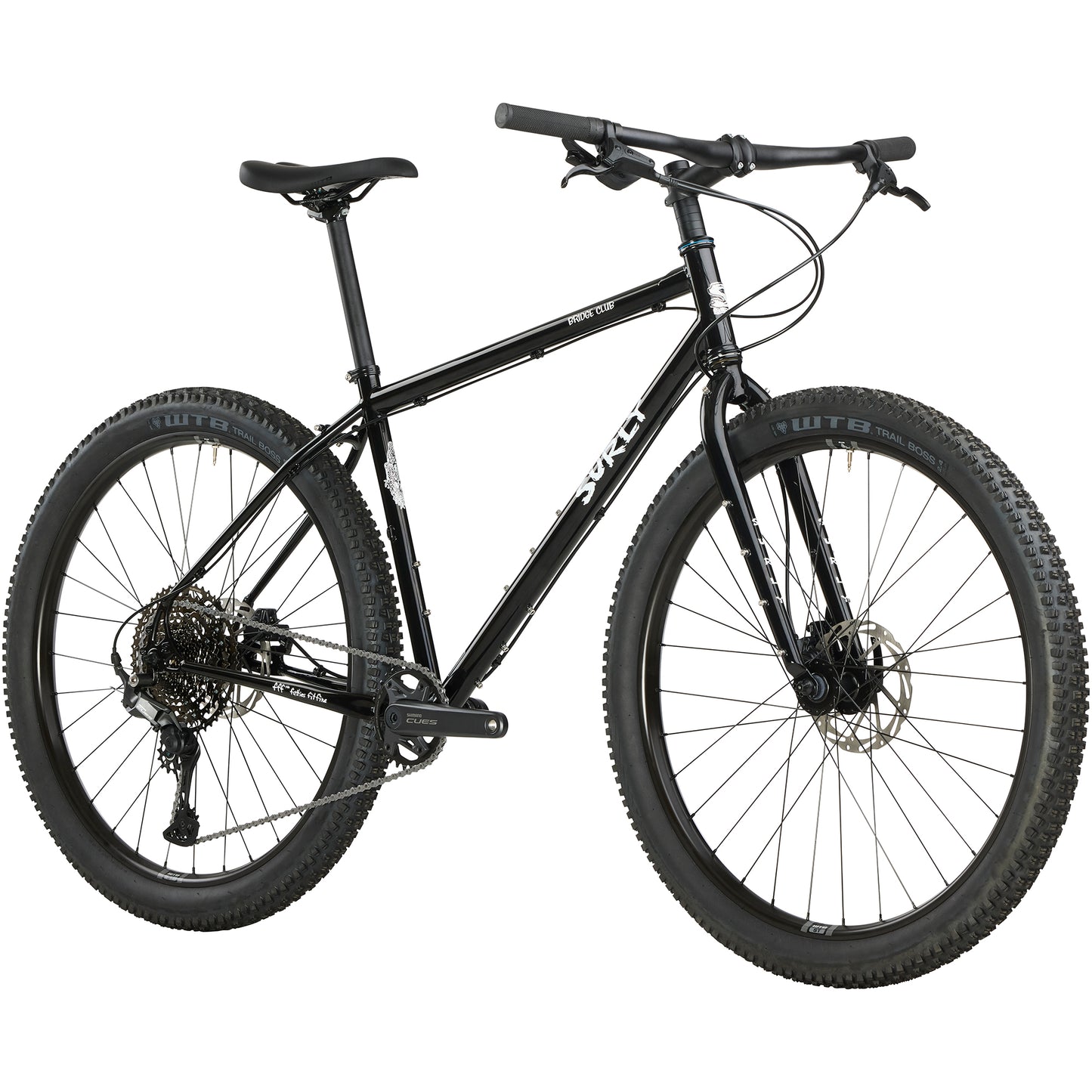

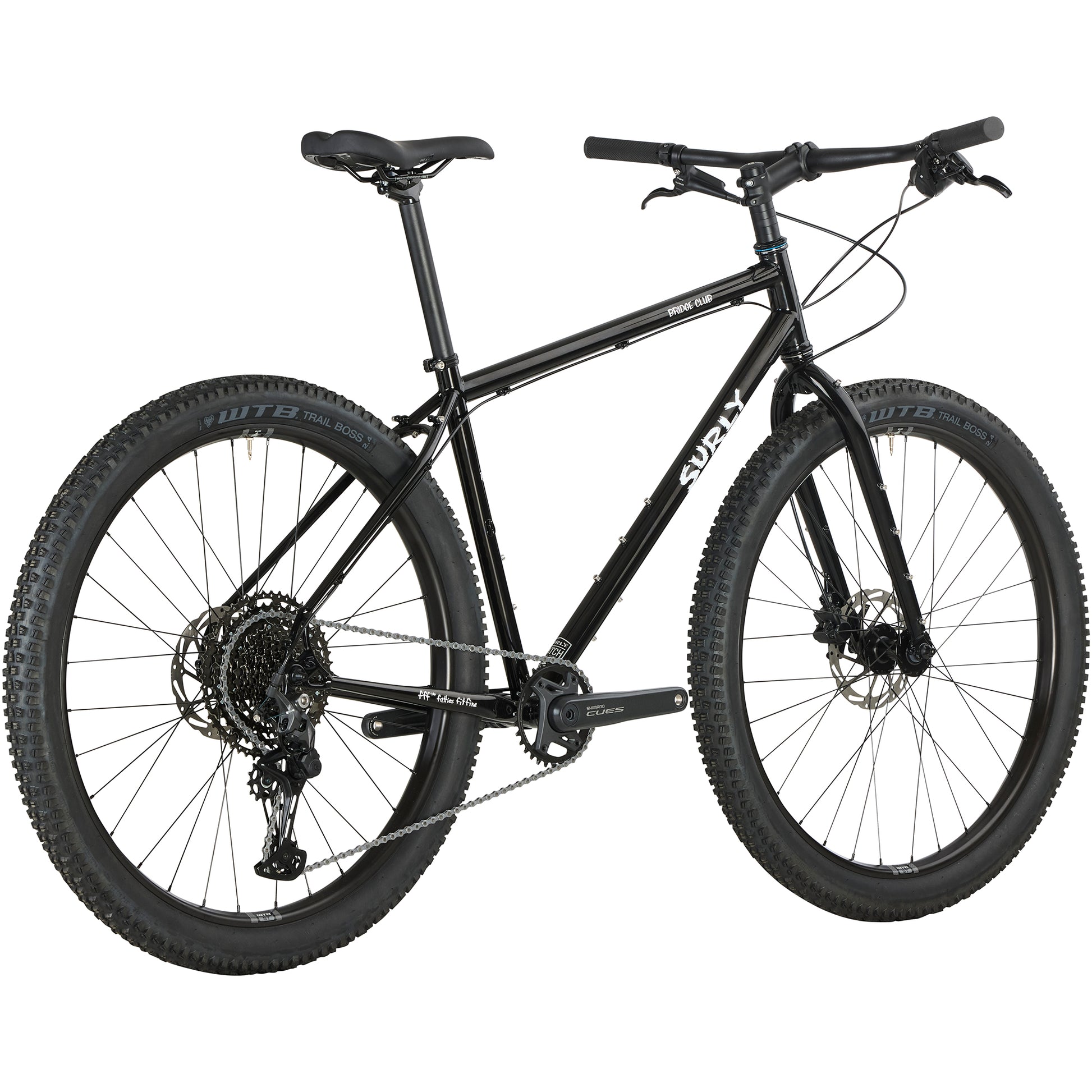

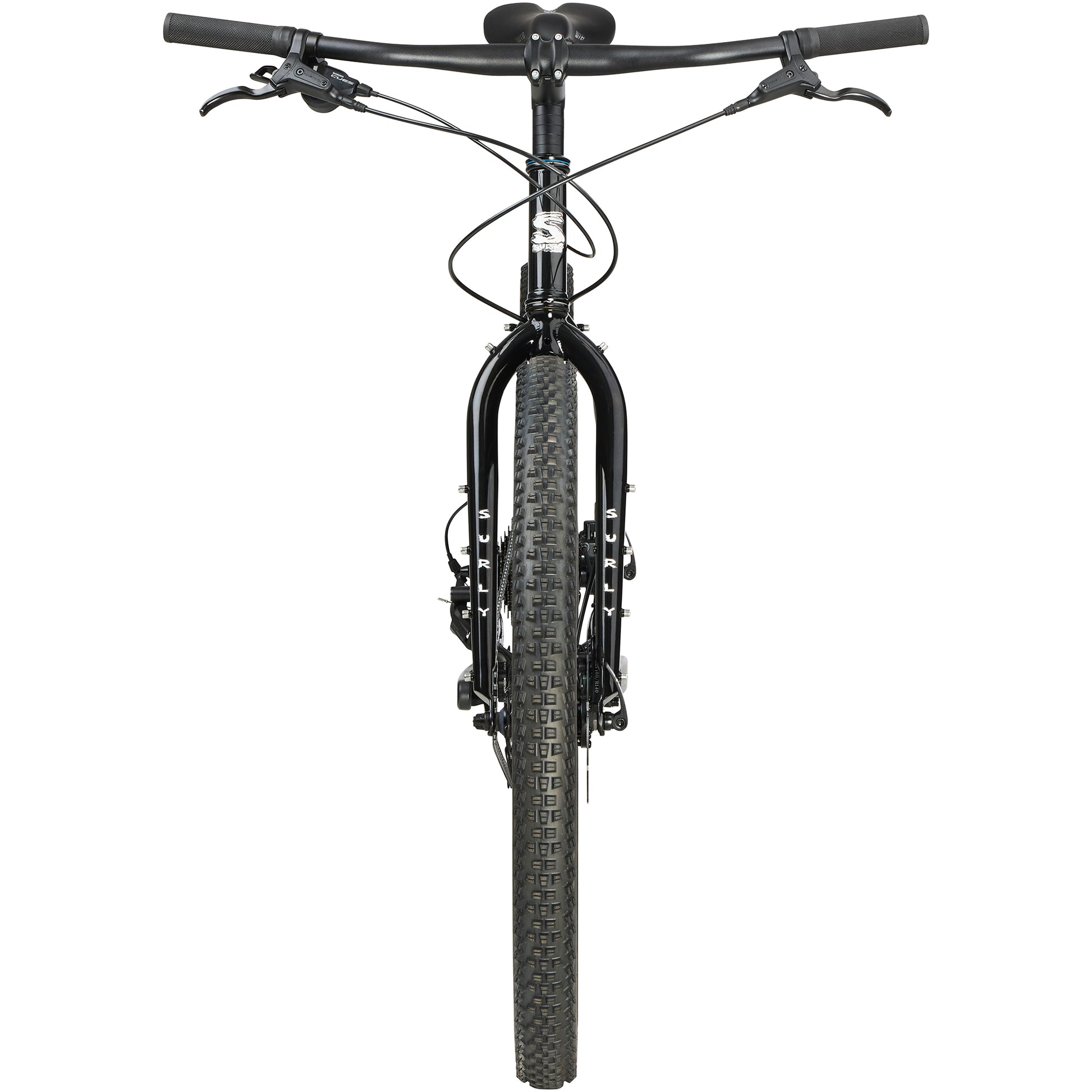

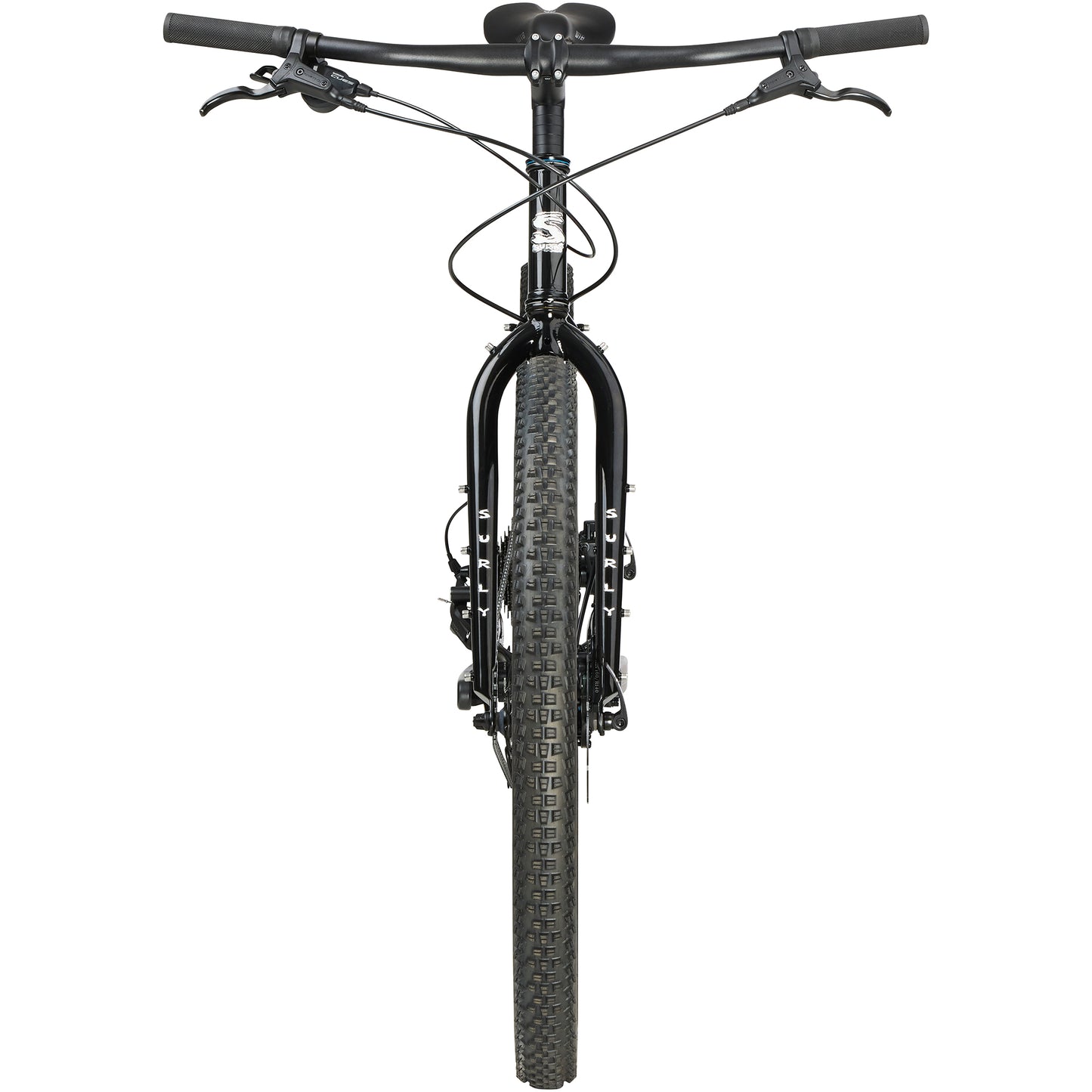

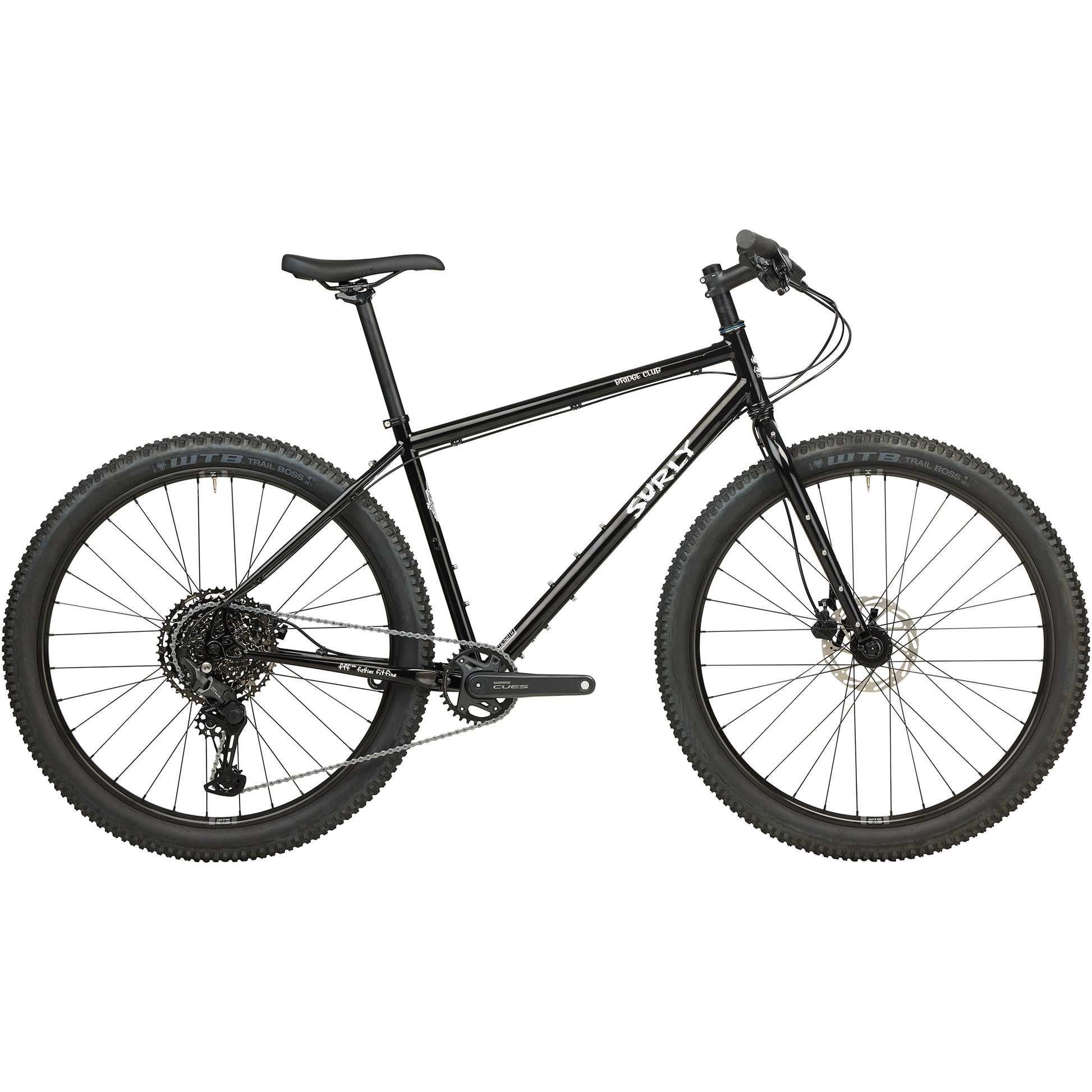

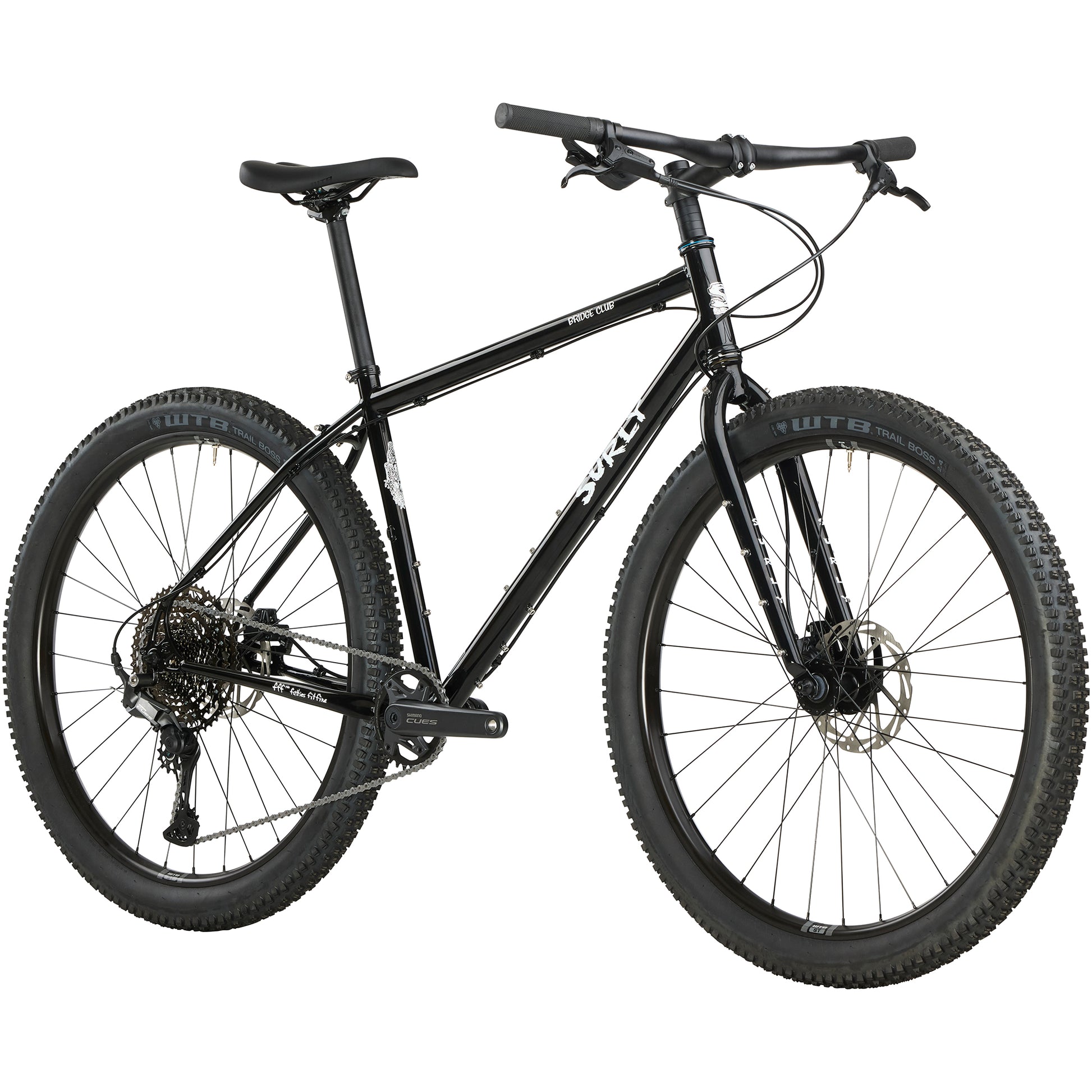

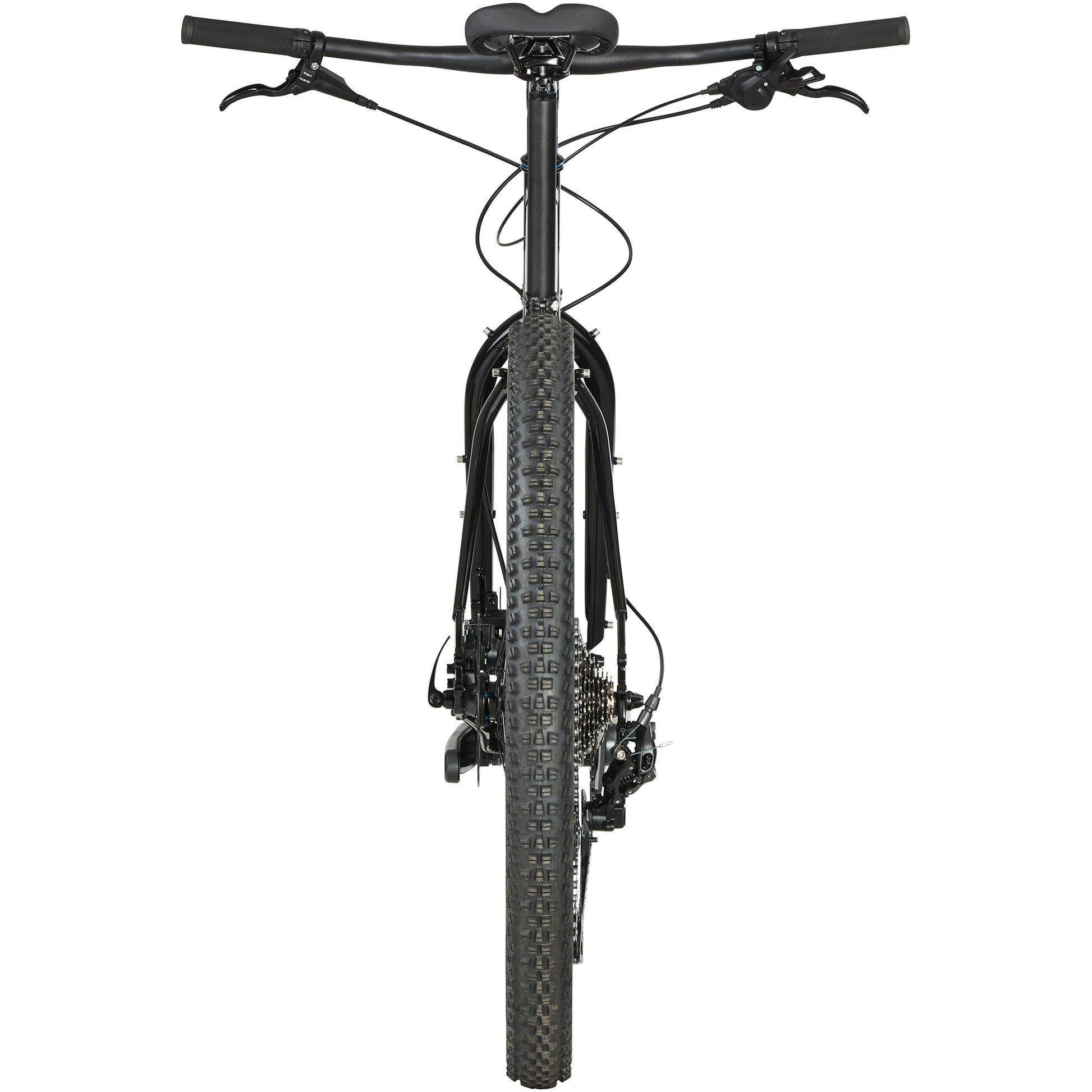

Bridge Club - Trevor's Closet Black

Light Bikepacking – Doubletrack - Commuting

$1,499.00 USD

~~$1,499.00 USD~~ $1,499.00 USD

Sale

Size X-Small Small Medium Large X-Large

Quantity

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

All Road Touring Bike for Any Destination

Bridge Club is for those multi-surface outings — planned or unplanned. We've all run out the clock on a dirt tour and had to add in some paved shortcuts. Conversely, when you’re feeling a little zesty on your next road tour, Bridge Club is ready for reroutes through the woods.

Some people hear "bike touring" and immediately think of long-forgotten stretches of highway, small-town oddities, and roadside attractions. Some instantly recall desolate stretches of desert dirt roads or lush green forest trails. With Bridge Club, you can have your dessert and eat it too!

Ultra-focused on simplicity, it only has the barnacles that matter most to the discerning bike tourist
Run racks and panniers, framebags, or all of the above
Disc brake-specific, single position vertical rear dropout makes it less intimidating than other bikes in the category
Clearance for 700 x 47mm tires (with or without fenders), 27.5 x 2.8” tires (27.5 x 2.6” with fenders), and 26 x 3” tires (26 x 2.8” with fenders)

Specifications

Build Kit

Frameset

Frame

Surly Bridge Club - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Color

Trevor's Closet Black

Fork

Surly Cocktail Fork - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Components

Headset

Cane Creek 40

Seatpost Clamp

Surly Stainless 30.0

Seatpost

Promax 27.2mm x 350mm, 12mm offset

Stem

Promax DA-296, 31.8mm

Grips/Bar Tape

Velo Black

Saddle

WTB Volt

Handlebar

Salsa Bend

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano Cues U6000 GS

Cassette

Shimano Cues LG400, 11-50t, 11spd

Chain

KMC eGlide EPT

Crankset

Shimano Cues U6000, 32T

Shifter

Shimano CUES U6000

Brake Levers

Tektro HD-M275/HD-M276

Bottom Bracket

Shimano BB-MT501

Rotors

Tektro 160/160, 6-Bolt

Wheels

Front Tire

WTB Trail Boss 27.5 x 2.4", 27 tpi, Wire Bead

Rear Tire

WTB Trail Boss 27.5 x 2.4", 27 tpi, Wire Bead

Front Hub

Novatec, QR x 100mm, 6 bolt, 32h

Rear Hub

Novatec, QR x 141mm, 6 bolt, 32h

Spoke

14G Black

Rim

WTB ST i30 TCS 2.0, 27.5", 32h

Weight

Complete Bike

30 lb. 6 oz. for Medium

*Specifications are subject to change without notice

Geometry

Size	X-Small	Small	Medium	Large	X-Large
A. Effective Top Tube	545.0	570.0	595.0	615.0	630.0
B. Stand Over	709.0	750.5	780.0	812.0	845.5
C. Reach	376.0	397.0	419.0	434.5	444.0
D. Stack	553.0	567.0	576.0	590.0	609.0
E. Total Seat Tube Length	335.6	406.4	457.2	508.0	558.8
F. Headtube Length	110.0	120.0	130.0	145.0	165.0
G. Headtube Angle	70.0	71.0	71.0	71.0	71.0
H. Seat Tube Angle	73.0	73.0	73.0	73.0	73.0
I. BB Drop	60.0	60.0	60.0	60.0	60.0
K. Chainstay Length	435.0	435.0	435.0	435.0	435.0
L. Fork Length Axle to Crown	420.0	420.0	420.0	420.0	420.0
M. Fork Offset	45.0	45.0	45.0	45.0	45.0
N. Wheelbase	1032.0	1047.5	1073.0	1093.0	1109.0
Crank Arm Length	170.0	170.0	175.0	175.0	175.0
Handlebar Width	700.0	700.0	740.0	740.0	740.0
Recommended Rider Height	145.0 - 160.0	155.0 - 170.0	165.0 - 180.0	175.0 - 191.0	185.0 - 201.0
Stem Length	80.0	80.0	90.0	90.0	100.0

Frame Specs

Design Wheel/Tire Sizes 27.5 x 2.4"
Alternate Wheel/Tire Sizes Frame clearance: 26 x 3.0" (26 x 2.8" with fenders) / 27.5 x 2.8" (27.5 x 2.6" with fenders) / 700c x 47 with or without fenders - Fork clearance: 26 x 3.0" (26 x 2.8" with fenders) / 27.5 x 2.8" (27.5 x 2.6" with fenders) / 700c x 47 with or without fenders
Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Suspension Fork Length (Travel) N/A
Rigid Fork Length 420mm
Fork Offset 43mm
Axle to Crown 420mm
Rear Spacing "Gnot-Boost" 138mm
Rear Axle Size 10 x 135mm or 10 x 141mm
Front Brake (Rotor) Disc - 51mm I.S. (203mm max rotor)
Headset - Upper EC34/28.6
Headset - Lower EC34/30
Front Spacing 10 x 100mm
Steerer Tube Ø28.6mm (1-1/8")
Crown Race Ø30mm (1-1/8")
Stem Clamp Ø28.6mm (1-1/8")
Seatpost Ø27.2mm
Dropper Post Compatible No
Seatpost Clamp Ø30mm
Front Derailleur Clamp Ø28.6mm
Front Derailleur Type High direct mount top-pull (Ø28.6mm) 26mm offset adapter (not included) for 135mm rear hub spacing 29mm offset adapter (not included) for 141mm rear hub spacing
Bottom Bracket 73mm threaded (1.37" x 24TPI)
Crankset (Max Ring) 1x (Mtn): 34T / 2x (Mtn): 26/40T / 3x (Mtn): 22/36/44T / 1x (Boost): 40T / 2x (Boost): 32/42T
Bottle Mounts 2 Three-Pack (XS) / 1 Standard + 2 Three-Pack (S - XL)
Fork Mounts 2 Three-Pack, rack mounts (upper, lower, and mid-blade threaded)
Front Fender Mounts Yes
Rear Fender Mounts Yes

Documents

Warranty

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
