Simplify the Haul With an Electric Cargo Bike

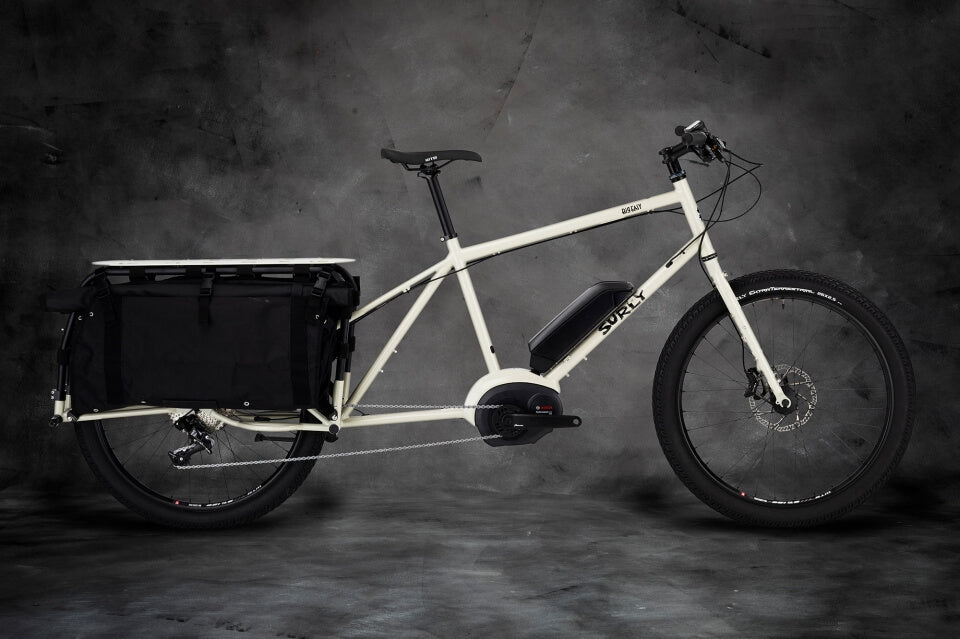

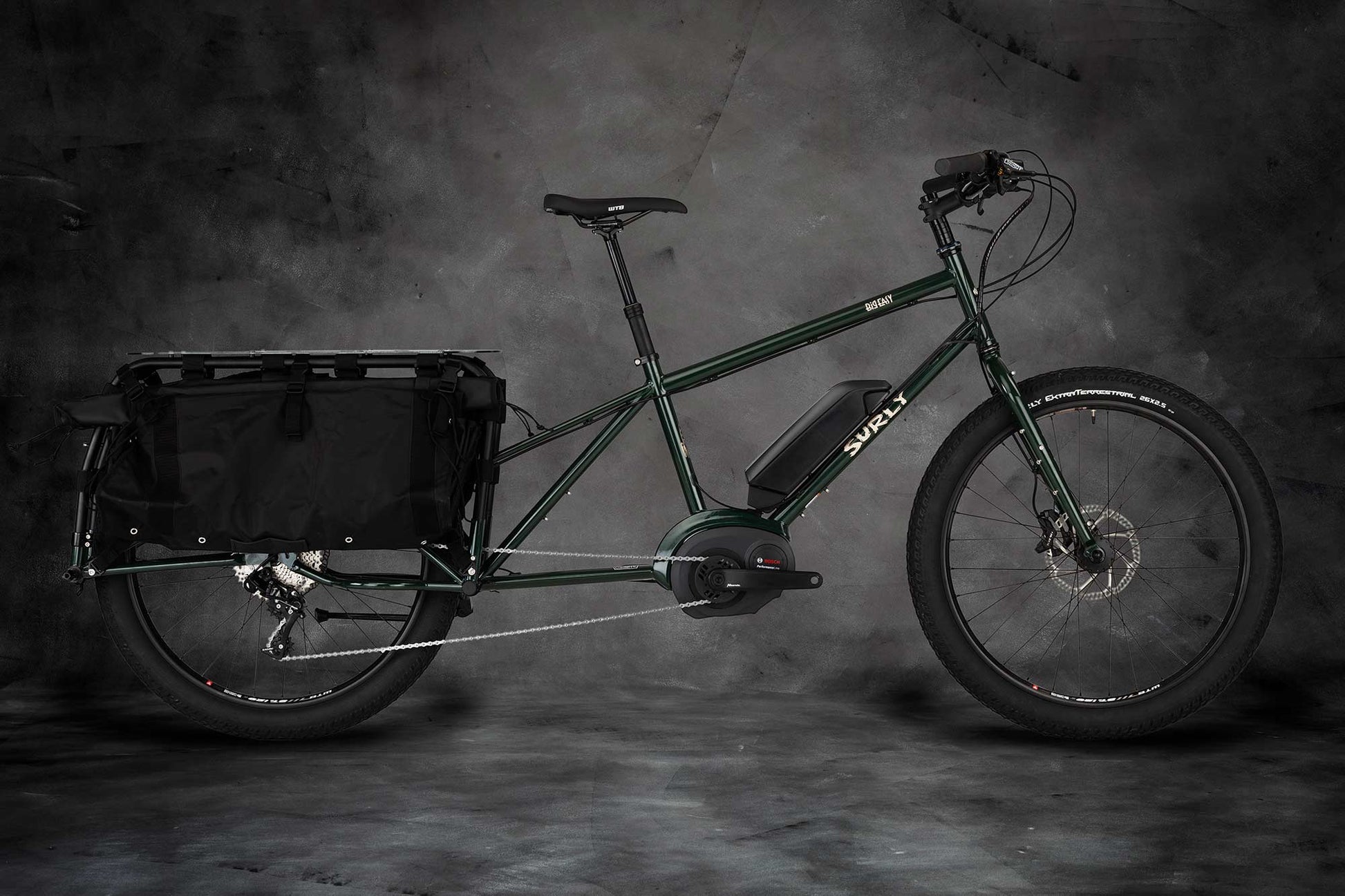

Riding loaded with cargo is core to us here at Surly, whether we’re running a front rack and bag setup or a full-blown cargo bike and trailer. There are times, however, when even the strongest riders are limited in what they can haul, so we created Big Easy, our long-tail electric cargo bike. Consider it the 18-wheeler of the cargo bike world, minus the diesel fumes.
When it comes to geometry, Big Easy rides and feels like a normal-length bike. We also increased stand-over height clearance and threw in dropper post routing to promote bike sharing across different-sized riders. So whether you want to wave goodbye to the old family gas hog, upgrade your bike-supported business’s two-wheeled fleet, or simply haul more bowling balls during your daily commute, Big Easy makes doing all that, well, easy.
- Full component set perfectly suited for electric cargo bikes, including four-piston Tektro brakes
- Equipped with Bosch Performance CX, their most powerful drive unit
- Damping headset for smooth and stable handling under heavy loads
- Capable of running dual batteries for extended range, if you’re into that. (All mounting hardware and wiring included.)
- Large-volume 26” x 2.5” ExtraTerrestrial tires and durable wheel builds
- Big Easy available for purchase in the US only (available in Canada Fall 2019)
- Frame integration with Surly Bill and Ted trailers for maximum cargo potential
Specifications
Geometry

SIZE | SM | MD | LG |
---|---|---|---|
Reach | 411 | 431 | 448 |
Stack | 567 | 595 | 623 |
Head Tube Angle | 69.0° | 69.0° | 69.0° |
Head Tube Length | 150 | 180 | 210 |
Seat Tube Length | 406 | 432 | 508 |
BB Drop | 40 | 40 | 40 |
Wheelbase | 1480 | 1512 | 1539 |
Chainstay Length | 821 | 821 | 821 |
Top Tube Length, Actual | 574.1 | 594.4 | 618.1 |
Top Tube Length, Effective | 590 | 620 | 645 |
Seat Tube Angle | 72.5° | 72.5° | 72.5° |
Standover Height | 723 | 771 | 821 |
Stem Length | 60 | 70 | 80 |
Stem Angle | 6° | 6° | 6° |
Handlebar Width | 740 | 740 | 740 |
Crank Length | 175 | 175 | 175 |
Fork Length | 420 | 420 | 420 |
Fork Rake | 43 | 43 | 43 |
Frame Specs
- Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded
- Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
- Rear Dropout Configuration: Big Dummy Style. 10 x 135mm
- Rear Hub Spacing: 10 x 135mm
- Front Hub Spacing: 10 x 100mm
- Rear Brake Compatibility: Disc - 51mm I.S. (203mm max rotor)
- Front Brake Compatibility: Disc - 51mm I.S. (203mm max rotor)
- Head Tube: Ø34mm
- Steerer Tube: Ø28.6mm (1-1/8")
- Crown Race Diameter: Ø30mm (1-1/8")
- Stock Headset Upper (S.H.I.S.): EC34/28.6
- Stock Headset Lower (S.H.I.S.): EC34/30
- Seat Collar: Ø33.1mm
- Seatpost Diameter: Ø30.9mm
- Front Derailleur (Clamp): N/A
- Max Chainring (CL): No frame limitations
- Bottom Bracket: Bosch Mid Drive Mounting Node
- Tire Clearance Frame: 26 x 2.5" (with or without fenders)
- Tire Clearance Fork: 26 x 3.0" (without fenders), 26 x 2.8" (with fenders)
- Rigid Fork Spec: 420 x 43mm
- Max Suspension Fork Length: N/A
- Bottle Mounts Frame: 3 Standard
- Bottle Mounts Fork: 4 Three-Pack
- Rack Mounts Frame: Yes (Surly Dummy Rails)
- Rack Mounts Fork: Yes (upper, lower, and mid-blade threaded)
- Fender Mounts Frame: Yes
- Fender Mounts Fork: Yes
- Other Features: Kickstand plate, Dedicated Rohloff cable routing and OEM 2 axle plate mount, Internal dropper post routing compatible, Dual Bosch PowerPack Battery Mounts
[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3] Listed chainring clearance is worst case scenario. Clearances vary widely depending on components and configurations.
[4] Suspension fork length listed at full extension (not at sag)
