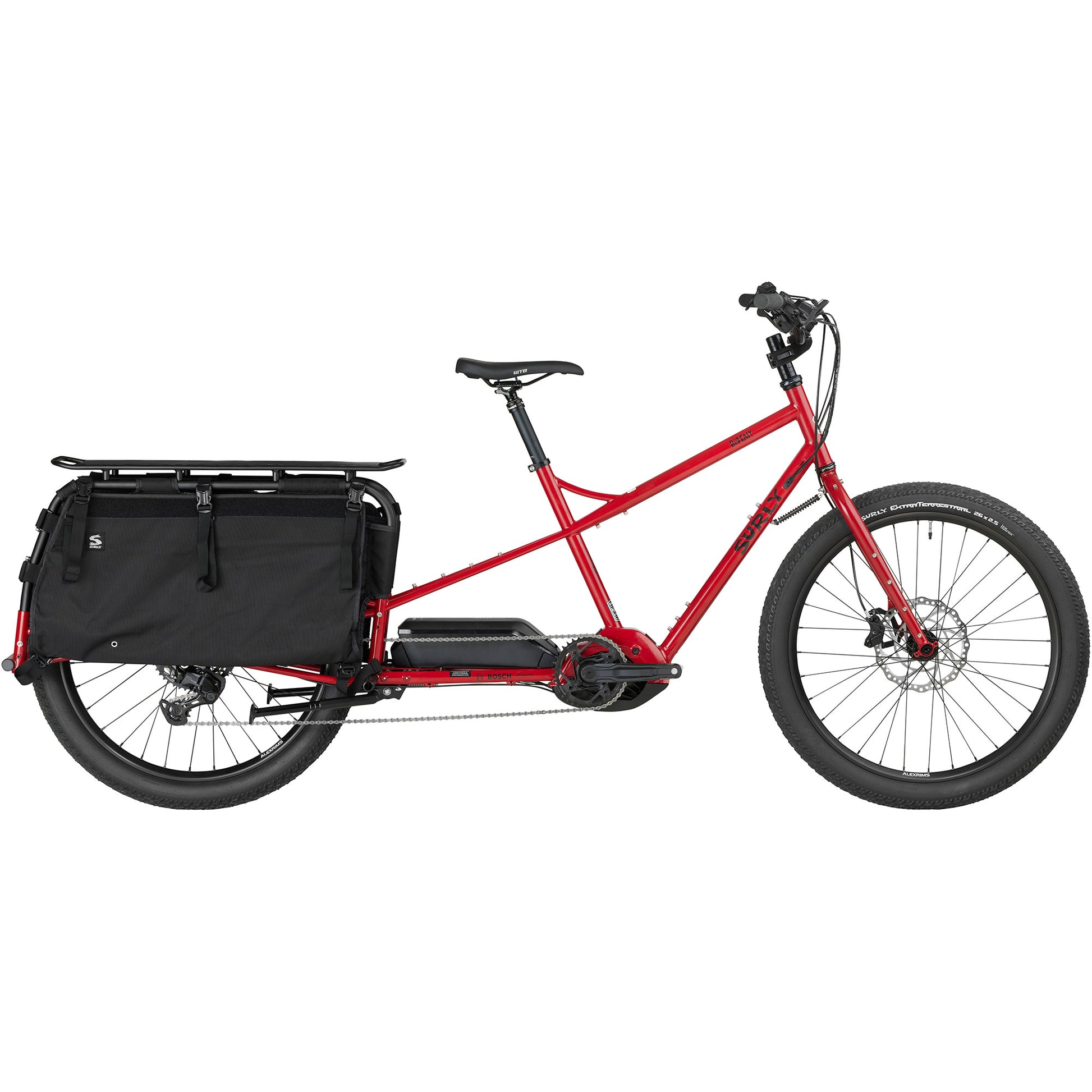

Simplify the Haul With an Electric Cargo Bike
Riding loaded with cargo is core to us here at Surly, whether we’re running a front rack and bag setup or a long-tail cargo bike with passengers along for the ride. There are times, however, when even the strongest riders are limited in what they can haul, so we created Big Easy – our long-tail electric cargo bike. Consider it the 18-wheeler of the cargo bike world, minus the diesel fumes.
When it comes to geometry, Big Easy rides and feels like a normal-length bike – the upright, engaged rider position keeps things comfortable. So, whether you want to wave goodbye to the old family gas hog, upgrade your bike-supported business’s two-wheeled fleet, or simply haul more bowling balls during your daily commute, Big Easy makes doing all that, well, easy.
- Full component set selected for the demands of heavy cargo hauling, including Tektro four-piston hydraulic brakes for enhanced stopping power
- Expanded rider fit per size and long throw dropper post compatibility to improve bike sharing among different-sized riders
- Equipped with the most powerful Bosch electric bike motor for elevated performance
- Features Surly dual-leg kickstand for unmatched stability when loading and unloading cargo
- Two-seat compatibility for human passengers big or small – no adapter needed (Thule Yepp Nexxt Maxi and Burley Dash)
- Lower stand over height for improved stability when stopping, mounting, and dismounting

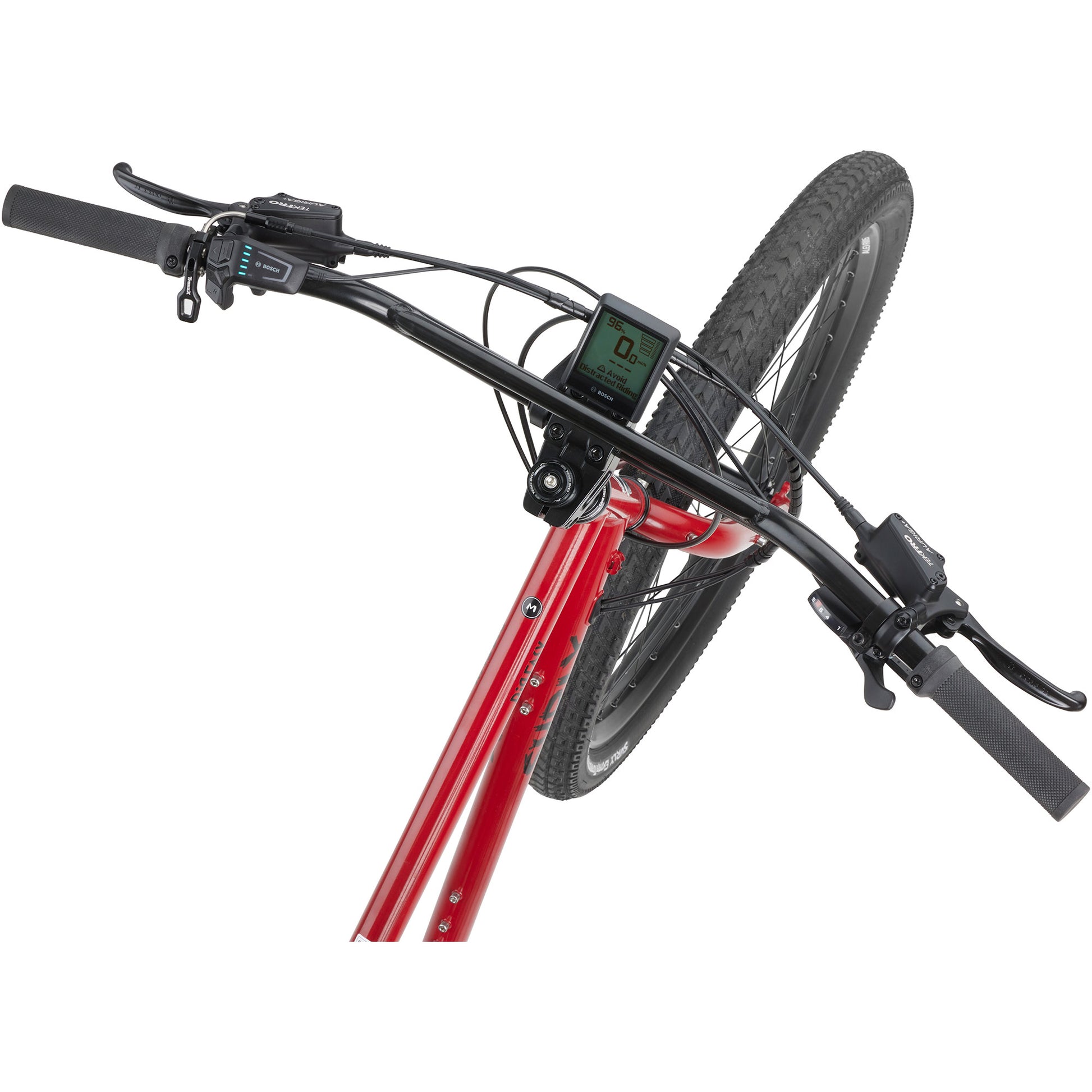

- High-rise Surly Sunrise handlebars give riders leverage to control heavy loads and the body position to keep you comfortable
- Featuring updated Big Dummy bags with simplified design and consistent cargo capacity

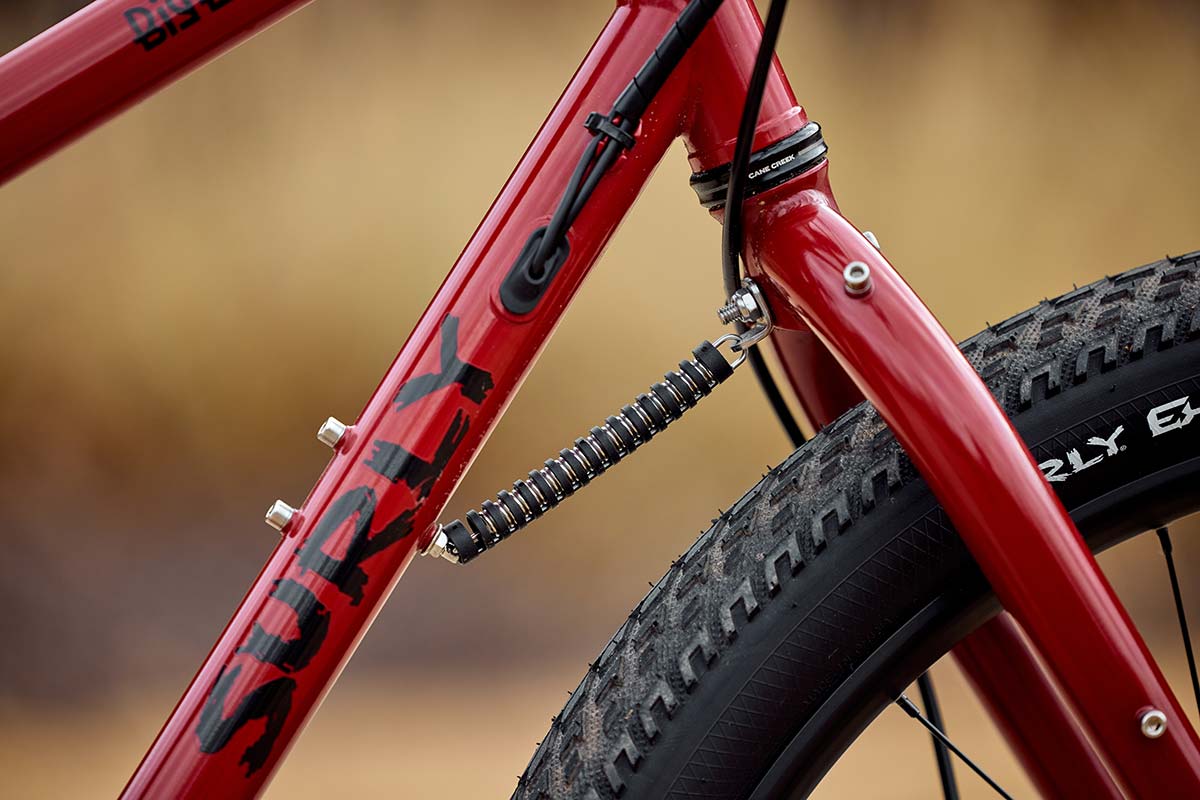

- Damping headset for smooth and stable handling under heavy loads
- Capable of running dual batteries for extended range
- Large-volume 26 x 2.5" Extraterrestrial tires for smoother rides and durable wheel builds for added stiffness and strength
- Big Easy complete bikes available for purchase in the US and Canada only
- NOT compatible with our Bill and Ted trailers
- Meets UL 2849, and UL 2271 certification
Specifications
Build Kit
Frameset
Frame
Surly Big Easy 2.0
Color
Pile of Bricks Red
Fork
Surly Dinner Fork
Components
Headset
Cane Creek ViscoSet [tuned for Surly Big Easy] upper. 40 series lower
Seatpost Clamp
Surly Stainless
Seatpost
TransX JD-YSP15, 30.9mm Dropper Post; SM–MD; 120mm travel, LG; 150mm travel
Stem
Sunday Freeze Top Load 48mm
Grips/Bar Tape
Velo
Saddle
WTB Volt
Handlebar
Surly Sunrise
Lights Included
No
Drivetrain
Front Derailleur
N/A
Rear Derailleur
Shimano Cues U4000 GS
Cassette
Shimano Cues LG400, 11-46t, 9 speed
Drive Type
Mid-Drive
Chain
KMC eGlide EPT Anti-Rust
Crankset
FSA E-Bike CK-763/IS, paired with 38T FSA Chainring
Shifter
Shimano Cues U4000
Brake Levers
Tektro HD-T740
Brake Calipers
Tektro HD-T740, 4 Piston
Assist Levels
Eco, Tour+, Cargo, Turbo
Rotors
Tektro 203mm Front/180mm Rear, 6-Bolt
Drive Unit

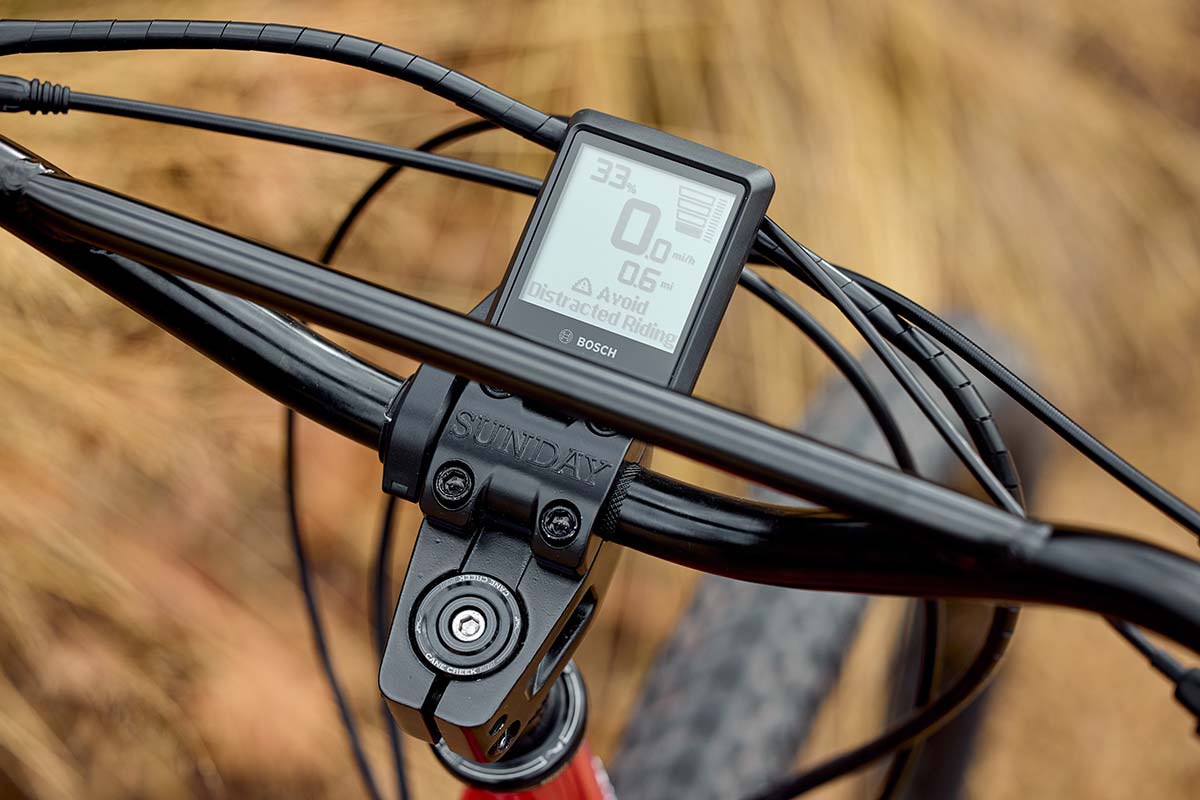

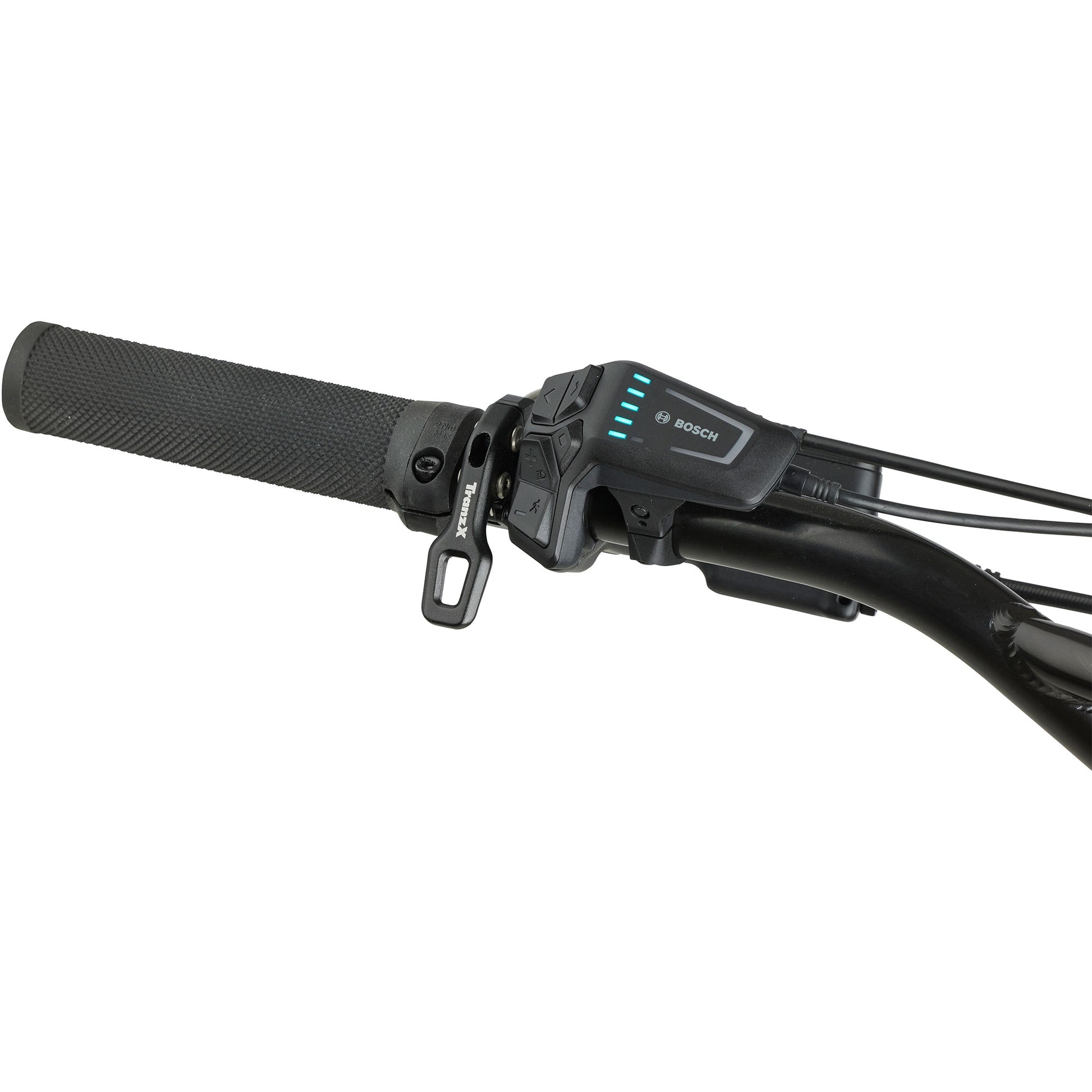

Bosch Performance Line Cargo with Intuvia 100 Display and LED Remote
Ebike Classification
Class 1
Max Assist Speed
20 mph
Motor Torque
85Nm
Max Motor Assist
340%, 600W
Battery Capacity Watt Hours
725Wh
Battery Type

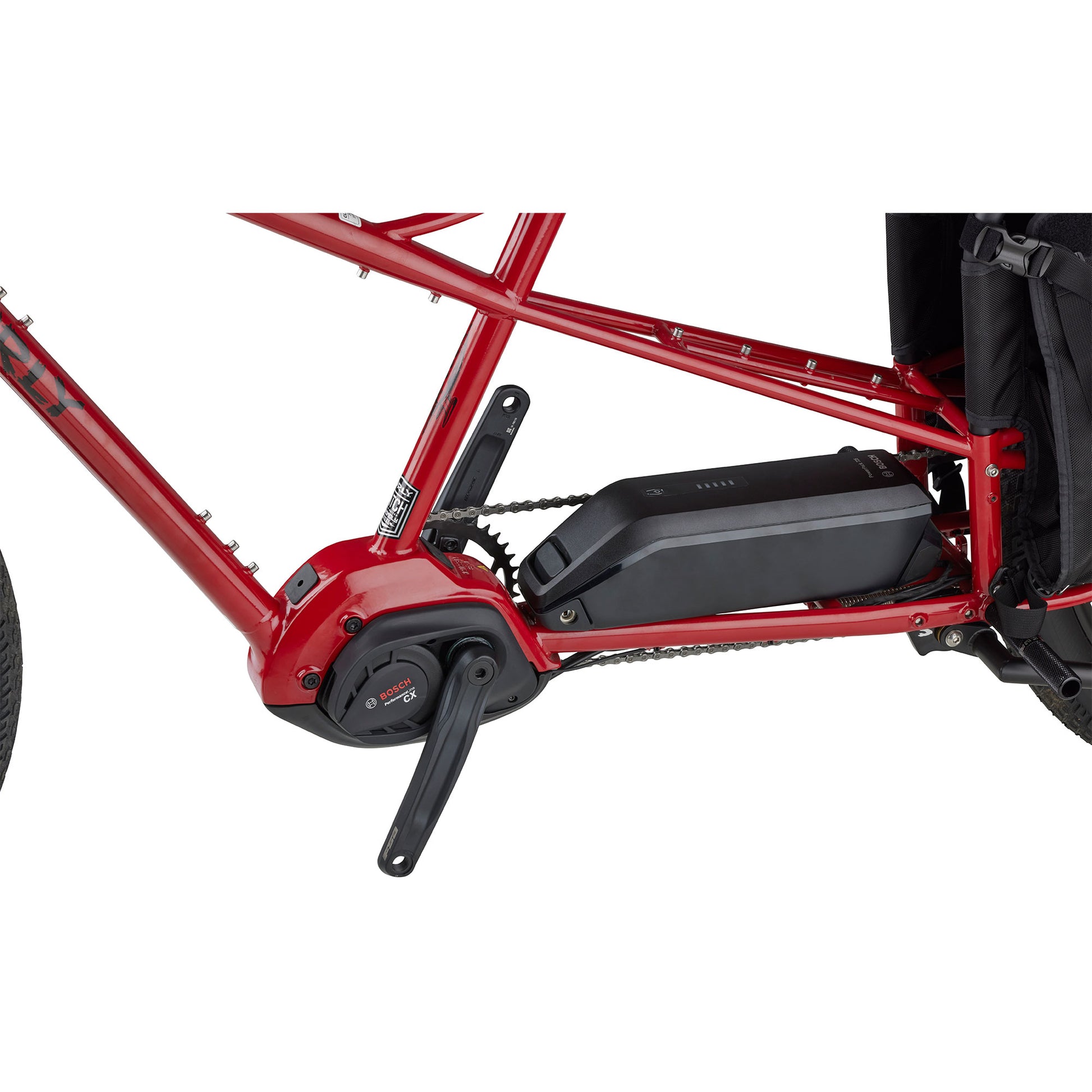

Frame Mounted Lithium-ion, Bosch PowerPack 725Wh
Removable Battery
Yes
Battery Power Volts
36V
Battery Capacity Amp Hours
19.2Ah
Estimated Charge Time
6 hours
Charger Included
Yes
Range Estimate
A 15–50 mile range is normal for Big Easy, but your mileage may vary depending on support mode, rider weight, cargo load, etc.
Gross Payload
400lb max total rider + cargo
Throttle
No
Walk Assist
Yes
Wheels
Front Tire
Surly Extra Terrestrial 26 x 2.5" 60tpi, Tubeless Compatible
Rear Tire
Surly Extra Terrestrial 26 x 2.5" 60tpi, Tubeless Compatible
Front Hub
Novatec 15 x 110mm, 32h, 6 Bolt
Rear Hub
Novatec 12 x 148mm, 32h, 6 Bolt
Spoke
Straight 14g, Black
Rim
Alex MD30, 26", 32h
*Specifications are subject to change without notice
Geometry

Size | Small | Medium | Large |
---|---|---|---|
A. Effective Top Tube | 570.0 | 610.0 | 650.0 |
B. Stand Over | 693.0 | 720.0 | 748.0 |
C. Reach | 396.0 | 422.0 | 449.0 |
D. Stack | 553.0 | 595.0 | 637.0 |
E. Total Seat Tube Length | 410.0 | 450.0 | 500.0 |
F. Headtube Length | 130.0 | 175.0 | 220.0 |
G. Headtube Angle |
68.0
|
68.0
|
68.0
|
H. Seat Tube Angle |
72.5
|
72.5
|
72.5
|
I. BB Drop | 50.0 | 50.0 | 50.0 |
K. Chainstay Length | 830.0 | 830.0 | 830.0 |
L. Fork Length Axle to Crown | 420.0 | 420.0 | 420.0 |
M. Fork Offset | 50.0 | 50.0 | 50.0 |
N. Wheelbase | 1481.0 | 1525.0 | 1569.0 |
Crank Arm Length | 170.0 | 175.0 | 175.0 |
Handlebar Width | 820.0 | 820.0 | 820.0 |
Recommended Rider Height | 140.0 - 170.0 | 157.0 - 184.0 | 170.0 - 194.0 |
Stem Length | 48.0 | 48.0 | 48.0 |
Measurements based on:
- Measured at the center of the TT and based on a wheel diameter of 689.5mm
Frame Specs
- Design Wheel/Tire Sizes 26 x 2.5"
- Frame Construction 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded
- Fork Construction Surly Dinner Fork - 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork legs, TIG welded, E.D. coated
- Suspension Fork Length (Travel) N/A
- Rigid Fork Length 420
- Fork Offset 50
- Axle to Crown 420
- Rear Spacing 12 x 148mm
- Front Brake (Rotor) 51mm I.S. (160-203mm)
- Headset - Upper EC34/28.6
- Headset - Lower EC34/30
- Front Spacing 15 x 110mm
- Steerer Tube Ø28.6mm (1-1/8")
- Crown Race Ø30mm (1-1/8")
- Stem Clamp Ø28.6mm (1-1/8")
- Seatpost Ø30.9mm
- Dropper Post Compatible Yes
- Seatpost Clamp Ø33.1mm
- Front Derailleur Clamp N/A
- Front Derailleur Type N/A
- Crankset (Max Ring) No Frame Limitations
- Bottle Mounts One 4-Pack + 2 Standard
- Fork Mounts Yes (upper, lower, and mid-blade threaded)
- Front Fender Mounts Yes
- Rear Fender Mounts Yes
Documents
- Big Easy 2.0 Framesheet
- Fork Instructions - ASTM 3
- Surly Thru-Axle Instructions
- Big Easy 2.0 Dual Battery Instructions
- Big Easy 2.0 Rail Instructions
- Big Easy 2.0 Deck Instructions
- Surly Round Peg Instructions
- Surly Long Tail Cargo Frame Insert Instructions
- Big Dummy Bag Version 2.0 Instructions
- Big Easy 2.0 Kickstand Instructions
- Surly Bike Sizing Chart
- Wheel, Rim, and Tire Instructions
- Bicycle Owner's Manual
Warranty
Frame Warranty
LIMITED WARRANTY
This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.
This warranty does NOT cover the following:
Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use
Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
Normal wear and tear
Labor required to remove and/or refit and re-adjust the product within the bicycle assembly
This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.
This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.
TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
