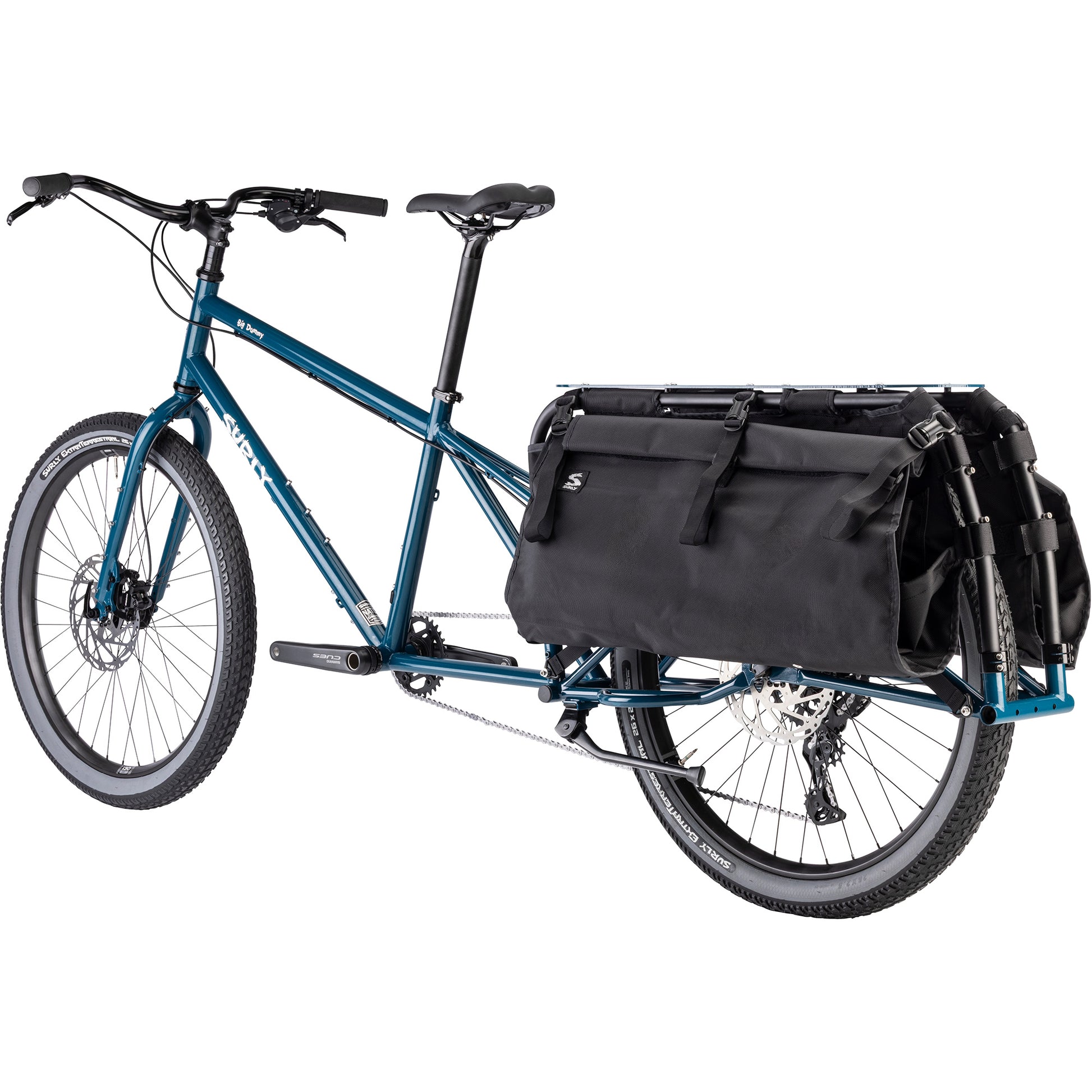

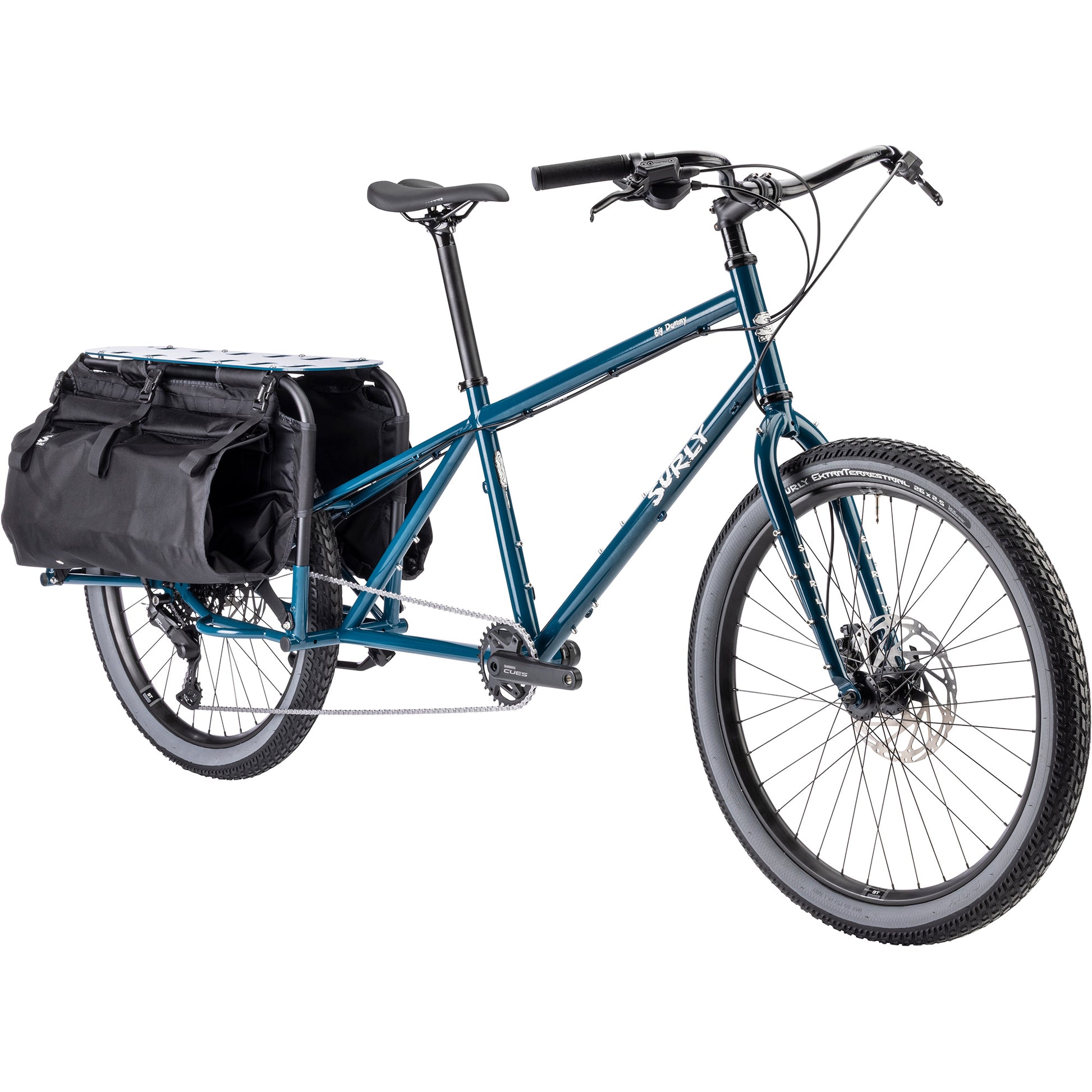

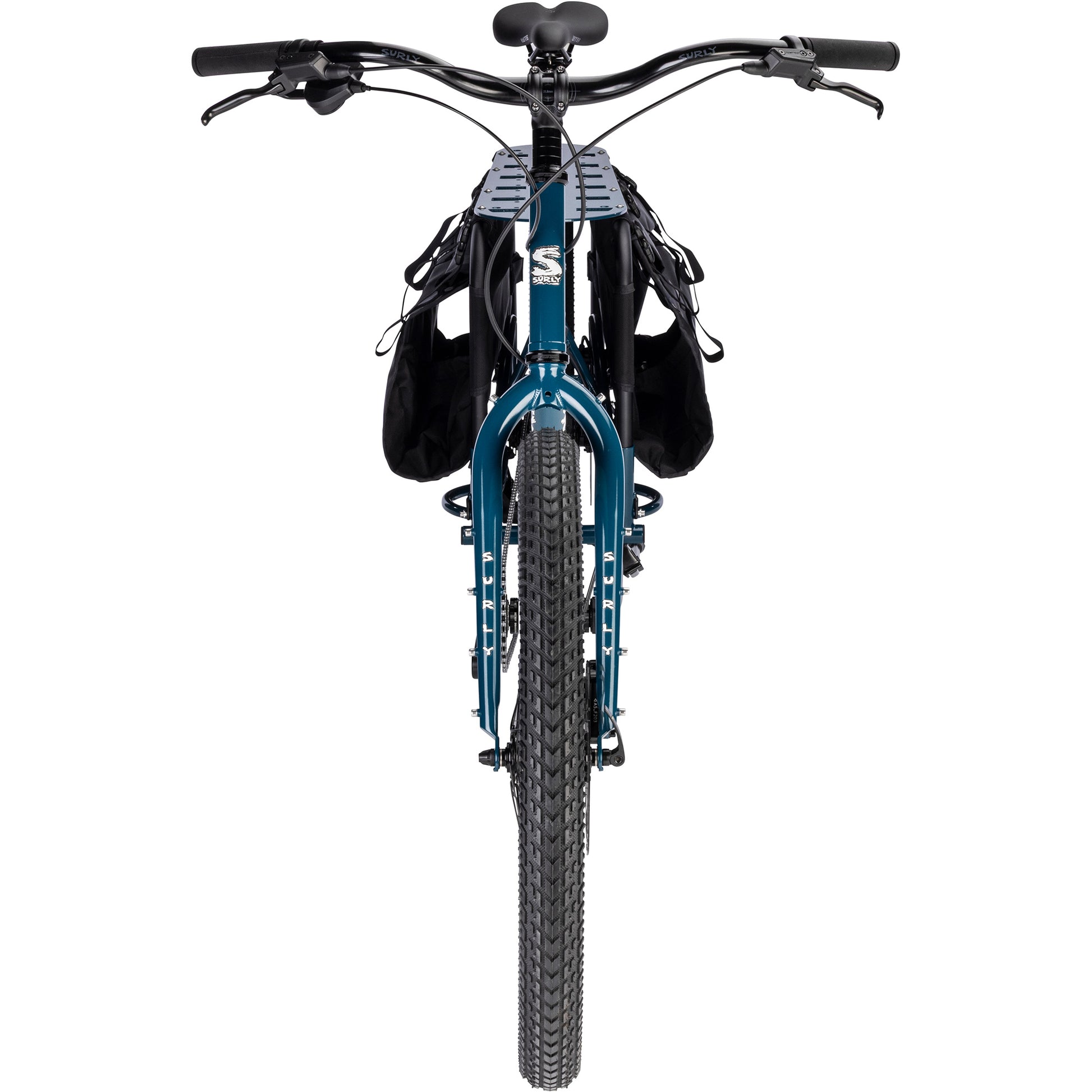

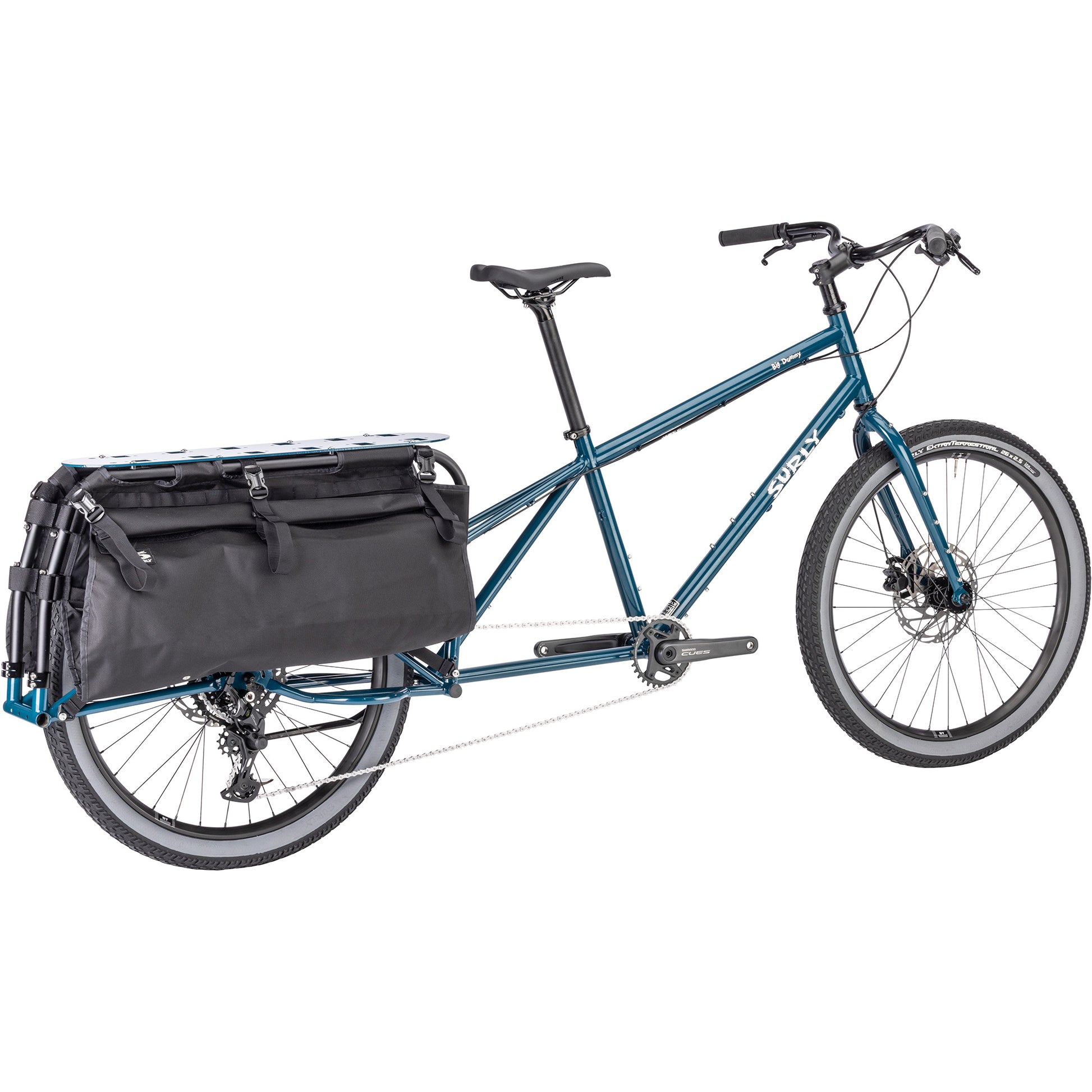

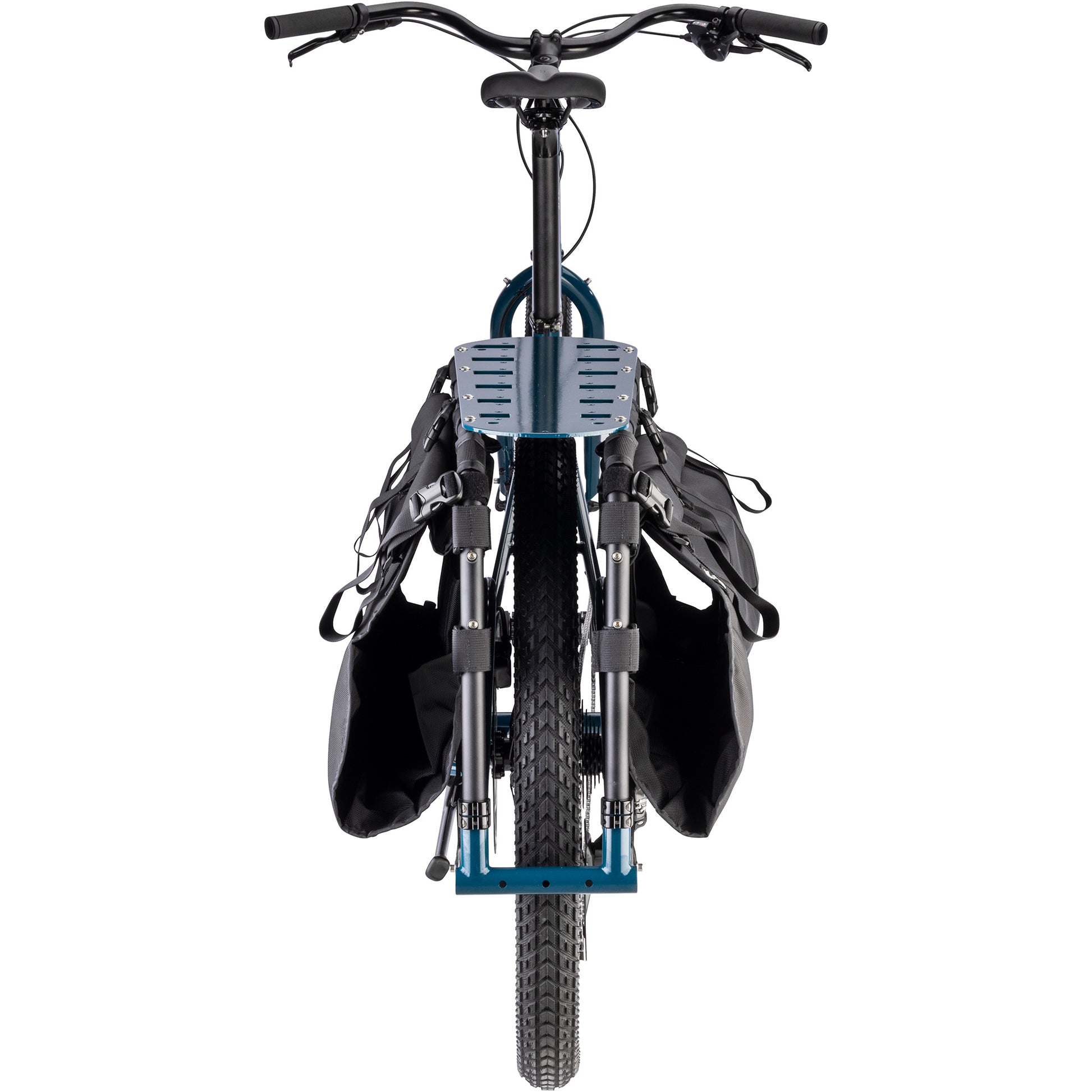

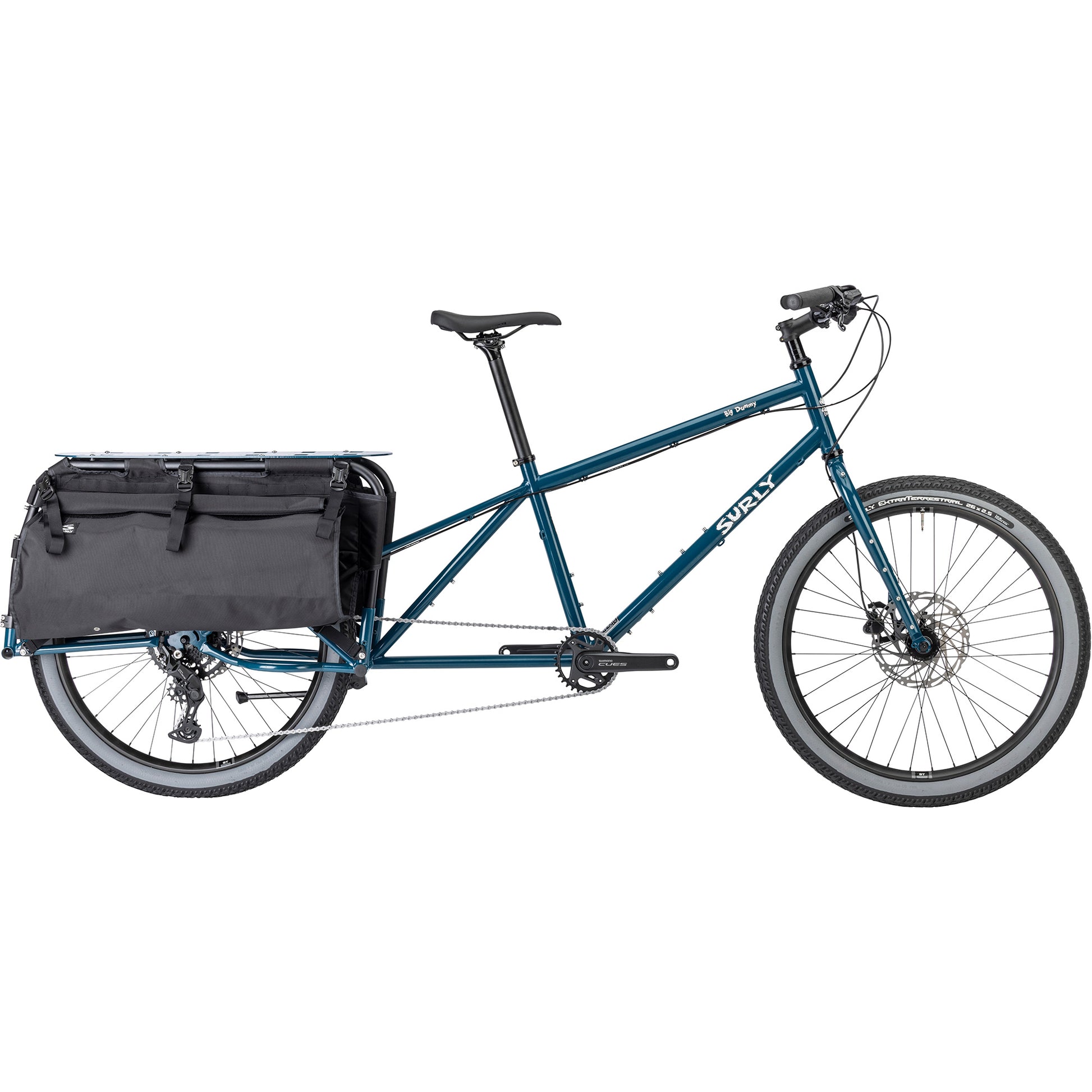

Big Dummy - Twilight Zone

Cargo Hauling – 1-2 Passengers - Longtail

$2,699.00 USD

~~$0.00 USD~~ $2,699.00 USD

Sale

Size Small Medium Large

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Pizza-powered Longtail Cargo Bike

Big Dummy is our analog longtail cargo bike meant to make you rethink how you carry all your crap. Since 2008, Big Dummy has helped families cut their car dependency and business owners cut their carbon footprint; it’s helped friends move and hauled the pizza to the party. Saddle this beast up with a month’s worth of groceries, lumber from the hardware store, your tiny humanoids, or anything else under the 400 lb rider + cargo weight limit. Even if you don’t have a heavy load, there’s freedom in just chucking everything you need for the day into the Dummy Bags and knowing you can pick up any #GroundScore you find along the way — pretty smart if you ask us.

Single-piece frame increases stiffness and decreases torsional flex

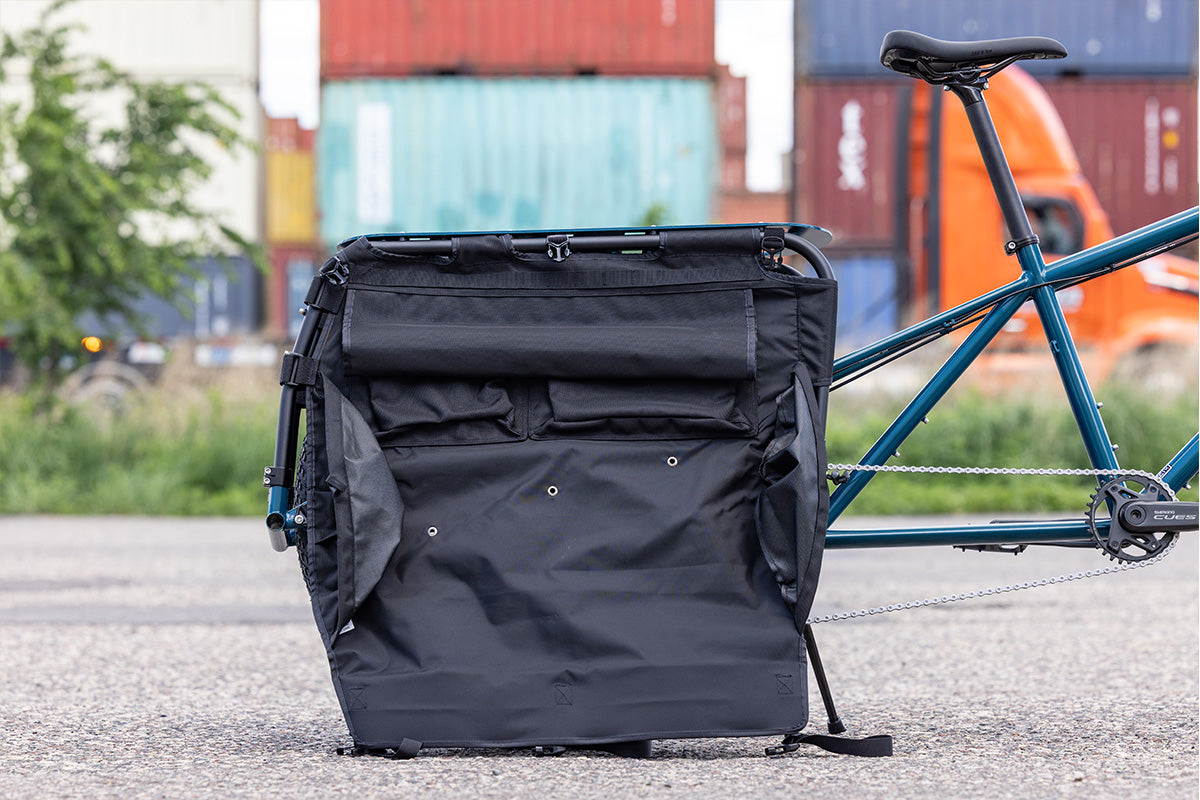

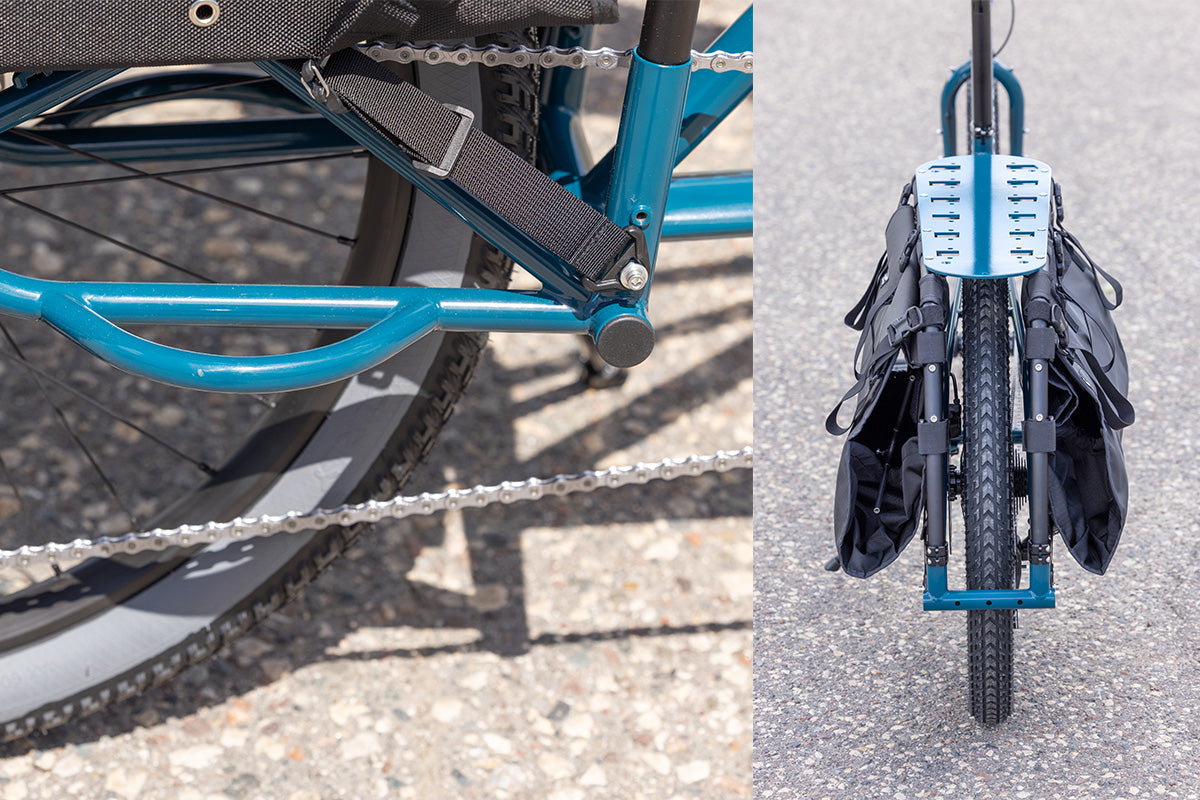

Includes paint-matched Dummy Deck with Dummy Rails, Dummy Rail Collars, and Big Dummy Bags (version 2.0)
Compatible with human cargo with the use of Dummy Rail Collars
Vertical dropouts with fender eyelets
Clearance for 26 x 2.5" tires with fenders
400 lb combined rider and cargo weight limit

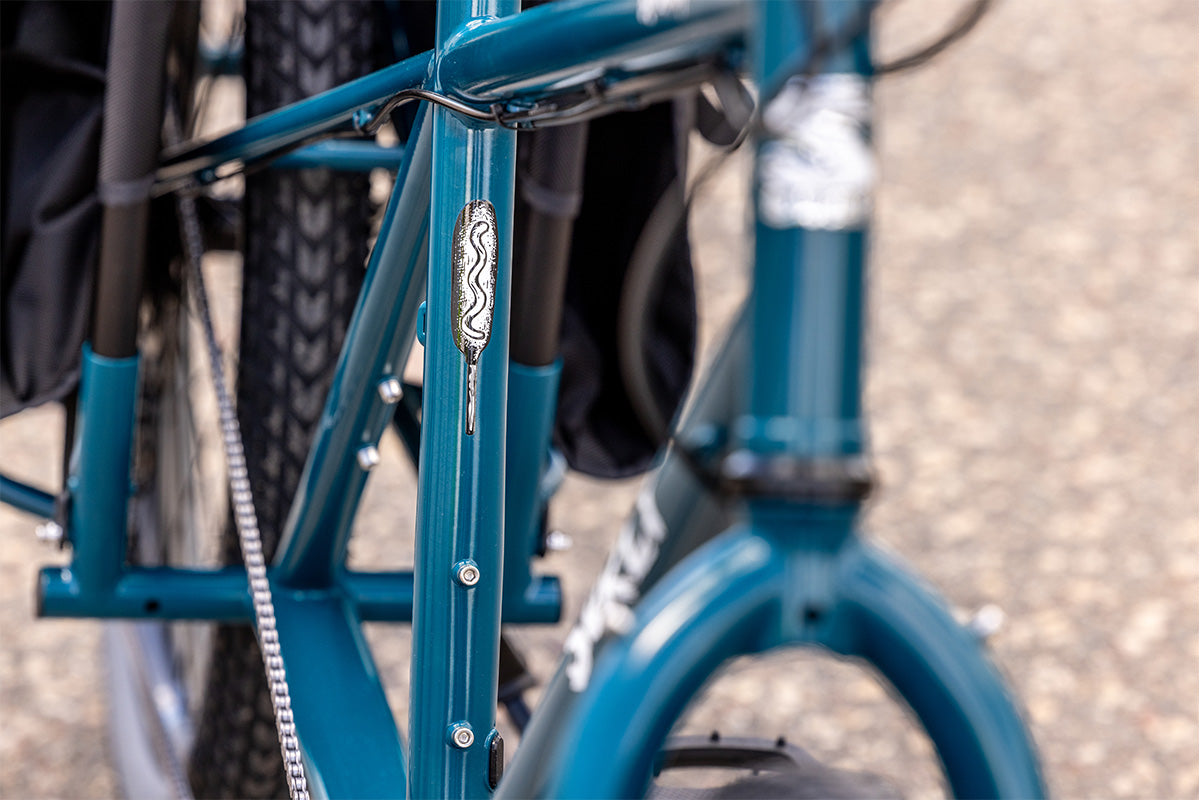

Three standard bottle mounts and one Three-Pack mount in frame (two bottle mounts on SM)
Equipped with center-mount kickstand made of high-strength alloy
Rohloff compatible

Specifications

Build Kit

Frameset

Frame

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded

Color

Twilight Zone

Fork

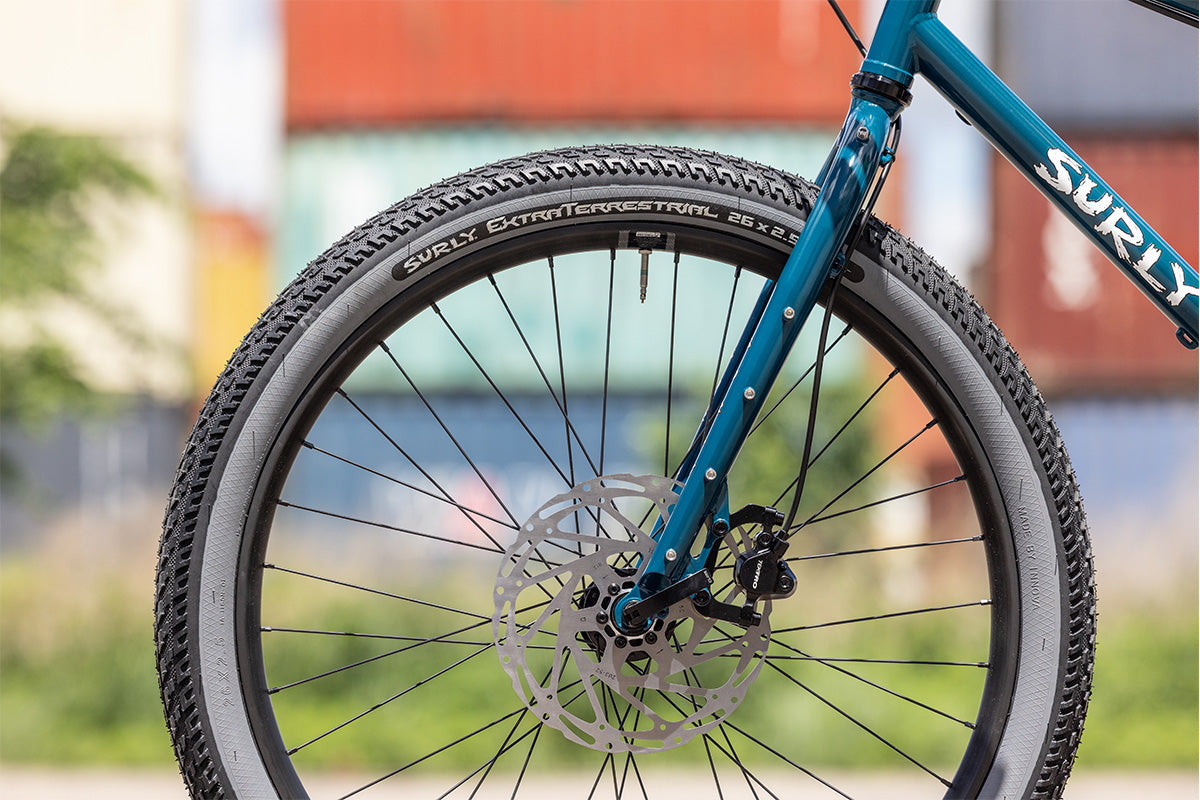

Surly Cocktail Fork - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Components

Headset

FSA Orbit MX

Seatpost Clamp

Surly Stainless 33.1mm

Seatpost

Kalloy SP-DC2

Stem

Kalloy AS007N

Grips/Bar Tape

Velo Black

Saddle

WTB Rocket Fusion Medium

Handlebar

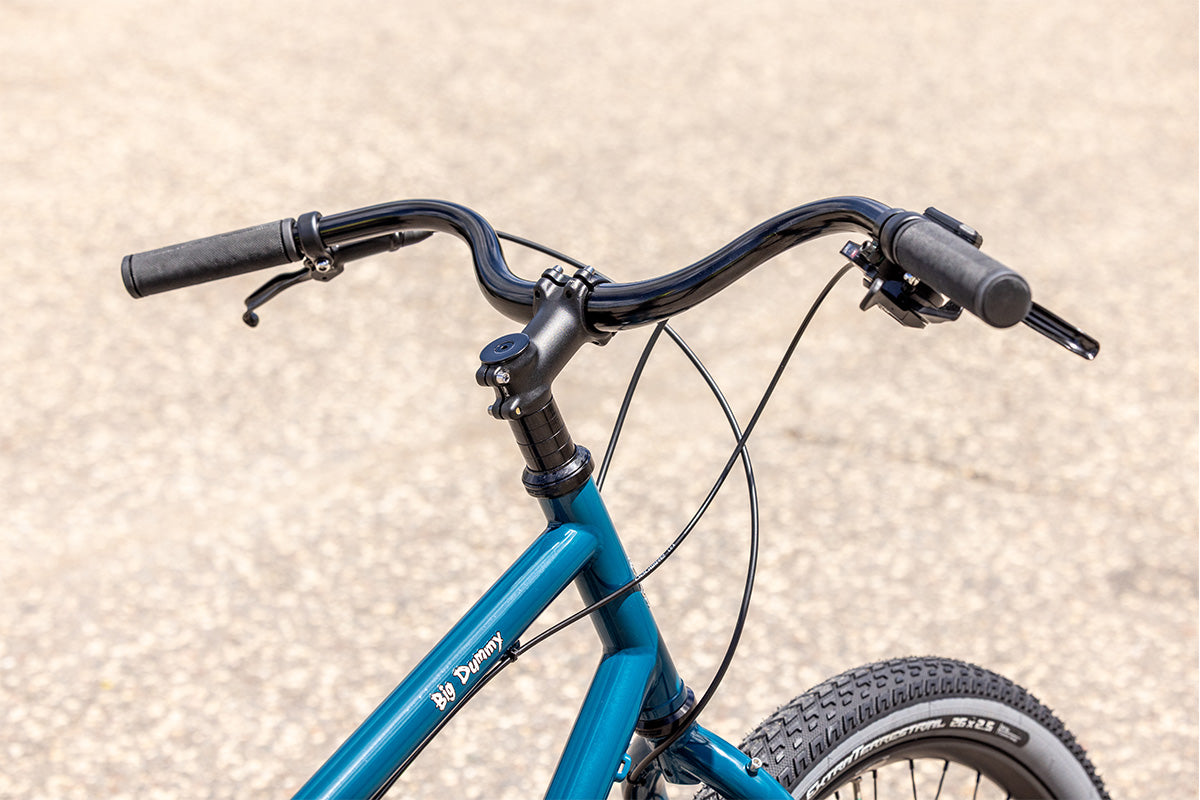

Surly Terminal Bar

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano CUES U4000 GS

Cassette

Shimano CUES LG300, 11-46t, 9-speed

Chain

KMC XGlide EPT Anti-Rust

Crankset

Shimano CUES U6000, 32t

Shifter

Shimano CUES U4000

Brake Levers

Tektro HD-M3120

Brake Calipers

Tektro HD-M3120, 2 piston

Bottom Bracket

Shimano MT501, BSA

Rotors

Tektro (6-bolt, 203mm front and rear)

Gross Payload

400 lb combined rider and cargo weight limit

Wheels

Front Tire

Surly ExtraTerrestrial 26 x 2.5", 60 TPI, tubeless-ready

Rear Tire

Surly ExtraTerrestrial 26 x 2.5", 60 TPI, tubeless-ready

Front Hub

Novatec QR x 100mm

Rear Hub

Novatec QR x 135mm

Spoke

DT Swiss Champion

Rim

WTB ST Tough i30mm TCS 2.0, 26", 36h

Weight

Complete Bike

45 lb 14 oz with rack and bags (MD)

*Specifications are subject to change without notice

Geometry

Size	Small	Medium	Large
A. Effective Top Tube	590.0	620.0	645.0
B. Stand Over	725.0	773.0	823.0
C. Reach	410.0	431.0	447.0
D. Stack	571.0	599.0	627.0
E. Total Seat Tube Length	406.0	432.0	508.0
F. Headtube Length	150.0	180.0	210.0
G. Headtube Angle	70.0	70.0	70.0
H. Seat Tube Angle	72.5	72.5	72.5
I. BB Drop	40.0	40.0	40.0
J. BB Height	299.0	299.0	299.0
K. Chainstay Length	821.0	821.0	821.0
L. Fork Length Axle to Crown	418.0	418.0	418.0
M. Fork Offset	43.0	43.0	43.0
N. Wheelbase	1469.0	1500.0	1527.0
Crank Arm Length	165.0	170.0	170.0
Handlebar Width	718.0	735.0	735.0
Recommended Rider Height	160.0 - 178.0	167.0 - 183.0	178.0 - 196.0
Stem Length	70.0	70.0	80.0

Frame Specs

Design Wheel/Tire Sizes 26 x 2.5"
Max Tire Outer Diameter Frame clearance:

26 x 2.0-2.5" w/ fender
27.5 x 1.5-2.0" w/ fender
700c x 28-32 w/ fender

Fork clearance:

26 x 3.0" w/o fender
26 x 2.75" w/ fender
27.5 x 2.8" w/o fender
27.5 x 2.5" w/ fender
29 x 2.1" w/o fender
29 x 1.9" w/ fender
Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded
Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Suspension Fork Length (Travel) N/A
Rigid Fork Length 420mm
Fork Offset 45mm
Rear Spacing 10 x 135mm
Rear Brake (Rotor) 51mm I.S. disc (203mm max rotor)
Front Brake (Rotor) 51mm I.S. disc (203mm max rotor)
Headset - Upper EC34/28.6
Headset - Lower EC34/30
Front Spacing 10 x 100mm
Steerer Tube Ø28.6mm (1-1/8")
Crown Race Ø30mm (1-1/8")
Seatpost Ø30.9mm
Dropper Post Compatible Yes
Seatpost Clamp Ø33.1mm
Max Post Insertion Small: 375mm
Medium: 255mm
Large: 331mm
Front Derailleur Clamp High direct mount top-pull (Ø34.9mm) 26mm offset adapter (not included)
Bottom Bracket 73mm BSA threaded (1.37" x 24TPI)
Crankset (Max Ring) No frame limitations
Bottle Mounts Small: 2 Standard + 1 Three-pack
Medium and Large: 3 Standard + 1 Three-Pack
Fork Mounts 2 Four-Pack
Front Fender Mounts Yes
Rear Fender Mounts Yes

Documents

Warranty

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
