Big Dummy is a long-tail cargo bike that expands what’s possible by bike.

Since its introduction in 2008, many a family have ditched one or both of their cars thanks to Big Dummy. We’ve also seen many entrepreneurs and small business owners minimize their carbon footprint and incorporate Big Dummy into their business model.

Big Dummy is the ultimate grocery getter, the modern day mini-van, the company car, and a human-powered car replacement. It’s all those things and more in that there’s no limit to what it can haul — as long as it falls within the 400-pound weight limit.

  • Dedicated single-piece frame increases stiffness and decreases torsional flex
  • Human cargo compliant with the use of Dummy Rail Collars
  • Vertical, 135mm spaced dropouts with fender eyelets; Rohloff compliant
  • Clearance for 26" x 2.5" tires with fenders

Bike Capabilities

  • 5/5 with Car Replacement
  • 5/5 with Passengers
  • 3/5 with Off Road
  • 5/5 with Trailer Compatibility

NOTE: You can ride your bike wherever the hell you want, but this is what we think this bike is best at.

Big Dummy Long-Tail Cargo Bike with Child
Big Dummy Carries Anything
Big Dummy Rear View
Big Dummy Rear Tire
Big Dummy by the Tracks
Big Dummy at Pike Place Market

#bigdummy Image Dump

#SurlyMakeItYourOwn
Tag your Instagram Images with #SurlyMakeItYourOwn and your bike may show up here.

Where to Buy

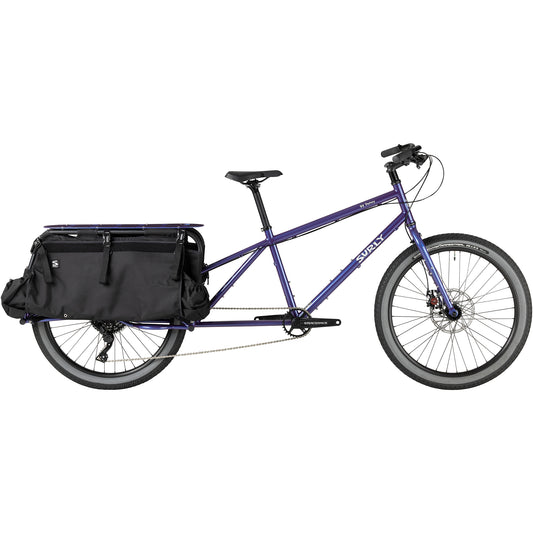

Big Dummy - complete bike - Dark Side of the Maroon

Specifications

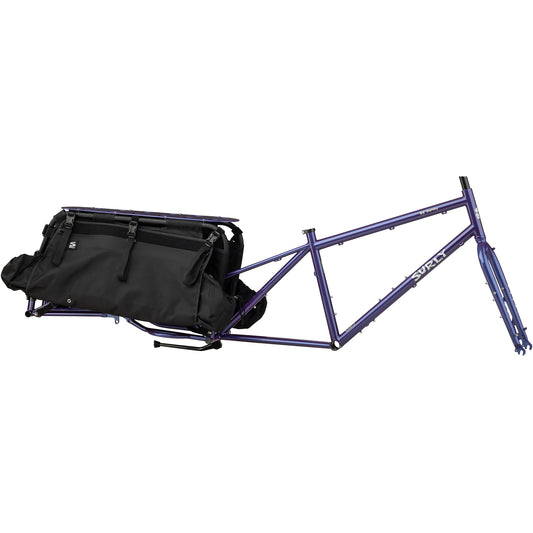

Frameset

Frame Surly Big Dummy, Surly 4130 Chromoly steel.

Surly Big Dummy, Surly 4130 Chromoly steel. Main triangle double-butted. TIG-welded cargo specific engineered for stiffness.

Fork Surly Troll, TIG-welded 4130 Chromoly

Surly Troll 420mm axle-to-crown x 43mm offset, tapered and butted straight blade, 4130 Chromoly. 51mm I.S. disc mount

Seatpost Clamp Surly Stainless, 30mm Surly stainless, included

Components

Headset Cane Creek 40
Brakes Avid BB7
Brake Levers Avid FR-5
Rotors SRAM Centerline 180/180mm
Shifters X5 Trigger
Stem 4 Bolt 31.8mm clamp
Handlebar Premetec
Grip/Tape Velo Non-Locking
Saddle WTB Volt Sport
Seatpost 2 -Bolt. 27.2mm

Drivetrain

Crankset TruVativ 48/36/26
Bottom Bracket SRAM
Front Derailleur Shimano Deore, FD-T611-3
Rear Derailleur SRAM GX Type 2.1
Cog or cogset Microshift CS-H100 10 speed, 11-36t
Chain KMC X10

Wheels

Front Hub Shimano Deore M525, 36h, QR
Rear Hub Shimano Deore M525, 36h, QR
Rims Alex Adventurer
Tires Schwalbe Big Apple 26" x 60mm
Big Dummy 2014 Geometry
units:
  • in
  • mm
Small (16) Medium (18) Large (20) xLarge (22)
Reach 15.7 399.6 16.5 418.1 17.0 431.7 17.5 444.1
Stack 22.3 566.5 22.8 580.0 23.4 594.1 24.1 611.3
Head Tube Angle 72.0° 72.0° 72.0° 72.0°
Head Tube Length 5.2 131.7 5.7 145.9 6.3 160.8 7.0 178.8
Seat Tube Length 16.0 406.4 18.0 457.2 20.0 508.0 22.0 558.8
BB Drop 1.6 40.0 1.6 40.0 1.6 40.0 1.6 40.0
Wheelbase 56.5 1435.9 57.4 1458.8 58.1 1477.0 58.9 1495.0
Chainstay Length 32.6 827.0 32.6 827.0 32.6 827.0 32.6 827.0
Top Tube Length, Actual 21.7 550.6 22.4 570.1 23.2 588.7 24.0 609.6
Top Tube Length, Effective 22.6 573.5 23.5 596.1 24.2 614.1 24.9 631.8
Seat Tube Angle 73.0° 73.0° 73.0° 73.0°
Standover Height 29.1 740.4 30.4 771.5 31.6 802.9 32.9 835.8
Stem Length 3.1 80 3.5 90 3.9 100 4.3 110
Stem Angle
Handlebar Width 27.6 700 29.5 750 29.5 750 29.5 750
Crank Length 6.7 170 6.9 175 6.9 175 6.9 175
Fork Length 16.5 420 16.5 420 16.5 420 16.5 420
Fork Rake 1.7 43.0 1.7 43.0 1.7 43.0 1.7 43.0

All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø676mm

Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded

Fork Construction

4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Rear Dropout Configuration

Vertical

Rear Hub Spacing

10 x 135mm

Front Hub Spacing

10 x 100mm

Rear Brake

Disc - 51mm I.S. (203mm max rotor)

Rim - Canti (removable posts)

Front Brake

Disc - 51mm I.S. (203mm max rotor)

Rim - Canti (removable posts)

Head Tube

Ø34mm

Steerer Tube

Ø28.6mm (1-1/8")

Crown Race

Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S.)

EC34/28.6

Stock Headset Lower (S.H.I.S.)

EC34/30

Seat Collar

Ø30mm

Seat Post

Ø27.2mm

Front Derailleur (Clamp)

Top-pull (Ø28.6mm)

Max Chainring (CL)[3]

No frame limitations

Bottom Bracket

73mm threaded (1.37" x 24TPI)

Tire Clearance Frame [1]/[2]

26 x 2.5" (w/ fenders)

Tire Clearance Fork [1]

26 x 3.0"

Rigid Fork Spec

420 x 43mm

Max Suspension Fork Length [4]

N/A

Bottle Mounts Frame

4 Standard

Bottle Mounts Fork

4 Three-Pack

Rack Mounts Frame

Yes (Surly Dummy Rails)

Rack Mounts Fork

Yes (upper, lower, and mid-blade threaded)

Fender Mounts Frame

Yes

Fender Mounts Fork

Yes

Other Features

Kickstand plate

Dedicated Rohloff cable routing and mount for OEM 2 axle plate

[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3] Listed chainring clearance is worst case scenario.  Clearances vary widely depending on components and configurations.
[4] Suspension fork length listed at full extension (not at sag)
