Hubs

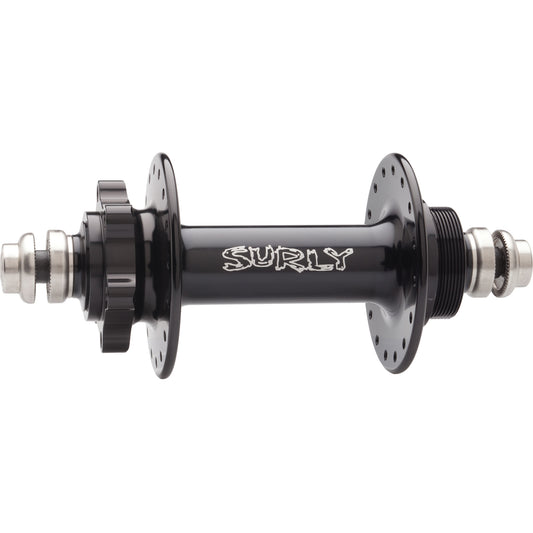

Oh, we’ve got hubs all right. All are forged aluminum with medium height flanges, and spin on high load, well sealed, adjustable cartridge bearings over standard sized axles (9x1mm front, 10x1mm rear). This is a common size so it’s easy to find replacements should the need arise or to swap axles if, for instance, you have a QR axle and want to go solid. And did you notice we said the bearings are adjustable? This is so you can adjust play as the bearings wear so you don’t have to replace bearings as often.

Fronts are spaced 100mm to fit most forks. Rears come in 3 widths: 120, 130, and 135mm. Some are disc with singlespeed freewheel threading on the drive side, others have freewheel threading on both sides (English 1.37x24tpi), and still others have FW threads on one side and fixed gear/lockring threads on the other (1.37x24tpi and 1.29x24tpi LH respectively). Some are silver, some are black. Some have 32-holes, some 36. You get the idea. They work good, and look good. ‘Nuff said. Here are all the options:

Color:Black or Silver

Front Disc and not-disc options in the following:
Silver, 32h, solid axle
Black, 32h, solid
Black, 32h, QR
Silver, 36h, solid
Black, 48h, solid

Rear, 120mm O.L.D.   No disc option:
Silver, 32h, solid, fixed gear/lockring both sides
Black, 32h, solid, fix/fix
Black, 32h, solid, fix/free
Silver, 36h, solid, fix/fix
Silver, 32h, solid, fixed gear/lockring one side, single-speed freewheel
                          threads the other
Black, 48h, solid, fix/fix
Black, 48h, solid, free/free

Rear, 130mm O.L.D.   (No disc option):
Black, 32h, solid, fix/free
Silver, 32h, solid, fix/free

Rear Non Disc, 135mm O.L.D.:
Silver, 32h, solid, free/free
Silver, 32h, solid, fix/free
Black, 32h, solid, free/free
Black, 32h, solid, fix/free
Black, 32h, QR, free/free
Silver. 36h, solid, free/free
Black, 48h, solid, fix/fix
Black, 48h, solid, free/free

Rear Disc, 135mm O.L.D.:
Silver, 32h, solid axle
Black, 32h, solid
Black, 32h, QR
Black, 36h, solid
Black, 32h, solid, fixed gear/lockring threading.  Yeah, that's right.

Building some wheels and need our hub dimensions? Click here
