Bikepacking – Fat-biking – All Terrain

Regular price $1,849.00 USD
Regular price $1,849.00 USD Sale price $1,849.00 USD
Sale
Size

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

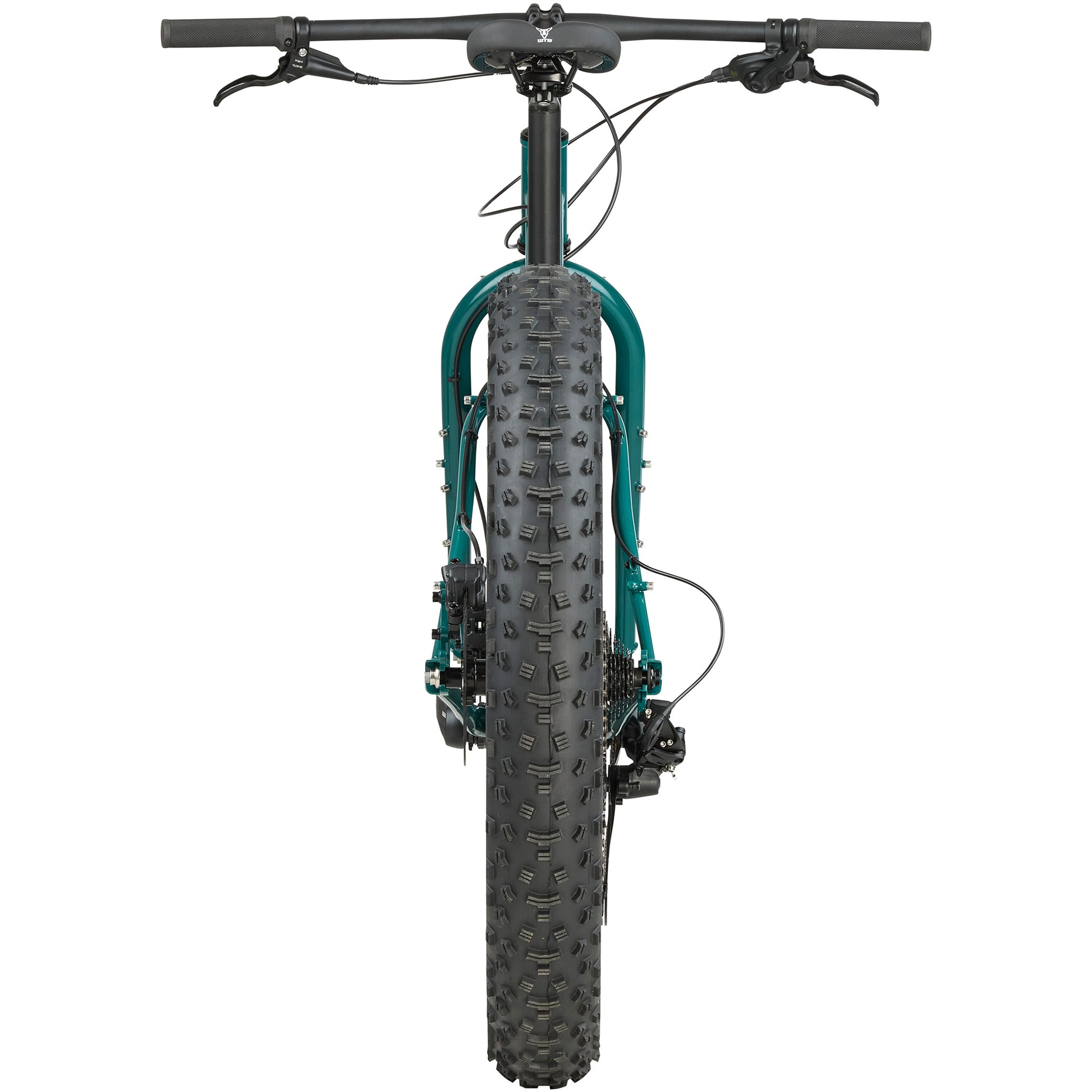

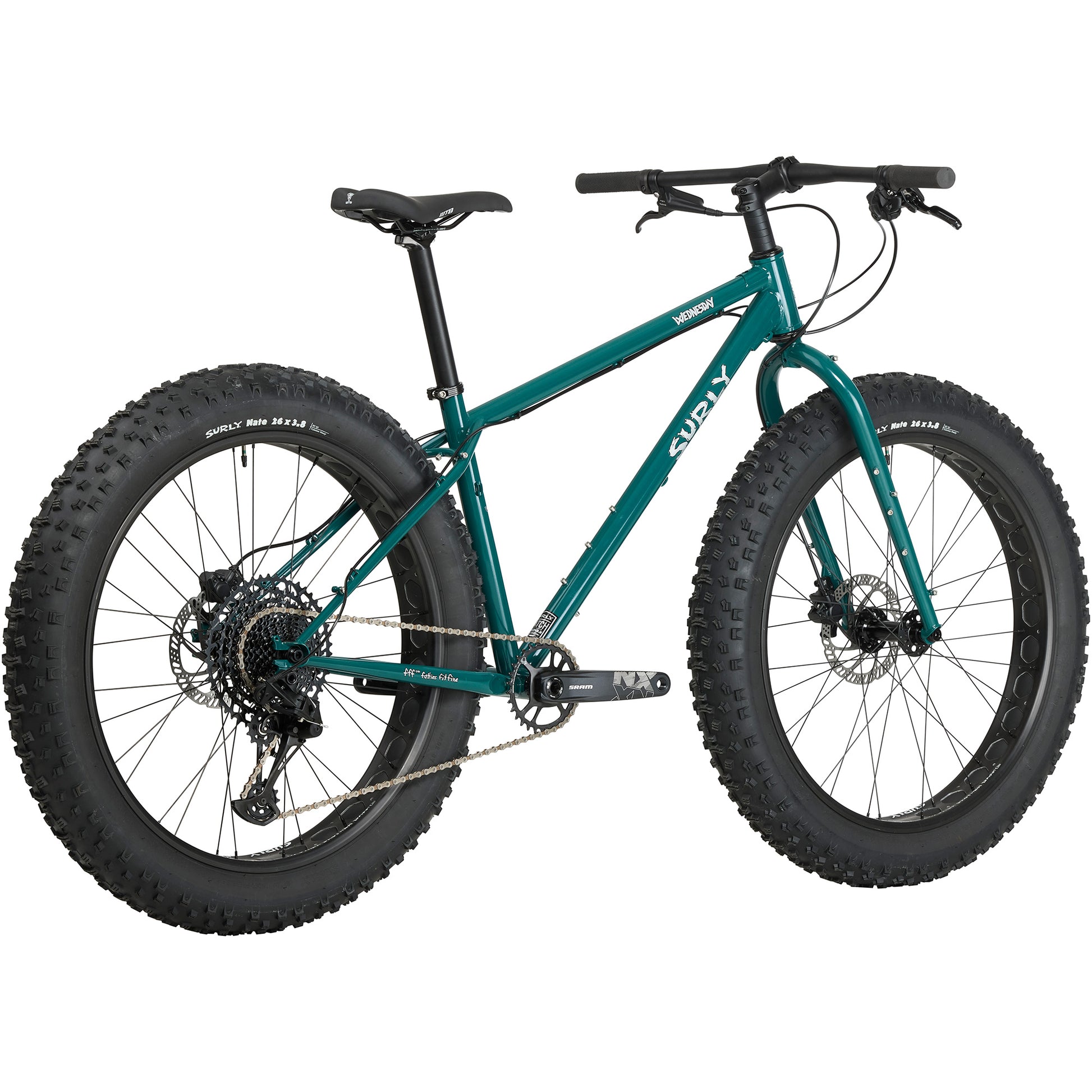

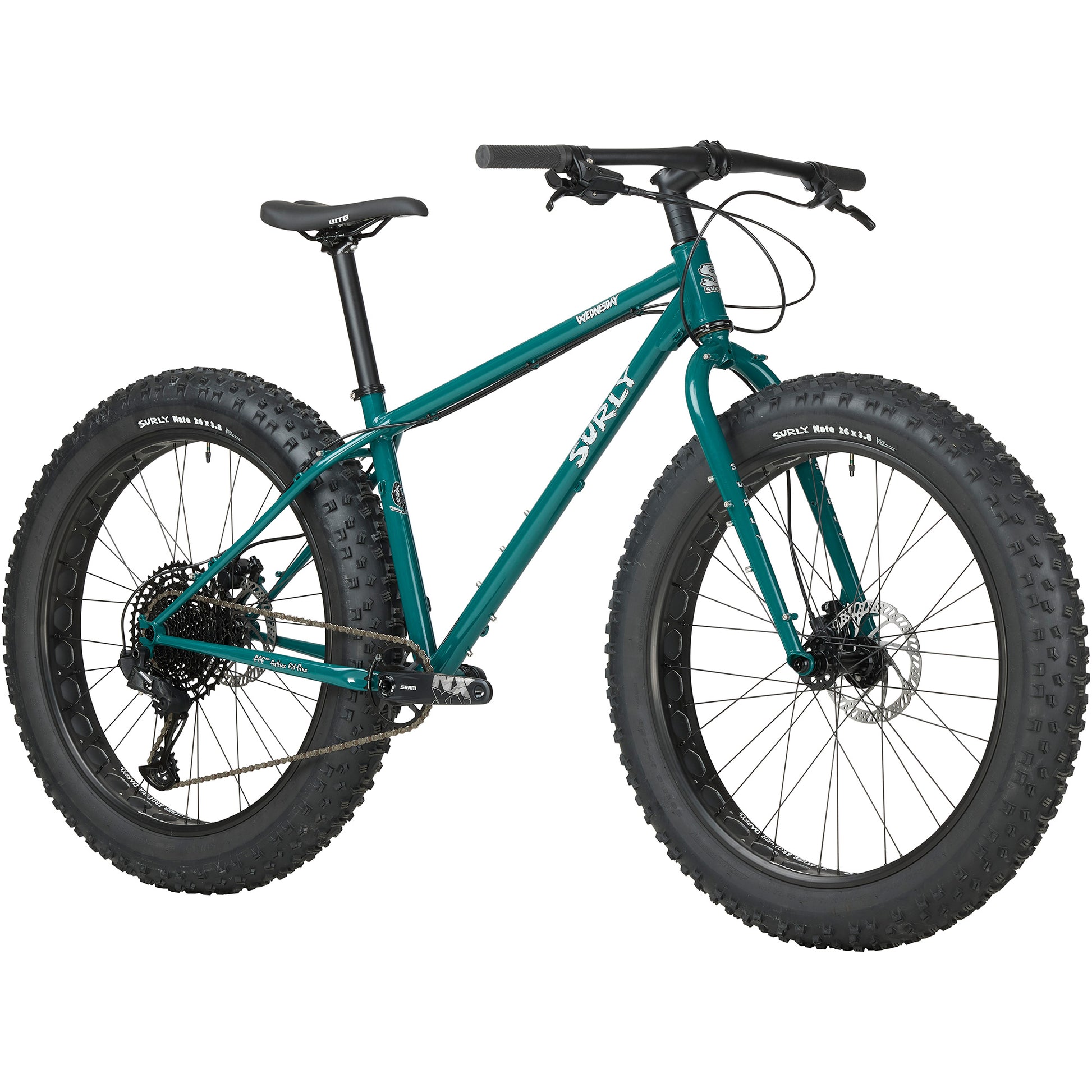

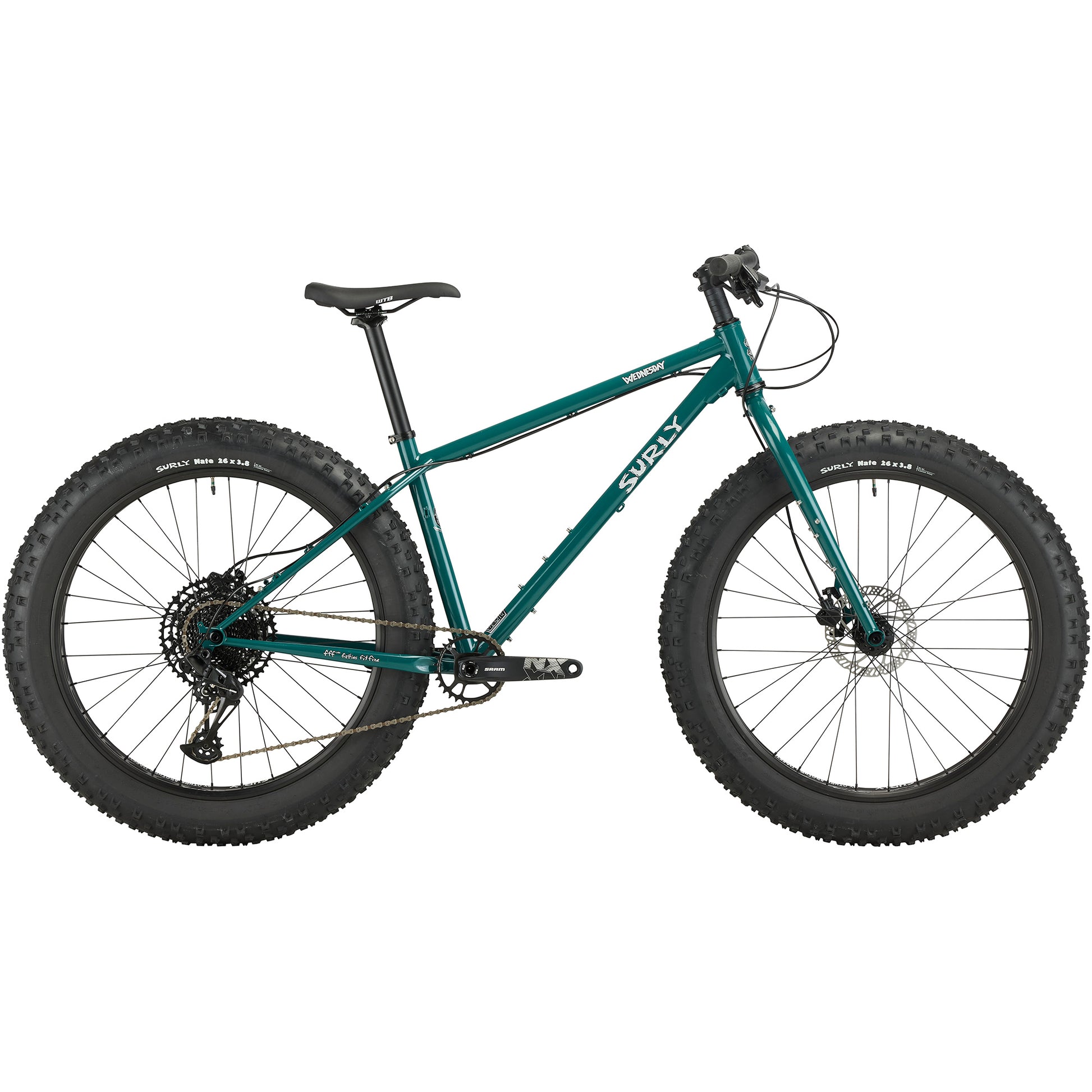

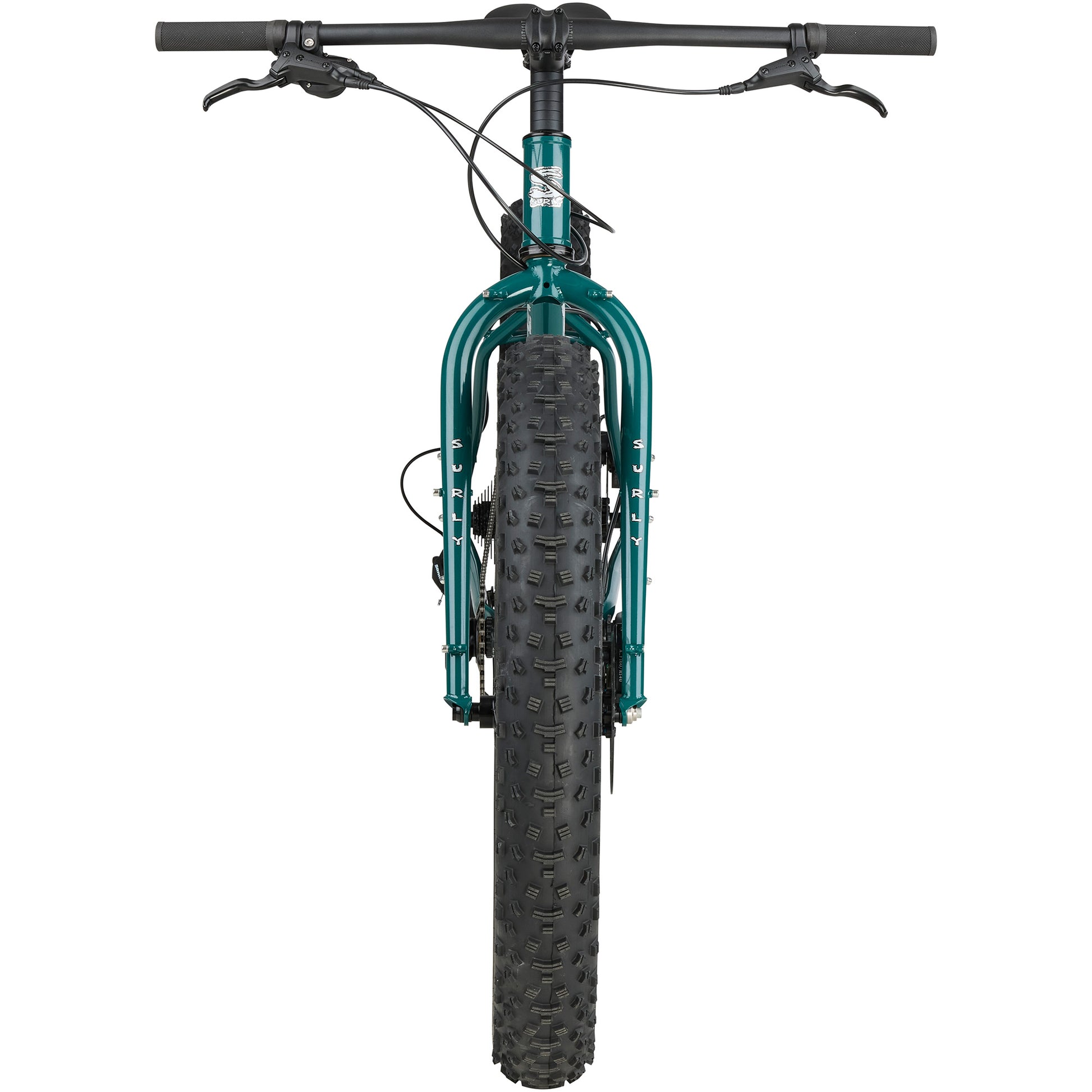

The All-Around Fat Bike

Wednesday sits in the middle of our Trail category, but don’t let that fool you into thinking that’s its only use. With Wednesday, we borrowed elements from some of our Trail and Touring models to create a versatile fat tire trail bike that can truly handle anything you want to attempt.

If you do an equal amount of off-road touring as you do hitting trails, Wednesday’s ability to play both parts equally will suit you well. Or, if you’re looking for a fat bike and don’t need the fattest tires on the market, Wednesday’s 26 x 4.6” tire clearance is just the ticket.

“Any day of the week’s a great day to ride a Wednesday.”

  • Modern mountain standards: stealth dropper post routing, 44mm headtube, suspension correction, front and rear thru-axles
  • Full suite of useful braze-ons: front and rear racks, multiple sets of three-pack mounts, fenders
  • Full-forward, short chainstay position: 26 x 3.8˝ tires on 80mm rims; full-rearward, longer chainstay position: 26 x 4.6˝ tires on an 80mm rim

Specifications

Build Kit

Frameset

Frame

Surly Wednesday, 100% Surly 4130 Chromoly steel. 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Color

OG Algae

Fork

Surly Wednesday, 100% Surly 4130 Chromoly steel. 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Components

Headset

Cane Creek

Seatpost Clamp

Stainless 33.1 collar, Black

Seatpost

Promax, 30.9mm, 0 offset

Stem

Promax, 31.8mm

Grips/Bar Tape

Velo Black

Saddle

WTB Volt

Drivetrain

Front Derailleur

N/A

Rear Derailleur

SRAM SX Eagle

Cassette

SRAM PG-1210 Eagle, 11-50t, 12spd

Chain

SRAM SX Eagle

Crankset

SRAM NX Eagle DUB, 30T

Shifter

SRAM SX Eagle

Brake Levers

Tektro HD-M275/276

Brake Calipers

Tektro HD-M275/276

Bottom Bracket

SRAM DUB

Rotors

Tektro 160/160, 6-bolt

Wheels

Front Tire

Surly Nate 26 x 3.8", 60tpi, tubeless ready

Rear Tire

Surly Nate 26 x 3.8", 60tpi, tubeless ready

Front Hub

Novatec 15 x 150mm, 32h, 6-bolt

Rear Hub

Novatec 12 x 177mm, 32h, 6-bolt

Spoke

14G Black

Rim

Surly My Other Brother Darryl

Weight

Complete Bike

36.1 lb for Medium

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 570.0 590.0 610.0 630.0 650.0
B. Stand Over 711.0 737.0 774.0 807.0 841.0
C. Reach 400.0 420.0 436.0 453.0 471.0
D. Stack 573.0 578.0 587.0 597.0 606.0
E. Total Seat Tube Length 316.0 366.0 416.0 466.0 516.0
F. Headtube Length 95.0 100.0 110.0 120.0 130.0
G. Headtube Angle
69.0
69.0
69.0
69.0
69.0
H. Seat Tube Angle
73.5
73.5
73.5
73.5
73.5
I. BB Drop 55.0 55.0 55.0 55.0 55.0
K. Chainstay Length 435.0 435.0 435.0 435.0 435.0
L. Fork Length Axle to Crown 468.0 468.0 468.0 468.0 468.0
M. Fork Offset 47.0 47.0 47.0 47.0 47.0
N. Wheelbase 1081.0 1101.0 1122.0 1143.0 1164.0
Crank Arm Length 170.0 170.0 175.0 175.0 175.0
Handlebar Width 700.0 700.0 750.0 750.0 750.0
Recommended Rider Height 145.0 - 160.0 155.0 - 170.0 165.0 - 180.0 175.0 - 191.0 185.0 - 201.0
Stem Length 60.0 60.0 70.0 70.0 80.0

Frame Specs

  • Design Wheel/Tire Sizes 26 x 3.8"
  • Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
  • Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
  • Suspension Fork Length (Travel) 511 x 51mm (Fatbike 100mm)
  • Rigid Fork Length 468mm
  • Fork Offset 47mm
  • Axle to Crown 468mm
  • Rear Spacing 12 x 177mm (Surly axle included)
  • Front Brake (Rotor) Disc - 51mm I.S. (203mm max rotor)
  • Headset - Upper ZS44/28.6
  • Headset - Lower EC44/30
  • Front Spacing 15 x 150mm (Surly axle included)
  • Steerer Tube Ø28.6mm (1-1/8")
  • Crown Race Ø30mm (1-1/8")
  • Stem Clamp Ø28.6mm (1-1/8")
  • Seatpost Ø30.9mm
  • Dropper Post Compatible Yes
  • Seatpost Clamp Ø33.1mm
  • Front Derailleur Clamp (Ø34.9mm)
  • Front Derailleur Type High direct mount top-pull
  • Bottom Bracket 100mm threaded (1.37" x 24TPI)
  • Crankset (Max Ring) 1x (Fat bike 170): 34T / 2x (Fat bike 170): 26/38T / 2x (Surly OD): 22/36T
  • Bottle Mounts 2 Standard (XS - M), 3 Standard (L - XXL)
  • Fork Mounts 2 Three-Pack, Rack Mounts (upper, lower, and mid-blade threaded)
  • Front Fender Mounts N/A
  • Rear Fender Mounts Yes

Warranty

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
