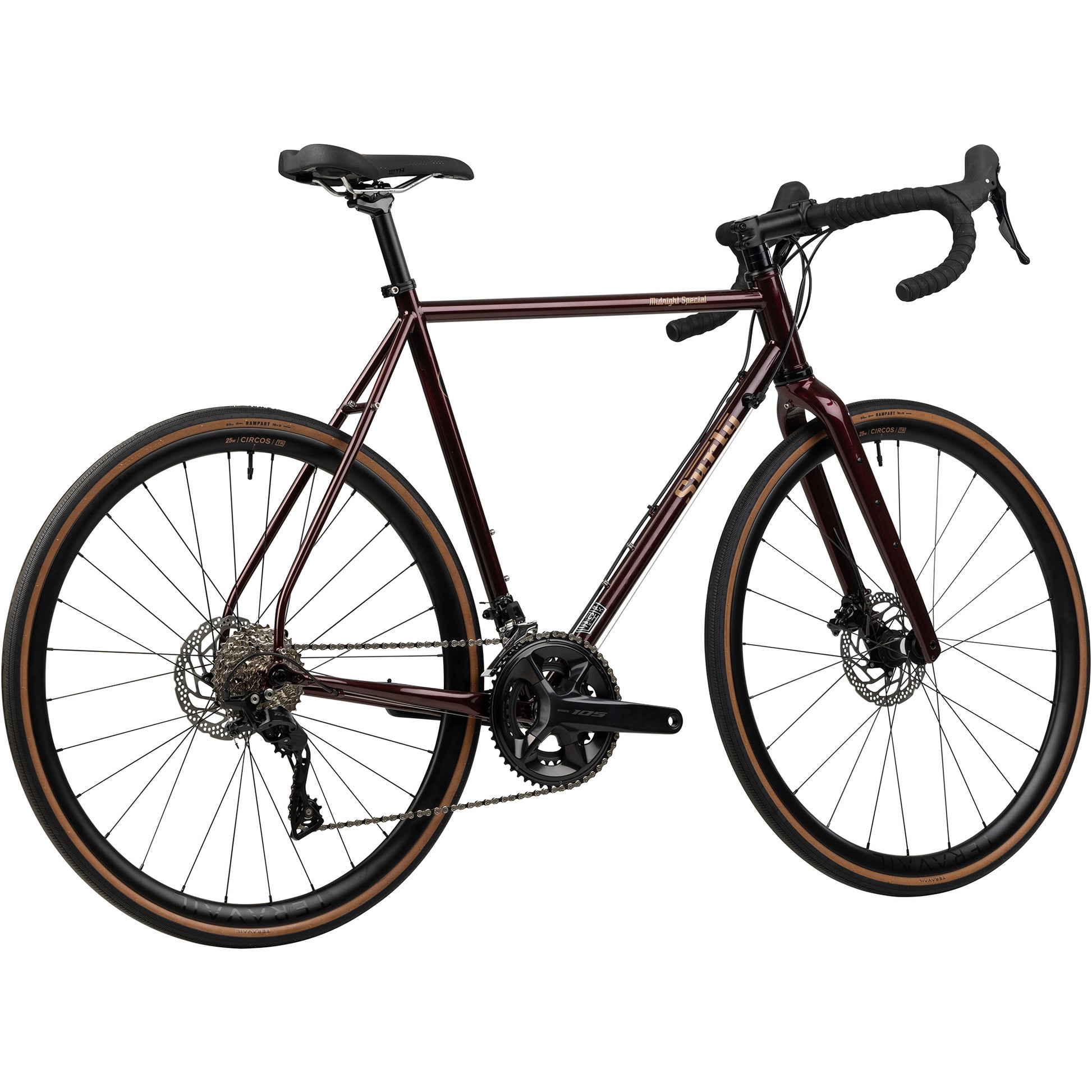

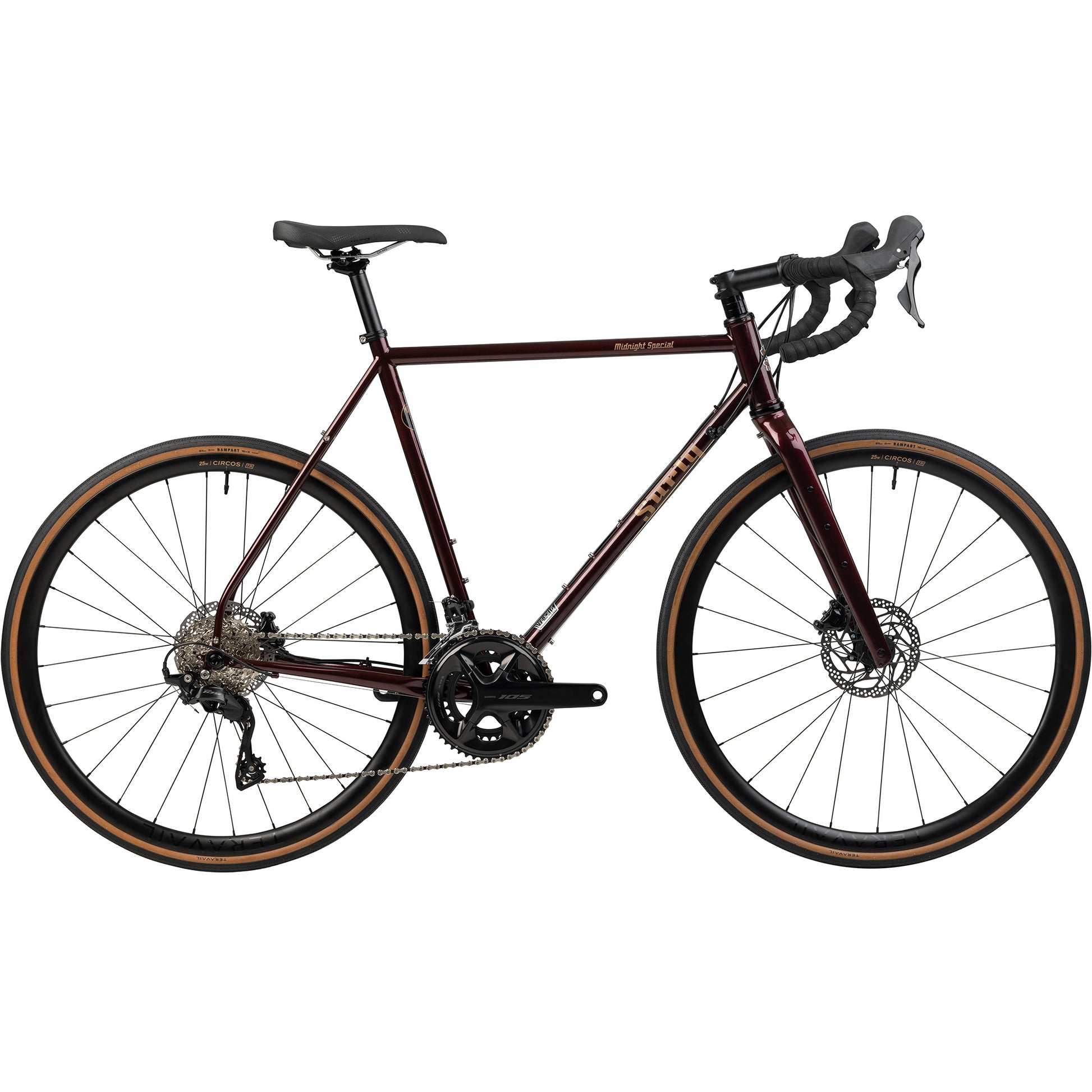

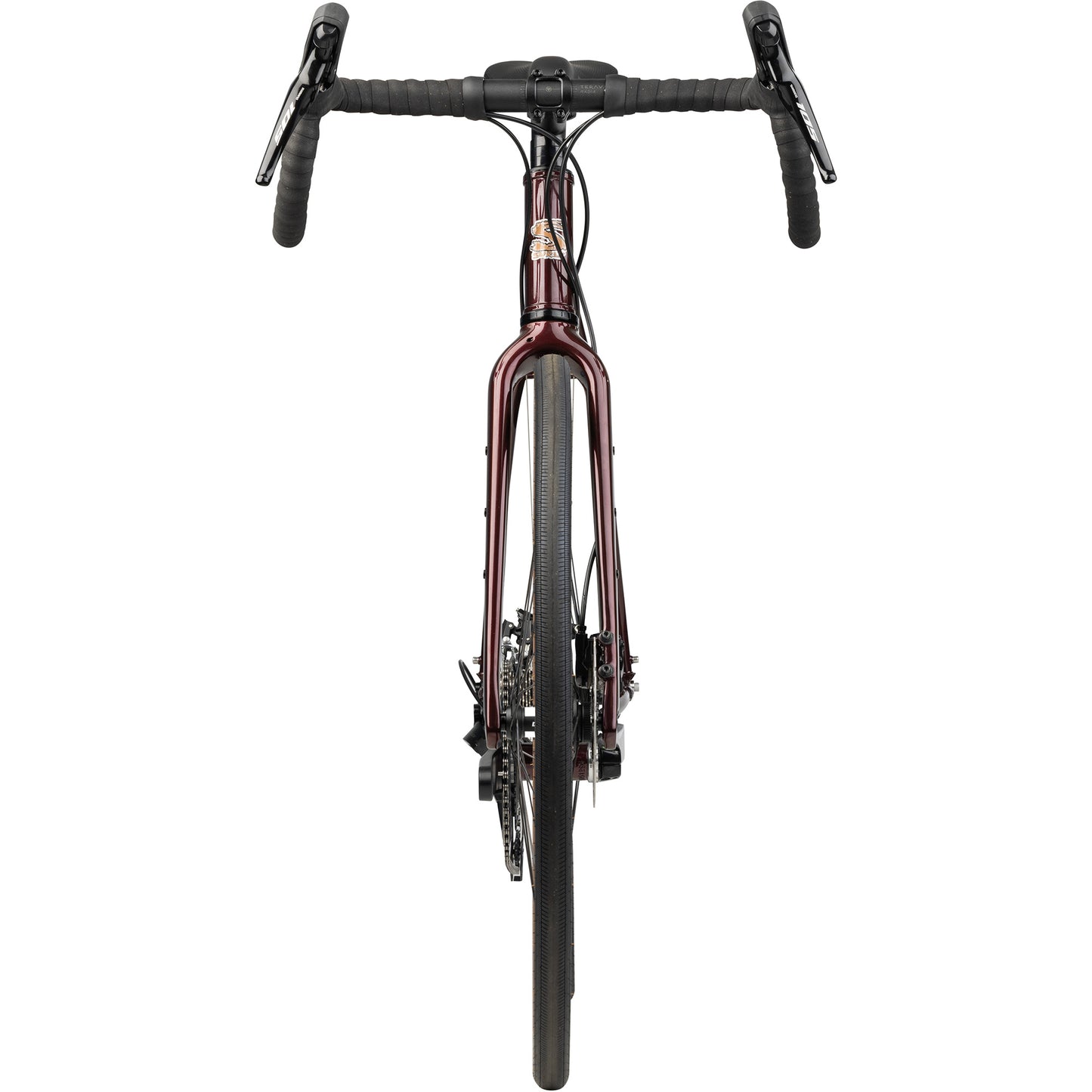

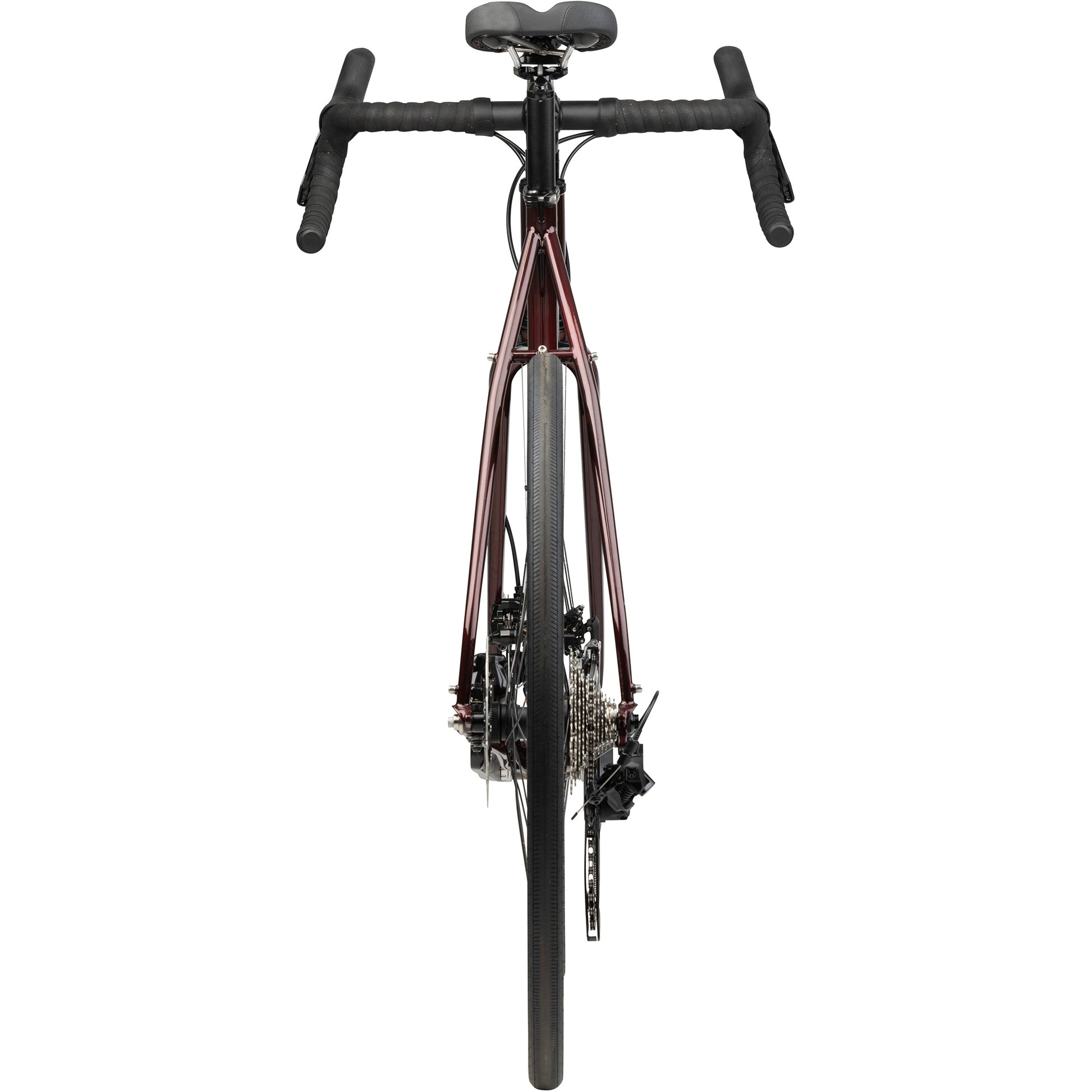

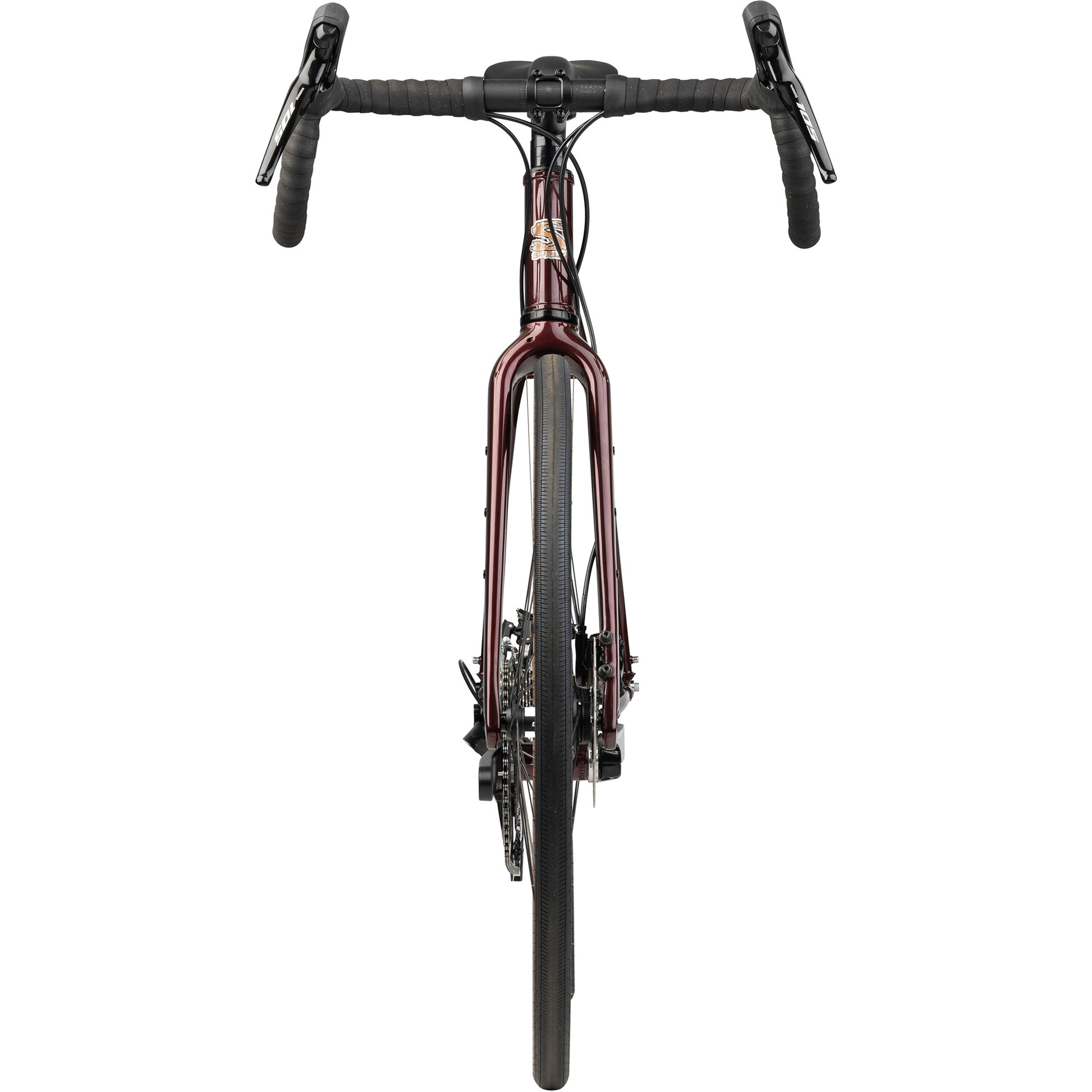

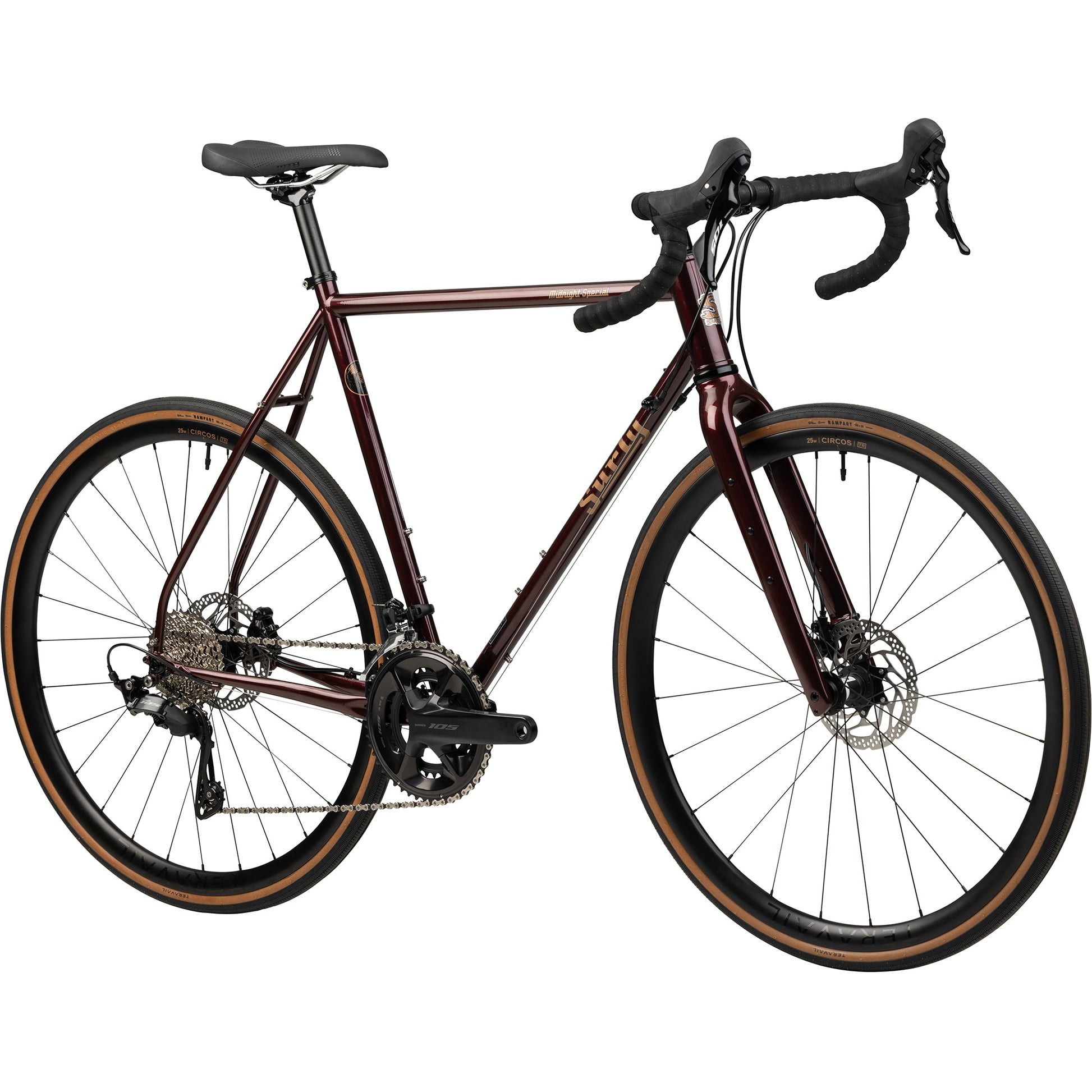

Midnight Special 700c - Black Cherry Fizz

Endurance Road Plus Bike for Backroads

$3,499.00 USD

~~$0.00 USD~~ $3,499.00 USD

Sale

Size 40cm 46cm 50cm 54cm 56cm 58cm 60cm 64cm

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

This Midnight Special is special. It’s the first bike we’ve ever combined with carbon fiber. Yes, there is a years-long paper trail of us touting the benefits of steel and steel alone. But just because steel is real doesn't mean everything else is fake. Carbon fiber has its own thing going for it, like an incredible strength-to-weight ratio and a knack for reducing road chatter — something you’ll thank us for halfway through your next century on bumpy backroads.

Carbon fiber helps make Midnight Special what it was always meant to be: part hustle and part muscle, a road bike that feels spirited on fresh pavement yet transitions smoothly into the seedy underbelly of road riding, where the asphalt crumbles away and potholes threaten to throw you off-balance.

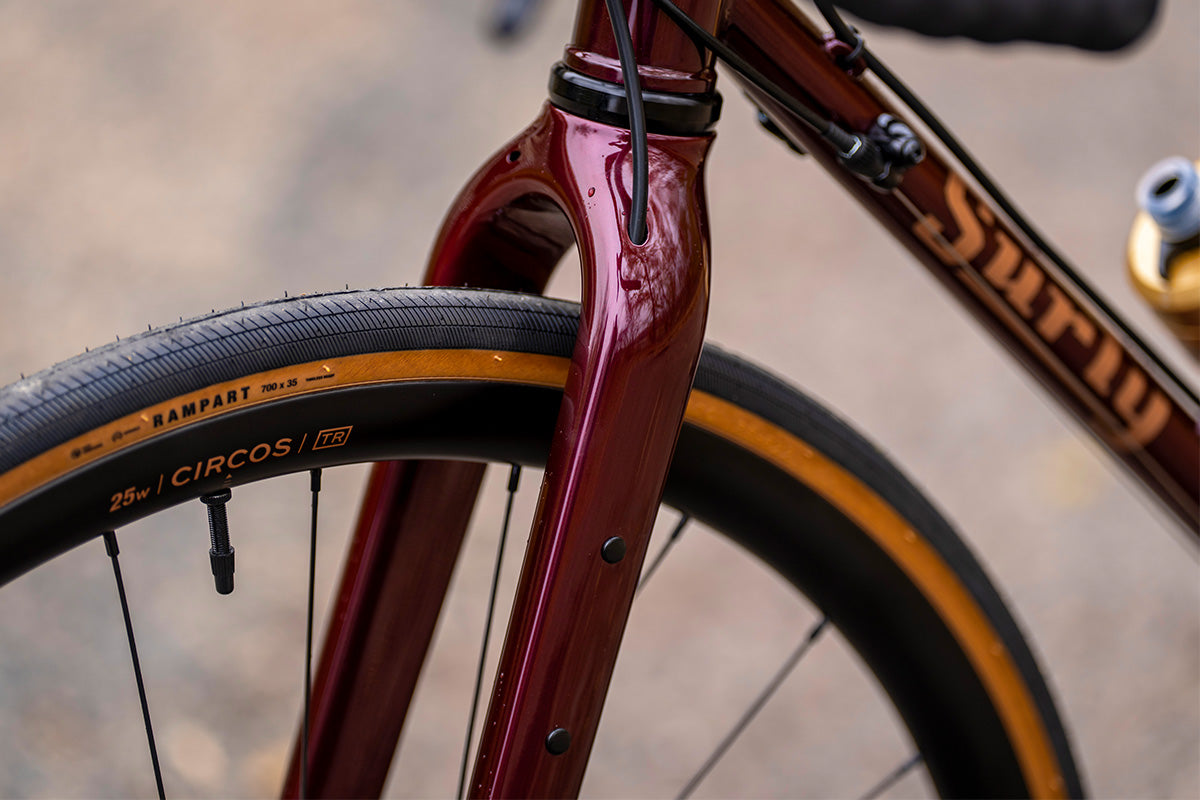

Smooth-sailing combination of Surly steel tubing with a carbon fiber fork and rims
Modern road standards like flat-mount disc brakes, 12mm front and rear thru-axles, and a 44mm head tube

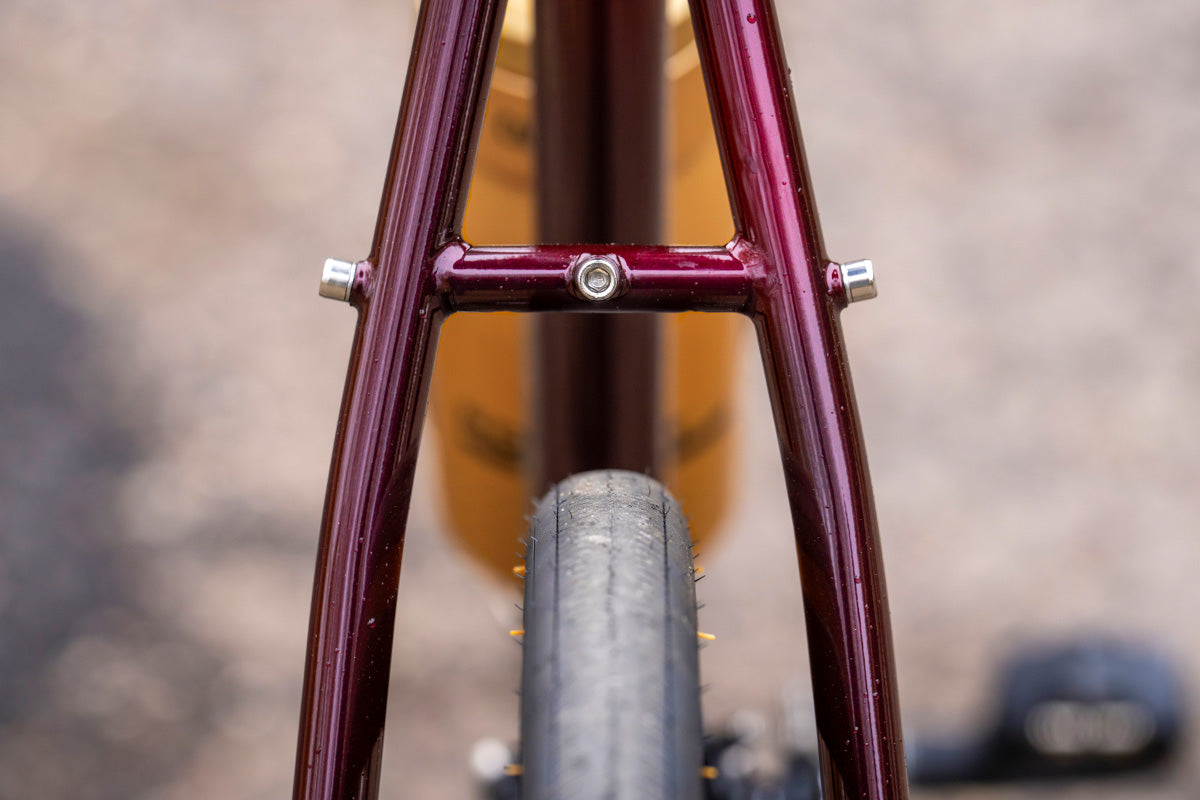

Clearance for 650b x 50mm or 700c x 42mm tires without fenders (650b x 50mm or 700c x 38mm with fenders)

Specifications

Build Kit

Frameset

Frame

Surly Midnight Special, 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Color

Black Cherry Fizz

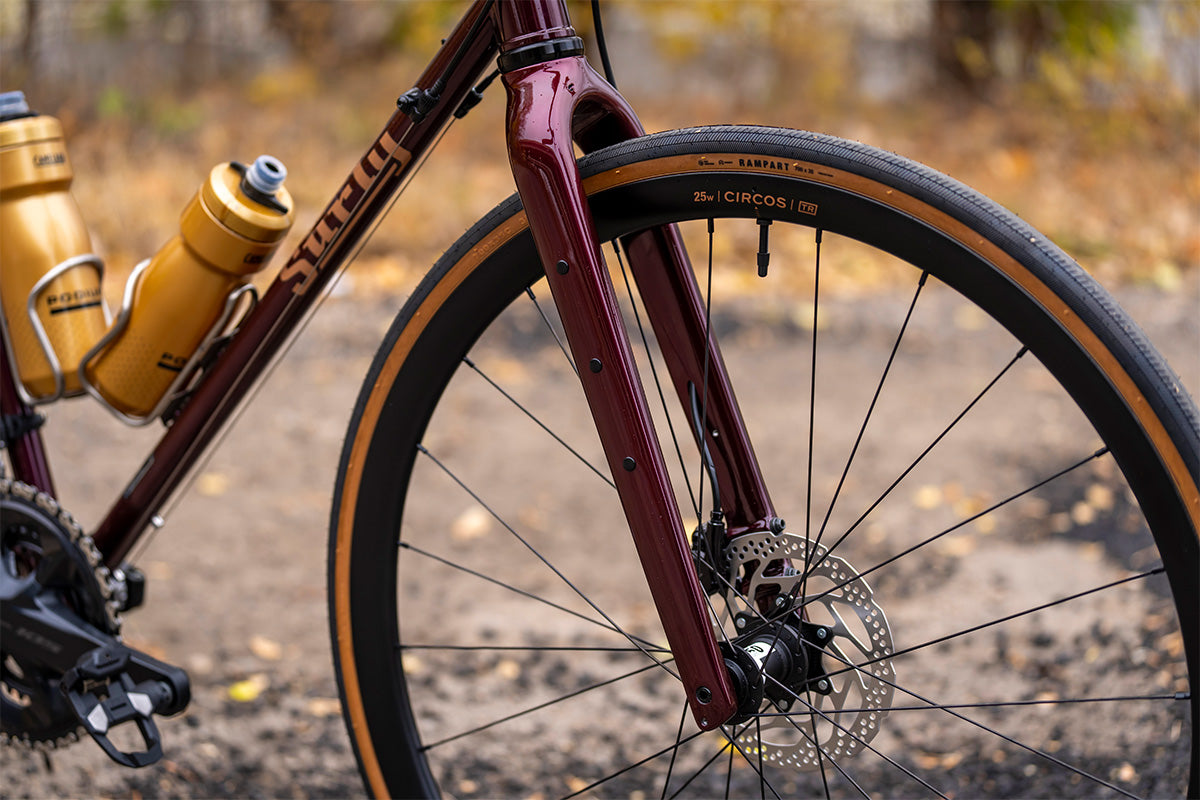

Fork

Salsa Waxwing Carbon Aluminum Steerer, 402mm Axle to Crown

Components

Headset

FSA Orbit ITA

Seatpost Clamp

30.0mm Surly Stainless

Seatpost

Promax SP-2019 (12mm offset on 54-64cm frames)

Stem

Teravail Radia

Grips/Bar Tape

Velo Black Cork

Saddle

WTB Volt Medium, Cromoly

Handlebar

Teravail Radia

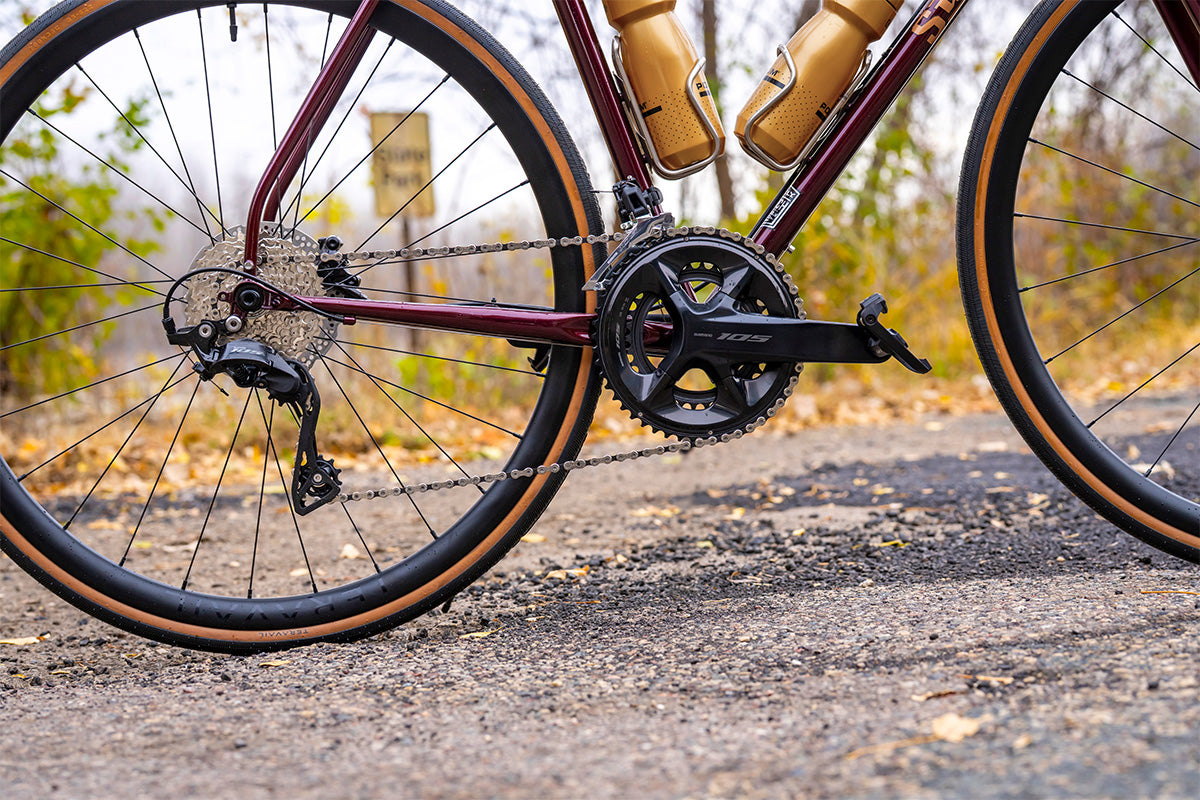

Drivetrain

Front Derailleur

Shimano 105 R7100

Rear Derailleur

Shimano 105 R7100

Cassette

Shimano 105 R7101, 11-34t, 12-speed

Chain

KMC X12

Crankset

Shimano 105 R7100, Hollowtech 2, 50-34T

Shifter

Shimano 105 R7120

Brake Levers

Shimano 105 R7170

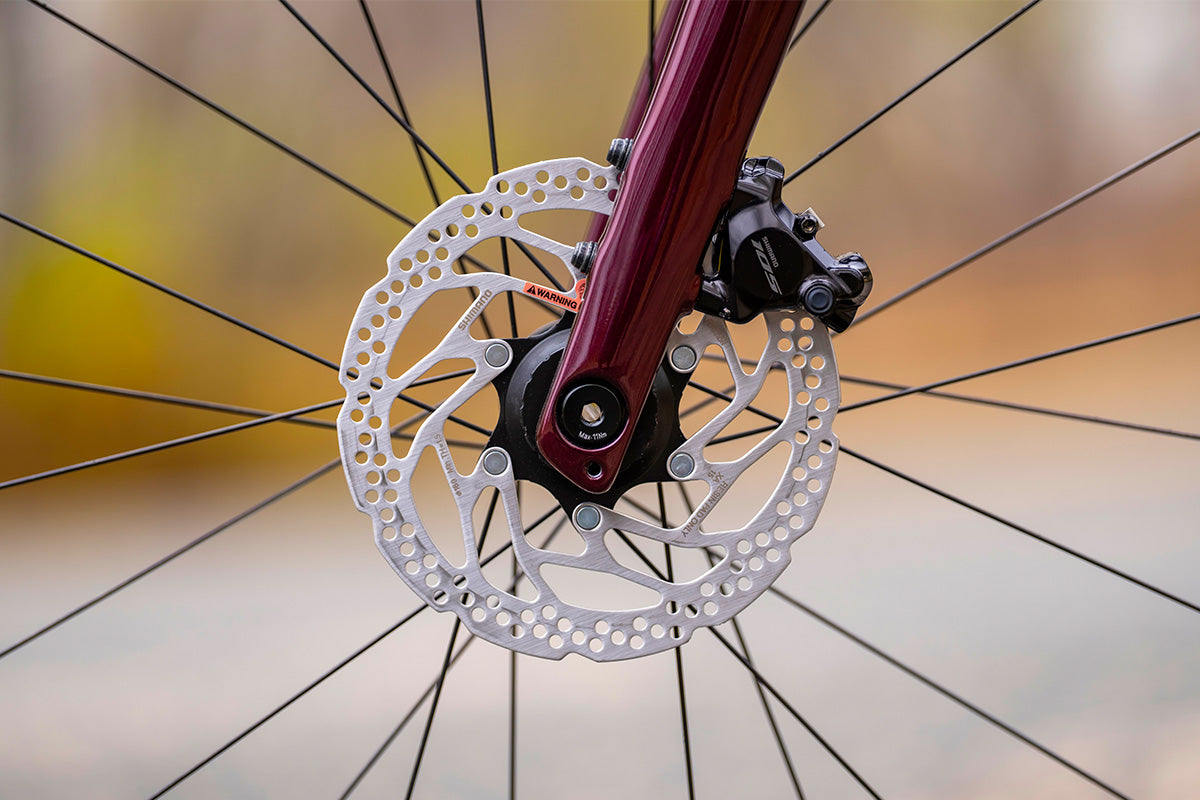

Brake Calipers

Shimano 105 R7170

Bottom Bracket

Shimano RS501 BSA

Rotors

Shimano RT30 160/160, Center Lock

Wheels

Front Tire

Teravail Rampart 700c x 35mm, Durable, Tubeless-Ready, sealant included

Rear Tire

Teravail Rampart 700c x 35mm, Durable, Tubeless-Ready, sealant included

Front Hub

DT Swiss 350 12 x 100mm, thru-axle

Rear Hub

DT Swiss 350 12 x 142mm, thru-axle

Spoke

DT Swiss Competition

Rim

Teravail Circos Carbon Rim 25mm 700c, 24h front/28h rear

Weight

Complete Bike

24 lb 1 oz for 56cm

*Specifications are subject to change without notice

Geometry

Size	40cm	46cm	50cm	54cm	56cm	58cm	60cm	64cm
A. Effective Top Tube	501.0	521.0	541.0	556.0	570.0	585.0	605.0	625.0
B. Stand Over	706.0	748.0	779.0	809.0	830.0	849.0	868.0	900.0
C. Reach	360.0	363.0	376.0	386.0	392.0	402.0	409.0	421.0
D. Stack	533.0	539.0	546.0	562.0	581.0	600.0	621.0	642.0
E. Total Seat Tube Length	400.0	460.0	500.0	540.0	560.0	580.0	600.0	640.0
F. Headtube Length	95.0	100.0	110.0	125.0	140.0	160.0	180.0	200.0
G. Headtube Angle	70.7	71.2	71.7	72.2	73.0	73.0	73.5	73.9
H. Seat Tube Angle	75.2	73.7	73.2	73.2	73.0	73.0	72.5	72.4
I. BB Drop	68.0	68.0	63.0	63.0	65.0	65.0	65.0	65.0
J. BB Height	280.0	280.0	285.0	285.0	283.0	283.0	283.0	283.0
K. Chainstay Length	425.0	425.0	425.0	425.0	425.0	425.0	425.0	425.0
L. Fork Length Axle to Crown	402.0	402.0	402.0	402.0	402.0	402.0	402.0	402.0
M. Fork Offset	50.0	50.0	50.0	50.0	50.0	50.0	50.0	50.0
N. Wheelbase	996.0	996.0	1009.0	1019.0	1022.0	1037.0	1046.0	1060.0
Crank Arm Length	165.0	165.0	170.0	170.0	170.0	175.0	175.0	175.0
Handlebar Width	400.0	400.0	420.0	440.0	440.0	460.0	460.0	460.0
Recommended Rider Height	147.0 - 158.0	155.0 - 165.0	163.0 - 173.0	168.0 - 178.0	173.0 - 183.0	178.0 - 188.0	185.0 - 196.0	193.0 - 203.0
Stem Length	70.0	80.0	80.0	100.0	100.0	120.0	120.0	120.0

Measurements based on:

a 700c x 35 tire with an outside diameter of Ø695mm. Standover is measured form the top of the TT, at the center

Frame Specs

Design Wheel/Tire Sizes 650b x 50mm
Alternate Wheel/Tire Sizes 700c x 42mm
Max Tire Outer Diameter Frame clearance:
27.5 x 2.35" (w/o fenders)
700c x 42mm (w/o fenders)
650b x 50 (w/ fenders)
700c x 38mm (w/ fenders)

Fork clearance:
27.5 x 2.35" (w/o fenders)
700c x 42mm (w/o fenders)
650b x 50 (w/ fenders)
700c x 38mm (w/ fenders)
Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction Carbon fiber
Suspension Fork Length (Travel) N/A
Rigid Fork Length 402 x 50mm
Axle to Crown 402mm
Rear Spacing 12 x 142mm (Surly axle included)
10 x 135mm with Surly 10/12 Adapter Washers (not included)
Rear Brake (Rotor) Flat-mount 140 (160mm max rotor), 25mm thick mount
Front Brake (Rotor) Flat-mount 160 (160mm max rotor), 35mm thick mount
Headset - Upper ZS44/28.6
Headset - Lower EC44
Front Spacing 12 x 100mm
Front Axle Size M12 x 120mm, TP=1.5, TL=12
Steerer Tube Ø28.6mm (1-1/8")
Crown Race Integrated SHIS 40, 36° angle
Seatpost Ø27.2mm
Dropper Post Compatible No
Seatpost Clamp Ø30mm
Front Derailleur Type Bottom-pull (Ø28.6mm)
Bottom Bracket 68mm threaded (1.37" x 24TPI)
Crankset (Max Ring) 1x (Road): 44T
2x (Road): 34/50T
3x (Road): 30/39/50T
Accessory Mounts Downtube mounted shifter bosses (cable housing stops not included with frameset)
Bottle Mounts 3 Standard
Fork Mounts Two sets of Three-Pack Mounts. Rack mounts: low-rider
Front Fender Mounts Yes
Rear Fender Mounts Yes

Documents

Warranty

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
