Krampus Rigid

Singletrack – Bikepacking – 29+ Traction

$1,849.00 USD

~~$1,849.00 USD~~ $1,849.00 USD

Sale

Size Small Medium Large X-Large

Quantity

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Breaking the Mold with a 29er Bike

As the first “plus” bike to hit the market, Krampus changed the way many people approach trail riding. It’s shown people the light of how high volume, large diameter tires can vastly improve the ride experience. It’s also done a bang-up job dispelling the myth that big tires make you slow.

Krampus is kind of like the opposite of a mullet: long in the front and short in the rear. With a long toptube and compact chainstays, it takes trail-shredding abilities to the next level. A mullet may be business in the front, party in the back but Krampus makes partying its business.

"Lean back, hang on, and ride that wild horse." -Thor

Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
Clearance for 29" x 3" tires

Specifications

Build Kit

Frameset

Frame

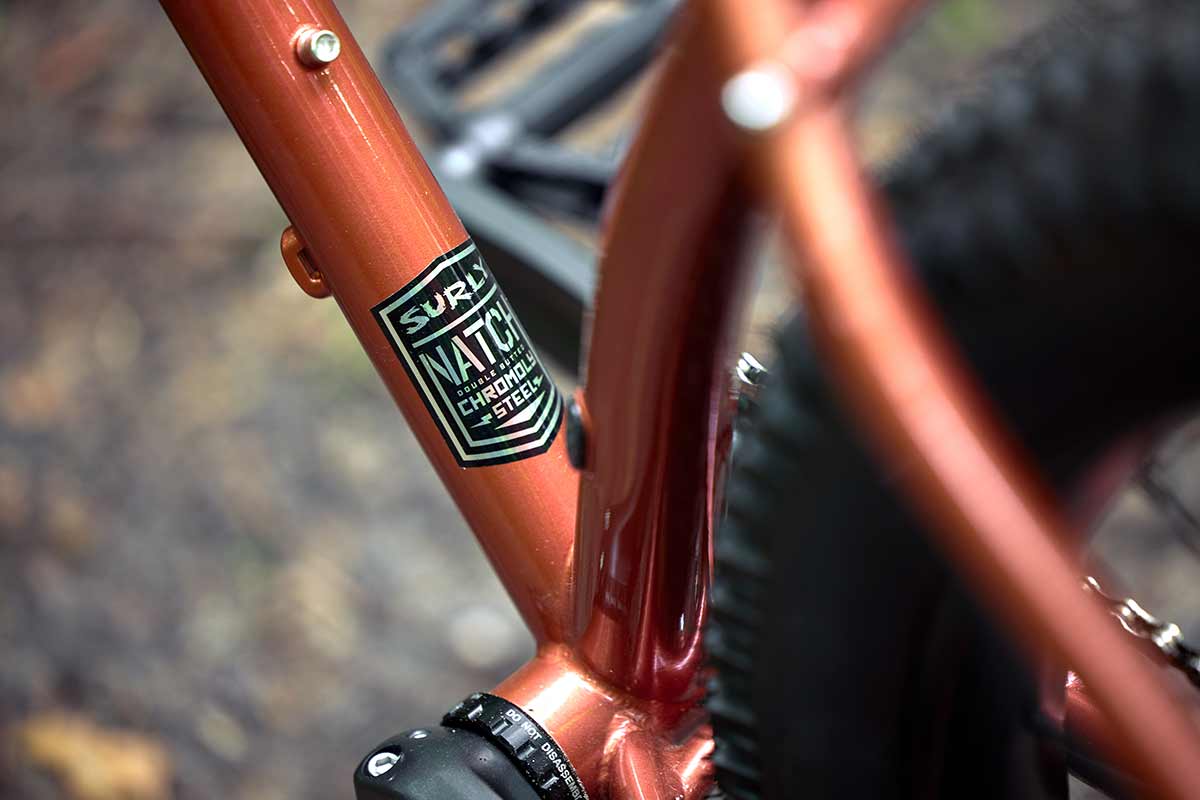

Surly Krampus - 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated

Color

Chester Copperpot

Fork

Surly Krampus - 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated

Components

Headset

Cane Creek

Seatpost Clamp

Surly Stainless, 33.1mm

Seatpost

Promax 30.9mm, 400mm

Stem

ProMax 31.8mm

Grips/Bar Tape

Velo Black

Saddle

WTB Volt

Handlebar

Salsa Rustler 31.8

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano M6100 Deore SGS

Cassette

SunRace CSMZ800, 11-51t, 12-spd

Chain

KMC X12 Anti-Rust

Crankset

Shimano MT511, 30T

Shifter

Shimano M6100 Deore

Brake Levers

Tektro HD-M275

Brake Calipers

Tektro HD-M275

Bottom Bracket

Shimano MT501, BSA

Rotors

Tektro 180/160, 6-Bolt

Wheels

Front Tire

Surly Dirt Wizard 29 x 3", 60tpi, Tubeless Ready

Rear Tire

Surly Dirt Wizard 29 x 3", 60tpi, Tubeless Ready

Front Hub

Novatec 15x110mm, 32h, 6-bolt

Rear Hub

Novatec 12x148mm, 32h, 6-bolt

Spoke

14G Black

Rim

WTB ST i40 TCS 2.0

Weight

Complete Bike

32 lb. 13 oz. for Medium

*Specifications are subject to change without notice

Geometry

Size	Small	Medium	Large	X-Large
A. Effective Top Tube	585.0	610.0	635.0	660.0
B. Stand Over	770.0	797.0	825.0	853.0
C. Reach	404.0	426.0	448.0	470.0
D. Stack	593.0	602.0	612.0	621.0
E. Total Seat Tube Length	368.0	419.0	470.0	521.0
F. Headtube Length	90.0	100.0	110.0	120.0
G. Headtube Angle	69.0	69.0	69.0	69.0
H. Seat Tube Angle	73.0	73.0	73.0	73.0
I. BB Drop	65.0	65.0	65.0	65.0
K. Chainstay Length	435.0	435.0	435.0	435.0
L. Fork Length Axle to Crown	483.0	483.0	483.0	483.0
M. Fork Offset	47.0	47.0	47.0	47.0
N. Wheelbase	1087.0	1113.0	1138.0	1164.0
Crank Arm Length	165.0	170.0	170.0	170.0
Handlebar Width	750.0	800.0	800.0	800.0
Recommended Rider Height
Stem Length	70.0	70.0	70.0	80.0

Frame Specs

Design Wheel/Tire Sizes 29 x 3.0"
Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Suspension Fork Length (Travel) 120mm
Rigid Fork Length 483mm
Fork Offset 47mm
Axle to Crown 483mm
Rear Spacing "Gnot-Boost" 145mm; 12 x 142mm or 12 x 148mm (Surly axle included) / 10 x 135mm with Surly 10/12 Adapter Washers (not included)
Front Brake (Rotor) Disc - 51mm I.S. (203mm max rotor)
Headset - Upper ZS44/28.6
Headset - Lower EC44/30
Front Spacing 15 x 110mm
Steerer Tube Ø28.6mm (1-1/8")
Crown Race Ø30mm (1-1/8")
Stem Clamp Ø28.6mm (1-1/8")
Seatpost Ø30.9mm
Dropper Post Compatible Yes
Seatpost Clamp Ø33.1mm
Front Derailleur Clamp (Ø34.9mm)
Front Derailleur Type High direct mount top-pull (Ø34.9mm); 26mm offset adapter (not included) for 142 or 135mm rear hub spacing; 29mm offset adapter (not included) for 148mm rear hub spacing
Bottom Bracket 73mm threaded (1.37" x 24TPI)
Crankset (Max Ring) 1x (Mtn): 28T / 1x (Boost): 30T / 2x (Boost): 24/36T
Bottle Mounts 1 Standard + 1 Three-Pack
Rear Fender Mounts Yes

Documents

Warranty

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
