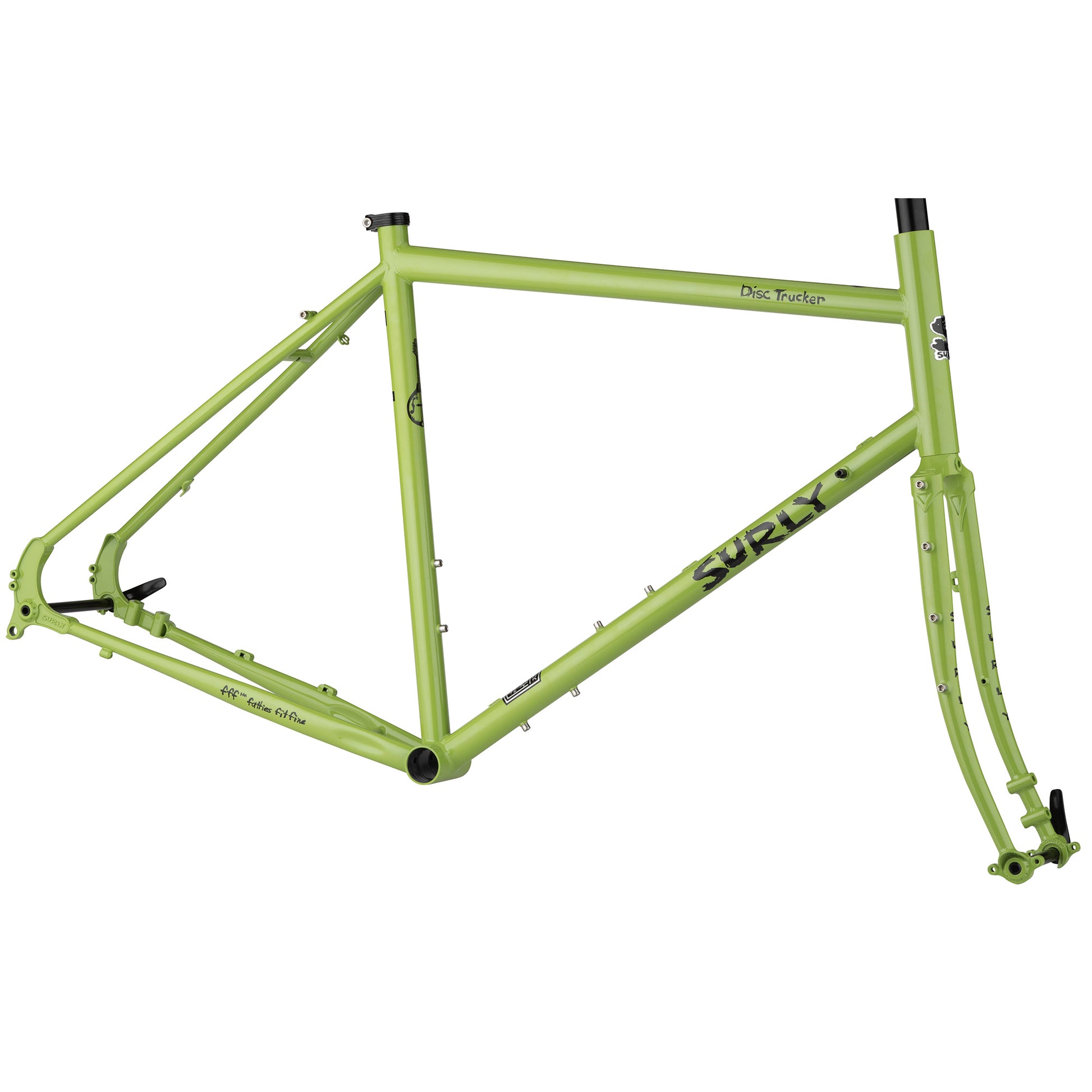

Disc Trucker 26" Frameset - Pea Lime Soup

On-Road Touring – Commuting – Light Gravel

$749.00 USD

~~$0.00 USD~~ $749.00 USD

Sale

Size 42cm 46cm 50cm 52cm 54cm 56cm

Quantity

Product Locator by Locally

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Why Disc Brake Touring Bikes?

Disc Trucker enjoys the same reputation as Long Haul Trucker: It’s one of the best-riding and most value-packed drop bar touring bikes out there. Sometimes, however, a combination of load, climate, and terrain demands a bit more braking performance than a standard rim-brake LHT can provide.

That’s where the newly redesigned Disc Trucker comes in. Packing reliable stopping power and a horde of useful mounting points, shortened chainstays up the Disc Trucker’s stiffness and maneuverability around corners. Add in improved fit and handling under load, plus captured thru-axles for tool-free removal and installation, and the Disc Trucker is ready to help you meet — or dodge — your daily obligations.

Dynamo routing on the fork, plus three-pack mounts on the blade and every braze-on you’ll ever need for racks, fenders, water bottle cages, and more
12mm thru-axles for a stiffer feel and increased stability when fully loaded
Shortened seat tube and slightly sloped top tube for improved stand-over clearance, plus increased stack height for a more upright and comfortable riding position on those long hauls
Spec’d with the Truck Stop Bar and tubeless ExtraTerrestrial tires for dependable handling and traction
Flat-mount disc brakes
Frame sizes 42–56cm are available with 26” diameter wheels, while frame sizes 56–64cm are available with 700c diameter wheels
Clearance for 26” x 2.1” tires with or without fenders, or 700c x 47mm with or without fenders

Specifications

Build Kit

Frameset

Frame

Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Color

Pea Lime Soup

Fork

Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Components

Seatpost Clamp

Surly Stainless, 30.0mm

Drivetrain

Wheels

*Specifications are subject to change without notice

Geometry

Size	42cm	46cm	50cm	52cm	54cm	56cm
A. Effective Top Tube	500.0	515.0	530.0	545.0	560.0	575.0
B. Stand Over	710.0	731.0	766.0	782.0	800.0	819.5
C. Reach	362.0	371.0	369.0	374.5	378.0	387.5
D. Stack	515.0	520.0	561.0	575.5	594.5	613.0
E. Total Seat Tube Length	420.0	460.0	500.0	520.0	540.0	560.0
F. Headtube Length	125.0	130.0	170.0	185.0	205.0	225.0
G. Headtube Angle	70.0	70.0	71.0	71.0	71.0	71.0
H. Seat Tube Angle	75.0	74.5	74.0	73.5	73.0	73.0
I. BB Drop	50.0	50.0	50.0	50.0	50.0	50.0
K. Chainstay Length	450.0	450.0	450.0	450.0	450.0	450.0
L. Fork Length Axle to Crown	376.0	376.0	376.0	376.0	376.0	376.0
M. Fork Offset	45.0	45.0	45.0	45.0	45.0	45.0
N. Wheelbase	1026.0	1037.0	1040.0	1050.0	1060.5	1076.0
Crank Arm Length
Handlebar Width
Recommended Rider Height	152.0 - 163.0	155.0 - 165.0	158.0 - 168.0	163.0 - 172.0	168.0 - 178.0	173.0 - 183.0
Stem Length

Frame Specs

Design Wheel/Tire Sizes 26 x 2.0" or 700c x 47mm
Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
Rigid Fork Length 26": 376mm / 700c: 390mm
Fork Offset 45mm (26" & 700c)
Axle to Crown 26": 376mm / 700c: 390mm
Rear Spacing 12x142 (Axle included)
Rear Axle Size Ø12 x 162, TP=1.5, TL=12
Front Brake (Rotor) Disc - Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
Headset - Upper EC34/28.6
Headset - Lower EC34/30
Front Spacing 12x100 (Axle included)
Front Axle Size Ø12 x 118.5, TP=1.5, TL=12
Steerer Tube Ø28.6mm (1-1/8")
Crown Race Ø30mm (1-1/8")
Stem Clamp Ø28.6mm (1-1/8")
Seatpost Ø27.2mm
Dropper Post Compatible No
Seatpost Clamp Ø30mm
Front Derailleur Type Bottom-pull (Ø28.6mm)
Bottom Bracket 68mm threaded (1.37" x 24TPI)
Crankset (Max Ring) 1x (Road): 47T / 2x (Road): 34/50T / 3x (Road): 33/47/56T
Accessory Mounts Seatstay mounted spoke holder, Surly removable kickstand plate included with complete bikes
Bottle Mounts 3 Standard
Fork Mounts 2 Three-Pack, Rack mounts: upper, lower, and mid-blade threaded
Front Fender Mounts Yes
Rear Fender Mounts Yes

Documents

Warranty

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
