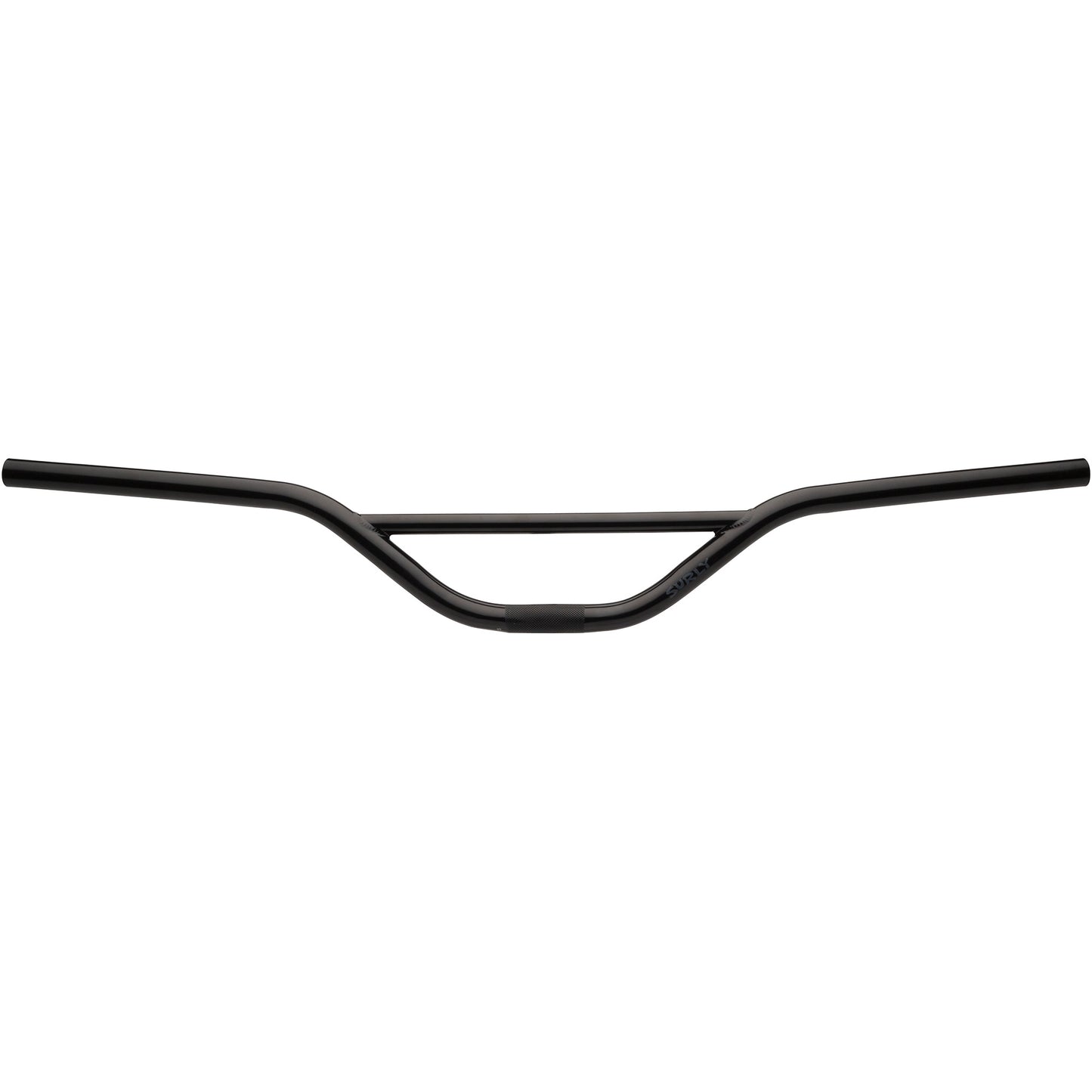

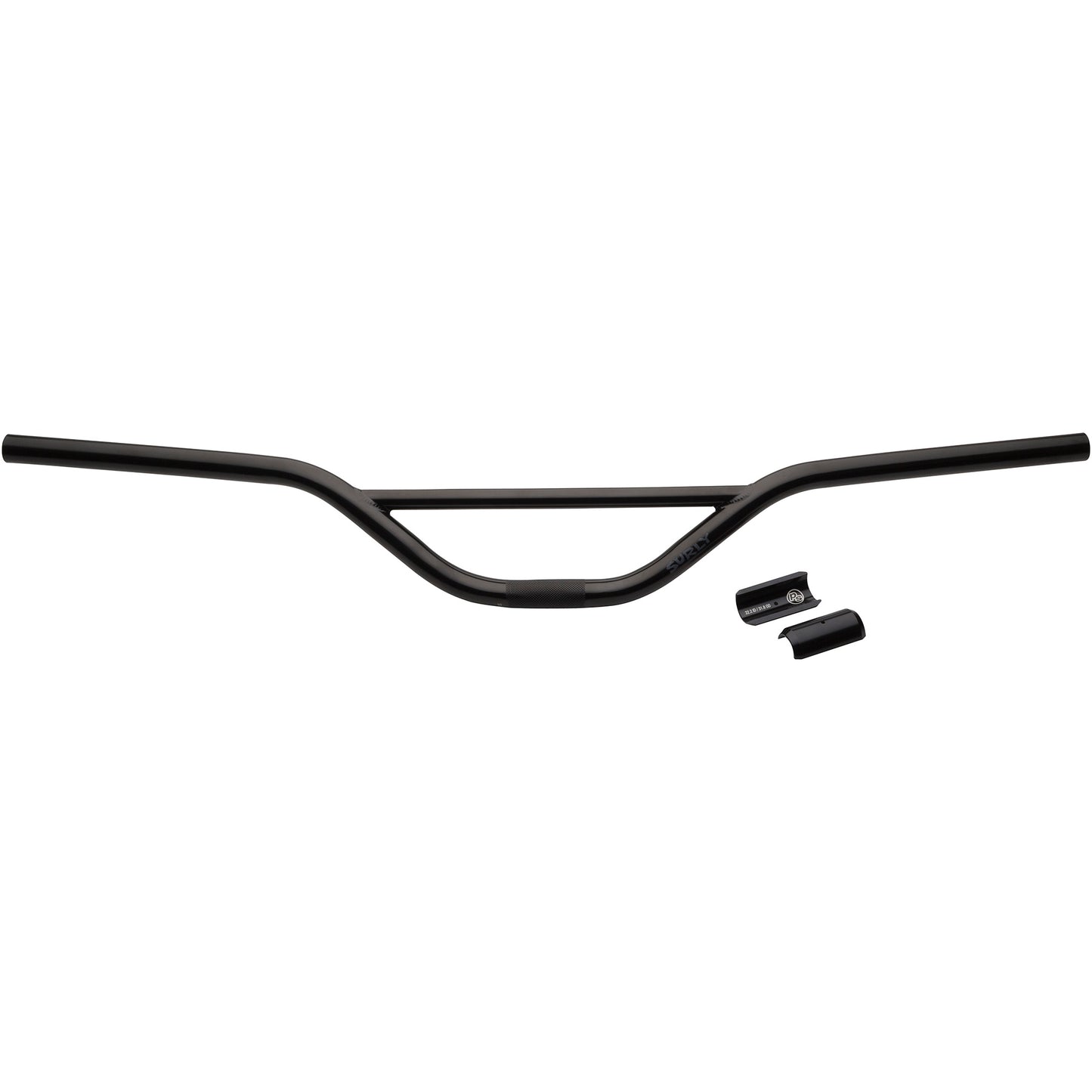

In today’s fast-paced world of riseless flat bars and far-too-aggressive-for-our-liking cockpits, we harken back to simpler times. We wanted a handlebar that would suffice for a relaxed cruise to a favorite windowless bar, but would also be suitable should a person decide to take the long way home. The Sunrise Bar is a cruiser bar, a trail bar and a riser-bar all rolled into one. It has a 22.2mm clamp diameter, but we included some Problem Solvers shims so you can mount it up to your fancy 31.8mm stem.

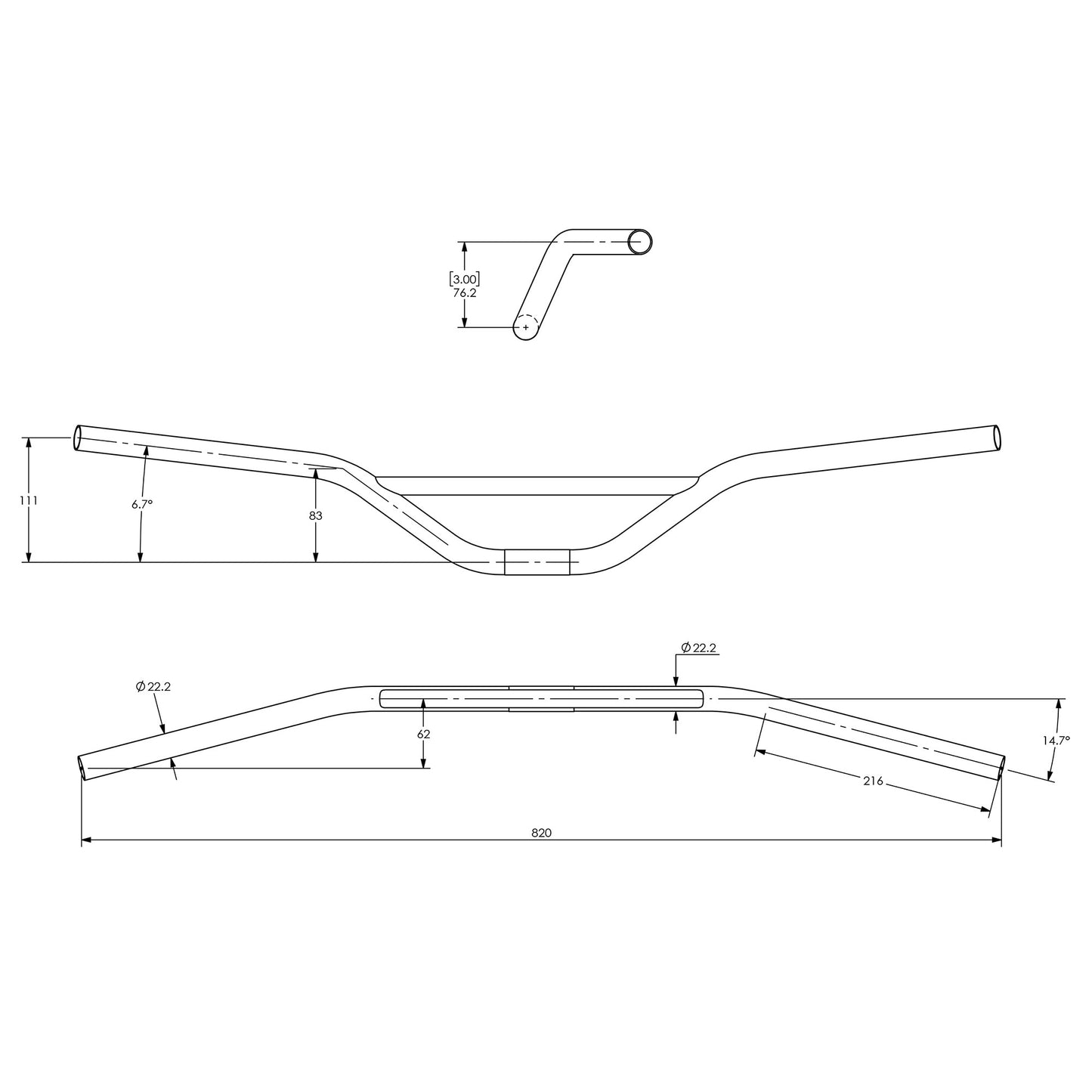

Specifications:

Material: Post-weld heat-treated Chromoly Steel
Clamp Diameter: 22.2mm; Includes shims for 31.8mm clamp
Width: 820mm, can be cut to 720mm
Rise: 83mm
Sweep Angle: 14.7 degree backsweep, 6.7 degree upsweep
Weight: 778g including shims
Color: Black

Support

Downloads

Component Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and workmanship for one year from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.

This warranty does NOT cover the following:

  • Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
  • Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
  • Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
  • Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
  • Normal wear and tear
  • Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
