Used to be if you wanted to throw drop bars on your off-road rig, you had to fork over your allowance for a new drivetrain and brake levers. We made the Corner Bar so you could conduct all your dirt-drop experiments with your current brake and drivetrain setup. I mean, why spring for the whole buffet when all you want is a salty snack at the bar? Anyway, we made this one out of Chromoly and it comes in three agreeable widths. We’re also including a set of shims. If you don’t need ‘em, stick ‘em in a drawer for later. You call the shots, Boss. Head on over to our Corner Bar Blog for even more details!

AVAILABILITY

The Corner Bar will land at North American Surly dealers in early September 2021. International Humanoids are encouraged to check with their local shop for availability. For a complete list of retailers, click here.

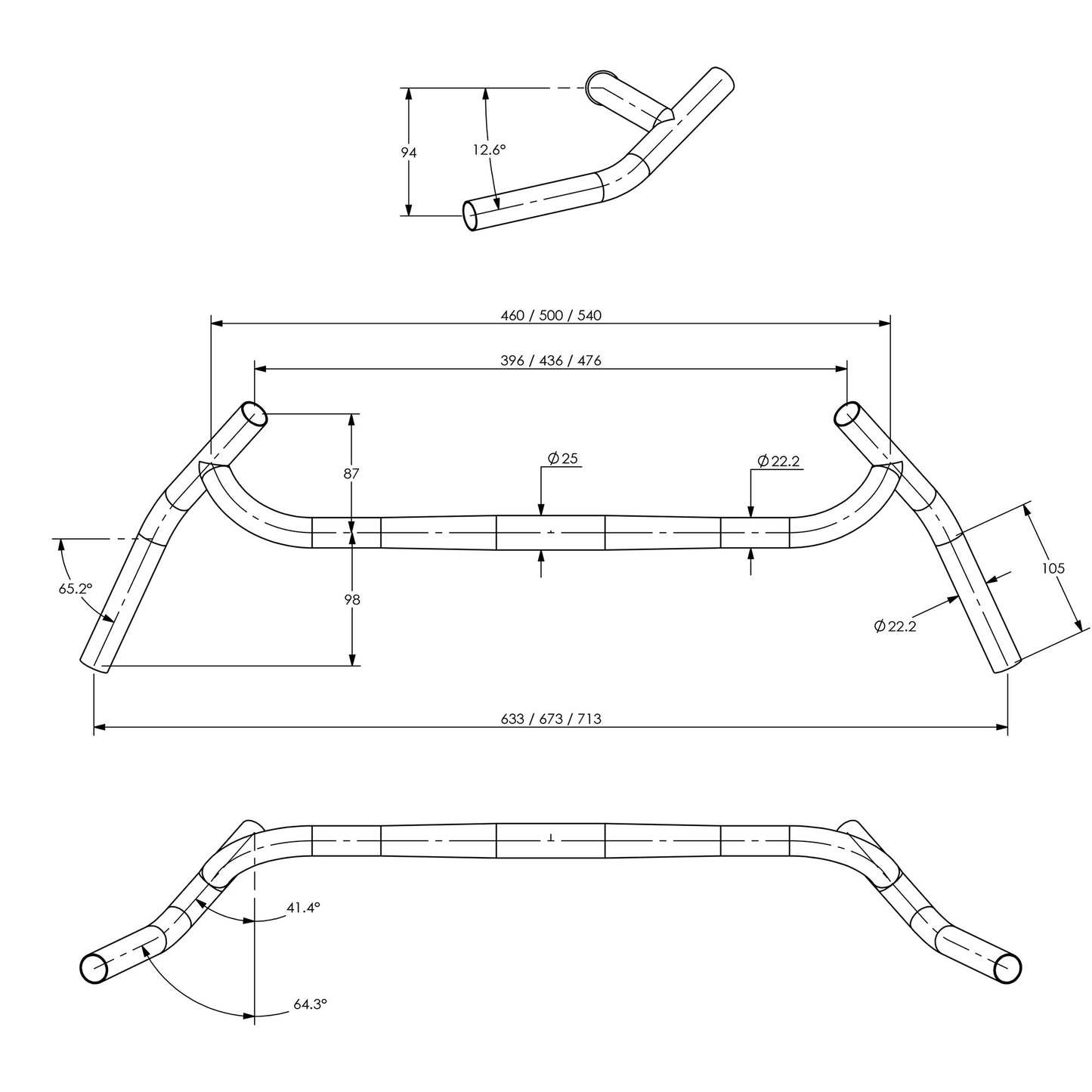

Specifications:

Material: Chromoly
Clamp Diameter: 25.4mm
Brake Lever Compatibility: Mountain 22.2mm
Drop Bar Equivalent Width: 46cm, 50cm, or 54cm
Drop Bar Flare: 41.4 degrees
Bar Drop: 94mm
Sweep Angle: 65.2 degrees
Color: E.D. coated black

Support

Downloads

Component Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and workmanship for one year from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.

This warranty does NOT cover the following:

  • Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
  • Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
  • Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
  • Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
  • Normal wear and tear
  • Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
