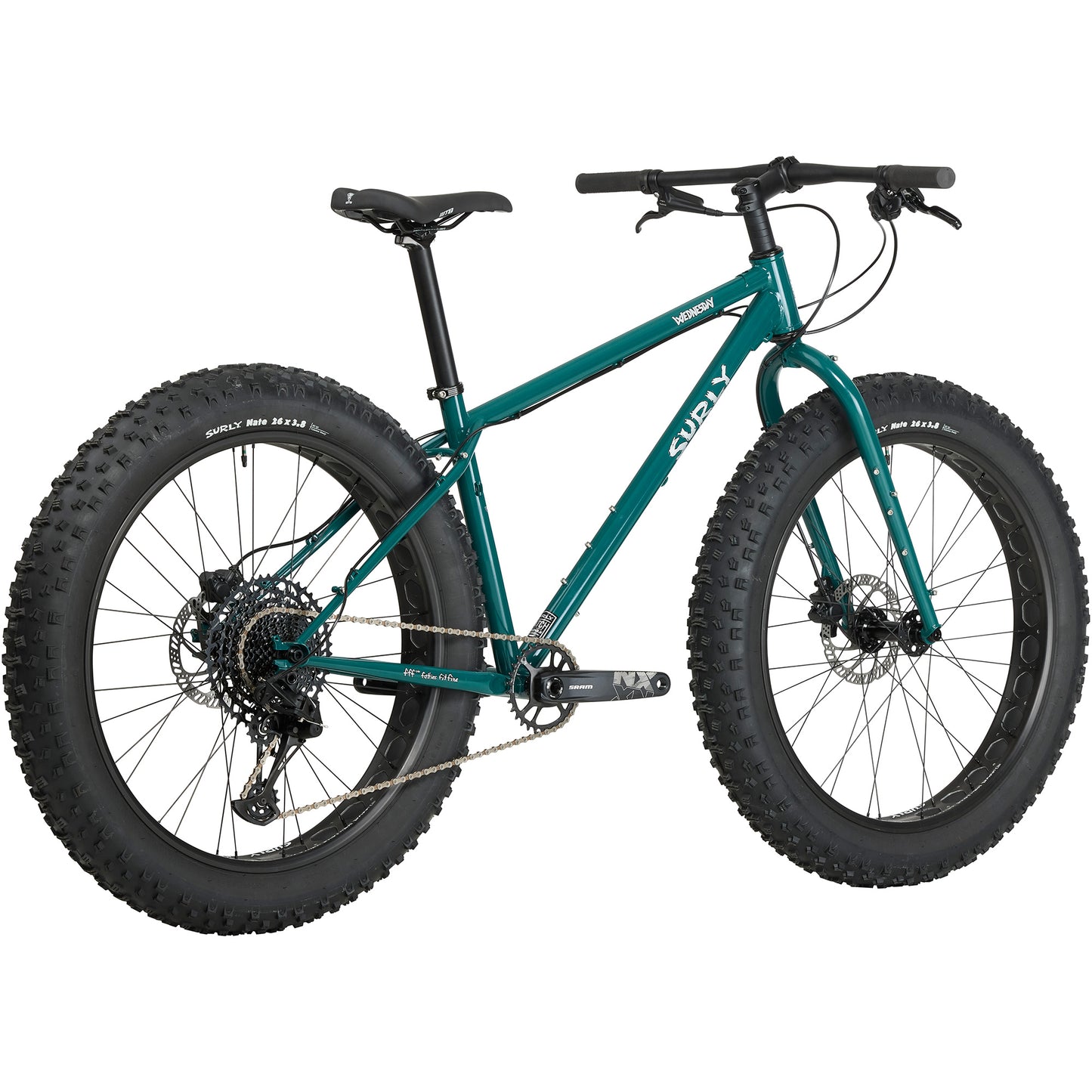

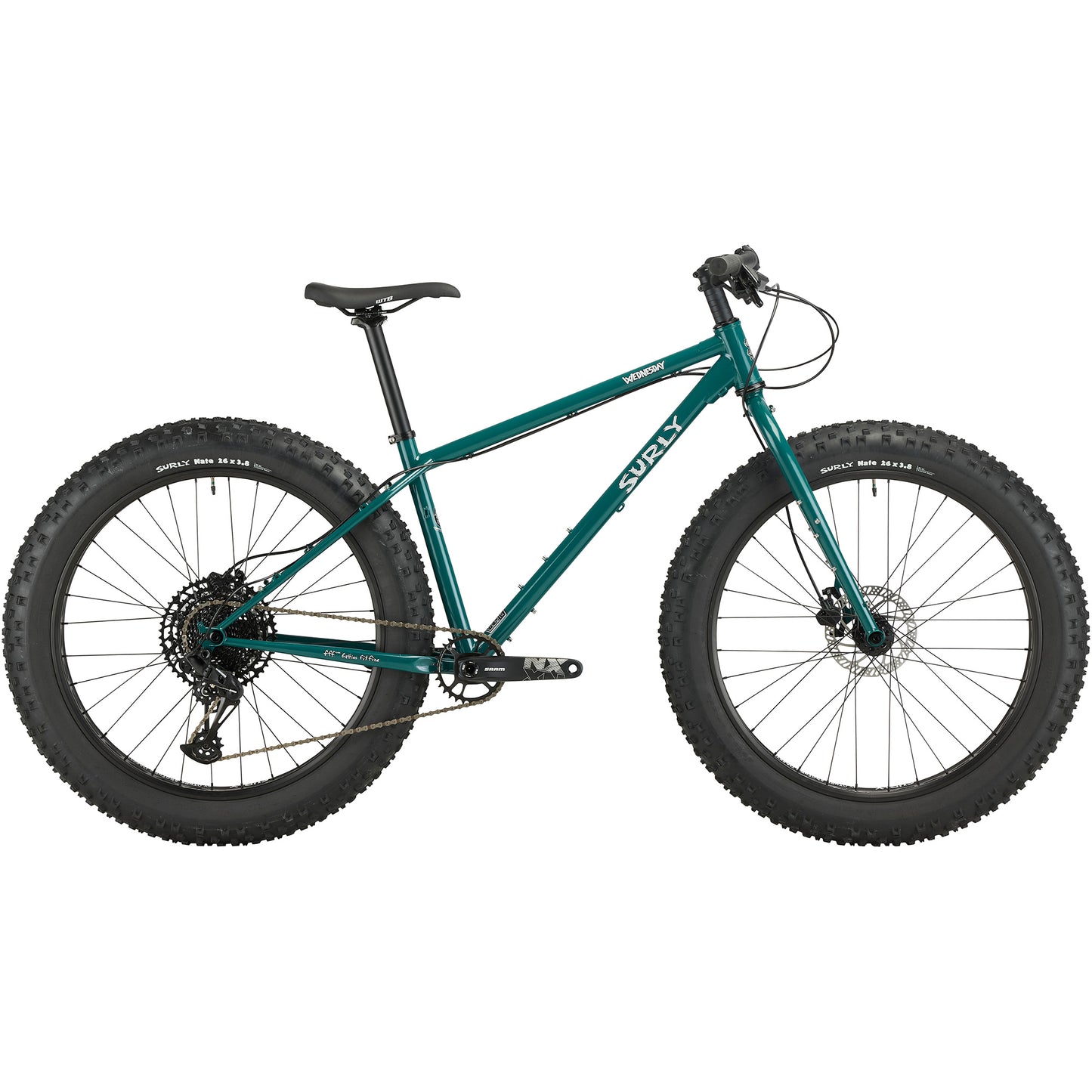

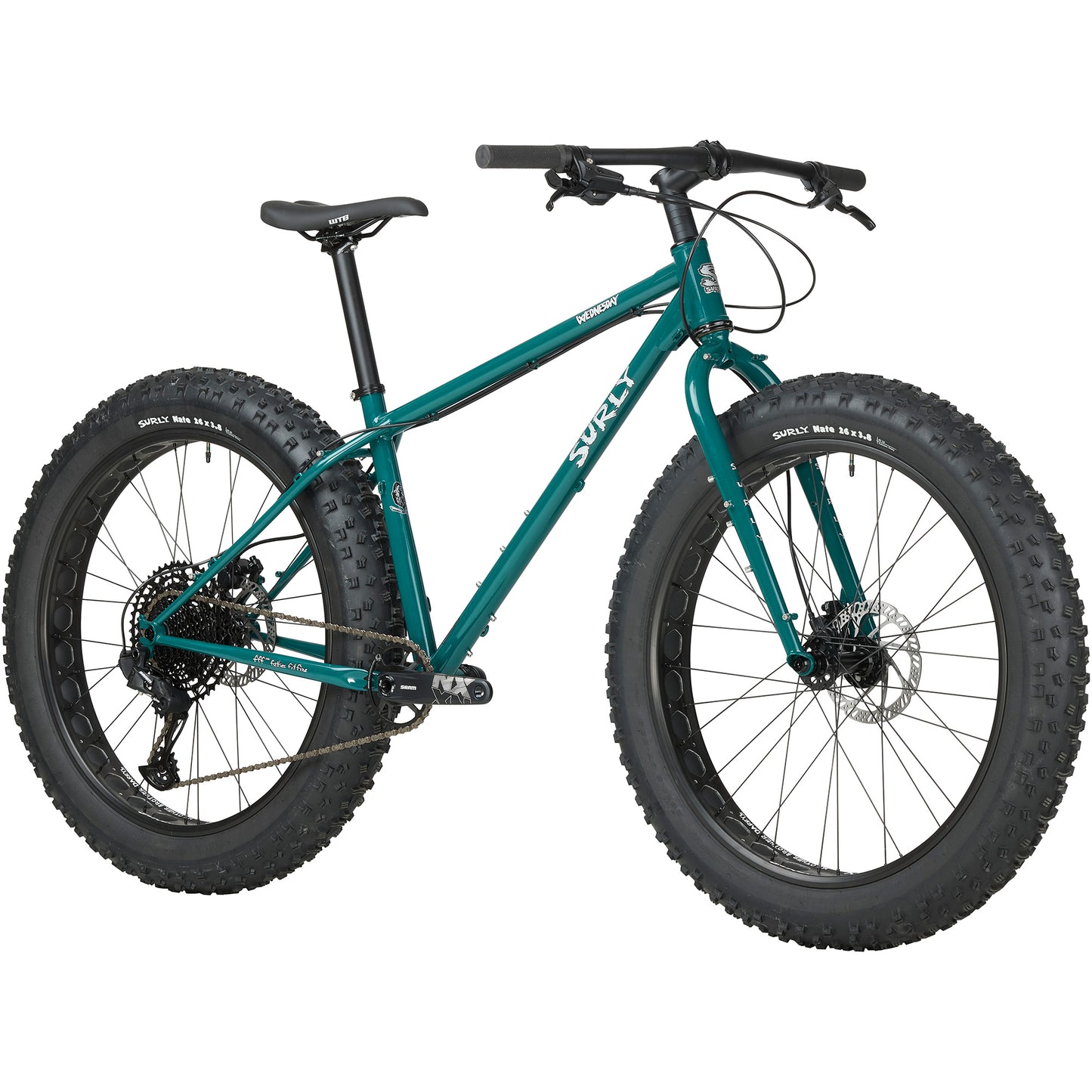

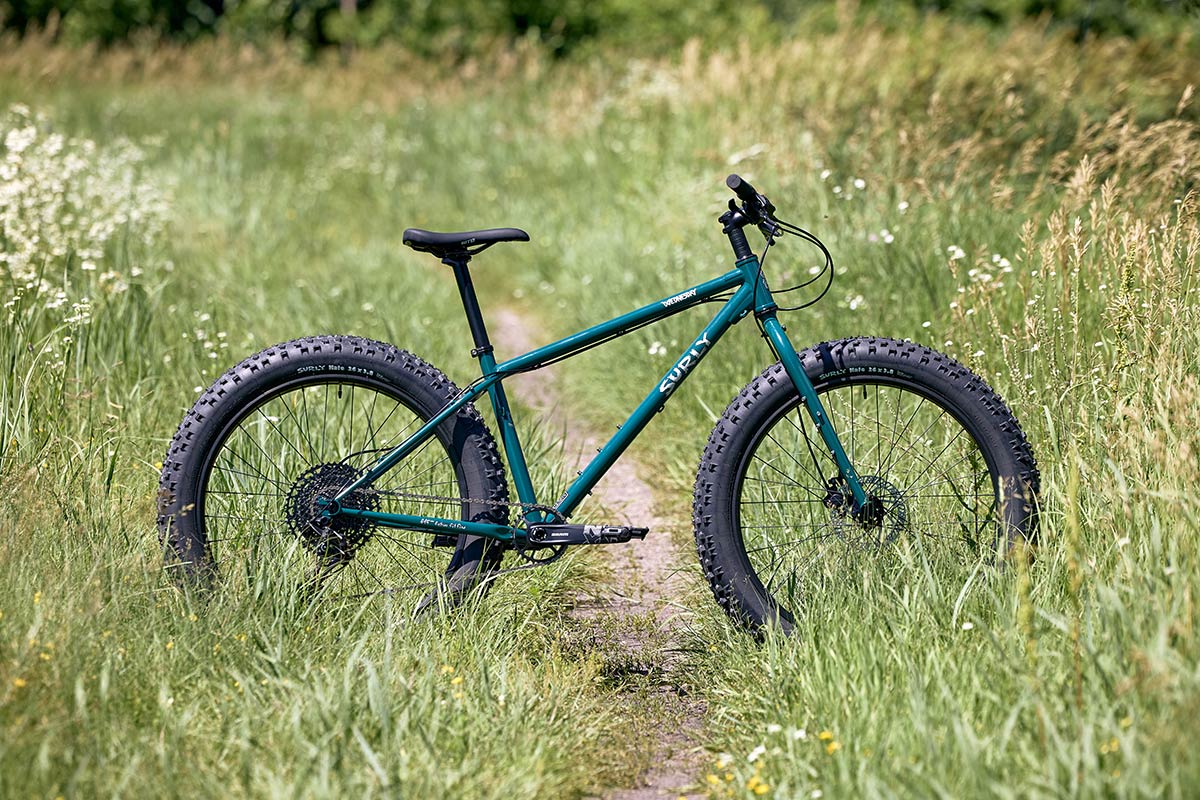

Wednesday is a great all-around fat bike that has the soul of a trail bike and mind of a touring bike
The All-Around Fat Bike
Wednesday sits in the middle of our Trail category, but don’t let that fool you into thinking that’s its only use. With Wednesday, we borrowed elements from some of our Trail and Touring models to create a versatile fat tire trail bike that can truly handle anything you want to attempt.
If you do an equal amount of off-road touring as you do hitting trails, Wednesday’s ability to play both parts equally will suit you well. Or, if you’re looking for a fat bike and don’t need the fattest tires on the market, Wednesday’s 26 x 4.6” tire clearance is just the ticket.
“Any day of the week’s a great day to ride a Wednesday.”
- Modern mountain standards: stealth dropper post routing, 44mm headtube, suspension correction, front and rear thru-axles
- Full suite of useful braze-ons: front and rear racks, multiple sets of three-pack mounts, fenders
- Full-forward, short chainstay position: 26 x 3.8˝ tires on 80mm rims; full-rearward, longer chainstay position: 26 x 4.6˝ tires on an 80mm rim
Bike Capabilities
- 5/5 with Snow and Sand
- 4/5 with Bikepacking
- 4/5 with Tire Clearance
- 4/5 with Singletrack
NOTE: You can ride your bike wherever the hell you want, but this is what we think this bike is best at.
Related Content
#wednesday Image Dump
#SurlyMakeItYourOwn
Tag your Instagram Images with #SurlyMakeItYourOwn and your bike may show up here.
Where to Buy
Specifications
Build Kit
Frameset
| Frame |

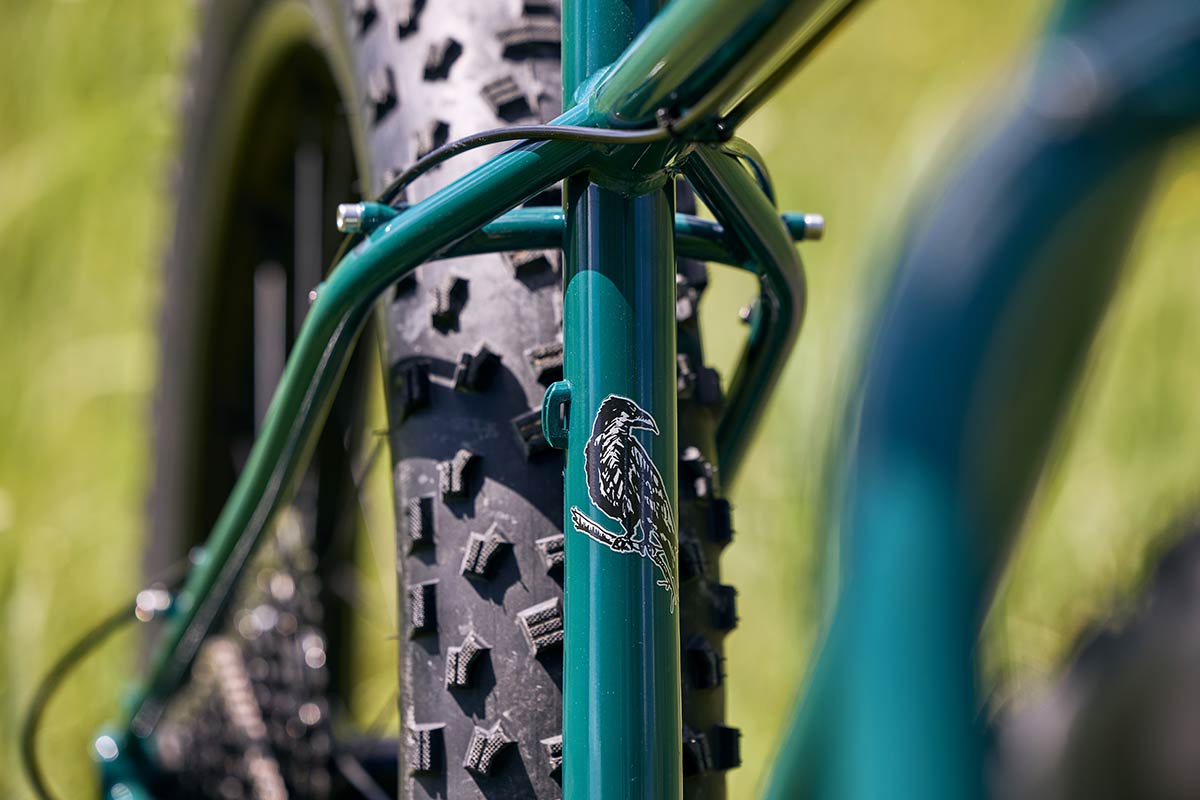

Surly Wednesday, 100% Surly 4130 Chromoly steel.
Surly Wednesday, 100% Surly 4130 Chromoly steel. ED coated. Double-butted main triangle. TIG-welded |
|---|---|
| Fork |

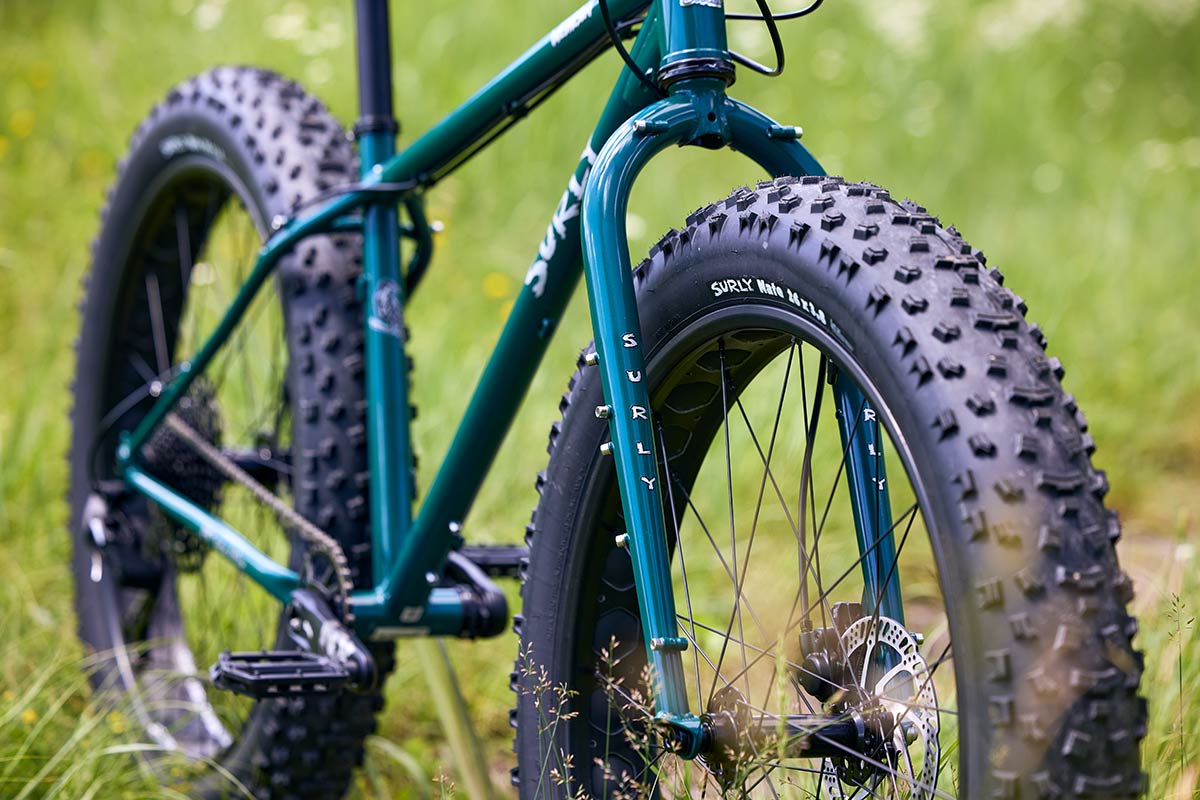

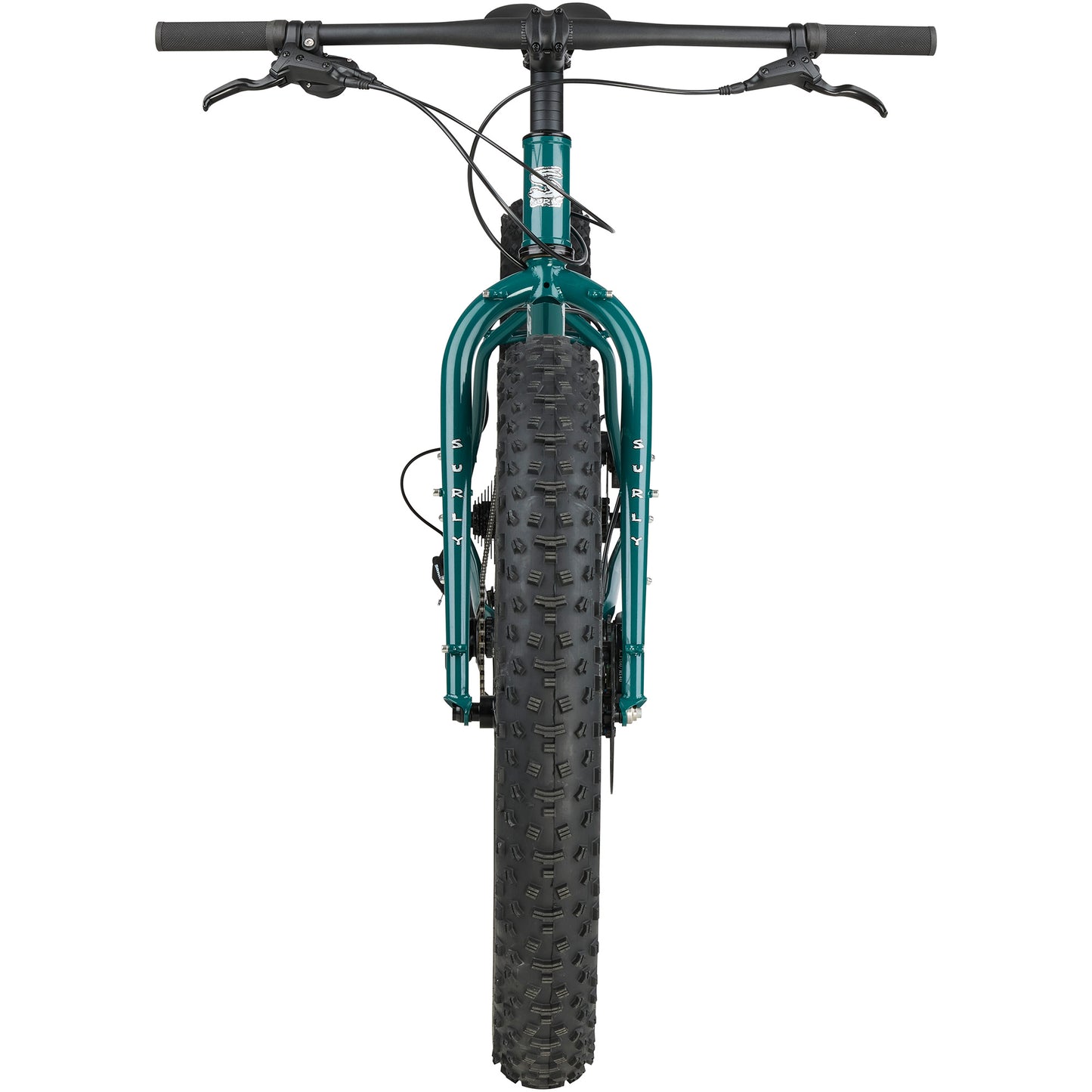

Surly Wednesday, Tapered straight blade 4130 Chromoly.
Surly Wednesday, Tapered straight blade 4130 Chromoly. 468mm axle to crown, 47mm offset. 51mm I.S. front standard disc mount, 150mm x 15mm thru-axle dropouts (axle included), 100mm suspension fork compatible |
| Seatpost Clamp | Stainless 33.1 collar, Black |
Components
| Headset | Cane Creek 10 |
|---|---|

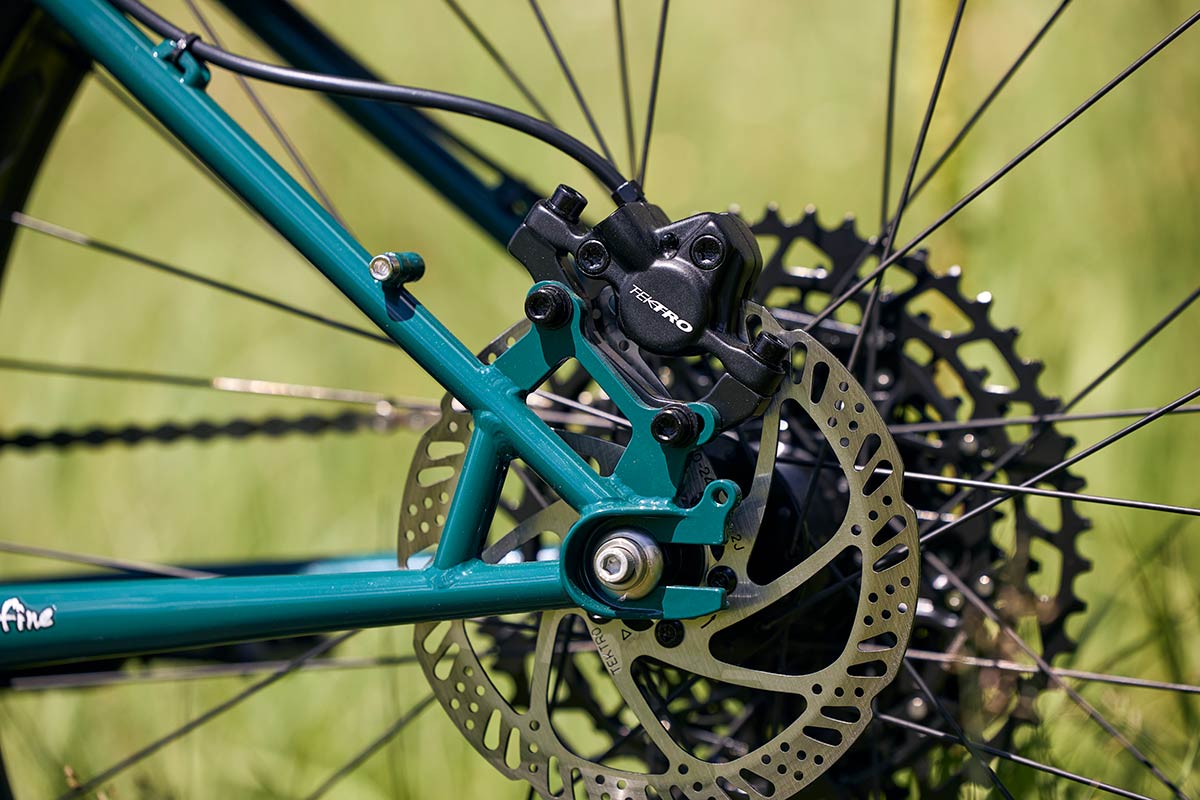

| Brakes | Tektro HD-M275 / M276, 160mm rotors front & rear |
| Shifter | SRAM SX Eagle |
| Stem | 4 bolt 31.8mm |
| Handlebar | 31.8mm 11 degree |
| Saddle | WTB Volt |
| Seatpost | 30.9 |
Drivetrain
| Crankset | SRAM NX Eagle DUB |
|---|---|
| Bottom Bracket | SRAM DUB |
| Front Derailleur | n/a |
| Rear Derailleur | SRAM SX Eagle |
| Cog or cogset | SRAM PG-1210 Eagle 11-50t |
| Chain | SRAM SX Eagle x12 |
Wheels
| Front hub | 150 x 15mm thru-axle, 32h, black |
|---|---|
| Rear hub | 177 x 12mm thru-axle, 32h, black |
| Rims | Surly My Other Brother Darryl, 80mm w/speedholes |
| Tires | Surly Nate 26 x 3.8˝, 60tpi, tubeless ready |
Frameset
| Frame |
Surly Wednesday, 100% Surly 4130 Chromoly steel.
Surly Wednesday, 100% Surly 4130 Chromoly steel. ED coated. Double-butted main triangle. TIG-welded |
|---|---|
| Fork |
Surly Wednesday, Tapered straight blade 4130 Chromoly.
Surly Wednesday, Tapered straight blade 4130 Chromoly. 468mm axle to crown, 47mm offset. 51mm I.S. front standard disc mount, 150mm x 15mm thru-axle dropouts (axle included), 100mm suspension fork compatible |
| Seatpost Clamp | Stainless 33.1 collar, Black |
Components
| Headset | Cane Creek 10 |
|---|---|
| Brakes | Hayes MX Comp |
| Brake Levers | Tektro 520 |
| Rotors | Hayes 160/160mm |
| Shifters | SRAM NX1 RH |
| Stem | 4-bolt 31.8mm |
| Handlebar | 31.8mm 11 degree |
| Grip/Tape | Velo Lock-on style |
| Saddle | WTB Volt |
Drivetrain
| Crankset | Race Face Ride 1x 28T |
|---|---|
| Bottom Bracket | Race Face |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM NX1 |
| Cog or cogset | Sunrace, 11 speed, 11-42t |
| Chain | KMC X11-EPT |
Wheels
| Front Hub | Novatec, 32h, Thru-Axle |
|---|---|
| Rear Hub | Novatec, 32h, Thru-Axle |
| Rims | Surly My Other Brother Darryl, 80mm w/speedholes Tubeless Ready |
| Tires | Surly Nate 26 x 3.8˝, 33tpi |
Complete bike spec subject to change
Geometry
units:
- in
- mm
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Reach | 15.7 400.0 | 16.5 420.0 | 17.2 436.0 | 17.8 453.0 | 18.5 471.0 |
| Stack | 22.6 573.0 | 22.8 578.0 | 23.1 587.0 | 23.5 597.0 | 23.9 606.0 |
| Head Tube Angle | 69.0° | 69.0° | 69.0° | 69.0° | 69.0° |
| Head Tube Length | 3.7 95.0 | 3.9 100.0 | 4.3 110.0 | 4.7 120.0 | 5.1 130.0 |
| Seat Tube Length | 12.4 316.0 | 14.4 366.0 | 16.4 416.0 | 18.3 466.0 | 20.3 516.0 |
| BB Drop | 2.2 55.0 | 2.2 55.0 | 2.2 55.0 | 2.2 55.0 | 2.2 55.0 |
| Wheelbase | 42.6 1081.0 | 43.3 1101.0 | 44.2 1122.0 | 45.0 1143.0 | 45.8 1164.0 |
| Chainstay Length | 17.1 435.0 | 17.1 435.0 | 17.1 435.0 | 17.1 435.0 | 17.1 435.0 |
| Top Tube Length, Actual | 22.5 571.0 | 22.7 577.0 | 23.2 590.0 | 23.9 606.0 | 24.7 627.0 |
| Top Tube Length, Effective | 22.4 570.0 | 23.2 590.0 | 24.0 610.0 | 24.8 630.0 | 25.6 650.0 |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Standover Height | 28.0 711.0 | 29.0 737.0 | 30.5 774.0 | 31.8 807.0 | 33.1 841.0 |
| Stem Length | 2.4 60 | 2.4 60 | 2.8 70 | 2.8 70 | 3.1 80 |
| Stem Angle | 7° | 7° | 7° | 7° | 7° |
| Handlebar Width | 27.6 700 | 27.6 700 | 29.5 750 | 29.5 750 | 29.5 750 |
| Crank Length | 6.7 170 | 6.7 170 | 6.9 175 | 6.9 175 | 6.9 175 |
| Fork Length | 18.4 468.0 | 18.4 468.0 | 18.4 468.0 | 18.4 468.0 | 18.4 468.0 |
| Fork Rake | 1.9 47.0 | 1.9 47.0 | 1.9 47.0 | 1.9 47.0 | 1.9 47.0 |
Frame Specifications
| Frame Construction | 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
|---|---|
| Fork Construction | 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated |
| Rear Dropout Configuration | Horizontal slotted with optional vertical dumpout |
| Rear Hub Spacing | 12 x 177mm (Surly axle included) 10 x 170mm with Surly 10/12 Adapter Washers (not included) |
| Front Hub Spacing | 15 x 150mm (Surly axle included) |
| Rear Brake | Disc - 51mm I.S. (203mm max rotor) |
| Front Brake | Disc - 51mm I.S. (203mm max rotor) |
| Head Tube | Ø44mm |
| Steerer Tube | Ø28.6mm (1-1/8") |
| Crown Race | Ø30mm (1-1/8") |
| Stock Headset Upper (S.H.I.S.) | ZS44/28.6 |
| Stock Headset Lower (S.H.I.S.) | EC44/30 |
| Seat Collar | Ø33.1mm |
| Seatpost | Ø30.9mm |
| Front Derailleur (Clamp) | High direct mount top-pull (Ø34.9mm) 39.5mm offset adapter (included) |
| Max Chainring (CL)[3] | 1x (Fat bike 170): 34T 2x (Fat bike 170): 26/38T 2x (Surly OD): 22/36T |
| Bottom Bracket | 100mm threaded (1.37" x 24TPI) |

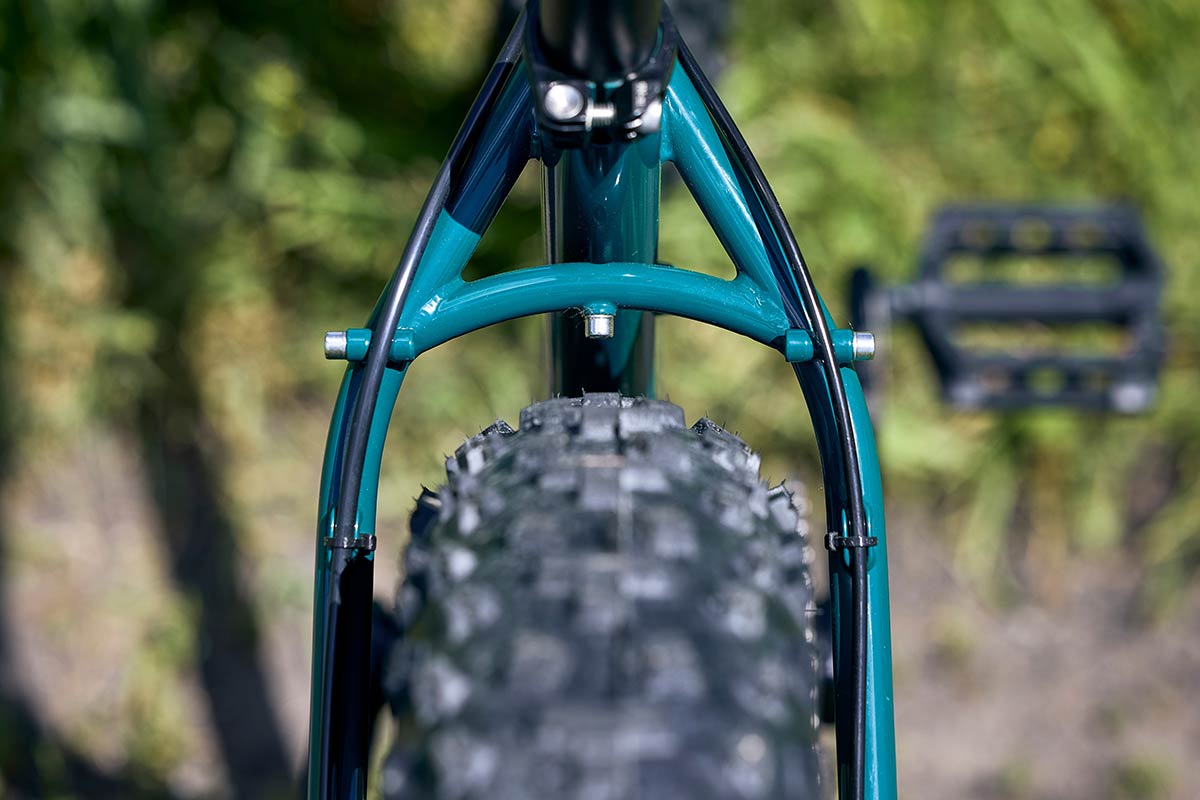

| Tire Clearance Frame [1]/[2] | 26 x 4.6" (rear axle position) 26 x 3.8" (front axle position) 29 x 3.0" |
| Tire Clearance Fork [1] | 26 x 5.25" 29 x 3.0" |
| Rigid Fork Spec | 468 x 47mm |
| Max Suspension Fork Length [4] | 511 x 51mm (Fatbike 100mm) |
| Bottle Mounts Frame | 2 Standard (XS - M) 3 Standard (L - XL) |
| Bottle Mounts Fork | 2 Three-Pack |
| Rack Mounts Frame | Yes (upper and lower threaded) |
| Rack Mounts Fork | Yes (upper, lower, and mid-blade threaded) |
| Fender Mounts Frame | Yes |
| Fender Mounts Fork | N/A |
| Other Features | Internal dropper post routing compatible |
[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3] Listed chainring clearance is worst case scenario. Clearances vary widely depending on components and configurations.
[4] Suspension fork length listed at full extension (not at sag)
[5] SRAM cranks not recommended due to inadequate crank arm clearance from the frame (narrow Q-Factor)
