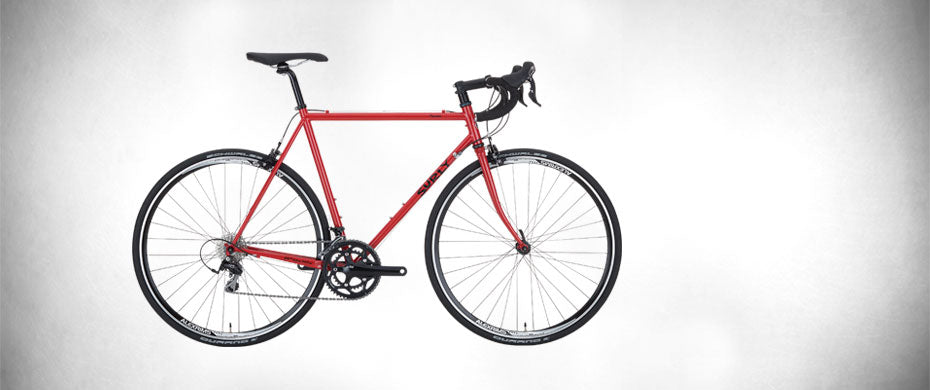

The Pacer sits in an interesting category of bicycle. These days, most road bikes are made of some material other than steel. The current zeitgeist of road bicycles and road bicycling generally tends to overlook things that are not screaming for attention like a spoiled child, and the Pacer is a bit of a loner. Pacer likes to put in the big miles and hang out in the country, way out in the country. Pacer cares not about the weather. It remains indifferent mile after mile, you just provide the propulsion and Pacer will handle the rest.

While the Pacer is not what most would consider a racing bicycle, it’s geometry easily identifies it as a laid back performer, capable of descending, cornering and handling right there with all the flashy guys. As with all Surly frames, it’s made from our proprietary, size specific, Surly 4130 CroMoly steel so it has a lively ride that won’t kick the absolute shit out of you for the duration of your ride.

This year we’ve changed the spec on the Pacer to be more in line with what we think this bike is capable of. We gave it a Shimano 105 group, which is squarely in the realm of performance road componentry, perfectly in line with the Pacer’s pedigree as a comfy, high-mileage, all day rider. It has clearance for tires up to 32mm wide to further smooth out the bumps in the road. If you like doing gigantic road rides, hauling ass and not getting beat up by your frame, you’ll think the Pacer was sent to you from on high. It also works well as a credit card tourer or light-duty commuting missile. Plus, unlike any sub two pound carbon fiber racer, it won’t break in two if you knock it over in the garage.

Specifications

units:
  • in
  • mm
42cm 46cm 50cm 52cm 54cm 56cm 58cm 60cm 62cm
Reach 14.9 377.4 14.9 378.4 15.2 385.0 15.3 389.0 15.3 389.5 15.5 394.6 15.9 403.6 15.9 403.8 16.3 413.1
Stack 19.6 498.9 20.3 514.8 20.3 516.5 20.6 523.0 21.2 539.4 21.9 557.4 22.7 576.3 23.3 592.6 24.1 611.7
Head Tube Angle 71.0º° 71.5º° 72.0º° 72.5º° 72.5º° 73.0º° 73.5º° 73.5º° 74.0º°
Head Tube Length 3.3 84.0 3.9 99.0 3.9 99.0 4.1 104.0 4.7 119.0 5.4 136.0 6.1 154.0 6.7 171.0 7.4 189.0
Seat Tube Length 16.5˝ 420.0 18.1˝ 460.0 19.7˝ 500.0 20.5˝ 520.0 21.3˝ 540.0 22.0˝ 560.0 22.8˝ 580.0 23.6˝ 600.0 24.4˝ 620.0
BB Drop 2.8˝ 72.0 2.8˝ 72.0 2.8˝ 72.0 2.8˝ 72.0 2.8˝ 72.0 2.8˝ 72.0 2.8˝ 72.0 2.8˝ 72.0 2.8˝ 72.0
Wheelbase 38.6 980.9 38.7 982.9 38.8 985.6 38.9 987.2 39.1 992.8 39.3 998.8 39.7 1008.6 39.9 1013.7 40.3 1023.4
Chainstay Length 16.1 410.0 16.1 410.0 16.1 410.0 16.1 410.0 16.3 415.0 16.3 415.0 16.3 415.0 16.3 415.0 16.3 415.0
Top Tube Length, Actual 19.5 494.1 19.9 504.2 20.6 522.9 21.3 540.0 21.9 555.0 22.2 565.0 22.8 579.4 23.2 590.0 23.8 605.0
Top Tube Length, Effective 20.0 508.5 20.2 514.3 20.7 526.4 21.3 540.0 21.9 555.0 22.2 565.0 22.8 579.4 23.2 590.0 23.8 605.0
Seat Tube Angle 75.5° 75.5° 74.5° 74.0° 73.5° 73.0° 73.0° 72.5° 72.5°
Standover Height 28.5 723.7 29.3 744.9 30.1 764.4 30.5 775.9 31.2 793.7 31.9 811.5 32.7 830.7 33.4 848.3 34.1 867.3
Fork Length 14.8 376.0 14.8 376.0 14.8 376.0 14.8 376.0 14.8 376.0 14.8 376.0 14.8 376.0 14.8 376.0 14.8 376.0
Fork Rake 2.0 50.0 2.0 50.0 2.0 50.0 2.0 50.0 1.8 45.0 1.8 45.0 1.8 45.0 1.8 45.0 1.8 45.0
All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø680mm
Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Fork Construction

4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated

Rear Dropout Configuration

Vertical

Rear Hub Spacing

10 x 130mm

Front Hub Spacing

10 x 100mm

Rear Brake Compatibility

Rim - Caliper (mid reach)

Front Brake Compatibility

Rim - Caliper (mid reach)

Head Tube

Ø34mm

Steerer Tube

Ø28.6mm (1-1/8")

Crown Race Diameter

Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S.)

EC34/28.6

Stock Headset Lower (S.H.I.S.)

EC34/30

Seat Collar

Ø30mm

Seat Post Diameter

Ø27.2mm

Front Derailleur (Clamp)

Bottom-pull (Ø28.6mm)

Max Chainring (CL)[3]

1x (Road): 50T
2x (Road): 39/53T

Bottom Bracket

68mm threaded (1.37" x 24TPI)

Tire Clearance Frame [1][2]

700c x 28mm (w/ fenders)
700c x 32mm (w/o fenders)

Tire Clearance Fork [1]

700c x 32mm (w/ fenders)
700c x 35mm (w/o fenders)

Rigid Fork Spec

376 x 50mm (42 - 52cm)
376 x 45mm (54 - 62cm)

Max Suspension Fork Length [4]

N/A

Bottle Mounts Frame

2 Standard

Bottle Mounts Fork

N/A

Rack Mounts Frame

N/A

Rack Mounts Fork

N/A

Fender Mounts Frame

Yes

Fender Mounts Fork

Yes

Other Features

Downtube mounted shifter bosses

[1]  Different tire and rim combinations will result in different clearances.
[2]  Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3]  Listed chainring clearance is worst case scenario.  Clearances vary widely depending on components and configurations.
[4]  Suspension fork length listed at full extension (not at sag)

Support

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and workmanship for three years from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.

This warranty does NOT cover the following:

  • Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
  • Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
  • Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
  • Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
  • Normal wear and tear
  • Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
