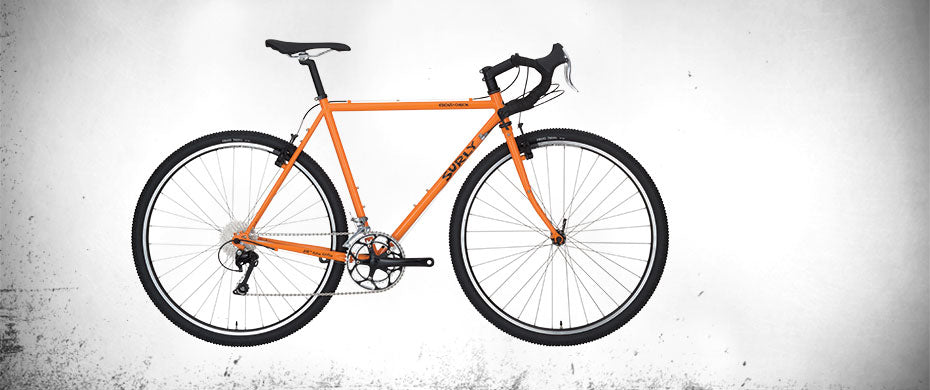

Cross-Check is a tough-as-nails, super-versatile road bike that performs astonishingly well on any surface.

There is no such thing as one bike that can do it all, but Cross-Check comes pretty damn close. It's a dyed-in-the-wool commuter and utility rig. It was a "gravel crusher" long before "gravel bikes" existed. Some people have even raced cyclocross on it. Though, we don't necessarily condone that behavior.

Cross-Check was the first complete bike we ever offered. Since then, people have modified them hundreds of different ways to suit their riding styles and preferences. There’s a reason that nearly every person who has ever worked for Surly has owned one.

  • Semi-horizontal dropouts for singlespeed compatibility and wheelbase adjustability
  • Gnot-Rite dropout spacing allows installation of 130 and 135mm hubs
  • Accommodations for front and rear racks and fenders
  • Clearance for 700c x 42mm tires with or without fenders

Bike Capabilities

  • 5/5 with Commuting
  • 4/5 with Tire Clearance
  • 3/5 with Pavement Touring
  • 4/5 with Gravel/Double Track

NOTE: You can ride your bike wherever the hell you want, but this is what we think this bike is best at.

Cross-Check urban riding image over train tracks
Cross-Check Stoned Ground Frameset side view
Cross-Check riding image next to train cars

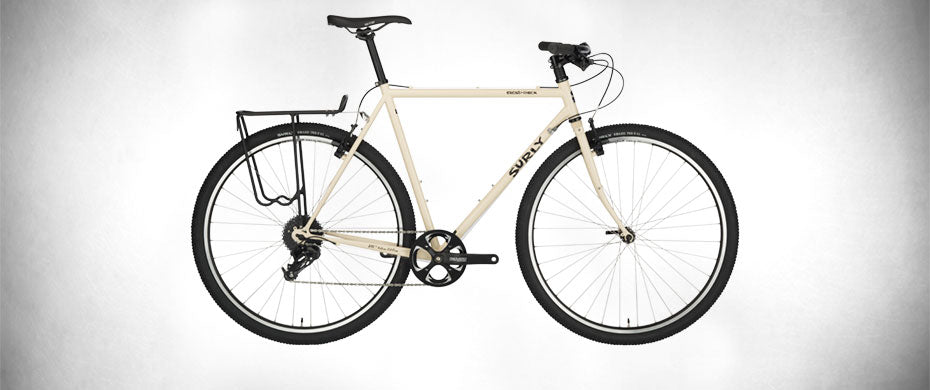

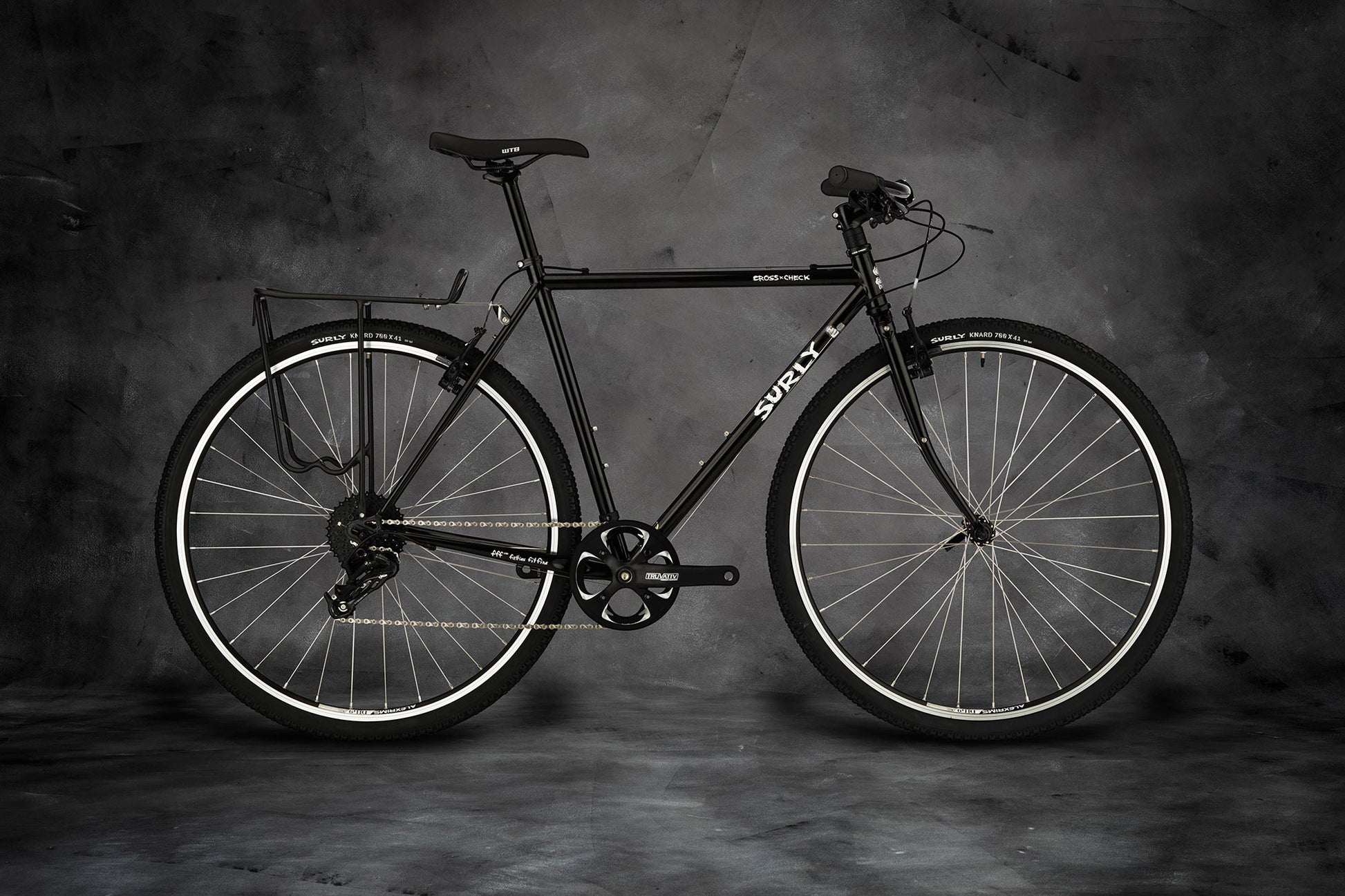

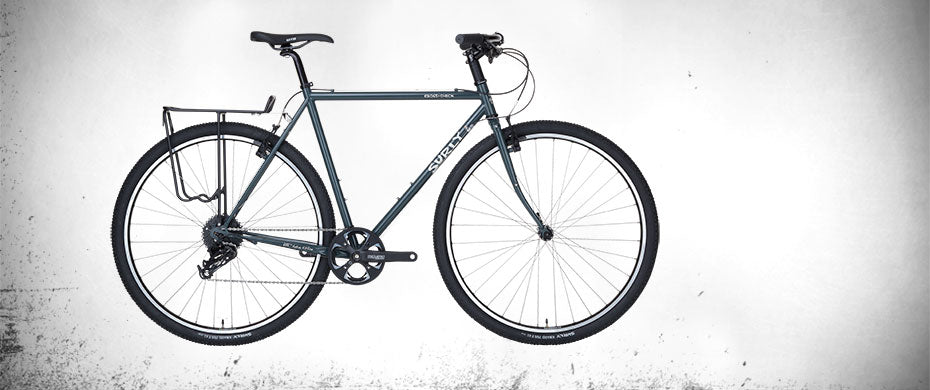

Flat Bar Cross-Check loaded riding image

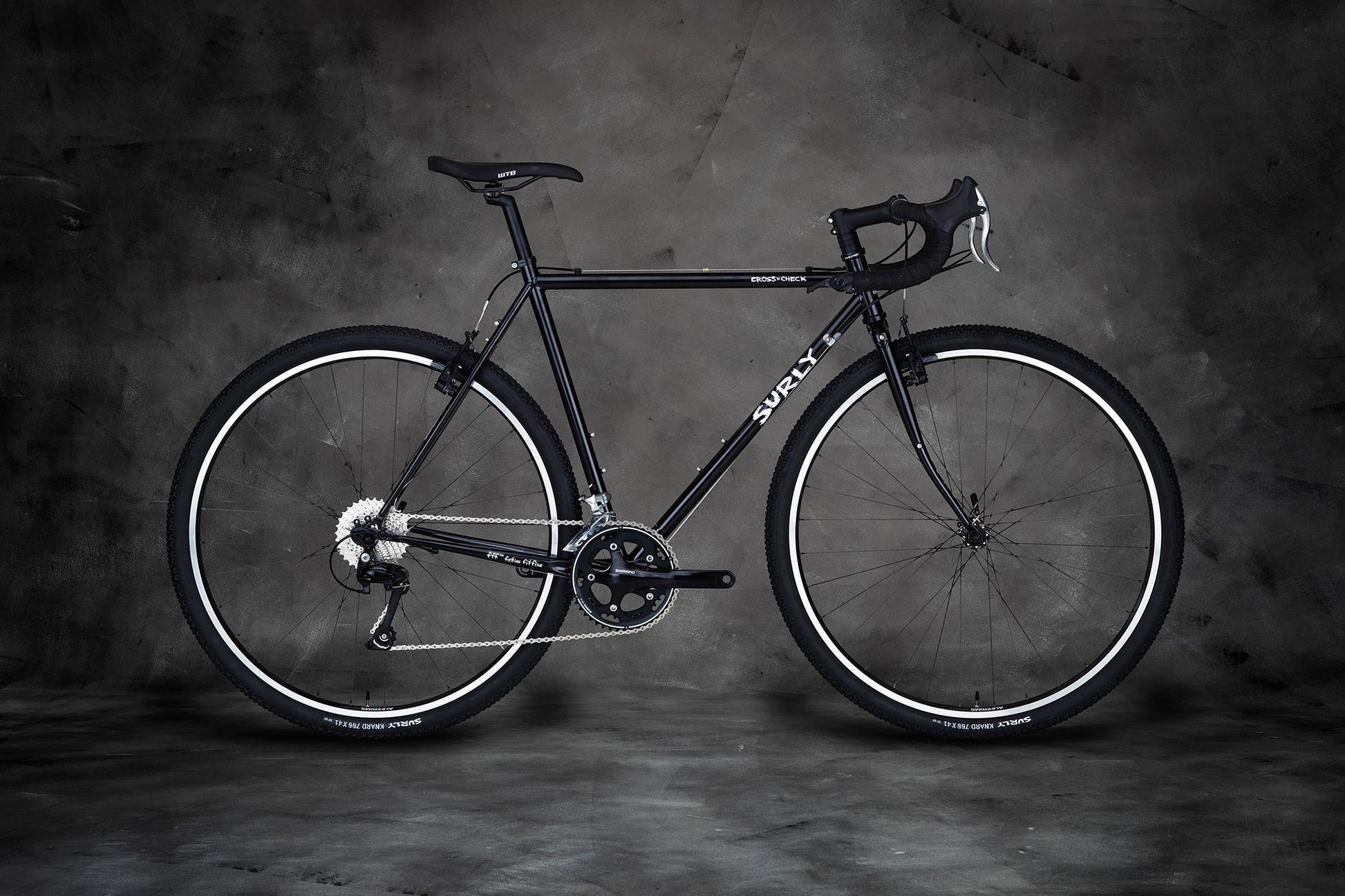

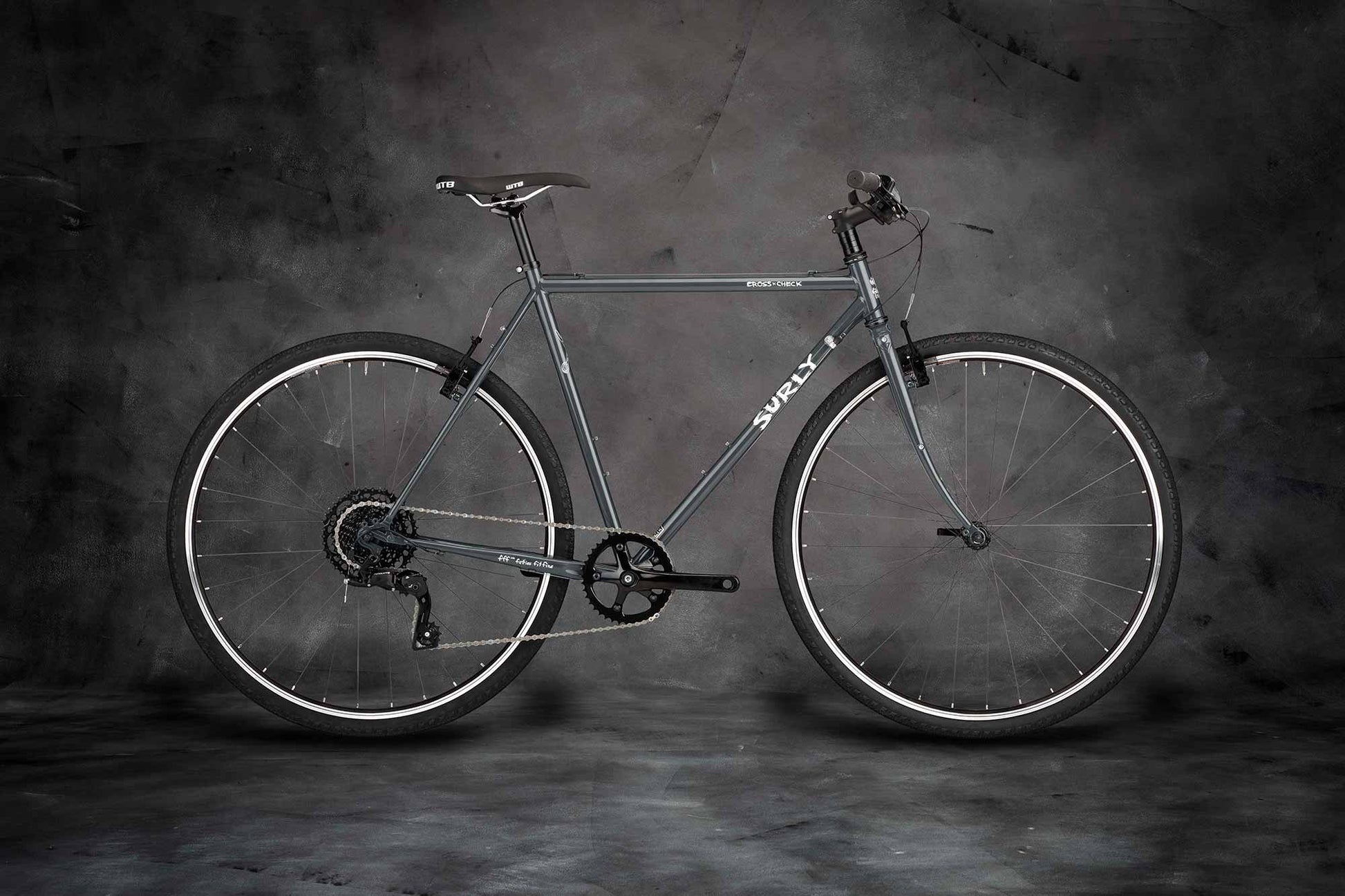

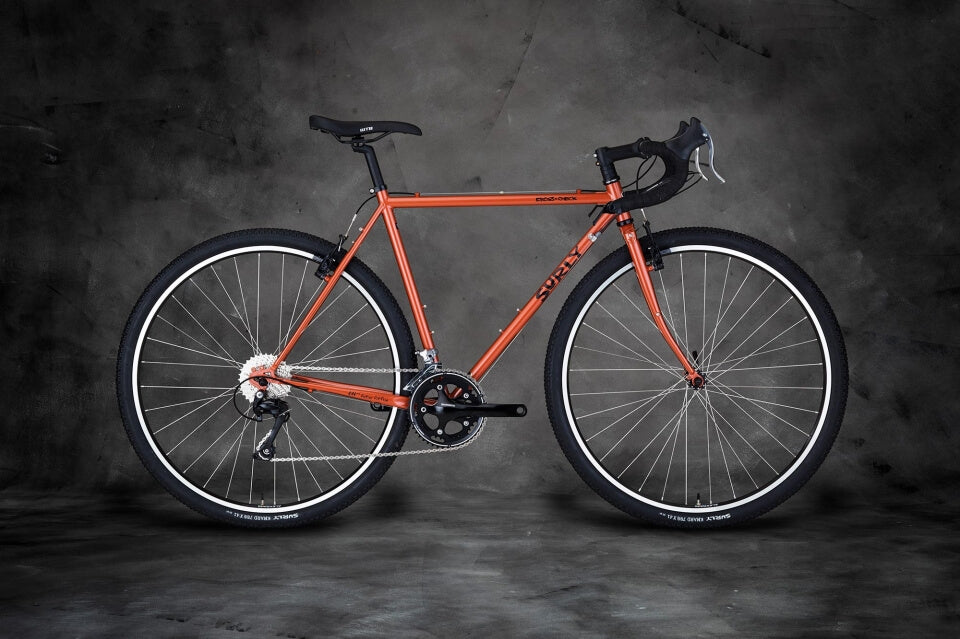

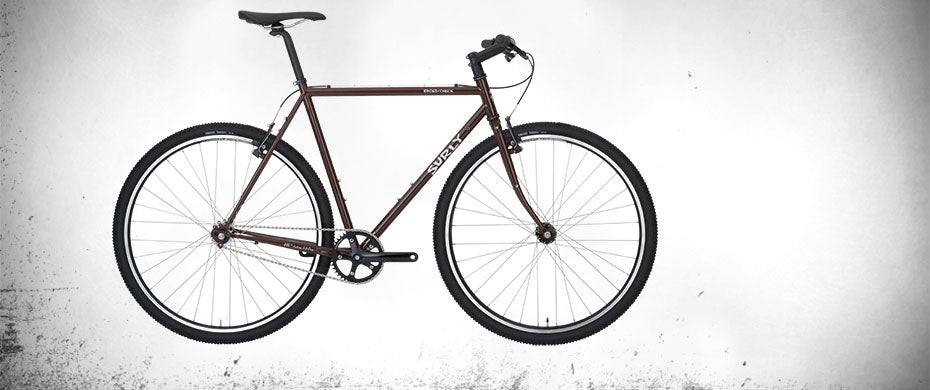

Cross-Check frameset side view
Cross-Check down tube detail
Cross-Check chainstay 'FFF' detail
Cross-Check seat tube detail
Cross-Check top tube detail
Cross-Check side view on railroad tracks
Cross-Check Natch 4130 tubing
Cross-Check dropout detail

#crosscheck Image Dump

#SurlyMakeItYourOwn
Tag your Instagram Images with #SurlyMakeItYourOwn and your bike may show up here.

Where to Buy

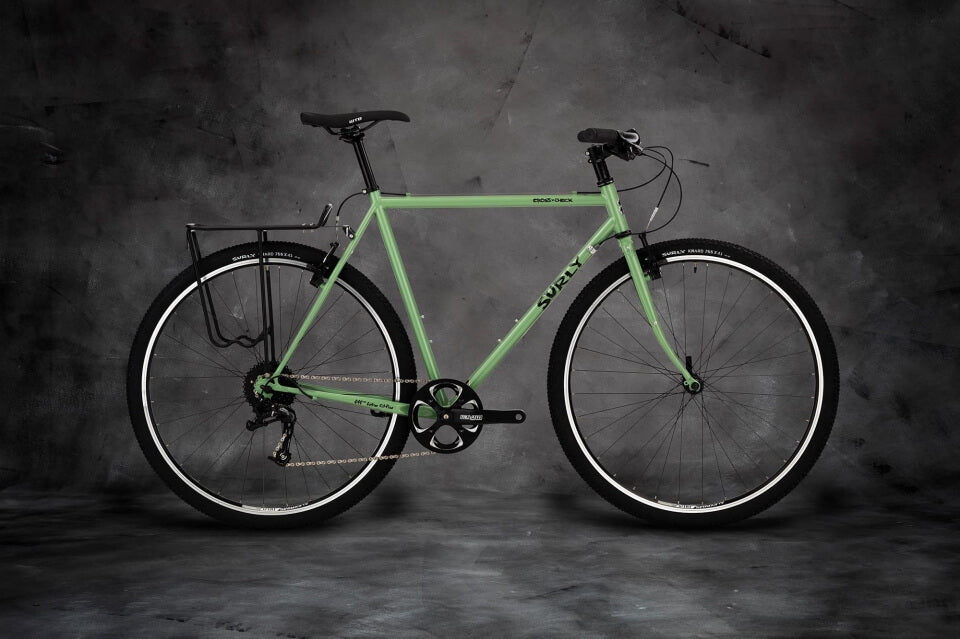

Surly Flat Bar Cross-Check Bike, Sage Green

Specifications

Frameset

FrameSurly Cross-Check, Surly 4130 CroMoly steel.

Surly Cross-Check, Surly 4130 CroMoly steel. Main triangle double-butted. TIG-welded

ForkSurly Cross-Check, 4130 CroMoly, lugged & brazed.

Surly Cross-Check, 4130 CroMoly, lugged & brazed. Sloping crown w/threaded eyelets, tapered & butted curved blades w/mid-blade rack eyelets, dual dropout eyelets

Seatpost ClampSurly stainless, 30.0mm

Components

HeadsetCane Creek Custom 5

1-1/8"

BrakesTektro M730 V-Brake
Braker LeversTektro RL520
ShiftersMicroshift BS-M10, bar-end shifter
StemHL 31.8
HandlebarSalsa Cowbell 3
Grip/TapeBlack Cork
SaddleWTB Volt Sport
SeatpostKalloy

Kalloy 368 non-offset (42–50cm), Kalloy 342 offset (52–64cm) 27.2 x 300mm

Drivetrain

CranksetShimano CX50, 36/46t
Bottom BracketShimano 4600
Front DerailleurShimano Tiagra 4600
Rear DerailleurShimano Deore T610-SGS
Cog or CassetteShimano CS-HG50-10, 11-32, 10-speed
ChainKMC X10

Wheels

Front HubShimano Deore T610, 32h, 100mm, w/QR
Rear HubShimano Deore T610, 32h, 135mm, w/QR
RimsAlex Adventurer 2, tubeless ready
TiresSurly Knard, 700c x 41mm, 33 tpi

Frameset

FrameSurly 4130 CroMoly steel. Main triangle double-butted.

Surly 4130 CroMoly steel. Main triangle double-butted. TIG-welded. ED Coated

ForkSurly Cross-Check, 4130 CroMoly, lugged & brazed.

Surly Cross-Check, 4130 CroMoly, lugged & brazed. Sloping crown w/threaded eyelets, tapered & butted curved blades w/mid-blade rack eyelets, dual dropout eyelets

Seatpost ClampSurly stainless, 30.0mm

Components

HeadsetCane Creek 10 series, custom
BrakesTektro M730 V-Brake
Braker LeversTektro CL520
ShiftersSRAM X5
StemHL 25.4
HandlebarDimension Arc
Grip/TapeVelo Black
SaddleWTB Volt Sport, steel rails
SeatpostProMax

ProMax 27.2 300L non-offset (42-50cm), ProMax 27.2 300L offset (52-62cm)

Drivetrain

CranksetE400 42Tw/Chainguard
Bottom BracketUN55
Front DerailleurN/A
Rear DerailleurX5
Cog or CassettePG920 11-34
ChainKMC Z9

Wheels

Front HubFormula RB51, 32H
Rear HubFormula RB51, 32H
RimsAlex DH19
TiresSurly Knard, 700c x 41mm, 33 tpi

Complete bike spec subject to change

Cross-Check Geometry 2014
units:
  • in
  • mm
42cm46cm50cm52cm54cm56cm58cm60cm62cm64cm
Reach14.9378.715.0380.815.3389.115.3389.715.5394.815.5394.315.7398.316.0407.316.2411.016.7424.5
Stack20.8528.020.8528.020.8528.020.8528.021.2538.421.9556.522.7575.723.4593.624.1612.724.8630.9
Head Tube Angle72.0°72.0°72.0°72.0°72.0°72.0°72.0°72.0°72.0°72.0°
Head Tube Length3.691.03.691.03.691.03.691.04.0102.04.8121.05.6141.06.3160.07.1180.07.9200.0
Seat Tube Length16.5420.018.1460.019.7500.020.5520.021.3540.022.0560.022.8580.023.6600.024.4620.026.2665.0
BB Drop2.666.02.666.02.666.02.666.02.666.02.666.02.666.02.666.02.666.02.666.0
Wheelbase39.0989.839.1991.939.61005.239.61005.939.91014.340.11019.740.51029.941.11044.741.51054.742.31074.6
Chainstay Length16.5420.016.5420.016.7425.016.7425.016.7425.016.7425.016.7425.016.7425.016.7425.016.7425.0
Top Tube Length, Actual19.9505.020.3515.021.1535.121.5545.122.0559.922.4569.922.8579.823.6599.824.0609.924.8630.0
Top Tube Length, Effective20.6522.020.8528.821.3541.821.5547.122.0560.022.4570.022.8580.023.6600.024.0610.024.8630.0
Seat Tube Angle75.0°74.5°74.0°73.5°73.0°72.5°72.5°72.0°72.0°72.0°
Standover Height29.4747.930.2766.730.9784.431.3794.431.980932.5826.733.3845.934.0863.434.7882.235.5901.8
Stem Length2.8703.1803.1803.91003.91003.91004.71204.71204.71204.7120
Stem Angle
Handlebar Width15.740015.740015.740016.542016.542017.344017.344018.146018.146018.1460
Crank Length6.71706.71706.71706.71706.91756.91756.91756.91756.91756.9175
Fork Length15.7400.015.7400.015.7400.015.7400.015.7400.015.7400.015.7400.015.7400.015.7400.015.7400.0
Fork Rake1.744.01.744.01.744.01.744.01.744.01.744.01.744.01.744.01.744.01.744.0

* Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø717mm (Surly 700x41 Knard)

Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Fork Construction

4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated

Rear Dropout Configuration

Semi-horizontal

Rear Hub Spacing

"Gnot-rite" 132.5mm

10 x 130mm or 10 x 135mm

Front Hub Spacing

10 x 100mm

Rear Brake

Rim - Canti (removable posts)

Front Brake

Rim - Canti (removable posts)

Head Tube

Ø34mm

Steerer Tube

Ø28.6mm (1-1/8")

Crown Race

Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S.)

EC34/28.6

Stock Headset Lower (S.H.I.S.)

EC34/30

Seat Collar

Ø30mm

Seatpost

Ø27.2mm

Front Derailleur (Clamp)

Bottom-pull (Ø28.6mm)

Max Chainring (CL)[3]

1x (Road): 50T

2x (Road): 39/53T

Bottom Bracket

68mm threaded (1.37" x 24TPI)

Tire Clearance Frame [1][2]

700c x 42mm with or without fenders

Tire Clearance Fork [1]

29 x 2.0" with or without fenders

Rigid Fork Spec

400 x 44mm

Max Suspension Fork Length [4]

N/A

Bottle Mounts Frame

2 Standard

Bottle Mounts Fork

N/A

Rack Mounts Frame

Yes (upper and lower threaded)

Rack Mounts Fork

Yes (upper and mid-blade threaded)

Fender Mounts Frame

Yes

Fender Mounts Fork

Yes

Other Features

Downtube mounted shifter bosses

[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3] Listed chainring clearance is worst case scenario.  Clearances vary widely depending on components and configurations.
[4] Suspension fork length listed at full extension (not at sag)
