Sometimes the only way to break the humdrum of life is with a bike ride off the beaten path. Sometimes just for a quick overnighter, sometimes a month and half fully-loaded through nine countries. ECR is our answer to those sometimes.

As our flagship bikepacking rig, ECR is adaptable to frame bags for the minimalist approach, as well as racks and bags to maximize gear hauling potential. ECR is most at home when your tour starts on dirt and gets more technical from there.

  • Two wheel platforms available: 27.5+ for frame sizes XS–M and 29+ for M–XL
  • All the accessory barnacles you could ever possibly ask for including rack and fender, multiple three-pack mounts and mid-blade.
  • Gnot-Boost rear spacing with Rohloff torque arm slot and Bill/Ted trailer mount
  • Clearance for 27.5" x 3" (XS–M) or 29” x 3” (M–XL) tires

Specifications

2018 ECR 29 Geometry
units:

Select a few bike sizes to compare.

SIZE XS S M
Reach 15.2 385.0 15.7 398.0 16.2 410.5
Stack 21.9 556.0 22.8 579.5 23.7 603.0
Head Tube Angle 69.0° 69.0° 69.0°
Head Tube Length 3.5 90.0 4.5 115.0 5.5 140.0
Seat Tube Length 13.6 346.4 16.0 406.4 18.0 457.2
BB Drop 2.4 60.0 2.4 60.0 2.4 60.0
Wheelbase 41.4 1052.3 42.3 1074.0 43.1 1096.0
Chainstay Length 17.1 435.0 17.1 435.0 17.1 435.0
Top Tube Length, Actual 21.1 536.3 21.5 547.0 22.2 563.1
Top Tube Length, Effective 21.9 555.0 22.6 575.0 23.4 595.0
Seat Tube Angle 73.0° 73.0° 73.0°
Standover Height 28.6 726.0 30.2 766.0 31.6 802.0
Stem Length 2.36 60 2.36 60 2.75 70
Stem Angle 6° 6° 6°
Handlebar Width 29.9 685 29.9 685 28.9 735
Crank Length 6.7 170 6.7 170 6.9 175
Fork Length 17.6 447.0 17.6 447.0 17.6 447.0
Fork Rake 1.7 43.2 1.7 43.2 1.7 43.2

*1 Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø735mm *2 St angle is the effective ST angle.

Select a few bike sizes to compare.

SIZE xSmall (14) Small (16) Medium (18) Large (20) xLarge (22) xxLarge (24)
Reach 15.1 384.2 15.7 398.5 16.4 416.1 17.1 433.8 17.2 436.7 17.6 447.6
Stack 23.3 591.5 23.5 596.2 23.8 605.5 24.2 614.9 24.8 628.9 25.3 643.0
Head Tube Angle 69.5° 69.5° 69.5° 69.5° 69.5° 69.5°
Head Tube Length 3.3 85.0 3.5 90.0 3.9 100.0 4.3 110.0 4.9 125.0 5.5 140.0
Seat Tube Length 14.0 356.5 16.0 406.4 18.0 457.2 20.0 508.0 22.0 558.8 24.0 609.6
BB Drop 3.1 80.0 3.1 80.0 3.1 80.0 3.1 80.0 3.1 80.0 3.1 80.0
Wheelbase 42.1 1069.5 42.7 1085.5 43.6 1106.6 44.4 1127.8 44.7 1136.0 45.4 1152.2
Chainstay Length 17.8 451.0 17.8 451.0 17.8 451.0 17.8 451.0 17.8 451.0 17.8 451.0
Top Tube Length, Actual 21.3 542.0 21.6 547.4 22.2 562.8 22.9 582.4 23.5 597.2 24.3 618.3
Top Tube Length, Effective 22.0 560.0 22.6 575.0 23.4 595.0 24.2 615.0 24.8 630.0 25.4 645.0
Seat Tube Angle 72.5° 72.5° 72.5° 72.5° 72.5° 72.5°
Standover Height 28.3 717.6 29.7 753.4 31.1 789.0 32.4 822.7 33.7 855.7 35.0 889.0
Fork Length 18.4 468.0 18.4 468.0 18.4 468.0 18.4 468.0 18.4 468.0 18.4 468.0
Fork Rake 1.9 47.0 1.9 47.0 1.9 47.0 1.9 47.0 1.9 47.0 1.9 47.0

All dimensions are preliminary and subject to change *1 Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø775mm *2 St angle is the effective ST angle.

Select a few bike sizes to compare.

SIZE M L XL
Reach 16.1 408.0 16.6 420.5 17.0 433.0
Stack 24.0 609.5 24.9 633.0 25.8 656.5
Head Tube Angle 70.0° 70.0° 70.0°
Head Tube Length 3.9 100.0 4.9 125.0 5.9 150.0
Seat Tube Length 18.0 457.2 20.0 507.9 22.0 558.7
BB Drop 3.1 80.0 3.1 80.0 3.1 80.0
Wheelbase 42.9 1090.0 43.7 1111.0 44.6 1132.5
Chainstay Length 17.8 451.0 17.8 451.0 17.8 451.0
Top Tube Length, Actual 22.1 560.5 22.8 580.0 23.6 600.0
Top Tube Length, Effective 23.6 600.0 24.4 620.0 25.2 640.0
Seat Tube Angle 72.5° 72.5° 72.5°
Standover Height 31.7 805.0 33.1 840.0 34.4 875.0
Stem Length 2.8 70 2.8 70 3.1 80
Stem Angle 6° 6° 6°
Handlebar Width 28.9 735 28.9 735 28.9 735
Crank Length 6.9 175 6.9 175 6.9 175
Fork Length 18.4 468.0 18.4 468.0 18.4 468.0
Fork Rake 1.7 43.0 1.7 43.0 1.7 43.0

*1 Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø775mm *2 St angle is the effective ST angle.

Tubing

Surly 4130 CroMoly steel. Custom double-butted trumpet tube main triangle. TIG-welded. ED coated.

Rear Dropouts

Beige Pantsuit and Blacktacular:

Horizontal slotted with derailleur hanger; Surly “Gnot Boost” 135, 142, or 148mm hub spacing compatibility, Features Rohloff torque arm slot and threaded eyelets for fenders, racks and Surly trailer mounts.

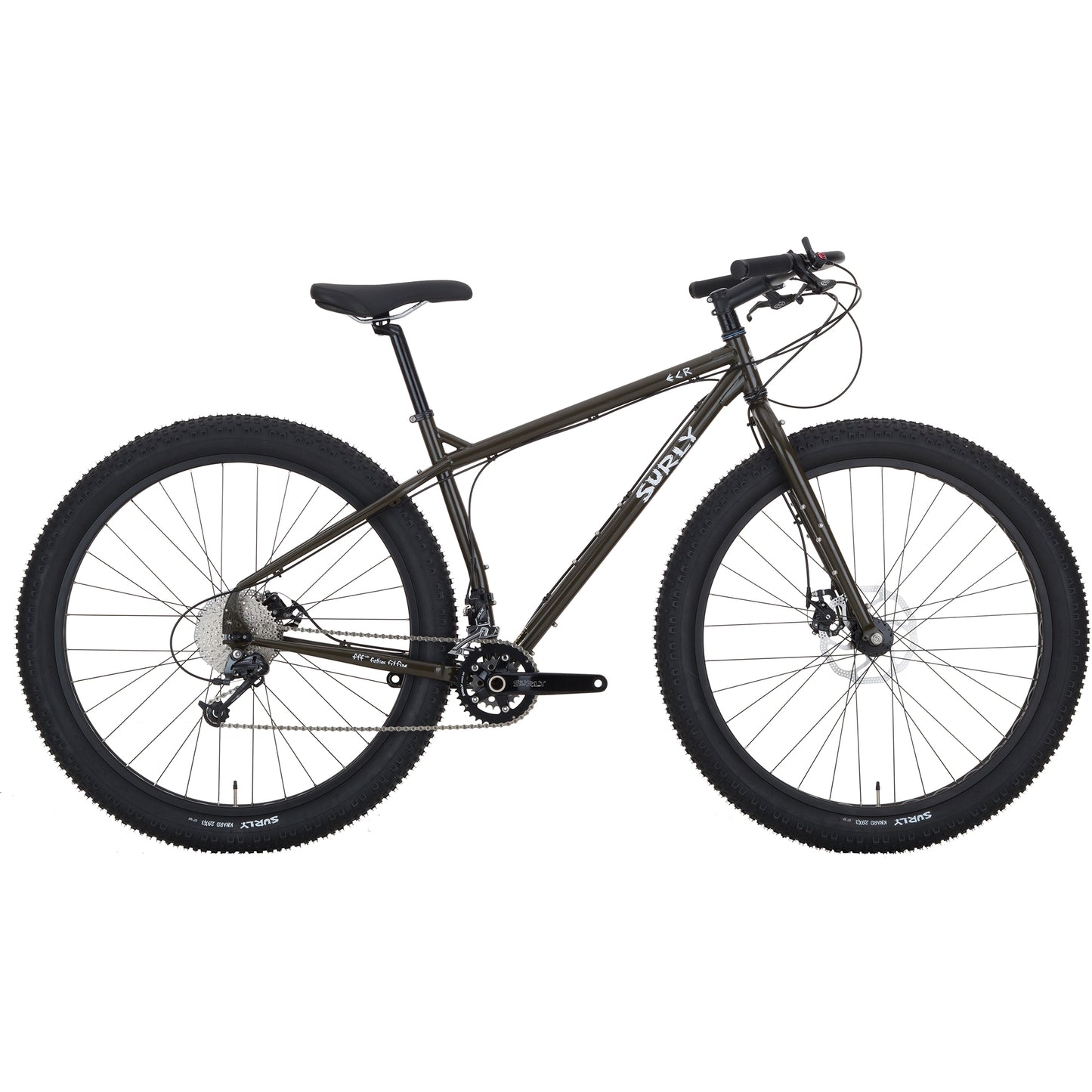

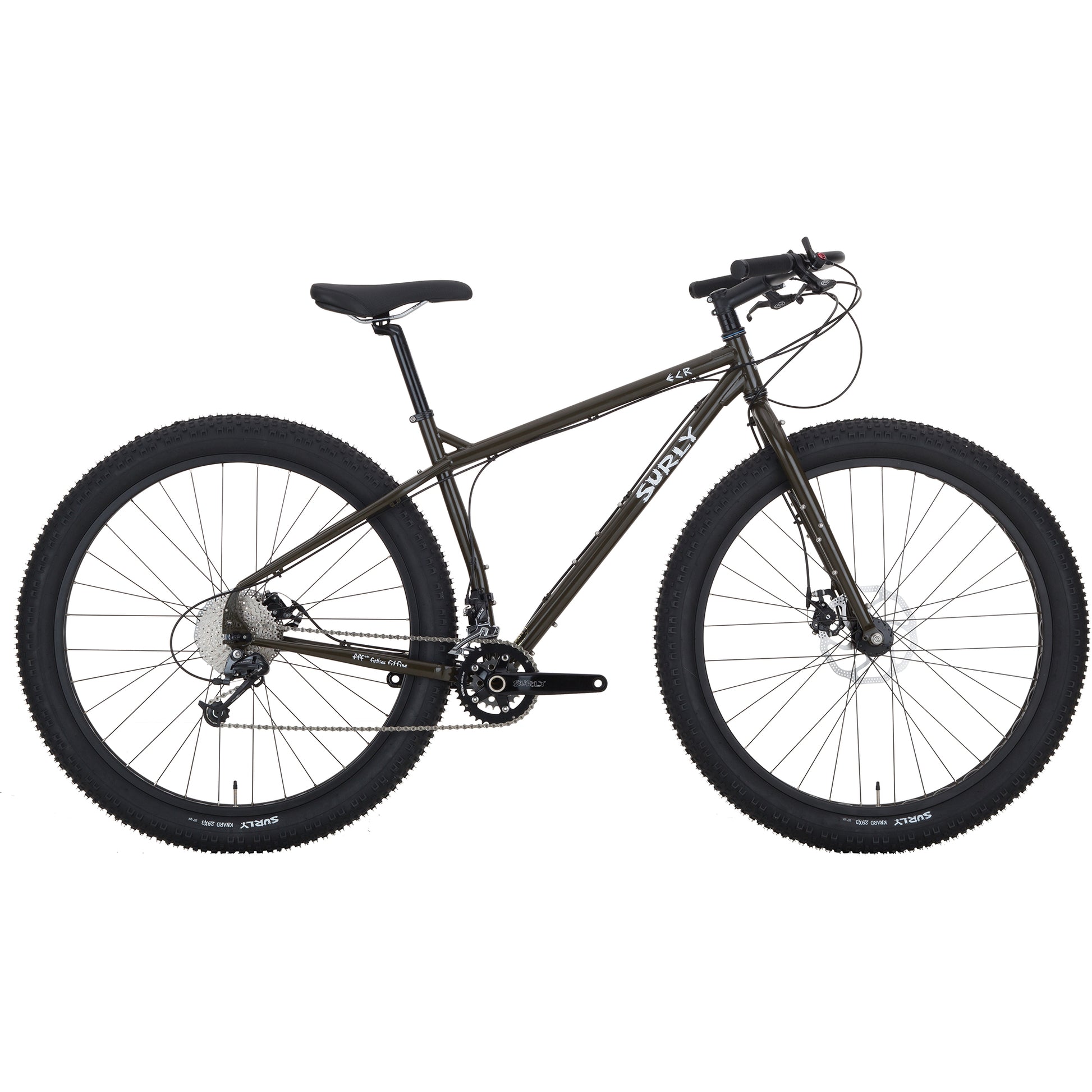

MRE Green:

Horizontal slotted with derailleur hanger, 135mm O.L.D. Features Rohloff torque arm slot and threaded eyelets for fenders, racks and Surly trailer mounts.

Brake Compatibility

51mm I.S. disc calipers (Max rotor size 160mm rear with Surly brake adapter, 203mm front)

Braze-ons/extras

Beige Pantsuit and Blacktacular:

XS–M (27.5+) has two triple bottle-mounts. M–XL (29+) has two water bottle mounts and one triple bottle-mount. Surly Trip Guide full line guides for brake and derailleurs, fender and rack eyelets.

MRE Green:

Two water bottle mounts on XS–M, three water bottle mounts on L–XXL, Surly Trip Guide full line guides for brake and derailleurs, fender and rack eyelets.

Seatpost Diameter

27.2mm

Seatpost Clamp Diameter

30.0mm (Surly stainless included)

Headset/Steerer Tube

1-1/8" threadless

Front Derailleur Clamp Diameter

Beige Pantsuit and Blacktacular:

28.6mm, High direct-mount standard, clamp adapter included

MRE Green:

31.8mm, High direct-mount standard, clamp adapter included

Bottom Bracket Shell

73mm shell width, threaded standard English (1.37" x 24t)

Chainring Clearance

Triple 22/34/44t, Double 26/39t, Max single ring clearance, middle position, 34t. Outer position 44t. (Triple will only work with 2.5" tires or smaller)

Tire Clearance

29+ is 29 x 3.0" (with fenders)

27.5+ is 27.5 x 3.0" (with fenders)

Individual tire and rim combos affect tire clearance

Fork

TIG-welded custom-butted 4130 CroMoly, non-suspension corrected, 1-1/8" steerer tube, 203mm disc brake clearance

Thru Axle

HU0134 Surly 12x142/148 Rear Thru Axle

Colors

Norwegian Cheese Brown

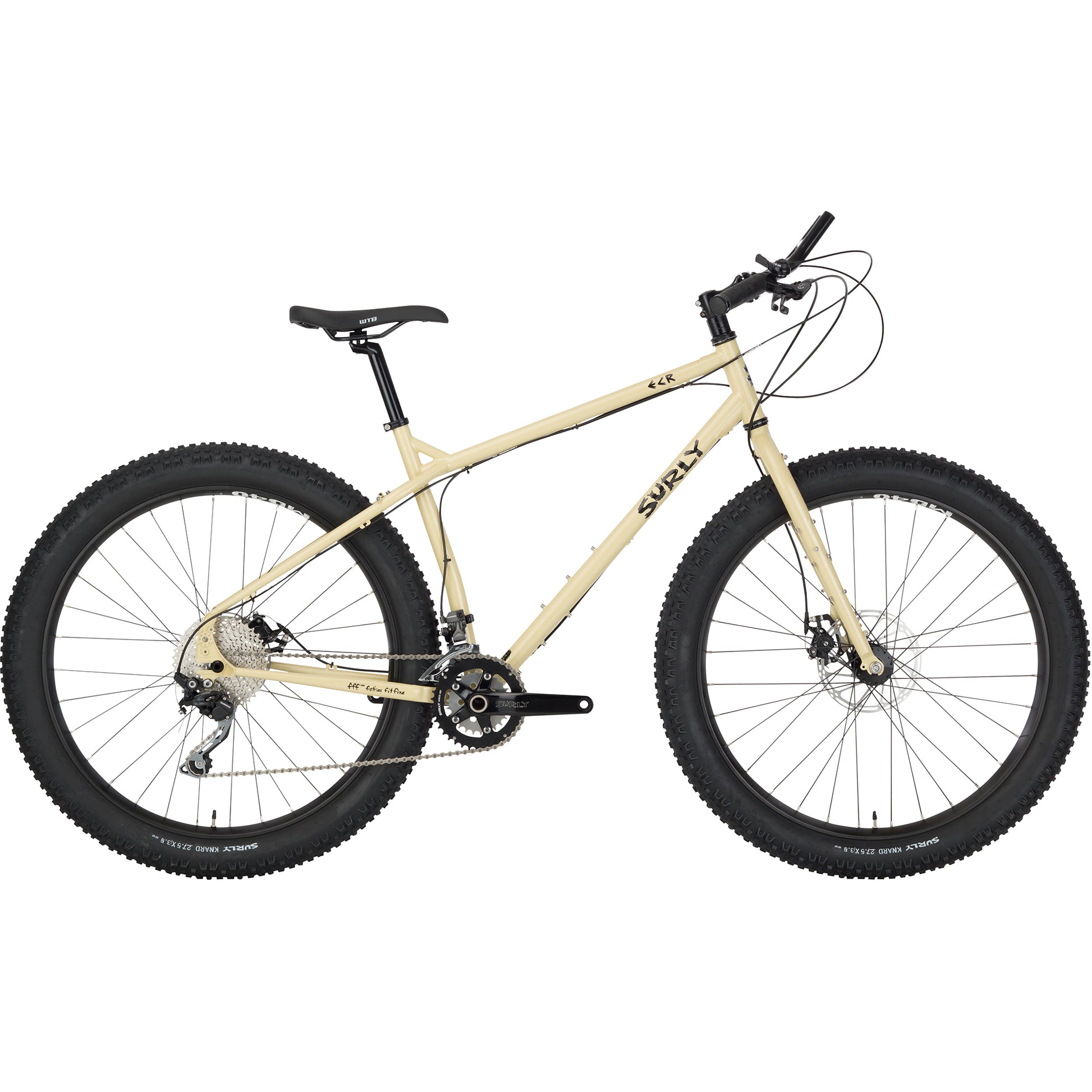

Beige Pantsuit

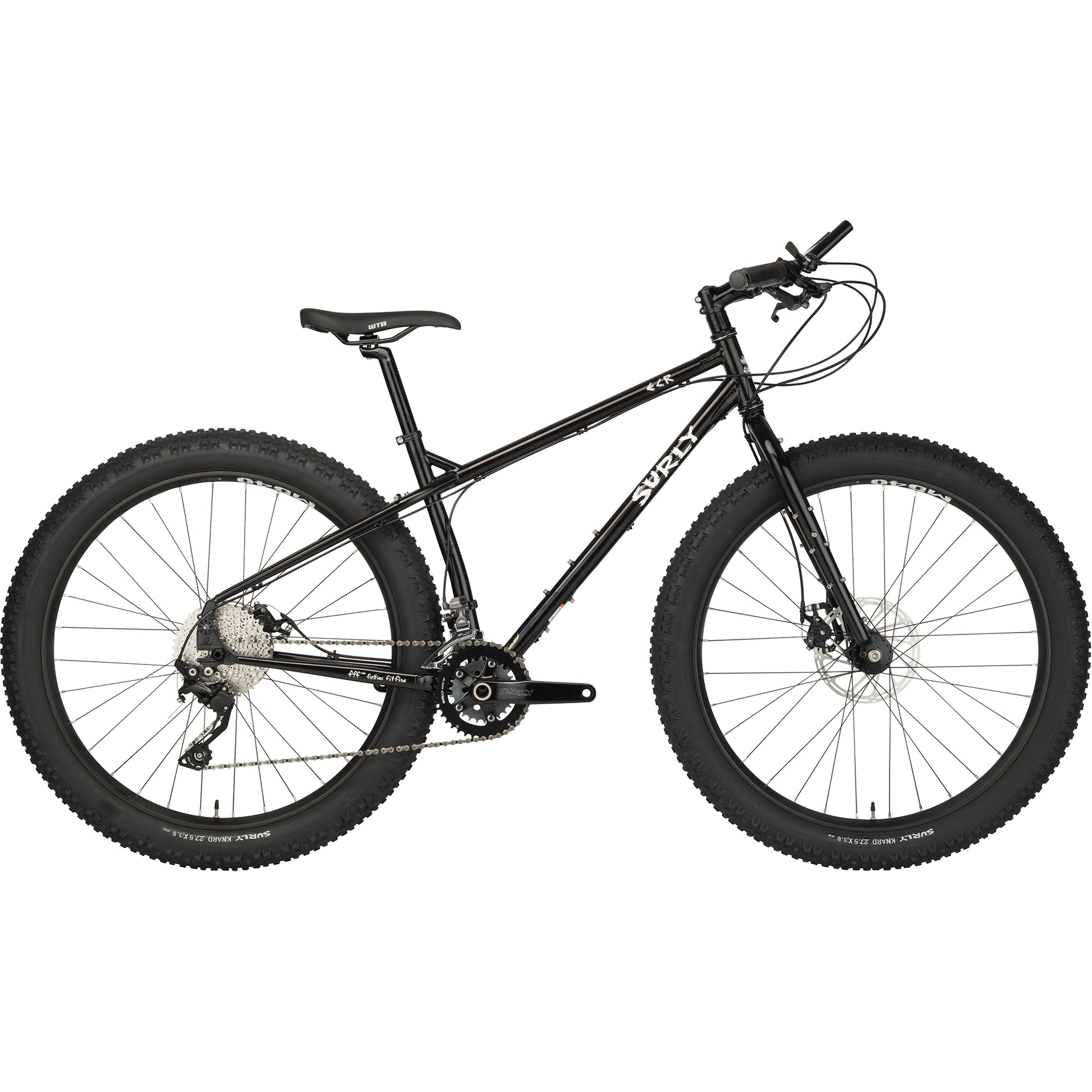

Blacktacular

MRE Green

Support

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and workmanship for three years from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.

This warranty does NOT cover the following:

  • Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
  • Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
  • Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
  • Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
  • Normal wear and tear
  • Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
